Page 2

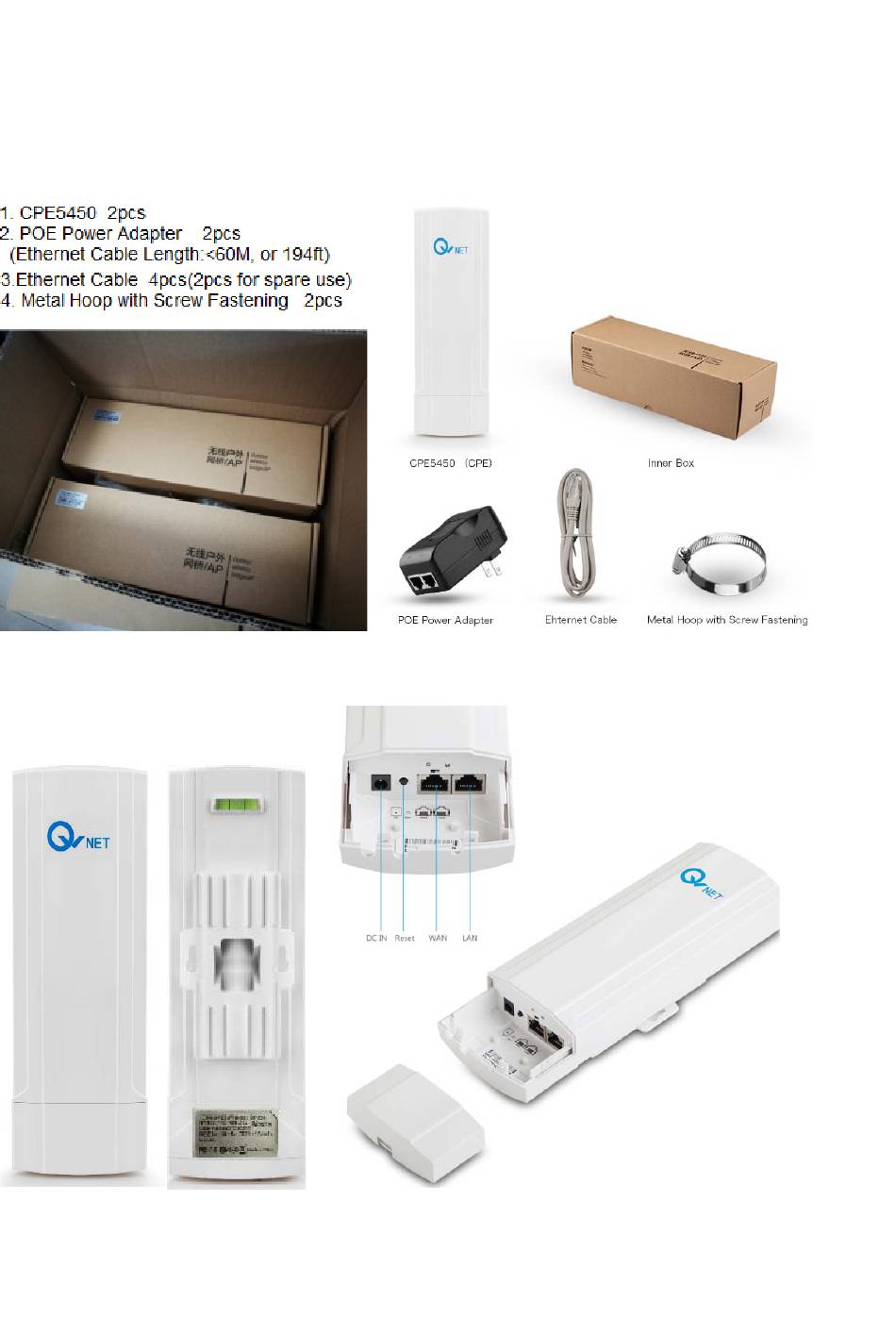

S CPE (Slave CPE) M CPE (Master CPE) Strength LEDs...
Page 3
1.Preparation for installation: 1-0 Shake the devices (CPE5450) separately, to check if the device is damaged from shipment, if you can hear some noise from inside of the device, and you suspect it maybe PCBA board loosened, please contact us, we will help check if you need a replacement.
Page 4
1-2-1 Ensure you know the CPE kit are ready for installation This step is to verify wireless connection between both CPE5450 (both Master and Slave), to make sure they are pre-configured and can talk each other, It also helps you to be familiar with the product and prevent any defectiveitem caused by delivery or by other reason etc.
Page 5
1-2-1-2 Use Ethernet cable to connect WAN port of CPE5450 Master(1#) to LAN port of Wi-Fi Router CPE5450 1# Master 1-2-1-3 Use Ethernet cable to connect POE port of power adapter to WAN port of CPE5450 Slave (2#) CPE5450 2# Slave...
Page 6
1-2-1-5 Set range between CPE5450 Master(1#) and CPE5450 Slave(2#) : 3 meters is recommended, without obstacle between 2 CPEs 1-2-1-6 Turn on all equipment, especially check as below to see if 2 CPE5450 are turning on, wait for 1 minute Light is on...
Page 7
Flash 1-2-1-8 Ping IP address of the Wi-Fi router (some is:192.168.1.1 or 192.168.0.1) on the PC You could find IP of router on label (normally located on bottom of the router), following example is for your reference Following is 192.168.1.1 , Win7 OS for example. A.
Page 8
1-2-2 The default password for the device is : 66666666 1-2-3 IP address for another CPE, M (Master) CPE5450 is: 192.168.188.252, and IP address for S(Slave) CPE5450 is :192.168.188.253, so you could log into the device via page to change SSID and password of the device.
Page 9
Changing SSID and password Step 1-Click Wi-Fi Settings Step 2-Change SSID and password...
If devices you have are in same mode, like both devices are in S mode (Slave) or in M mode (Master), you could neglect this step and proceed to step 2-1. Sketch Diagram CPE5450 CPE5450 Recommended range between 2 CPE5450 is 3 meters...
Page 11
PC (Notebook) 1 set POE Power Adapter 2pcs(Ethernet Cable Length:<60M, or 194ft) Ethernet Cable 3pcs 1-3-2-1 Connect CPE5450 Slave to PC and power adapter as following: To PC To POE Power Adapter 1-3-2-2 Connect CPE5450 Master to power adapter as following:...
Page 12
1-3-2-3 Set range between CPE5450 Slave and CPE5450 Master: 3 meters(around 10 foot) is recommended, without obstacle between 2 CPEs : 1-3-2-4 Turn on all equipment, especially check as below to see if 2 CPE5450 are turning on, wait for 1 minute...
Page 13
1-3-2-6 Set IPv4 IP address or IPv6 IP address of the PC to “192.168.188.22”(or 192.168.188.11 etc.), A. B- C. Left click “Change Network Adapter Setting” D.Set IPv4 IP address or IPv6 IP address of the PC to “192.168.188.22”(or 192.168.188.11 etc.),...
Page 14
1-3-2-7 Ping “192.168.188.252 -t” Following is Win7 OS for example A. Click “Windows” icon B. Input command “ping 192.168.188.252 -t” C. Click “enter” to Ping 192.168.188.252 -t Following messages indicates one CPE5450 device(Master) is working well.
Page 15
1-3-2-8 Ping “192.168.188.253 -t” A. Click “Windows” icon B. Input command “ping 192.168.188.253 -t” C. Click “enter” to Ping 192.168.188.253 -t The CPE devices are working ok. (Don’t forget to change IPV4 setting back to “Automatically assign the IP address” on your computer after the test.) 1-3-3 Remarks: Please be kindly noted that currently the devices don’t support cell phone (i.c.
Page 16
DVR/NVR 1pcs Ethernet Cable 4pcs 1-4-1 Use Ethernet cable to connect WAN port of CPE5450 1# (either Master or Slave) to IP camera 1-4-2 Use Ethernet cable to connect LAN port of CPE5450 1# to POE port of power adapter...
Page 17
1-4-4 Use Ethernet cable to connect WAN port of CPE5450 2# to NVR/DVR 1-4-5 Turn on all equipment, especially check as below to see if 2 CPE5450 are turning on, wait for 1 minute, then you could see video of camera on monitor...
Page 18
2-2 Use Ethernet cable to connect switch to CPE5450 1# 2-3 Use Ethernet cable to connect LAN port of CPE5450 2# to POE port of power adapter 2-4 Use Ethernet cable to connect WAN port of CPE5450 2# to NVR/DVR...
Page 19
3. Use metal hoop with screw fastening to fasten the device Counterclockwise Counterclockwise Rotation Rotation...
