DMP Electronics 763 Installation Manual

763 WI-FI MODULE

Installation Guide

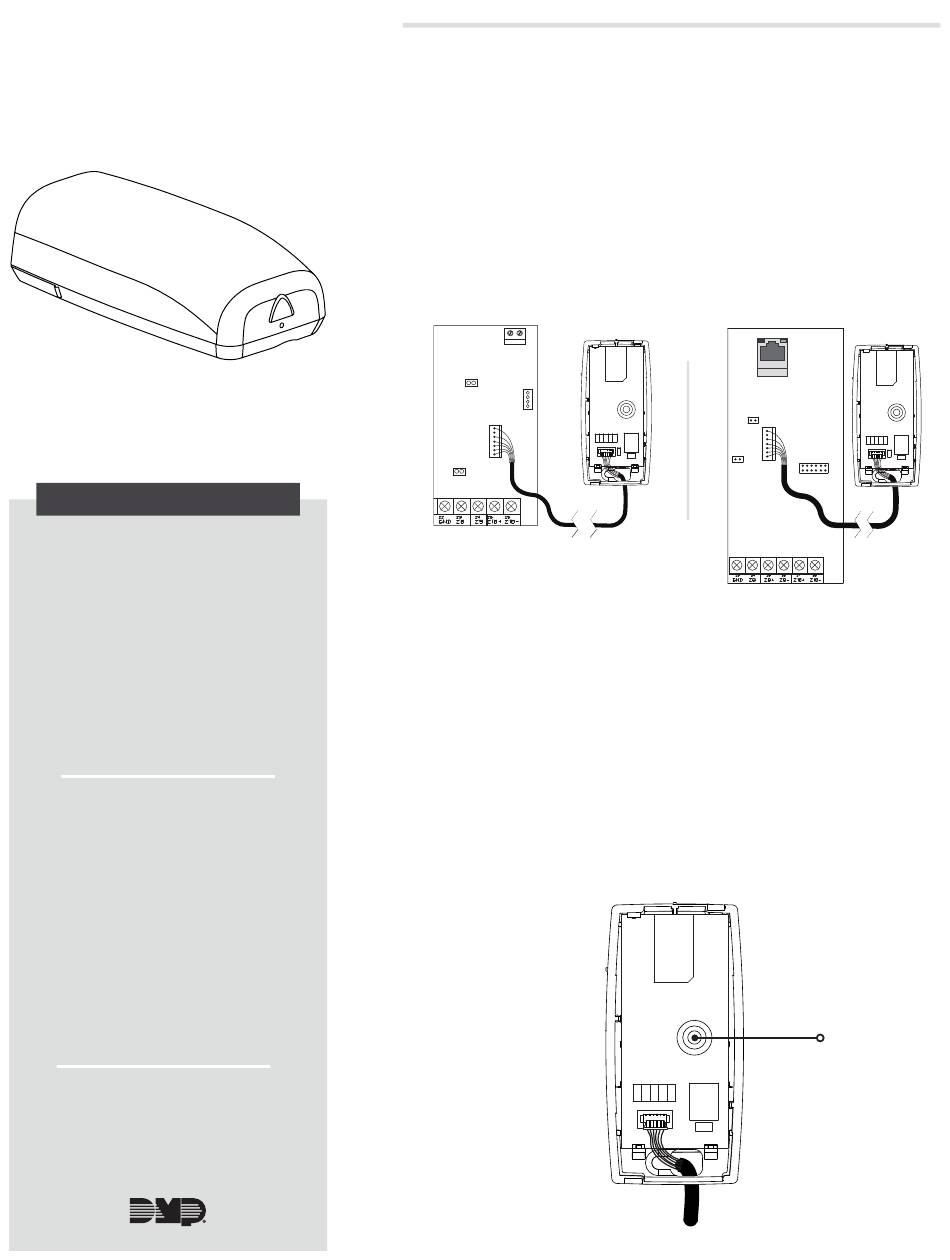

Figure 1: 763 Wi-Fi Module
DESCRIPTION
The 763 Wi-Fi Module allows
you to add Wi-Fi alarm signal
communication to XT30/XT50
Series and XR150/XR550 Series
panels.
The 763 connects to compatible
panels using the included cable and
operates at 12VDC from the panel
power supply.
The 763 also provides a green LED
that displays to indicate successful
network connection.
Compatibility
• All DMP XT30/XT50 Series
control panels with Version 124
firmware or higher and Level L
hardware or newer.
• All DMP XR150 Series control
panels with Version 112 firmware
or higher and Level F hardware or
newer.
• All DMP XR550 Series control
panels with Version 112 firmware
or higher.
• 2.4 GHz b/g/n
What is Included?
• One 763 Wi-Fi Module PCB in a
Two-Part Housing
• One 3' Cable
1
CONNECT THE 763
1. Remove power from the panel.
2. Remove the 763 cover by pressing the triangle-shaped
button at the end of the 763. See Figure 1.
3. Connect the included 3' cable to the 6-pin header on the
763.
4. Route the other end of the cable through the 763 cut-out
then through the panel enclosure box, and connect it to
the EXP header on the panel. See Figures 2 and 3.
OUTPUTS
LOAD
EXP
RESET
Figure 2: 763 to an XT30/XT50
Series Panel
2
MOUNT THE 763
Avoid mounting the 763 near metal objects or inside a metal
enclosure. Select a dry place to protect the 763 from environmental
elements.
1. With the 763 open and connected to the panel, hold the
transmitter base containing the 763 PCB in the desired
location.
2. Use the supplied screw to secure the base to a surface. See
Figure 4.
3. Snap the 763 cover back onto the base.
1
2
3
4
Figure 4: Mount the 763
ETHERNET
LOAD
RESET
CELL MODULE
EXP
Figure 3: 763 to XR150/XR550
Series Panel
Mounting
Hole
