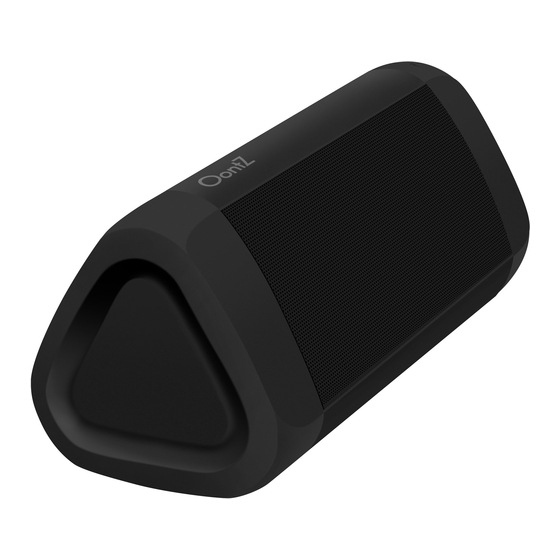

Summary of Contents for Cambridge Sound Works Oontz Angle 3 Plus

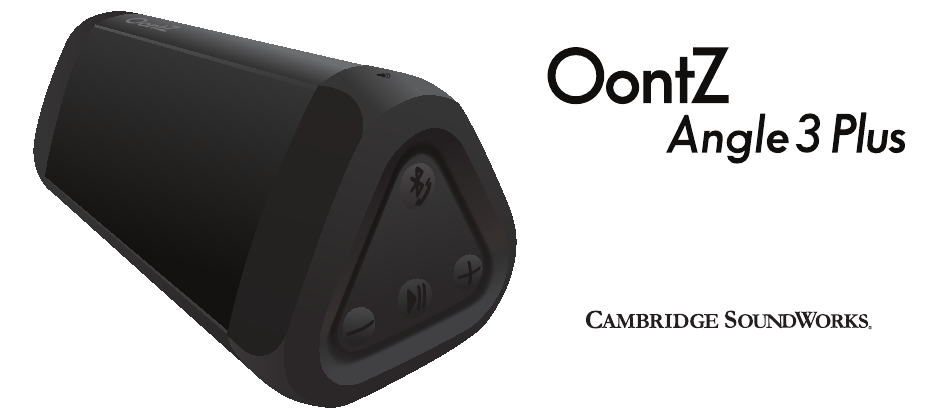

- Page 1 Ultra-Portable Bluetooth Speaker Quick Start Guide Designed and Engineered By TheOontZ.com...
-
Page 2: Table Of Contents
Pairing & Connecting -- From Your Apple Mac or Windows Computer Playing From Your Chromebook, Laptop, Computer & Non-Bluetooth Devices Using the 3.5mm Audio Cable IPX5 Water Resistant Wireless Hands Free Personal Speakerphone Troubleshooting & Customer Support 12 - 14 Resetting Your OontZ Angle 3 Plus Safety and Precautions... -
Page 3: In The Package
In the Package Micro USB Charging Cable 3.5mm Audio Cable Quick Start Guide Page 1... -
Page 4: Play Controls
Press and Hold Down for 2 Seconds Note: The volume on the OontZ Angle 3 Plus and your source device both need to be set to the highest level for the loudest volume. The volume controls on your source device and speaker work independently of each other. -
Page 5: Led Lights And Connectors
LED Lights and Connectors Charging LED Light (Red) (LED visible when connected to a charging source and when battery charge is low) Built-in Mic for Speakerphone Rubber Flap (lifts up from top) Bluetooth LED Light (Blue) (LED is only visible when speaker is turned on) AUX IN Jack (located under rubber flap) -
Page 6: Charging The Battery
Charging the Battery Charging LED Light (Red) To charge the battery: The lithium ion rechargeable battery comes with a partial charge and is Step 1: Pull down the rubber flap from the top ready to play. For maximum to access the Micro USB Charging Connector. playtime, fully charge the Step 2: Insert the smaller end of the Micro battery. - Page 7 Charging the Battery (continued) Play While Charging Low Charge Remaining You can play the OontZ Angle 3 Plus When the battery charge is while it is charging. down to about 15% the Charging LED Light (Red) will begin flashing Red and will Power Saving Feature remain flashing until the...
-
Page 8: Turning On And Off
Turning On and Off Bluetooth LED Light (Blue) (LED is only visible when speaker is turned on) Power Button Turn ON Press and Release the Power Button - The Blue light will come on and will either be: Flashing Blue the speaker is in pairing mode and ready to connect, or Solid Blue the speaker is connected to a source device and ready to play... -
Page 9: Pairing & Connecting
8. Note: The OontZ Angle 3 Plus will automatically try to connect to the last source device it was connected to each time it is turned on and that source device is within range. -
Page 10: Pairing & Connecting -- From Your Mobile Device
- The Bluetooth LED Light (Blue) will turn solid blue - The Bluetooth LED Light (Blue) will turn solid blue - You can now play your audio wirelessly to your OontZ Angle 3 Plus - You can now play your audio wirelessly to your... -
Page 11: Playing From Your Chromebook, Laptop, Computer & Non-Bluetooth Devices Using The 3.5Mm Audio Cable
You are now ready to play. - Note: The Bluetooth on the OontZ Angle 3 Plus is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth source device. -
Page 12: Ipx5 Water Resistant
IPX5 rating - The OontZ Angle 3 Plus can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speaker - Note: The rubber flap needs to be closed to keep the speaker water resistant. -
Page 13: Wireless Hands Free Personal Speakerphone
Wireless Hands Free Personal Speakerphone To answer an Incoming Call / To End a Call Press and Release the Bluetooth Button To Reject an Incoming Call Bluetooth Button Press and Hold Down the Bluetooth Button for 3 Seconds (Dual Function) The Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones for cell phone calls only. -
Page 14: Troubleshooting & Customer Support
• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker. • Check the Bluetooth LED light (Blue) to make sure it is flashing. If it is solid blue the OontZ Angle 3 Plus is already connected to another source device. - Page 15 For iPhone, iPad, iPod • Turn off the OontZ Angle 3 Plus speaker, go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle 3 Plus is listed. If it listed press the icon next to the OontZ Angle 3 Plus and then forget this device, twice.
- Page 16 • Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15. • Remove the OontZ Angle 3 Plus from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.
-
Page 17: Resetting Your Oontz Angle 3 Plus
Step 1: Remove the Micro USB charging cable and 3.5mm Audio cable, if connected Step 2: Turn on your OontZ Angle 3 Plus Step 3: Insert either a toothpick or straightened paper clip into the AUX IN jack until it makes contact with the micro switch. -
Page 18: Safety And Precautions
Safety and Precautions 1. Follow all instructions – All operating and use instructions should be followed. 2. Do not use this speaker near water while plugged in for charging, due to risk of electric shock. 3. Do not charge when wet. 4.
