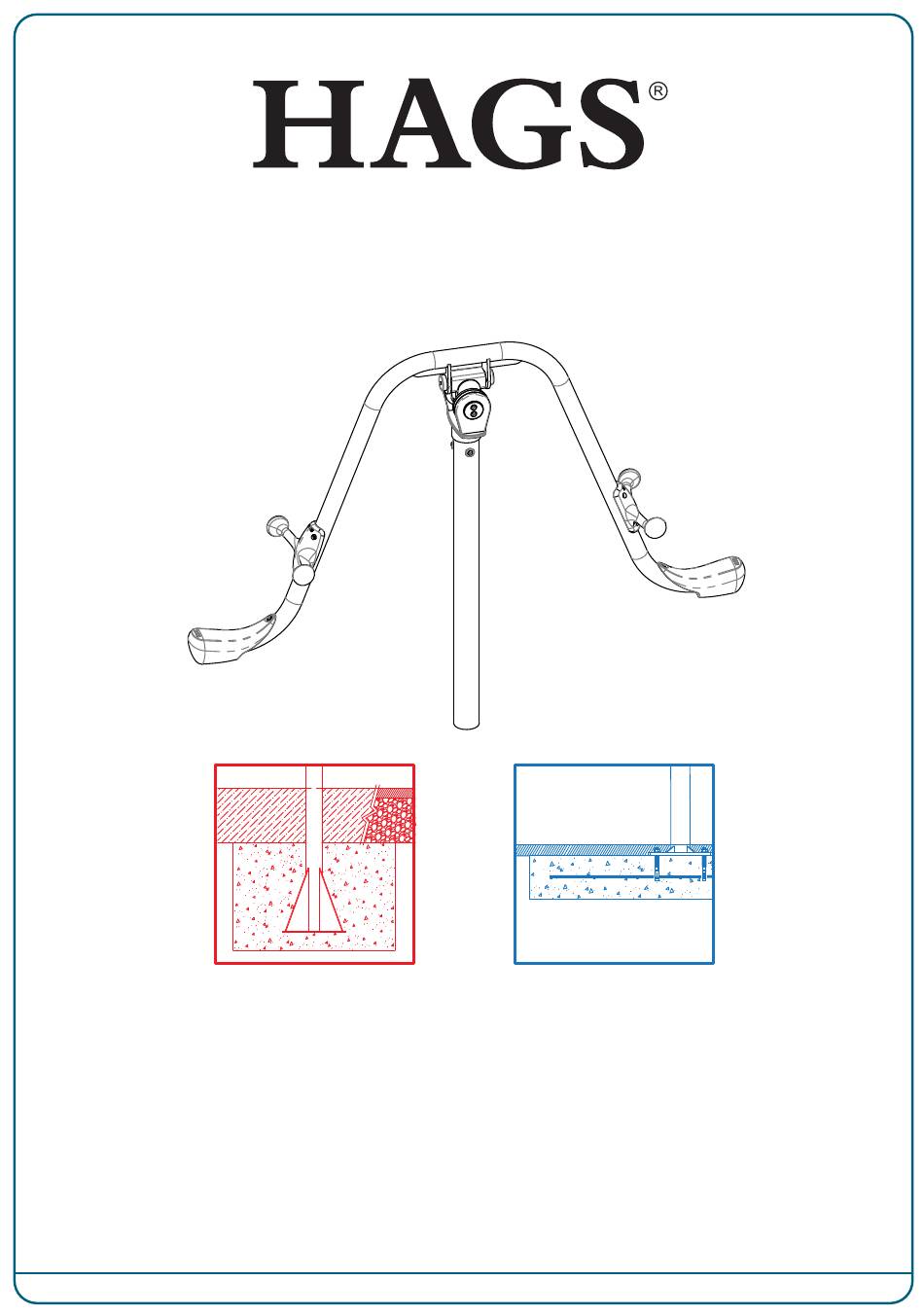

- Page 1 Installation Instructions SWINGO H8057040 H8057041 H8057071 H8057072 H8058120 H8058121 © Playpower Inc E-post:hags@hags.com www.hags.com Swingo Issue B 30/05/2017 1/18...
- Page 2 H8057040 H8057041 H8057071 H8057072 ITEM PART H8058120 H8058121 71501003 47.00 71501005 32.00 71501012 24.00 38001019 0.02 10121020 0.02 M10 x 20 8008560 0.24 M16 x 145 10121000 TX45 - M10 10120600 TX30-M6 Swingo Issue B 30/05/2017 2/18...
- Page 3 T = 5hr H8057071= 79 1.98 x 0.38 x 1.49 H8057072= 71 1.98 x 0.38 x 1.49 H8058120= 79 1.98 x 0.38 x 1.49 H8058121= 71 1.98 x 0.38 x 1.49 5400 2400 1500 1978 22.9m² Swingo Issue B 30/05/2017 3/18...
- Page 4 EN1176 H=0.9m TYPE 1, 2 TYPE 3 Synthetic TYPE 5 Grassmat 900 x 900 TYPE 3 Synthetic >1400 x 1400 Swingo Issue B 30/05/2017 4/18...
-
Page 5: Type
C/L of Ø10.2mm (x3) TYPE 1, 2 TYPE 3 Synthetic TYPE 5 Grassmat S2 (50mm) 7 x 24h 900 x 900 STEP 1b 100 Nm! TYPE 3 >C20/25 Synthetic S1 - S3 2 x 24h A252 Swingo Issue B 30/05/2017 5/18... - Page 6 STEP 3 STEP 2 2 / 3 STEP 4 2 / 3 STEP 5 20 - 25 Nm! Swingo Issue B 30/05/2017 6/18...
- Page 7 Appendix A: 71501003 ITEM PART 71503014 24.00 71504022 0.83 71504023 1.27 71504015 0.14 10251017 M10 x 170 Swingo Issue B 30/05/2017 7/18...
- Page 8 Appendix A: 71501003 ITEM PART 71504016 0.04 10120620 0.01 M6 x 20 71501007 18.00 STEP 1 STEP 2 STEP 3 3/8” Ø22 - <24mm 16 - 17mm A/F 63 - 71 Nm! 5.5 - 10 Swingo Issue B 30/05/2017 8/18...
- Page 9 Appendix B: 71501007 ITEM PART 71504019 7.19 502509 0.02 71504012 2.08 10080612 0.01 M6 x 12 71504013 0.17 10291000 0.01 10121030 0.03 M10 x 30 71501006 8.25 71504021 0.01 Swingo Issue B 30/05/2017 9/18...
- Page 10 Appendix B: 71501007 STEP 1 INCL INKL STEP 2 STEP 3 STEP 4 STEP 5 20 - 25 Nm! 5.5 - 10 Swingo Issue B 30/05/2017 10/18...
- Page 11 Appendix C: 71501006 ITEM PART 71503002 7.39 71504007 0.52 71504008 0.16 71504020 0.03 71504009 0.09 10321200 0.01 10120620 0.01 M6 x 20 10260600 0.01 Swingo Issue B 30/05/2017 11/18...
- Page 12 Appendix C: 71501006 STEP 1 STEP 2 35 - 55 Nm! 5.5 - 10 Swingo Issue B 30/05/2017 12/18...
- Page 13 Appendix D: 71501010 ITEM PART 71504022 0.83 8008830 0.01 8008463 0.02 M8x25 STEP 1 STEP 2 3x @ Ø7mm MAX. STEP 3 20 - 25 Nm! Swingo Issue B 30/05/2017 13/18...
- Page 14 Appendix E: 71501011 ITEM PART 71504023 1.27 8008463 0.02 M8x25 STEP 1 STEP 2 4x @ Ø7mm MAX. STEP 3 20 - 25 Nm! Swingo Issue B 30/05/2017 14/18...
-
Page 15: Type
Appendix F: EN1176 TYPE 1 & 2 - H=0.9m TYPE 3 & 5 - H=0.9m 5400 4070 L1 = L2 W1=W2 Swingo Issue B 30/05/2017 15/18... - Page 16 Appendix G: EN1176 H=0.9m 1630 5560 TYPE 1, 2 1600 5460 TYPE 3 Synthetic Swingo Issue B 30/05/2017 16/18...
- Page 17 Appendix G: EN1176 H=0.9m 6000 TYPE 5 Grassmat 3000 - WEAR AREA TYPE 5 Grassmat Swingo Issue B 30/05/2017 17/18...
-
Page 18: Swingo Issue B 30/05/2017
Swingo Issue B 30/05/2017 18/18...
