Summary of Contents for Caysn KP80

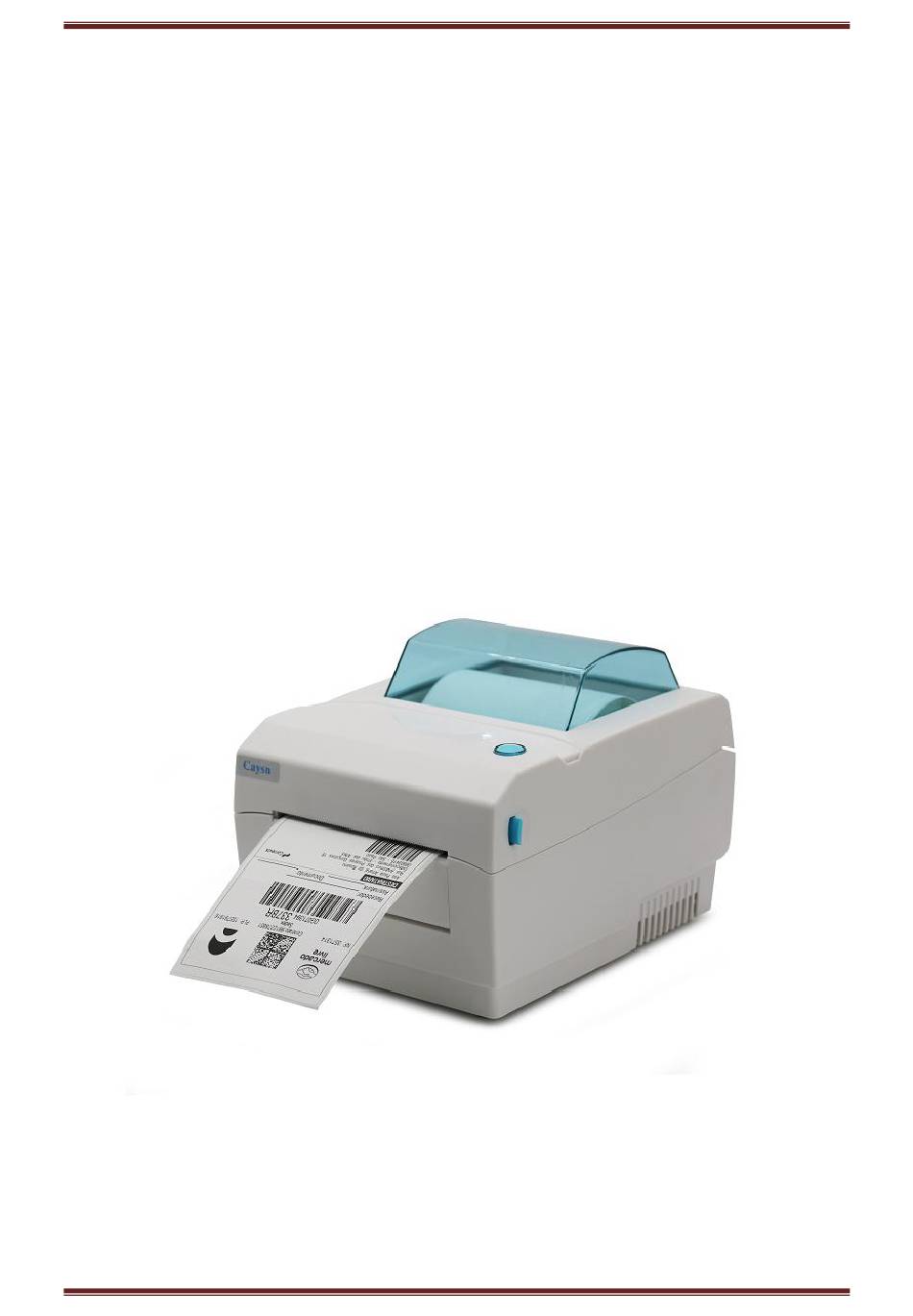

- Page 1 Thermal Label printer User’s manual 4 inch Thermal Label Printer User's Manual...
-
Page 2: Table Of Contents
Thermal Label printer User’s manual Contents 1 Introduction................................2 1.1 Brief introduction............................2 1.2 Main features..............................2 2 Specification................................3 2.1 Specification..............................3 2.2 Printing material requirements........................5 2.2.1 Paper parameters..........................5 2.2.2 Paper using attention........................... 5 3 Appearance and components............................. 6 3.1 Appearance and components.......................... -
Page 3: Introduction

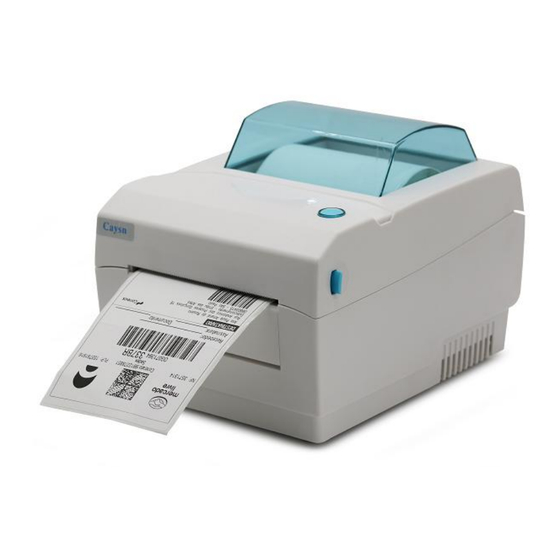

Thermal Label printer User’s manual 1 Introduction 1.1 Brief introduction CC435 is a 4 inch thermal Label printer. It has good printing quality, high printing speed and high stability, which is widely used in logistics, POS system, food service industry and many other fields. CC435 connects other devices via USB, Serial, Ethernet port, Bluetooth ,WiFi or GPRS. -
Page 4: Specification
Thermal Label printer User’s manual 2 Specification 2.1 Specification Item Parameter Printing method Thermal printing Resolution 203DPI, 8 dots/mm Printing width 25.4mm-110mm(832 dots) Printing parameter Printing speed Max: 150 mm/s Standard: USB interface Interfaces Optional: Serial/Ethernet ports Optional Wireless Communication: Wi-Fi,Bluetooth,or GPRS Page mode Support(Optional) Command set... - Page 5 Thermal Label printer User’s manual CP857[Turkish] WCP1250[Central Europe] CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam] ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 3] Thai2 CP856 Supports different density dots and images printings Supports grating bitmap printing Chart Supports download bitmap printing, every bitmap size should less than 64K, and the total capacity of download bitmap is 64K.
-
Page 6: Printing Material Requirements
Thermal Label printer User’s manual 2.2 Printing material requirements 2.2.1 Paper parameters 1) Paper type: thermal receipt paper/thermal label paper 2) Paper width:25.4-110 mm(1inch-4inch) 3) Paper roll diameter: 120 mm (Max.) 4) Paper thickness:0.065 ~ 0.10mm 2.2.2 Paper using attention Note: Please use good quality paper, otherwise, it will effect printing quality and even reduce printer head life. -
Page 7: Appearance And Components
Thermal Label printer User’s manual 3 Appearance and components 3.1 Appearance and components... -
Page 8: Indicator And Buzzer Instruction
Thermal Label printer User’s manual Function instruction of components 1）Power switch Press “O” side to power off, press “I” side to power on. 2）Power indicator(green) The indicator is on when power on, and it is off when power off. 3）Error indicator (Red) Error indicator is on when it detects error. -
Page 9: Printer Installation
Thermal Label printer User’s manual Paper is enough Silent Paper out It rings 3 times by 1.5s. Note: Printer detects printer head temperature via thermal resistance. It will cut off print head power and stop printing if print head is overheat. The print head protection temperature is 80℃. 4 Printer installation 4.1 Open the package Please make sure everything is in good status when you open the package. -
Page 10: Connect Communication Cables
Thermal Label printer User’s manual 4.4 Connect Communication cables 1) Make sure the printer is power off. 2) Connect communication cable to the printer’s port, and fix it with plug lag spike (or snap spring). 3) Connect communication cable to the other side host. 4.5 Paper roll loading 4.5.1 Printing paper type confirmation You can load paper roll to print after connecting power adapter and communication cables. - Page 11 Thermal Label printer User’s manual...
- Page 12 Thermal Label printer User’s manual Warning: Please make sure the paper roll in tense status, if not, it maybe cause paper jam or other problems.
-
Page 13: Printing Self-Test Page
Thermal Label printer User’s manual 4.6 Printing self-test page 1) Make sure the printer loaded paper roll correctly. 2) Press down [FEED] blue button and hold on, then power on the printer, the printer will print a self-test page. 4.7 Installing drivers Use the CD-ROM driver or download from the offical website,and follow the prompts to install the driver gradually.As see the following: 1. - Page 14 Thermal Label printer User’s manual 2. Select the port. 3. Search the port.
- Page 15 Thermal Label printer User’s manual 4. Install successfully...
- Page 16 Thermal Label printer User’s manual 5. Click the right button of the Mouse, Choose the ‘Printer Properties’ option.
- Page 17 Thermal Label printer User’s manual 6. In the ‘Preferences’--’Advanced’,select the paper size.As see the following:...
- Page 18 Thermal Label printer User’s manual...
- Page 19 Thermal Label printer User’s manual 7. If you need other paper size,you can add paper by yourselves.
-
Page 20: Interface Pin Definitions
Thermal Label printer User’s manual 8. Print Test Page. Click on the driver as shown in the ‘Print Test Page’ button, as can be printed and properly, positioned, the printer, driver has been installed correctly. 5 Interface pin definitions The printer has a cash drawer driver interface and many kinds of communication interfaces:serial (RS-232), USB and Ethernet ports. -
Page 21: Power Interface Pin Definition（Mpc-3-001B
Thermal Label printer User’s manual 1） Pin definition Pin Number Signal name Typical wire color VBUS White Green Black 5.2 Power interface pin definition（MPC-3-001B） 1）Pin definition Pin number Signal name +12V 2）Interface type: DC-005 Power socket. 5.3 Serial port pin definition（DB9F） Printer serial port is compatible with RS-232, the interface socket is DB9 female socket. -
Page 22: Ethernet Interface Pin Definition（Rj45
Thermal Label printer User’s manual 5.4 Ethernet interface pin definition（RJ45） Pin number Definition 6 Faults handling Please refer to the methods as below when printer can’t work normally. Please contact your supplier directly if it still can’t work normally. 6.1 Printer does not work Problems Probably reasons Solutions... -
Page 23: Paper Jam And Cutter Retraction Troubles Removal
Thermal Label printer User’s manual Printing is not clear or Paper roll loading incorrectly Check paper roll loading correctly or not have dirty spots Paper can’t meet the requirements Use the recommended thermal paper Print head or printer rubber roller is Clean print head or printer rubber roller dirty Printing density sets too light... - Page 24 Thermal Label printer User’s manual 3） Re-loading paper, close the paper cover and then power on.
