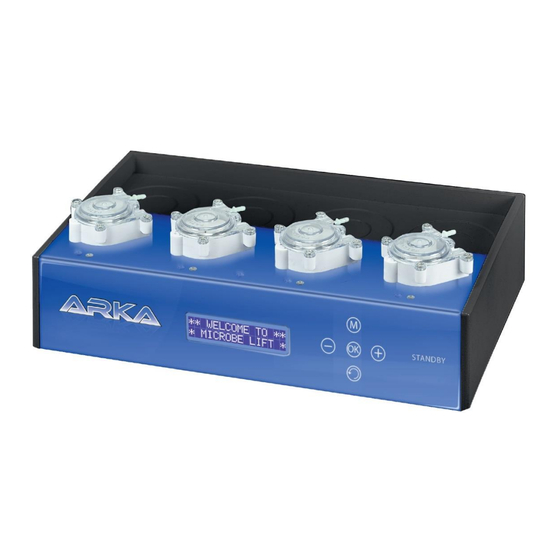

  • Page 1 User Manual VIDA-GT...

  • Page 2: Table Of Contents

    VIDA-GT Table of contents Table of contents Table of contents ...................... 2 Safety instructions ....................5 Scope of delivery ...................... 6 Preparation before exploitation ................8 Front Panel ......................13 Upper side – LEDs ....................14 Display ........................15 Menu Structure ...................... 16 Functional Description....................
  • Page 3 VIDA-GT Table of contents 2.5. Factory reset ....................29 3. Menu Dose Setting....................30 3.1. Microbe Lift Menu ..................31 3.2. Periodically ....................33 3.2.1. Period in hours ..................33 3.2.2. Period in days ..................33 3.3. Dosage Scheme ....................34 3.4. Dosage Days ....................36 3.5. Drops Dosage ....................37 3.6.
  • Page 4 !!! Please read this user manual and the short instructions carefully. Keep the user manual safe for future reference. Thank you for choosing our Dosing System VIDA-GT. This device is based on high technology and standards of ARKA Biotechnologie GmbH and offers you the easiest way to take care of your aquarium.

  • Page 5: Safety Instructions

    Connect and operate the appliance only in accordance with the specifications on the rating label situated on the base of the machine. Do not use your VIDA-GT if either the power cord or appliance is damaged. Do not use the appliance below 0°C and above 50°C.

  • Page 6: Scope Of Delivery

    VIDA-GT Scope of delivery Scope of delivery Designation Designation Item Qty. VIDA-GT Master VIDA-GT Slave VIDA-GT Master-module VIDA-GT Slave-module Power Supply Power Supply 12V Adapter 12V Adapter 6 m black silicone hose 6 m black silicone hose 4-channel hose holder...
  • Page 7 VIDA-GT Scope of delivery Page 7 / 49...

  • Page 8: Preparation Before Exploitation

    If the device will be mounted on the wall use Annex 1 - Stencil for wall fix (See Scope of delivery). The ARKA device have to be placed at the level of the upper edge of the aquarium or a maximum distance of 80 cm below it.
  • Page 9 VIDA-GT Preparation before exploitation 4. Mount single parts of hose holder (Figure 2) connect parts A with parts B (Picture 1) as shown in the picture below (Picture 2). Picture 2 Picture 1 Picture 3 Picture 4 2 cm Figure 2: Mounting the parts of hose holder 5.
  • Page 10 VIDA-GT Preparation before exploitation pump outlet must enter in the aquarium. The hoses in aquarium must be at a minimum distance of 2 cm from the surface of the water to avoid reflow of the water (Figure 2, Picture 4).
  • Page 11 VIDA-GT Preparation before exploitation Picture 4 Position Description Holes for securing the device to the wall* Reserve - Service port Port for connection Master-Slave Fuse Holder** Port for 12V Adapter * The method of attaching the device to the wall is shown in Annex 1:...
  • Page 12 VIDA-GT Preparation before exploitation 7. Connect Master and Slave device - connect Master and Slave device via Slave cable from the box (See Scope of delivery). Connect Slave device first and then Master device to the electrical network. All four blue LEDs on the upper side of the Slave device start to flash while the devices establish a connection.

  • Page 13: Front Panel

    B – Keyboard C – Standby LED Keyboard elements The keyboard consist of 5 buttons. These buttons are used to operate the ARKA Dosing System and to navigate through the menus. Keyboard Description - Next Menu Level - Save entry...

  • Page 14: Upper Side - Leds

    Mixers ON Upper side – LEDs VIDA-GT Upper side – LEDs Position Description Channel 1 Blue LED – Back Flushing Selected Channel 1 Red LED-Dosing / Green LED - Clear Out Hose / Orange LED – Selected Channel during Setup...

  • Page 15: Display

    VIDA-GT Display Display Position Description Day of Week: Mo - Monday Tu - Tuesday We - Wednesday Th - Thursday Fr - Friday Sa - Saturday Su - Sunday Time (hh:mm) Channel Number (1-4)* Dosage Value (1-1999 ml) Day of the next dosing (Su, Mo, Tu, We, Th, Fr, Sa) Time of the next dosing (00-23) Note: G, H –...

  • Page 16: Menu Structure

    VIDA-GT Menu Structure Menu Structure Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 English German Language French Time Adjust HH:MM Tank Enter Volume liters Pipe Enter Pipe calibratio length in Calibration test...
  • Page 17 VIDA-GT Menu Structure Special Blend TheraP Substrate Clean. Coralline Microbe Lift Menu All in One A.ACC Vitamins&A minos Ess.Min.&T r ace El Period in Enter Enter Days period Dosage Periodically Value Period in Enter Hours period Choose Dosage channel Method...
  • Page 18 VIDA-GT Menu Structure Choose Activate BF BF On/Off Channel Enter Mixers mixers speed speed 2 min on 30 min Mixers On Period before Mixing Mixers mixing dose Menu On/Off Start time Night mode End time Mixers Off Tank Enter Volume...

  • Page 19: Functional Description

    VIDA-GT Functional Description Functional Description When VIDA-GT device is switched on for the first time and after factory reset it will display the following: 1. Startup Menu Under Startup Menu you must configure the basic settings of the device and the channels on initial activation of the device. Figure 4 describe Startup menu.

  • Page 20: Set Language

    VIDA-GT Functional Description To configure the settings of the device follow these steps: 1.1. Set Language - you can set English, German or French. The default language is English. Select the menu language with and confirm selected language by pressing button .

  • Page 21: Set Channel

    If all channels are set off, on the display will be shown just the model of the device (VIDA-GT), the day of week and the time. On the display will be shown only the information of the channels that are On. You can change Channel On or Off also from menu Settings / Channel On/Off.

  • Page 22: Pipe Length

    VIDA-GT Functional Description Note: If the channel is Off point 1.4.2./1.4.3./1.4.4. are not visible. If you choose all channels to be Off the next menu is Mixing menu (See 1.5. Mixing menu). 1.4.2. Pipe length - enter the length of the black silicone hose of the corresponding channel (total length of the both pipes - at both ends of the pump).

  • Page 23: 1.4.4. Calibration Pump Test

    VIDA-GT Functional Description If you choose Pipe Calibration Test Yes lights up green LED on the upper side for the corresponding channel (1-4). Use 10ml measuring cylinder (See Scope of delivery) and adjust with buttons until 1-5 drops are falling out.
  • Page 24 VIDA-GT Functional Description When the result is 5 ml use button to choose Calibration Pump Test No and press To continue with the setup of the other channels press Calibration Pump Test also can be done from menu Settings / Fine Adjust 5ml.

  • Page 25: Mixing Menu

    VIDA-GT Functional Description 1.5. Mixing Menu - use buttons to choose whether the mixers will work or not. If you choose Mixers Off liquids from the bottles will not mix. If you choose Mixers On you can adjust mixers speed and method of mixing.
  • Page 26 VIDA-GT Functional Description 1.5.2.2. “2 min before dose” – the mixers start stirring the liquids before dosing. 1.5.2.3. “Night mode” – the mixers stop working at night time. Set the start and end time of the night mode. to choose start time...

  • Page 27: Menu Basic Settings

    VIDA-GT Functional Description setup (See 1.4. Set Channel) to set the channels of the Slave and after that the device will back to normal operation. 2. Menu Basic Settings Figure 5: BASIC SETTINGS Block scheme Under this menu you can change basic settings of the device (See Figure 5).

  • Page 28: Time Adjust

    VIDA-GT Functional Description 2.2. Time Adjust - you can set day and time on the display. Use buttons to choose day of the week. To confirm press ……. Use buttons to adjust the time and press . Use back button to return one position back.

  • Page 29: Factory Reset

    VIDA-GT Functional Description To change PIN code use buttons to choose the value. To move to the next digit use button . To return to the previous digit use back button Note: If you have forgotten your PIN Code you can enter the Master PIN code –...

  • Page 30: Menu Dose Setting

    VIDA-GT Functional Description 3. Menu Dose Setting Figure 6: DOSE SETTINGS Block scheme In this menu you can set the dosage of the product. Dosing can be performed in the following ways (See Figure 6):  Microbe Lift Menu - will perform the dosing of the products of Microbe Lift Menu –...

  • Page 31: Microbe Lift Menu

    VIDA-GT Functional Description  Dosage Days – includes up to 6 dosages in each choose day of week and hours – from Menu Dose Settings / Dosage days.  Drops Dosage – includes up to 6 dosages in each choose day of week and hours –...
  • Page 32 VIDA-GT Functional Description from Microbe Lift Menu and press . The first dose will be infused in the first hour after introduction. Dosing № Product Name Dosage per 100l frequency Day 1: 25 ml; Special Blend at the beginning of Day 8,15, 22, 29: 15 ml;...

  • Page 33: Periodically

    VIDA-GT Functional Description 3.2. Periodically - infusion will be carried out periodically during the selected time interval. Use buttons to choose Dosage Value (1-1999 ml). To move to the next digit use button . To return to the previous digit use back button .

  • Page 34: Dosage Scheme

    VIDA-GT Functional Description The first dose will be infused in the first hour after introduction. To confirm press . Upon such coding on the display next dosage will be displayed with a number before the day of the week. For example: if the chosen period is 29 days the first dose will be infused in the first hour after introduction.
  • Page 35 VIDA-GT Functional Description Use buttons to select the number of days until the next dose (from 0 to 30 days). This is the period after which will be performed the next dose. To confirm press To continue with setting the next dose...

  • Page 36: Dosage Days

    VIDA-GT Functional Description 3.4. Dosage Days - dosage will be done in selected day or days (Su, Mo, Tu, We, Th, Fr, Sa) and for each days it is possible to have up to 6 different dosage values in 6 different hours.

  • Page 37: Drops Dosage

    VIDA-GT Functional Description 3.5. Drops Dosage - dosage will be done in selected day or days (Su, Mo, Tu, We, Th, Fr, Sa) and for each days it is possible to have up to 6 different dosage values in drops (from 5 to 99 drops) in 6 different hours.

  • Page 38: Dosage Manual

    VIDA-GT Functional Description Use buttons to confirm the dosage value for the corresponding day and hour. To confirm press If in the same day will be carried out more dosings press adjust the hours and the values of the same day or press to set the next selected day.

  • Page 39: Menu Settings

    VIDA-GT Functional Description 4. Menu Settings Figure 7: Menu SETTINGS Block scheme Under this menu you can be set pumps and mixers. Use buttons to move in the menu and press to choose submenu. 4.1. Channel On/Off - use buttons...

  • Page 40: Fine Adjust 5 Ml

    VIDA-GT Functional Description is 2,2 mm. Use buttons to change the value. The device will not accept zero for length and/or width of the pipe and will return to change the value. To confirm press . Use buttons to choose Calibration Test YES or Calibration Test NO. Adjust with buttons until 1-5 drop are falling out (See 1.4.5.

  • Page 41: Activate Bf (Back Flushing)

    VIDA-GT Functional Description Note: Pipe Calibration and Fine Adjust 5 ml should be done for each pump when the device is put to operation and after a period of 1-2 weeks work. 4.4. Activate BF (Back Flushing) – function Back Flushing prevents of contamination, formation of plugs and malodors.

  • Page 42: Short Keys

    VIDA-GT Short Keys Short Keys Short Key This is the button for manual mode Magnetic Stirrer. 1. Press button 2. Change mixer speed with buttons press button to move to the next digit or press to move one digit back. From this button can change the mixers speed but the value will not be saved when exiting the menu.

  • Page 43: Troubleshooting

    Troubleshooting Troubleshooting The following table provides solution and glitches that may arise as you use ARKA device. If you do not find a solution for your specific problem or the problem persists after troubleshooting please contact our customer service department.

  • Page 44: Service

    VIDA-GT Service Service  Pump hose exchange – we recommend replacement of the pump hoses every 2 months. For replacement use precut transparent or cut 100mm pieces from supplied black hose. № Description Picture Remove black silicone hose from pump.
  • Page 45 VIDA-GT Service Remove pump hose connectors from hose. Place new pump hose into pump (the length of the pump hose must be exactly 100mm) connectors. Place plastic cover and spin the screws. Page 45 / 49...
  • Page 46 VIDA-GT Service  Fuse exchange – to change the burn-out fuse (located on the backside of the device): № Description Picture Use tweezers to pull out the fuse holder. Remove fuse from the fuse holder. Change it with a new fuse 2A/250V/F 5x20mm (do not replace a fuse with one that has different amperage from the original).

  • Page 47: Operating Instructions

    - In case of a power outage all entered values are saved. Then the unit works with the same settings as before the power outage. - ARKA Dosing system should be used only for the purposes as described in the instructions.

  • Page 48: Specification

    VIDA-GT Specification Specification 4 (8 with Slave) freely programmable channels Channels dosing 1-1999 ml for each channel Dosage Value 1). Microbe lift menu: Predefined dosage scheme of 7 products Period in Days – 1-30 days; 2). Periodically: Period in Hours – 1-23 hours.

  • Page 49: Disposal

    VIDA-GT Disposal Disposal If you want to dispose your device , take it to your local office for collection (e.g. recycling). According to the law of electrical and electronic equipment, holders of old appliances are required to dispose separate the old electrical and electronic equipment. The symbol...
