Norco SHB-940 User Manual

Full size cpu card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

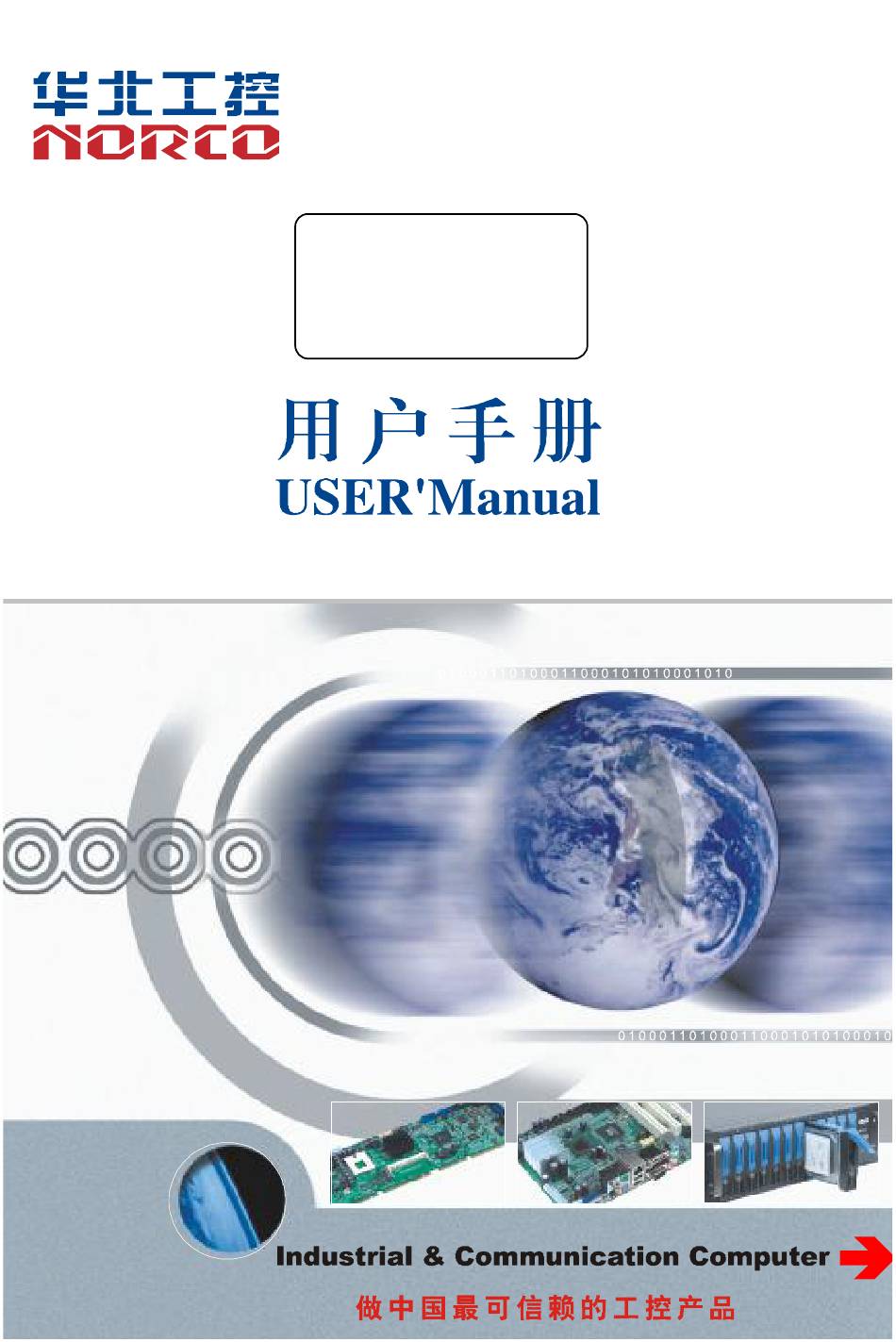

SHB-940
Full Size CPU Card
USER' Manual V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHB-940 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Norco SHB-940

Summary of Contents for Norco SHB-940

  • Page 1 SHB-940 Full Size CPU Card USER' Manual V1.0...
  • Page 2 SHB-940 Full Size CPU Card USER' Manual V1.0 Shenzhen NORCO Intelligent Technology Co., Ltd.:0755-27331166 Beijing：010-82671166 Shanghai：021-61212088 Nanjing: 025-58015489 Chengdu：028-85259319 Shenyang：024-23960846 Xi’an：029-88338386 Nanjing: 025-58015489 Wuhan：027-87858983 Tianjin：022-23727100 Netherlands：31-（0）40-2028140 Germany: +49 40 7003550 Austria: 4316150499-88 Website：www.norco.com.cn...
  • Page 3 Shenzhen NORCO Intelligent Technology Co.,Ltd. SHB-940 Full-size CPU Card Shenzhen NORCO Intelligent Technology Co.,Ltd. Place/Data: HONG KONG/2009...
  • Page 4 ：Shenzhen NORCO Intelligent Technology Co.,Ltd. Trade Name ：SHB-940 Model Name ：Shenzhen NORCO Intelligent Technology Co.,Ltd. Responsible Party ：FCC Class B Subassembly Equipment Classification ：Full-size CPU Card Type of Product ：Shenzhen NORCO Intelligent Technology Co.,Ltd. Manufacturer Date: 2008...
  • Page 5 Before buying products, please learn about product performance from the seller to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO.,Ltd. The ownership of other trademarks involved in this manual is owned by its respective owners.
  • Page 6 Common Sense in Safety Application 1. Before using this product, please read this user’s manual carefully; 2. Any plate cards not ready to be installed shall be kept in the anti-static protective bags; 3. Before taking out the plate cards from the anti-static protective bags, first place hands on the grounding metal object for a while (e.g.

  • Page 7: Table Of Contents

    Contents Chapter1 General Information ....................1 1.1 Introduction ........................1 1.2 Specifications........................1 Chapter2 Installation Instructions .....................4 2.1 Interface Locations and Dimention Chart ..............4 2.2 Installation Steps ......................4 2.3 Install Central Processing Unit (CPU) ................5 2.4 Install DIMM........................11 2.5 Setting Jumpers......................12 2.5.1 CMOS Clearance/Hold Setting (JCC)..............12 2.5.2 BIOS-protect Jumper（JAV）...
  • Page 8 BIOS Parameter Configuration ..................26 3.1 Main Menu ........................27 3.2 Advanced Menu......................28 3.2.1 CPU Configuration....................29 3.2.2 IDE Configuration ....................30 3.2.3 SuperIO Configuration..................31 3.2.4 Hardware Health Configuration................32 3.2.5 ACPI Configuration ....................33 3.2.6 AHCI Configuration ....................35 3.2.7 APMI Configuration....................37 3.2.8 Smbios Configuration ..................38 3.2.9 USB Configuration ....................39 3.3 PCI PnP Menu ......................41 3.4 Boot Menu ........................42...
  • Page 9 Packing List Thank you very much for choosing our products. Please check your package completely according to following checklist first, if you find any components lost or damaged, please contact your retailer. ■ SHB-940 CPU Card ■ User’s Manual ■...

  • Page 10: Chapter1 General Information

    Chapter 1 General Information...

  • Page 11: Introduction

    Chapter1 General Information 1.1 Introduction SHB-940 is one of the full-size CPU cards that meet PICMG1.3 spec. it based on Intel Q45 (Eaglelake-Q)+ ICH10DO（82801JDO）chipset, support LGA775 Intel Core2 Extreme/Core 2 Quad/Core 2 Duo/Celeron 440 processor, 800/1066/1333MHz FSB, support HT and RAID 0/1/5/10.
  • Page 12 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Up to 4GB in two 240-pin DIMM sockets. Supports dual channel DDR2 667/800MHz SDRAM without ECC function Serial ATA ●4x Serial ATAII Ports, The transfer speed is up to 300MB/s ●Configures the ICH10R SATA controller as a RAID supporting RAID 0/1/5/10...
  • Page 13 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Watchdog ● Can generate a system reset or IRQ11. The watchdog timer is programmable, with each unit equal to one second or one minute (255 levels). You can find programming detail in Appendix 3 BIOS ●Award 8M-Bit Flash BIOS...

  • Page 14: Chapter2 Installation Instructions

    Chapter 2 Installation Instructions...

  • Page 15: Interface Locations And Dimention Chart

    Chapter2 Installation Instructions 2.1 Interface Location and Dimension Chart The following picture is the interface index for SHB-940. When you install your devices, please consult it and read the following guide. During installation please care for some components, otherwise, incorrect installation will lead to system malfunction..

  • Page 16: Installation Steps

    Q45 based PICMG1.3 Full Size CPU Card 2.2 Installation Steps Please refer to the following steps to install your computer: 1: Adjust all Jumpers on SHB-940 as per this manual. 2：Install CPU and CPU FAN 3：Install Memory 4：Install Expansion Cards 5.
  • Page 17 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2.3.1 Installing the CPU To install a CPU： 1：Locate the CPU socket on the CPU card. 2：Press the load lever with your thumb and push to left (A), until it is released from the retention tab (B).
  • Page 18 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 5：Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the socket then fit the socket alignment key into the CPU notch.
  • Page 19 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card ：Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place. 3：Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN. Do not forget to connect the CPU fan connector! Hardware monitoring errors will occur if you fail to plug this connector.
  • Page 20 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3：Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the CPU card. 4：Carefully remove the heatsink and fan assembly from the CPU card.
  • Page 21 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 5：Rotate each fastener clockwise to ensure correct orientation when reinstalling. The narrow end of the groove should point outward after resetting. (The photo shows the groove shaded for emphasis.).

  • Page 22: Install Dimm

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2.4 Install DIMM Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components. To install a DIMM: 1：Unlock a DIMM socket by pressing the retaining clips outward.

  • Page 23: Setting Jumpers

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2：Remove the DIMM from the socket. 2.5 Setting Jumpers Note: Jumpers are located on the motherboard, they represent clear CMOS jumper JCC etc. pin1 for all jumpers are located on the side with a thick white line refer to the motherboard’s silkscreen , jumpers with three pins will be shown as 1-2 to represent pin1&pin2 connected and 2-3 to...

  • Page 24: Bios-Protect Jumper（Jav

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Setup JCC setting Nomal status(default) Clear CMOS(BIOS renew to initialization) Do not clear CMOS when power on, or it will cause damage to the motherboard. 2.5.2 BIOS-protect Jumper（JAV） The BIOS of the CPU card is contained in the Flash ROM. If the jumper JAV is set as dosed, you will be unable to flash the BIOS.

  • Page 25: Cpu Card Power Supply Mode Select（Jat

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card COM2 RS232（default） COM2 RS422 COM2 RS485 1-3 2-4 1-3 2-4 2.5.4 CPU card power supply mode select（JAT） JAT are used to select the power supply for the CPU card and the model of switching on/off the computer.

  • Page 26: Interface Description

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card JP2/JP3 Setting Select Function Open PCIE1×4 Close PCIE4×1 2.6 Interface Description Please carefully read this manual when connecting external connectors, so as to avoid damage to the motherboard! 2.6.1 SATA Interface（SATA1-SATA4）...

  • Page 27: Parallel Port（Print

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card COM1： Signal Name Signal Name COM2 sets to RS232/RS422/RS485, it’s pin definition is: RS485 RS422 RS232 RS232 RS422 RS485 DATA- DATA+ 2.6.3 Parallel Port（PRINT） This board provides one parallel port to connect parallel device. You can enable/disable it...

  • Page 28: Display Interface（Vga

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card PRINT： Signal Name Signal Name T_STB# T_AFD# PDQ0 T_ERR# PDQ1 T_INIT# PDQ2 T_SLIN# PDQ3 PDQ4 PDQ5 PDQ6 PDQ7 T_ACK# T_BUSY T_PE T_SLCT 2.6.4 Display Interface（VGA） It provides onboard one standard DB15 VGA interface VGA：...

  • Page 29: Usb Ports（Usb12, Usb34, Usb5, Usb6

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2.6.5 USB Ports（USB12, USB34, USB5, USB6） This motherboard provides three groups of 2×5 header pin of USB ports and 2 standard USB ports Three groups of 2×5 header USB interfaces should be converted to standard USB port before they can be used with standard USB jack.
  • Page 30 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card MKB1： Signal Name KB_DATA MS_DATA KB_CLK MS_ CLK MS1: Pin Name MS_DATA MS_CLK Signal Name KB_DATA KB_CLK...

  • Page 31: Ethernet Interface（Rj45_Port1

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2.6.7 Ethernet Interface（RJ45_PORT1） This port is an onboard 10/100Mbps/1000Mbps Ethernet port. LILED and ACTLED is respectively the yellow and green LED on two sides of the Ethernet port. They display LAN connectivity and activity status.

  • Page 32: Power Connector (Pwr)

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card IRDA： Signal Name IRRX IRTX 2.6.9 Power Connector (PWR) This CPU card can't be put into service unless it is matched with industrial backplane, because industrial backplane and + 12 V power supply input on the CPU card can offer power supply to CPU.

  • Page 33: Fan Connector（Cpufan, Sys_Fan

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card +12V 2.6.10 Fan connector（CPUFAN, SYS_FAN） This board provide a 4Pin CPU fan socket and one reserve SYSFAN socket, attention： (1) Electric current for fan≤350mA (4.2W, 12V). (2) Please ensure that the fan wire is consistent with the wire for this socket. The power cord must be in the middle position.

  • Page 34: Front Panel Connector（J10

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card J1： Signal Name Signal Name MIC1-R FRONT-L FRONT-R CD-GND CD-L CD-R LINE1-L LINE1-R CD-IN： Signal Name CD-L CD-R 2.6.13 Front panel connector（J10） is used to connect function button or LED on front panel.
  • Page 35 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card VCC5 VCC5 KEYLOCK# SPK- VCC5 PWRBTSW- PWR_LED+ PWR_LED- RSTBTN HDLED- HDD_LED+ Please follow the table below to connect, pay attention to the anode(+)and cathode(-), otherwise , some function can not be realized.

  • Page 36: Ram Slot（Dimm1, Dimm2

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 5）Reset Button Pins( pin17,pin18 for RESET BUTTON) Connect this pins and RESET switch on panel of chassis with cable. When system can not work on, reset can make system restart, without turning on/off the power, thereby it can prolong system serviceable life.

  • Page 37: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup...

  • Page 38: Ami Bios Upgrading

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Chapter3 BIOS Setup AMI BIOS upgrading It is true that hardware and software are upgrading all the time. When your IPC can not support the newest processor (for example), you should upgrade the BIOS to try to keep up with the latest technology.

  • Page 39: Main Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 1. Power on or Reset computer. 2. When "Press <Del> to enter setup" in screen, please press <Del>. 3. Use the “←↑→↓”to choose the option which your want to modify, press <Enter> and show the sub-menu.

  • Page 40: Advanced Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card System Memory（Read Only） This section shows the size of the system memory System Time System time format: Hour/Minute/Second System Date Setup system date. Format: Week/Month/Day/Year 3.2 Advanced Menu Note: The incorrect parameter may lead to system failure, pls set up this section carefully...

  • Page 41: Cpu Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.1 CPU Configuration This Read-Only option contains the detailed information of CPU, including CPU manufacturer, type, frequency, L1 cache and L2 cache, ect. Hardware Prefetcher [Enabled]: permit to change the speed of HDD Drive...

  • Page 42: Ide Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card by using the same physical platform so as to realize the management and allocation of computer resources, maxmizing the resource utilization， Execute-Disable Bit Capability Execute Disable Bit (EDB) is a hardware-based security feature that introduced to its new generation CPU by Intel, which can help reduce system exposure to viruses and malicious code.

  • Page 43: Superio Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card SATA Configuration This option is for selecting SATA configuration mode. Three options available: [Disabled], [Compatible] and [Enhanced] mode Configure SATA as SATA Configuration Mode Selection. Three options available:[RAID], [AHCI] and [IDE].

  • Page 44: Hardware Health Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card recommended. Serial Port IRQ This option is used to config the Serial port IRQ address. Default set is recommended. Parallel Port Mode This option is used to config the parallel port transmission mode. Defaut set is recommended.

  • Page 45: Acpi Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card This option is used to do hardware security detection. BIOS will show system current temperature, CPU temperature, the rev of FAN and related voltage. All the items have the preset value . The system should work within this value.
  • Page 46 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.5.1 General ACPI Configuration Suspend mode Suspend mode selection. Different modes with different power consumption. S1(pos): CPU stops working while other devices are still connected to power supply. S3(STR): Power is only supplied to system memory.

  • Page 47: Ahci Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.6 AHCI Configuration AHCI Port0 Move the cursor to “ AHCI Porto” and press “Enter”, then the following screen will show:...
  • Page 48 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card SATA Port0 Available configuration options include [Auto], [Enabled], [Disabled]. Default as [Auto] S.M.A.R.T. S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology; often written as SMART) is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability, in the hope of anticipating failures.

  • Page 49: Apmi Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.7 APM Configuration RTC Power On When Enabled, users can set the date and time at which the RTC (real time clock) alarm awakens the system from Suspend mode. The choices :< Enabled>, <Disabled>.

  • Page 50: Smbios Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.8 Smbios Configuration Smbios Smi Support BIOS/Interface support for system management. Users can choose to enable or disable this function. Recommend the default set.

  • Page 51: Usb Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.2.9 USB Configuration USB Devices Enabled（Read Only） This option shows the USB devices that are connected with motherboard. USB Function This option is used to open or close the USB port on the motherboard, default as Enabled.
  • Page 52 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card USB2.0 Controller Mode This option is to set the transmission speed of USB 2.0 Controller： <FullSpeed> : USB port is 1.1 spec (12Mbps)。 <HiSpeed>: USB port is 2.0 spec (480Mbps)。...

  • Page 53: Pci Pnp Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.3 PCI PnP Menu Note: The incorrect parameter may lead to your system failure, pls set up this section carefully according to the following instructions. Clear NVRAM This option is used to clear NVRAM data:...

  • Page 54: Boot Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card IRQ3-15 This option is used to config the availability or keeping of IRQ interrupt Boot Menu...

  • Page 55: 1Boot Setting Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.4.1Boot Settings Configuration Quick Boot <Enabled>: BIOS will skip self-detection and accelerate POST <Disabled>: After BIOS detect load Windows O/S.。 Quiet Boot This option will show the spplier’s Logo on the screen picture when booting the computer.

  • Page 56: Boot Device Priority

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.4.2 Boot Device Priority Press “Enter” , then the following sub-menu will show: 1st Boot Device System will detect devices by this priority until it finds an available boot device.

  • Page 57: Hard Disk Drives

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.4.3 Hard Disk Drives This option contains the HDD which can be used as Boot Devices. If multi- HDD be connected, user must set up their priority. The HDD of the highest priority will display in “Boot Device...

  • Page 58: Security Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.5 Security Menu Supervisor Password If you set up the password, it will display “Installed” If not, it will display “Not Installed” User Password If you set up the password, it will display “Installed”...
  • Page 59 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card This option is used to change the users’ password. Press ‘Enter ‘ under this option, then enter sub-menu to change the password. Clear User Password This option is used to clear users’ password. Press ‘Enter ‘ under this option and select “yes”...

  • Page 60: Chipset Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.6 Chipset Menu...

  • Page 61: North Bridge Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.6.1 North Bridge Configuration Initate Graphic Adapter This option for selecting it as the prior Graphic Adapter IGD Graphics Mode Select The graphic memory size setting for the motherboard integrated graphic card. It will share the vedio memory before installing the drive;...

  • Page 62: South Bridge Chipset Configuration

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.6.2 South Bridge Chipset Configuration Restore on AC Power Loss This option is for setting the system status while connecting the power again after the AC Power Loss <Power Off>:System remains the status of power off <Power On>: System will reboot automatically...

  • Page 63: Exit Menu

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3.7 Exit Menu Save Changes and Exit Press <Enter> and <Enter> under this option, to save BIOS change and reboot system. Discard Changes and Exit Press <Enter> and <Enter> under this option, will not save BIOS change and exit the current interface.
  • Page 64 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Load Failsafe Defaults Recommend users to select this option in case of system failure.

  • Page 65: Appendix

    Appendix...

  • Page 66: Appendix 1: Driver Installation

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Appendix Appendix 1: Driver Installation Please install the driver as per the following steps: Insert Driver disk into CD-ROM, so installation of the driver can be made either automatically or manually. Now manual installation instructions are given as below: 1) A variety of options available regarding manual installation, which you can check from Device Manager.

  • Page 67: Appendix 2：Raid Setup

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Appendix 2：RAID Setup BIOS should be properly configured before RAID can be used: Start the computer, and press Delete until BIOS configuration menu appears. Then choose "Integrated Peripherals" option, and enter " OnChip IDE Device" option, set "SATA Mode"...
  • Page 68 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 2：Press“Ctrl+I” to enter RAID setting interface. （1）create new RAID value, （2）delete RAID value, （3）reset RAID, （4）exit .You can select each option by“↑↓”.the picture as below：...
  • Page 69 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card 3：Select“Create RAID Volume” to create RAID. You can set it based on your demand. shows as below： 4：After setting, press“Enter”and select“Y”, then exit, you can see the RAID you created in Disk...

  • Page 70: Appendix 3：Watchdog Programmer Guide

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Appendix 3：Watchdog programming guide Watchdog reference code （ASM） -------------------------------------------------------------------------------------------------------------- Set the port to realize watchdog function through DEBUG order, so that it can carry out Watchdog Timer′s various functions. port instruction：...

  • Page 71: Appendix 4: Glossary

    SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Appendix 4: Glossary ACPI Advanced Configuration and Power Management Interface for short. ACPI specifications allow OS to control most power of computer and its extended devices. Windows 98/98SE, Windows 2000 and Windows ME are all support ACPI, it provide users a flexible system power management.
  • Page 72 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Computer-Output Microfilmer. A universal serial communication interface, usually adopts normative OB 9 connector. DIMM: Dual Inline Memory Module. It’s a small circuit board with memory chipset, providing 64bit bus width.
  • Page 73 SHB-940 ® Intel Q45 based PICMG1.3 Full Size CPU Card Self-test when power on. While booting, BIOS will do once uninterrupted testing operation to the system, including RAM, keyboard, hard disk driver etc. Check them in normal situation and work well.
