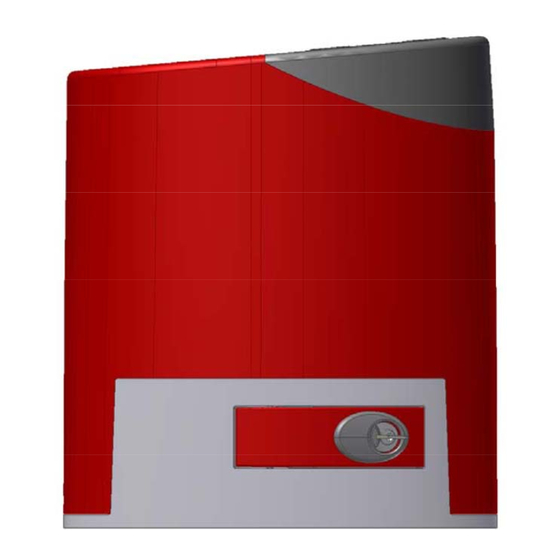

- Page 1 Instructions Electromechanical gear motor for sliding gates ACHILLES...
- Page 2 ACHILLES is made specifically to control the automation of sliding gates and therefore it is forbidden to use it for any other purposes or improperly. • Use original components only. Stagnoli is not liable for damages if any other components are used. •...
-
Page 3: Technical Features
Instructions Technical features Stagnoli’s ACHILLES gearmotor is particularly suitable for sliding gates up to 2200 kg and it is available in the 230 Vac and 380Vac version. Technical features ACHILLES-1200 230V ACHILLES-1200 400V Power supply 230V~ / 50Hz 400V~ / 50 Hz Max. - Page 4 Instructions 2x1.5 1xRG 58...
- Page 5 Instructions Anchoring the foundation plate Before commencing anchor foundation plate to the ground, first prepare one or two sheaths for passing the cables through (Fig.1) After having verified the optimum conditions for placing the plate, bend the fish-tail clamps vertically and concrete the plate in (Fig.1).
- Page 6 Instructions Fix the rest of the rack, utilising a piece of rack to maintain the pitch between joints (Fig.5). Position the limit switch brackets on the rack and, sliding the gate, adjust the position of the brackets according to the opening and closing wanted.
- Page 7 Instructions Fig. 7...
- Page 8 Instructions...
- Page 9 Instructions Pos. Components Q.ty Item part nr. Operator base X61A748 Cover Screws for cover fixing X61A108 Cover for air grill Screws for air grill fixing X61A13 Electronics support Screw for electronics support X61A530 Cover for electronics C.A. electronic card Capacitor X61A749 Stop cable connector Cylindrical pin for release lever...
- Page 10 Instructions Rev. 0 - 04/2005 Stagnoli s.r.l. Via Ticino 14, 25015 Desenzano del Garda Bs Italia Tel. +39 030 912 7001 Fax. +39 030 912 0527 www.stagnoli.com...
