Summary of Contents for PRESIDENT CV 24/12V - 15 A Pro

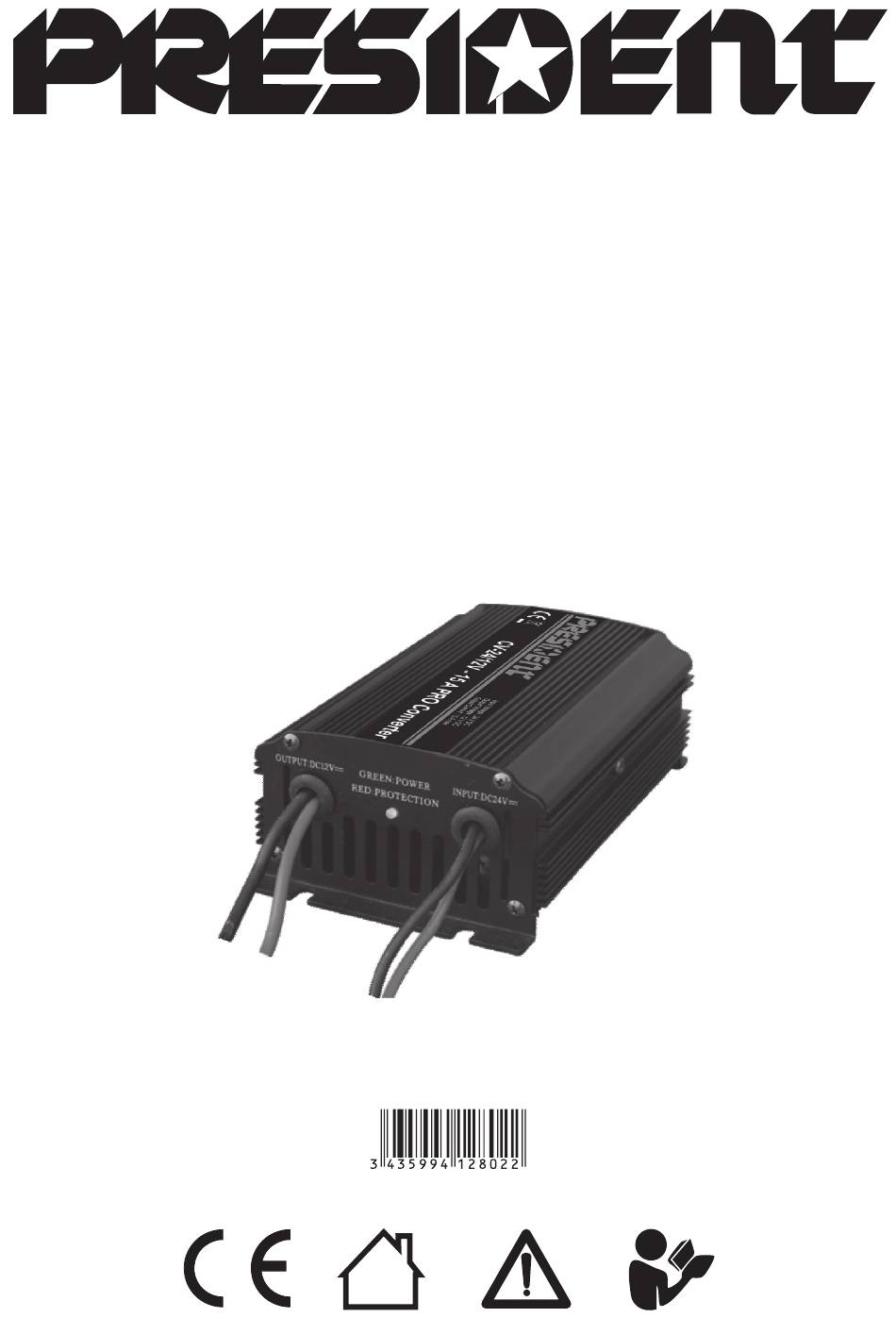

- Page 1 User’s Manual DC-DC STEP DOWN CONVERTER CV 24/12V - 15 A Pro ACMA115...
- Page 3 INTRODUCTION Thank you for choosing a PRESIDENT product. You can be sure that the product you have purchased is one of the best that is currently available on the market. Before using the product, please read this manual very carefully and keep it for further reference.
-
Page 4: Technical Characteristics
TECHNICAL CHARACTERISTICS Input voltage 18 - 32 V DC Output voltage 12 V DC ± 5 % Rated output current 15 A Maximum output current 18 A Rated output power 180 W Conversion efficiency > 85 % No load current <... - Page 5 VERIFICATION AND TROUBLESHOOTING If after making the connections as described in point 2 or after performing the steps described in points 3 and 4 there are malfunctions, that is, either the status LED (3) is off or is on and red, before returning the product at the point of sale for requesting the support service verify that: •...
- Page 6 Consequently, with immediate ef- fect, PRESIDENT shall not be held responsible in any way whatsoever for damage caused by means of the abovementioned conduct Exemption from liability Under no circumstances whatsoever shall Group PRESIDENT Electronics S.A.
- Page 7 This product is covered by a warranty under the terms of the current applicable law. In case of need, contact the sales outlet where you bought the product. DECLARATION OF CONFORMITY (Extract) PRESIDENT Group Electronics S.A. hereby declares that the product complies with the standards defined by the legislation in force. WEEE Note: all pictures shown in this manual are for illustration purpose only, are not contractual and may differ from the actual product.
- Page 8 1970 /11-18...
