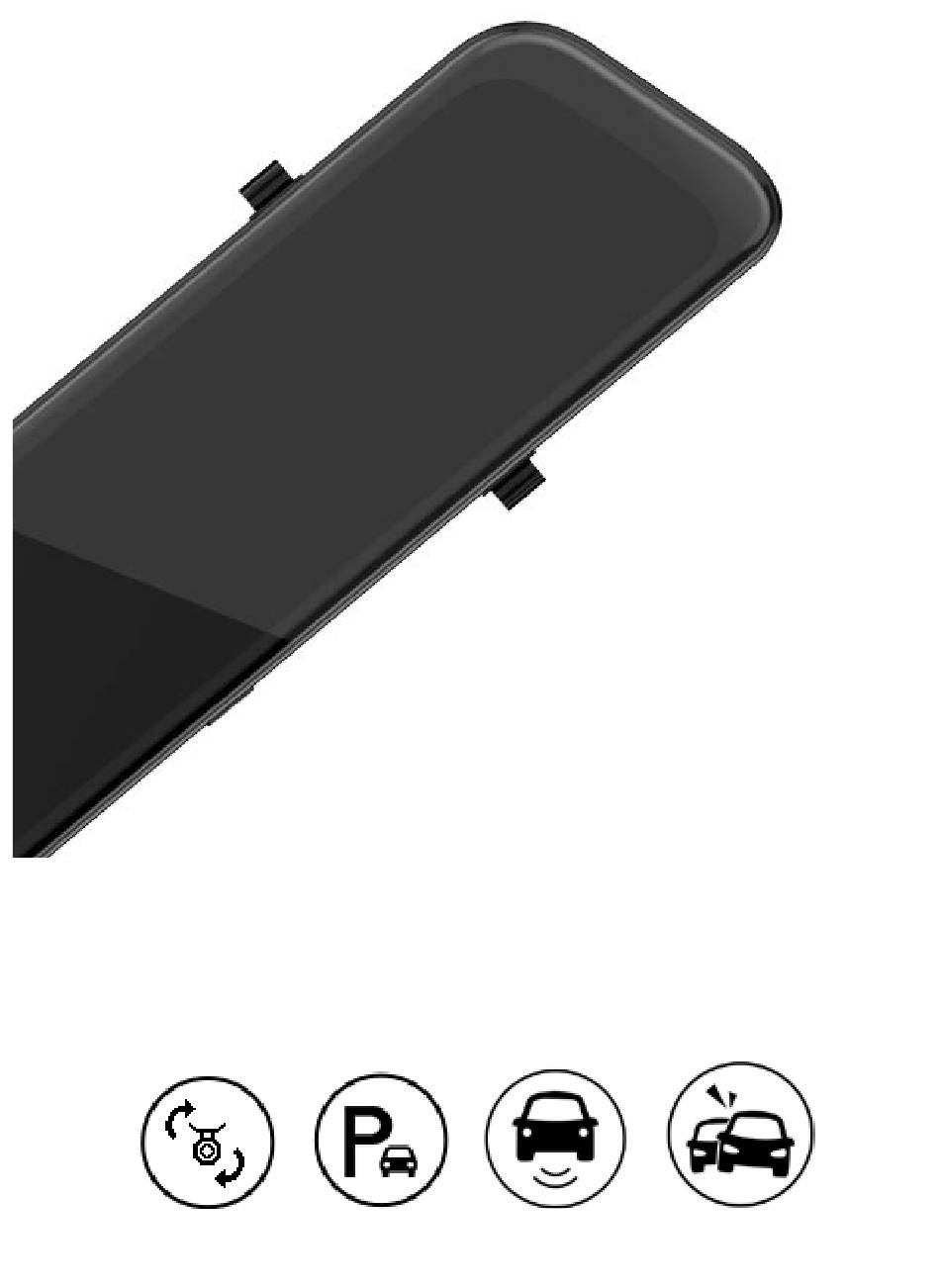

- Page 1 DMYCO® HD 2K CAR DASH CAM Instruction Manual Streaming Media·Reversing Aid · Parking monitor ·G-Sensor...
-
Page 2: Table Of Contents
Contents ※ Foreword --------------------------------------------------------------------------------------1 ※ Precautions ----------------------------------------------------------------------------------- 2 ※ Name of Parts--------------------------------------------------------------------------------- 3 Body ------------------------------------------------------------------------------------------ 3 Accessories---------------------------------------------------------------------------------- 4 ※ Setting the Video Recording Mode--------------------------------------------------------5 Video Recording Mode Touch Operations----------------------------------------------5 Video Recording Mode Setting ---------------------------------------------------------- 8 ※ Setting the Photograph Mode-------------------------------------------------------------10 Photograph Mode Touch Operations --------------------------------------------------10 Photograph Mode Setting----------------------------------------------------------------12 ※... -
Page 3: Foreword
※ Foreword Thanks for purchasing our DMYCO HD 2K ( 2560*1440 ) Car Dash Cam. This dash cam uses high-performance chips to To show high-definition videos and seamless dynamic images. Pass the strict certification of European CE and American FCC, and it supports 2K ( 2560*1440 )true HD camera. -
Page 4: Precautions
※ Precautions Since the machine moves during transportation, it is attached with a protective film toprevent damage. When using for the first time, please shoot two videosto test the quality of camera. Since the battery capacity of this product is very small, if you want to use the host vehicle monitoring function for a long time, or if you want to use this engine after after turning it off,please always supply power to the product. -
Page 5: Name Of Parts
※ Name of Body Parts - Body ○ ○ ○ 1 USB Interface 2 Rear Camera Interface 3 TF Card Slot ○ ○ ○ 4 GPS Interface 5 Reset Button 6 Power Button Power button 1) Function 1- As a power switch Start up:press and hold the Power Button for 2 seconds to turn on the power, and the machine will start working automatically. -
Page 6: Accessories
Name of Body Parts –Accessories ※ Rear Cam External Power Installation Tool Reset Tool 32GB TF card... -
Page 7: Setting The Video Recording Mode
※ Setting the Video Recording Mode Notice: Boot default mode-video recording mode Video Recording Mode Touch Operation Vide o Recording Interface ○ ○ ○ 1 Voice Recording Switch 2 Mode Switch 3 Video Recording Switch ○ ○ ○ 4 Mode Setting 5 Lock Record 6 Record Status ○... - Page 8 Operation 1 Adjust the scope of the camera window Slides up and down1/3 part of the left side of the screen Operation 2 Adjust the screen brightness Slides up and down1/3 part of the screen right side Operation 3 Turn on the video mode setting menu interface Slide the screen from up to down...
- Page 9 Operation 4 Switch the front and rear window Slides the screen from right to left Operation 5 Enter the playback interface Slides the screen from left to right Tips The front videos folder is "front_norm" and the back videos folder "back_norm" The front lock folder is "front_emr"...
-
Page 10: Video Recording Mode Setting
Video Recording Mode Setting Tips:How to turn on the setting menu? Slides down the 1/3 part of the screen to the setting menu or clicks the setting button when in the video or standby state。 Video Recording Setting Interface •Resolution (Front + Rear):2K + 1080P / 1080P +2K •Split Time : 1 MIN / 3 MIN / 5 MIN The dash cam records video to the camera Micro SD card automatically when start the car engine, and saves the recorded video automatically when the car engine is off . - Page 11 •Screen Dormant: OFF / 1 MIN / 3 MIN Adjust the time of screen dormant •Video Encode: H264 / 265 Adjust the video encode of video.H265 is the newest video encode,but H264 has better compatibility. •Video Frequency: 50HZ / 60HZ Adjust the video frequency of video.
-
Page 12: Setting The Photograph Mode
※ Setting the Photograph Mode Photograph Mode Touch Operations The Photograph Interface ○ ○ ○ ○ 1 Mode Switch 2 Photograph Switch 3 Setting 4 Mode Status ○ ○ ○ ○ 5 Time Status 6 Rear Status 7 Voice Status 8 Power Status Mode Switch:Switch to Video Recording Mode ... - Page 13 Operation 2 Adjust the screen brightness Slides up and down 1/3 part of the right side of the screen Operation 3 Open the video mode setting menu interface Slide the screen from up to down Operation 4 Switch the front and rear window Slides the screen from right to left -11-...
-
Page 14: Photograph Mode Setting
Operation 5 Enter the playback interface Slides the screen from left to right Photograph Mode Setting Tips:How to turn on the setting interface? In the video or standby state, the 1/3 part of the screen slides down to the setting interface or clicks the setting button. -
Page 15: Technical Data
Turn On/Off the key voice •Speaker: MUTE / LOW / MIDDLE / HIGH Adjust the sound strength of speaker •Boot Sound: OFF / ON Turn On/Off the voice of boot •Streaming Media: OFF / ON When the streaming media is "on", the default full-screen is rear camera display while starting the car engine, and when the streaming media is "off", the default full-screen is front camera display while starting the car engine. -
Page 16: Installation Guide
※ Installation Guide 1. Turn off the car engine. 2. Insert the TF card into the recorder card slot. [Note] Please use high-speed TF card (Class10 or above), the capacity is not less than 8GB, and the TF card supports up to 64GB. 3. -
Page 17: Frequently Asked Questions
※ Frequently Asked Questions 1. What if the dash cam can not be turned on? A. Please plug the car charger and try to turn it on by pressing On-Off key for about 3 seconds. B. Charge the dash cam for about 5 minutes before turning it on, and then manually restore the factory settings. -
Page 18: Warranty
Please select “OFF” for the operation voice (OFF / ON) button in the system settings. ※ Warranty 30-day money-back guarantee for any reason For 30 days after the date of purchase, return your undamaged DMYCO product and receive a full refund for ANY reason. 12-month warranty for quality-related issues For 12 months after the date of purchase, we take care of all quality related issues with a REPLACEMENT OR FULL REFUND. -
Page 19: Customer Service Support
※ Customer Service Support •Phone Call:（888）985-9801 •Email: Receiver dmycotech@gmail.com Subject Return / Exchange Request The contents of the e-mail Order number: Reason for return and exchange: Contact phone number: Advice and Suggestions -17-...
