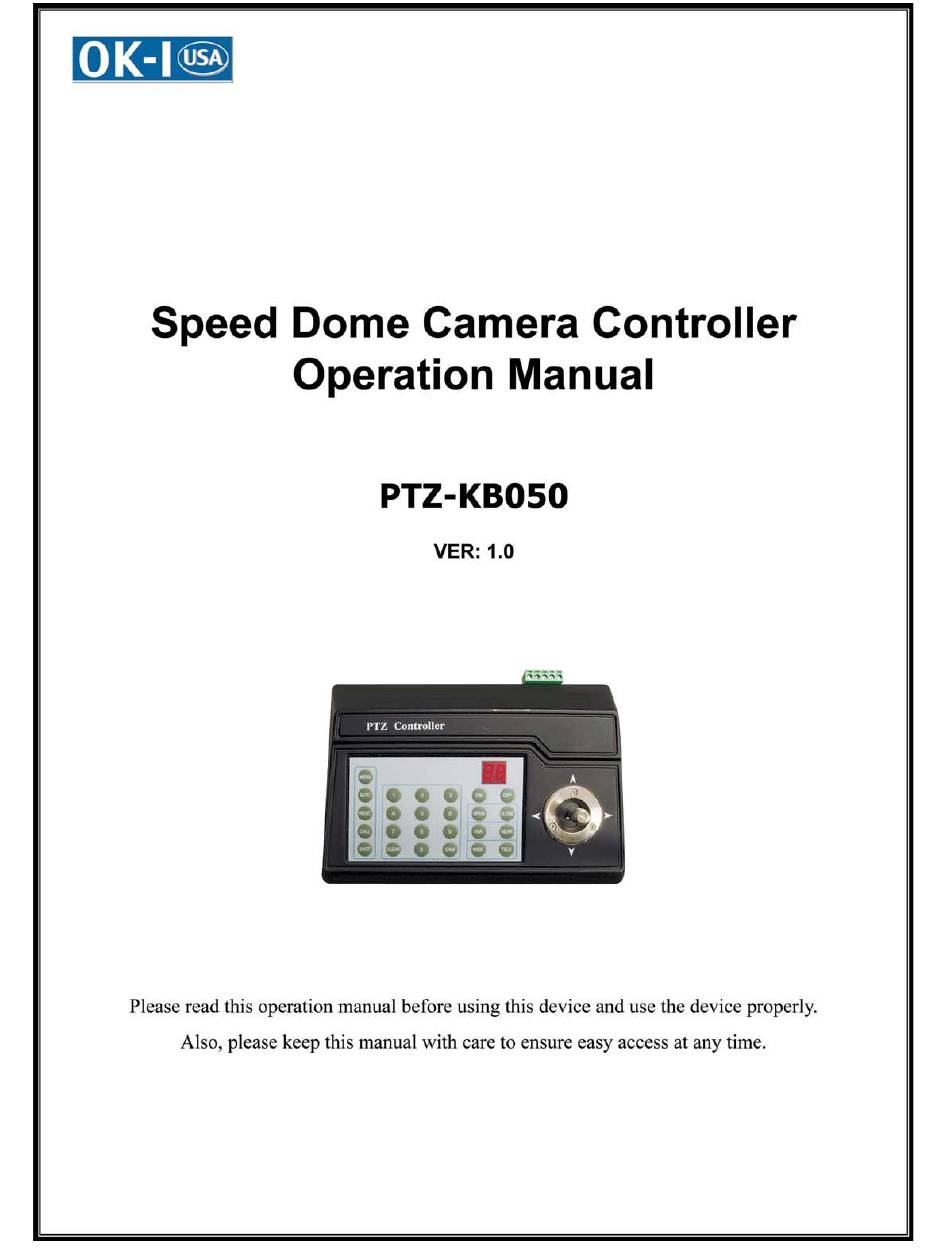

Summary of Contents for OK-I PTZ-KB050
- Page 2 SAFETY PRECAUTIONS “ ”...
-
Page 3: Table Of Contents
INDEX Summary………………………………………………………………………………1 II. Introduction of Function………………………………………………………….….1 III. Introduction of the Keyboard’s Panel………………………………………………1 IV. Setting of the Keyboard………………………………………………………………3 V. Operation of the Keyboard………………………………………………………….3 VI. Installation and Connection…………………………………………………………6 VII. Technical Specifications……………………………………………………………..7 VIII. Points for Attention…………………………………………………………...…….7... -
Page 4: Summary
I. Summary The keyboard controller is used for terminal receivers such as the intelligent Speed Dome and the decoder etc. Taking the EIA/RS-485 electrical interface between the keyboard and the receiver, one keyboard can control as many as 32 speed dome and decoders without over driving the bus. The maximum communication distance between the keyboard and the receiver is up to 1.2 km. - Page 5 Figure 1 CAM：Select address of the intelligent Speed Dome. MENU：Auxiliary control buttons. AUTO：To control auto-horizontal rotation for pan/tilt. CLEAR： To clear inputted data 0-9： Number key WIDE：To a wide angle. TELE：To turn to a telescopic range. FAR：To make focus far manually. NEAR：To make focus near manually.
-
Page 6: Setting Of The Keyboard
IV. ID-Code Setting of the Keyboard a) The protocol in use and the baud rate of communication of the keyboard are set by the ID-Code in Figure 2. DIP1-DIP4 are used to select type of the communication protocol as per following table. PROTOCOL PROTOCOL SELECT BAUD RATE SELECT... -
Page 7: Operation Of The Keyboard
V. Operation of the Keyboard 1. Select Address of Speed Dome Camera /Decoder [N]+[ CAM] Description N –– No. of camera from 0 to 64 Function Select the address of the camera to be controlled. When the value N is in conformity with the address of the speed dome, it will be under control. - Page 8 12. Auxiliary Control of the Camera By combination of [MENU] and [ON], [OFF] buttons, you can set some data of the camera, and functions are listed as follows (operations of COP-2 Protocol): No. of Definition of Keyboard Operation Control Object Value N [MENU]+N+[ON] [MENU]+N+[OFF]...
-
Page 9: Installation And Connection
13. Use the Joystick to Control the Speed Dome Camera You can use the speed joystick to control the Pan/Tilt direction and speed of the dome of the camera randomly. The speed of pan/tilt is decided by the angle of the joystick you operated (Figure 3). Change the tilting angle of the joystick you can adjust the speed evenly and the camera can be focused automatically in the course of scan to keep images being distinct. -
Page 10: Technical Specifications
VII. Technical Specifications Communication between Speed Dome Camera and Controller Port to multi-port and half duplex function. Communication connector: RS-485. Baud Rate of Communication Four baud rates i.e. 2400Bps, 4800Bps, 9600Bps and 19200Bps. Distance of Communication 1200 M maximum Power Supply 500 mA the input voltage of power supply is variable for power supply’s specification 188 ×...
