Summary of Contents for Fomei TR-X 32

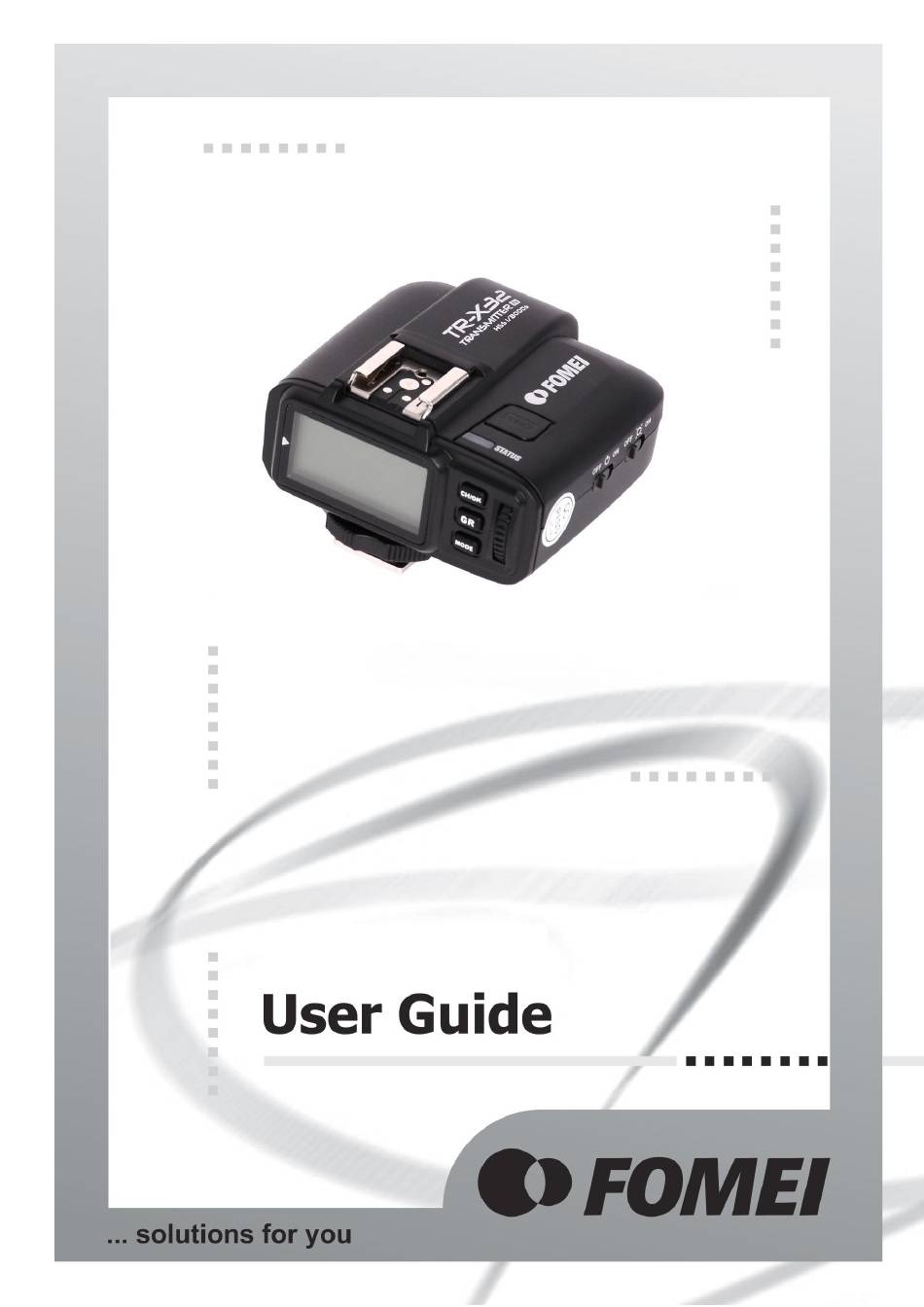

  • Page 1 ´ TR-X 32 FOR CANON...

  • Page 2: Safety Warning

    Website: www.fomei.com Safety warning: Do not disassemble the product. In case of damage contact a service FOMEI or contractual service with trained professionals. Keep this product out of reach the rain or humidity to avoid damage or injury. Do not use in the presence of flammable gas.

  • Page 3: Product Overview

    Product overview a) Transmitter 1. Battery compartment 2. Micro USB port and PC sync socket 3. Hot shoe speedlight connection 4. AF assist beam switch 5. Power switch 6. Trigger button (TEST) 7. Indicating light 8. LCD panel Hot shoe camera connection 10.
  • Page 4 b) Receiver 1. Battery compartment 2. Micro USB port and 2,5mm shutter release port 3. Hot shoe speedlight connection 4. Power switch 5. Trigger button (TEST) 6. Indicating light 7. LCD panel 8. Channel setting button (CH) 9. Group setting button (GR)
  • Page 5 Transmitter display Receiver display...

  • Page 6: About Product

    B) About product TR-X 32 is wireless TTL flash trigger. This product can be used with a transmitter and one or more receivers for studio flash, speedlight and camera shutter. Featuring multi-channel triggering, stable signal transmission and sensitive reaction, if gives photographers unparalleled flexibility and control over their setups.

  • Page 7: Setting The Transmitter

    c) PC sync socket can also be set as output. Long press the „CH/OK“ button of transmitter until „Fn“ is displayed on the panel. Then set the value of C.Fn-03 to „ou“ and the PC sync socket is under output mode. Setting the transmitter: •...
  • Page 8 group is in the „TTL“ mode, all the other groups which are in the „M“ mode will change their FEC amount simultaneously. The FEC amount is changeable from -3 to 3 in 0,3 stop increments, until one of the group’s setting turns to the maximum (3) or the minimum (-3).
  • Page 9 Zoom setting Changing with camera’s zoom value, flash’s auto zoom functions should be turned on. C.Fn-02 20, 24, 28, 35, Zoom (20, 24, 28, 35, 50, 70, 80, 105, 50, 70, 80, 105, 135, 200 mm) 135, 200 PC sync socket PC sync socket connects with camera as as an an input.

  • Page 10: Setting The Receiver

    Nikon DSLR camera, half press the camera shutter can also wake up the system. Selecting the operation method Transmitter: TR-X 32 – operation method 1 (by default) TTL/M mode (In the GR mode or NON-GR mode) Button Operation...
  • Page 11 Adjust the group’s power amount Set the flash times Adjust the times amount Set the flash Adjust the frequency amount frequency TR-X 32 – operation method 2 TTL/M mode Button Operation Function Short press Enter „CH“ settings (under normal status), confirm and back...
  • Page 12 Multi mode (In the NON-GR mode) Button Operation Function Short press Enter „CH“ settings (under normal status), confirm and back to normal status (under settings) Double-click Control the ON/OFF of modeling flash CH/OK Long press for 2s Enter C.Fn custom settings Long press for 5s Switch the operation methods (method 1/method 2) Short press...

  • Page 13: Specifications

    C) Specifications: Model TR-X 32 Type Canon Canon EOS cameras (E-TTL II autoflash) Compatible cameras Support for the cameras that have PC sync socket System 2.4G wireless transmission Modulation mode Power supply 2x AA batteries Exposure control Manual flash TTL autoflash...
