MASK12PBRA

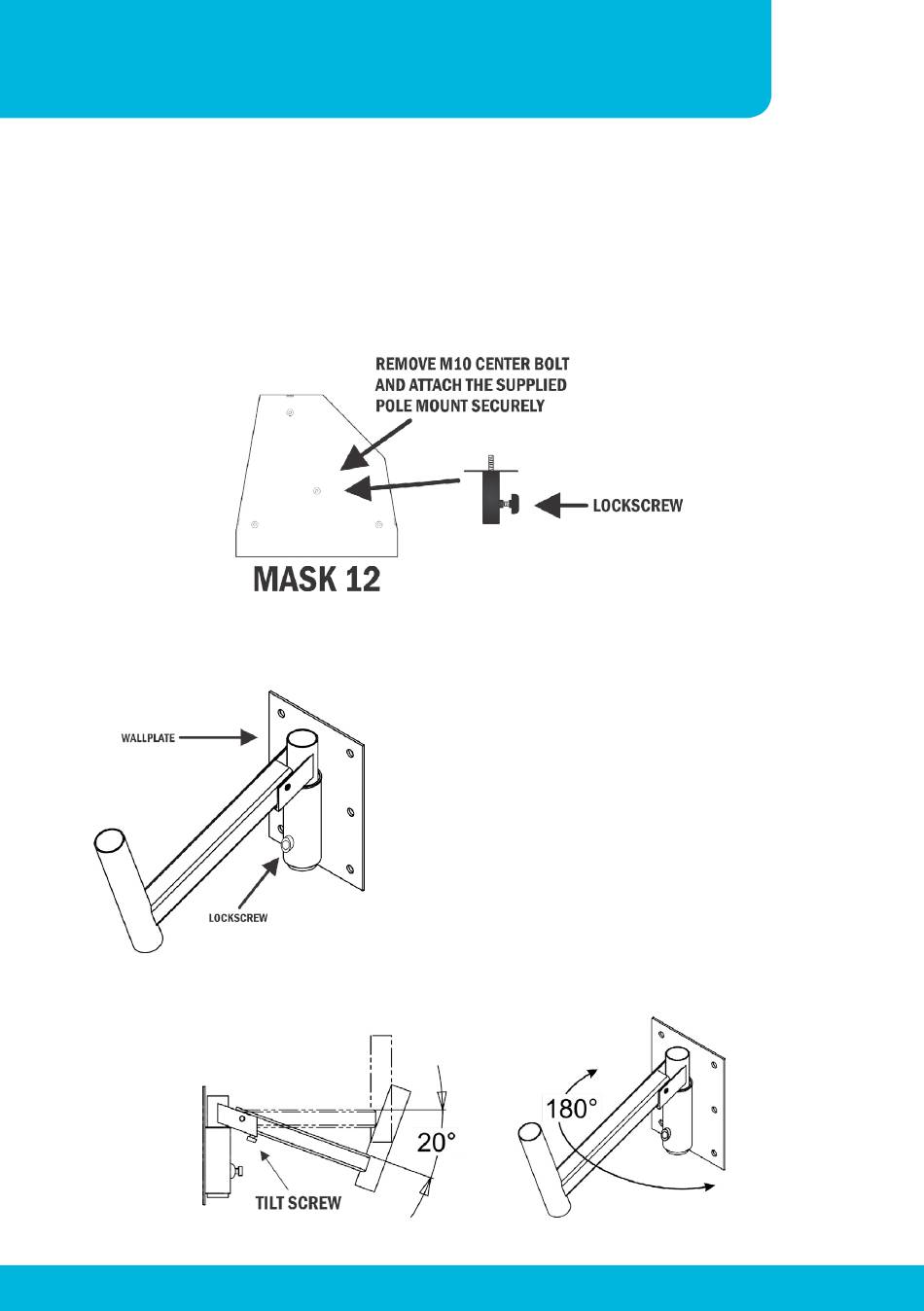

This wall bracket can be used with our MASK12 speaker or other compatible
speakers up to 40 kg. To install the MASK12 speaker on the bracket, remove
the center M10 bolt from the bottom of the speaker. Attach the pole mount
(supplied) securely by fastening the mount on the speaker.
Instruction manual
Fix the wall plate on a sufficiently strong
wall using all 6 mounting holes. Always use
mounting hardware (not supplied) capable
of supporting the load safely. The speaker
arm can be swiveled over a 180° angle from
left to right and can be tilted down up to 20°
by turning the tilt screw. Mount the speaker
with the attached speaker pole mount on
the bracket and secure it by tightening the
lock screws.
1
Advertisement
Table of Contents
Summary of Contents for APart-Audio MASK12PBRA
- Page 1 MASK12PBRA Instruction manual This wall bracket can be used with our MASK12 speaker or other compatible speakers up to 40 kg. To install the MASK12 speaker on the bracket, remove the center M10 bolt from the bottom of the speaker. Attach the pole mount (supplied) securely by fastening the mount on the speaker.
- Page 2 MASK12PBRA Instruction manual For additional safety, we strongly advise to secure the speaker using a safety chain. The chain and the necessary mounting hardware(eyebolts) are not supplied with this bracket. The chain and the attachment eyebolts should be capable of supporting 12 times the weight of the speaker. Mount the safety chain in such a way that the speaker or the supporting hardware won’t drop...
