Summary of Contents for Ernest Sports ES16 TOUR

  • Page 1 For The First Time Quad Doppler Radar and Dual Photometric Cameras in One Launch Monitor » User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS ES16 TOUR GETTING STARTED Package Contents Installing the Battery Selecting a Club Positioning the Ball ERNEST SPORTS APP 10-23 Installation for Windows Bluetooth Connection Windows Pairing Home Screen Navigation Bar...
  • Page 3 Connecting Bluetooth in the App Course View 15-16 Data Provided Ball Flight Graphs Sessions Selecting a Club Course and Distance Selection Club Averages Session Data TROUBLESHOOTING 24-25 WARRANTY / REPAIR...
  • Page 4: Es16 Tour

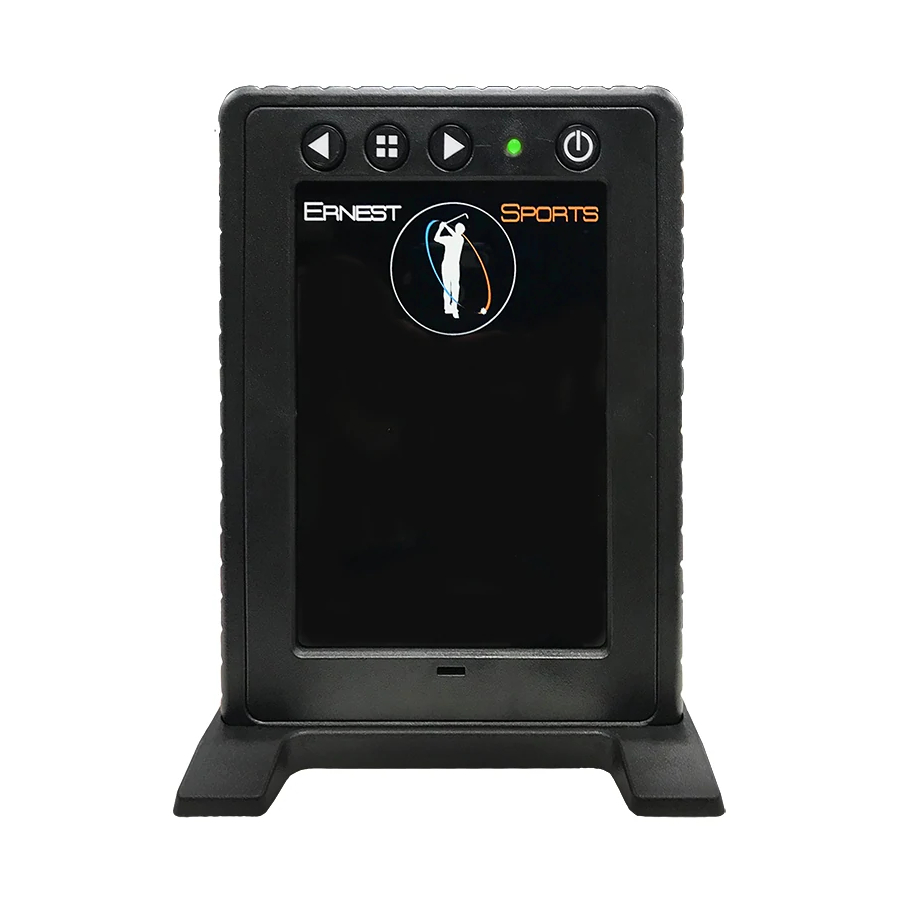

    ES16 TOUR Rubber Boot LCD Display Ball Placement LED Club Selection Power Button Buttons Doppler Covers Camera Location Base...
  • Page 5: Getting Started

    GETTING STARTED ES16 Package Contents Power Adapter Lithium Ion Battery USB Cable For The First Time Quad Doppler Radar and Dual Photometric Cameras in One Launch Monitor » User Manual User Manual...
  • Page 6: Installing The Battery

    Installing the Battery • Remove the battery panel on the ES16 with a phillips screwdriver • Attach the battery cable to the 3 pin connector located in the upper left corner of the battery compartment • The red wire should be toward the bottom as shown above •...
  • Page 7: Selecting A Club

    Selecting a Club Once the device has Club Display Name Club Display Name been powered on, the Driver D WD 2 Iron 2 IR current club selection 3 Wood 3 WD 3 Iron 3 IR will be shown on the 5 Wood 5 WD 4 Iron...
  • Page 8: Positioning The Ball

    Position the Ball Place the ES16 facing the ball and golfer. The ball should be placed 12 inches in front of the ES16 just off the back foot of the unit. Note: Allow at least 10 feet between the ES16 and any screens or nets (if hitting indoors).
  • Page 9 Place the ball with the logo parrallel to the ground and facing the ES16. The LED on the front will change from red to green when the ball is in the correct position. Logo facing device **Reverse set-up for left-handed golfers...
  • Page 10: Ernest Sports App

    Get it on Windows 10 From the Windows Store search Ernest Sports to locate the correct app. Follow the link to the store page, and select Get the app. After installation, there will be a shortcut in the All Apps tab under the Windows start menu.
  • Page 11: Windows Pairing

    The device will show connected at first, then show paired after the connection is completed. The ES16 will connect as needed after this. On initial launch of the app, Windows will ask if Ernest Sports can access your ES16. Click Yes.
  • Page 12: Home Screen

    Home Screen Quick Start - Select this option if you do not need the data to be saved. This is a good option to use for a demo of the device. Active User - Select this option if the current user already has a profile.
  • Page 13: Navigation Bar

    Navigation Bar On the left edge of the app are icons that allow movement between the main sections: • Range Session • View Logs • User • Settings Clicking on the icon in the top left corner with 3 parrallel lines expands the navigation bar to show names along with the icons.
  • Page 14: Connecting Bluetooth In The App

    Connecting Bluetooth in the App Click the connection icon (chain links) in the upper right corner of the screen. A window listing paired Ernest Sports devices will appear below the connection icon. If ES16 is not an option, click REFRESH at the bottom of the window.
  • Page 15: Course View

    Course View Shot Path Additional Navigation Navigation Menu Previous Shot Shot Data Shot path view Shot Data...
  • Page 16 Course View cont’ The ES16 app displays flight path and shot data. Course view is represented by the flag icon in the top left.
  • Page 17: Data Provided

    Data Provided Initial launch statistics immediately populate the screen and are followed by real time animated flight statistics. • Angle of Attack • Club Speed • Ball Speed • Smash Factor • Launch Angle • Launch Direction • Spin Rate •...
  • Page 18: Ball Flight Graphs

    Ball Flight Graphs Graphs show ball flight including direction, distance, and shot shape.
  • Page 19: Sessions

    Sessions From the top center of the screen select Session. To begin a new session, name your range session and select Start Session. To join a previous session, select an existing session from the list and click Join Session. Pro Tip: Session name can be used to identify specific clubs or...
  • Page 20: Selecting A Club

    Selecting a Club From the top center of the screen select Club. Scroll through the list and select the club you would like to use. That club will then appear on the ES16. Appropriate club selection is needed for storing accurate club statistics.
  • Page 21: Course And Distance Selection

    Course and Distance Selection From the top center of the screen, select Hole. Under Location, select the course you would like to view. Under Distance to Hole, use the slider to select distance to pin. Then select Set Distance. Under Rotation, the target line can be aimed to the left or right.
  • Page 22: Club Averages

    Club Averages Select View Logs from the navigation bar. From the box on the left, select Averages with the toggle button, then the session to be viewed. To change the club data being viewed: • Select club from list at bottom of the page •...
  • Page 23: Session Data

    Session Data Select View Logs from navigation bar. From the box on the left, select Raw with the toggle button, then choose the session to be viewed.
  • Page 24: Troubleshooting

    • First make sure the ES16 is turned on and the Blutooth on the computer is also on • If you answered No to the security prompt Let Ernest Sports access your ES16, your ES16 will be blacklisted by your computer (see My ES16 was blacklisted)
  • Page 25 My ES16 was blacklisted in the Bluetooth settings • Go to the Settings menu on you computer (it should be listed at the near the bottom of the start menu or can be found in the notifications center) • Click on Privacy, choose Other Devices •...
  • Page 26: Warranty / Repair

    The warranty applies only to the original purchaser of this product. Warranty work may be completed only by Ernest Sports. If the device is not found to be defective, no warranty work will be performed.
  • Page 28 855.354.GOLF » www.ernestsports.com » 5275 Triangle Parkway, Suite 150, Norcross GA 30092 www.FACEBOOK.com/ernestsports www.TWITTER.com/ernestsports...
