AIVION THUNDER LINK TL7051 Manual

Thunder Link is a family of small form factor modules for formatting and converting generic digital video
streams to standard compliant formats. Different interface standards are supported from the transmitter
side including DVI/HDMI, VGA, 3G-SDI, HD-SDI, SDI, CVBS and USB. Supported physical media are copper
and fibre cables.
These modules connect to the digital video interface of Sony's FCB-EV, FCB-H, FCB-EH or FCB-EX block
cameras and support several progressive and interlace HDTV or SDTV formats. As no analog to digital
conversion is done on these modules, excellent output image quality is achieved.
TL7051 - Features
+ Supports Sony FCB-EV7500/7310/7300/7100/5500/5300
+ Supports all Sony FCB-EH camera blocks and FCB-SE600
+ Digital 4Ch./8Ch. LVDS video input from camera
+ 1080p and 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz and 25Hz
+ 1080i output at 60Hz, 59.94Hz and 50Hz
+ Full automatic video input standard detection
+ Dual 3G/HD-SDI outputs compliant to SMPTE424M / SMPTE292M
+ Native digital signal processing chain for best image quality
+ Breakout of camera analog HDTV YPbPr and CVBS video*
+ RS232 and TTL level serial control interface
+ Robust RS485 differential serial control interface
+ Supply voltage 5V or 12V DC regulated
+ NEW: Temperature monitoring with alert function
*requires TL705x extended cable kit

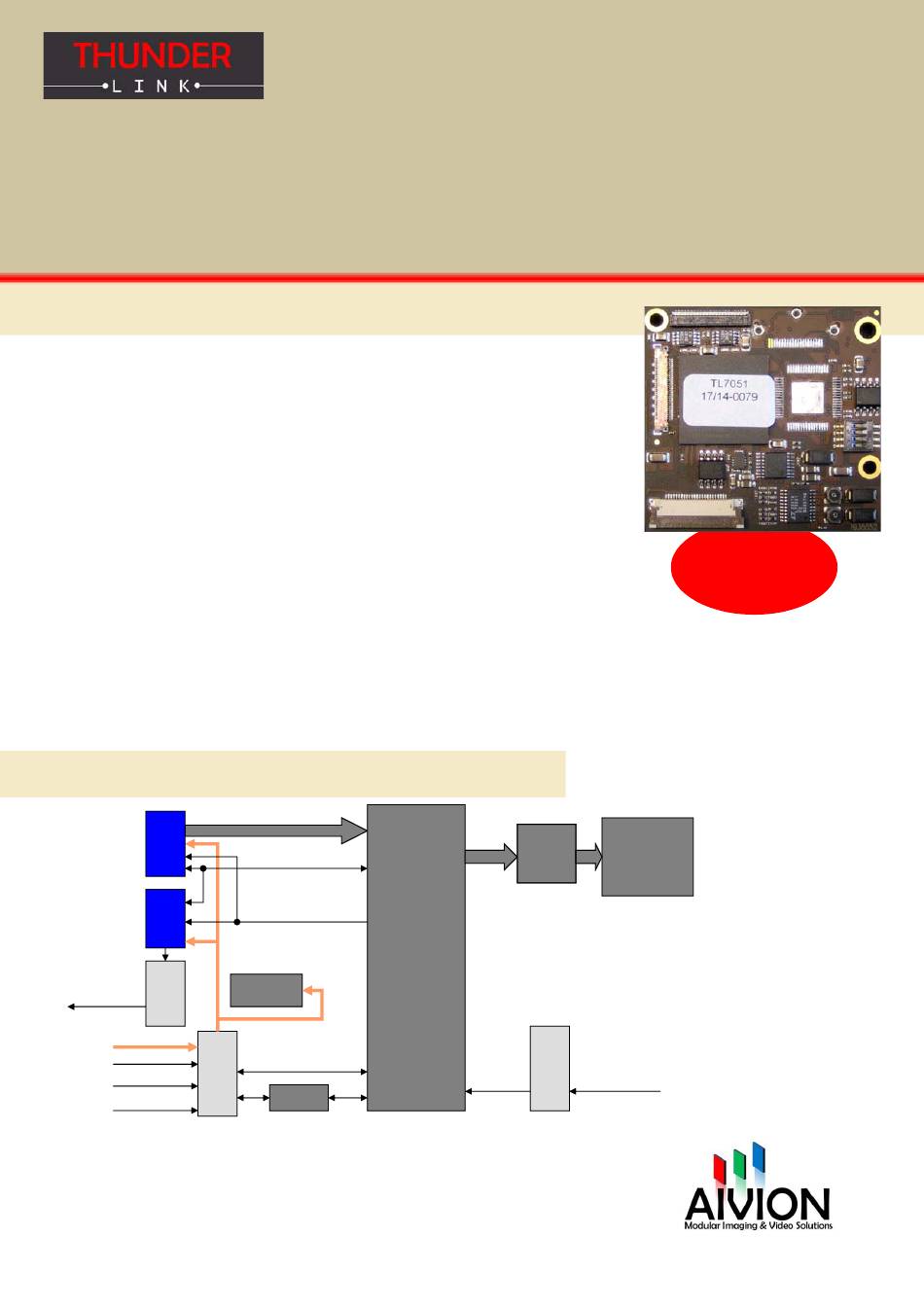

Block Diagram TL7051
30pin
Micro
Coax
Conn.
24pin
FFC
Conn.
8pin
YPbPr(HD)/CVBS JST
SH
Conn.
External Power
10pin
3,3V TTL Control IF
JST
SH
RS232 Control IF
Conn.
Shutdown
This datasheet is valid for all B Revision Boards.
A1_DS_TL7051_V.2.4.0.fm April, 23, 2016
3G
LVDS Video
Power
Serial TTL Control
Camera Reset
Power
3G/HD VIDEO
PROCESSOR
Onboard
Power
RS232
/ TTL
Dual 3G/HD-SDI Output Video Transceiver
Dual
3G/HD
3G/HD-SDI
SDI
Output
Cable
(MCX
Driver
connector)
6pin
JST
RS485 Control IF
SH
Conn.
TL7051
Dual 3G-SDI
Output
Order Codes:
TL7051
Dual 3G/HD-SDI output
TL705xCK-B
Base Cable Kit
TL705xCK-E
Extended Cable Kit
