4Patriots POWER CELL User Manual

PATRIOT POWER CELL
Thank you for purchasing our product.

USER GUIDE

The Solar Charging function is recommended for emergency use
NOT as the primary power source. For daily use it is recommended
that you recharge via the USB port on your computer.
210MM
⑦
⑧
③
⑤
④
①
②
■ Product Structure:
① Output⑴&⑵ ② Input

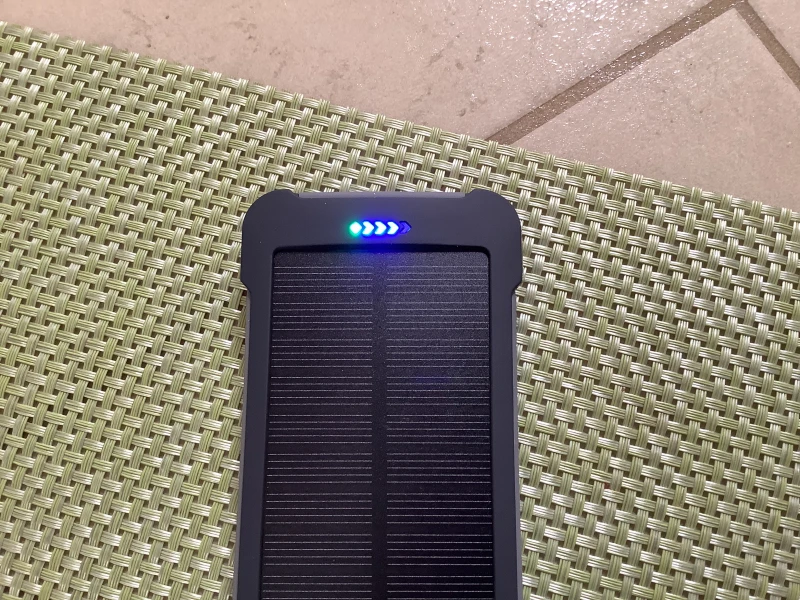

③ Crystalline silicon solar cells ④ Integrated LED indicators
⑤ Solar-charging indicator ⑥ Power and LED Light on/off
⑦ Dual LED Lights ⑧ Hanger
■
Specification:
Battery type: Li-polymer battery
Solar panel specification: 107*61MM(1.5W)
Temperature for use: -10℃~+50℃
Input: 5.0V 1.6A
Output: 5.0V 2.1A(Max)
Full charging time: 6 hours (Depends on adaptor power)
Circulate service life: ＞500 times, 5-6 years
Size: 138*76*19MM
Weight: 220G (Max)
■
Charging your device via computer:
1. Plug the lightning end of your charger cord in the small
slot on your Patriot Power Cell between the two USB ports.
2. Plug the USB end of your charger cord into your computer.
3. Press the power control switch to start charging.
4. When all indicator lights are lit the Patriot Power Cell is
fully charged.
■ Charging your device via solar panel:
1. Place the solar charger in daylight with panels facing out.
The charger does not have to be in full sun to charge via
⑥
solar panels.
2. Press the power control switch to start charging.
3. The solar LED light is green while the device is charging.
90MM
