Summary of Contents for Delo DELOLUXcontrol

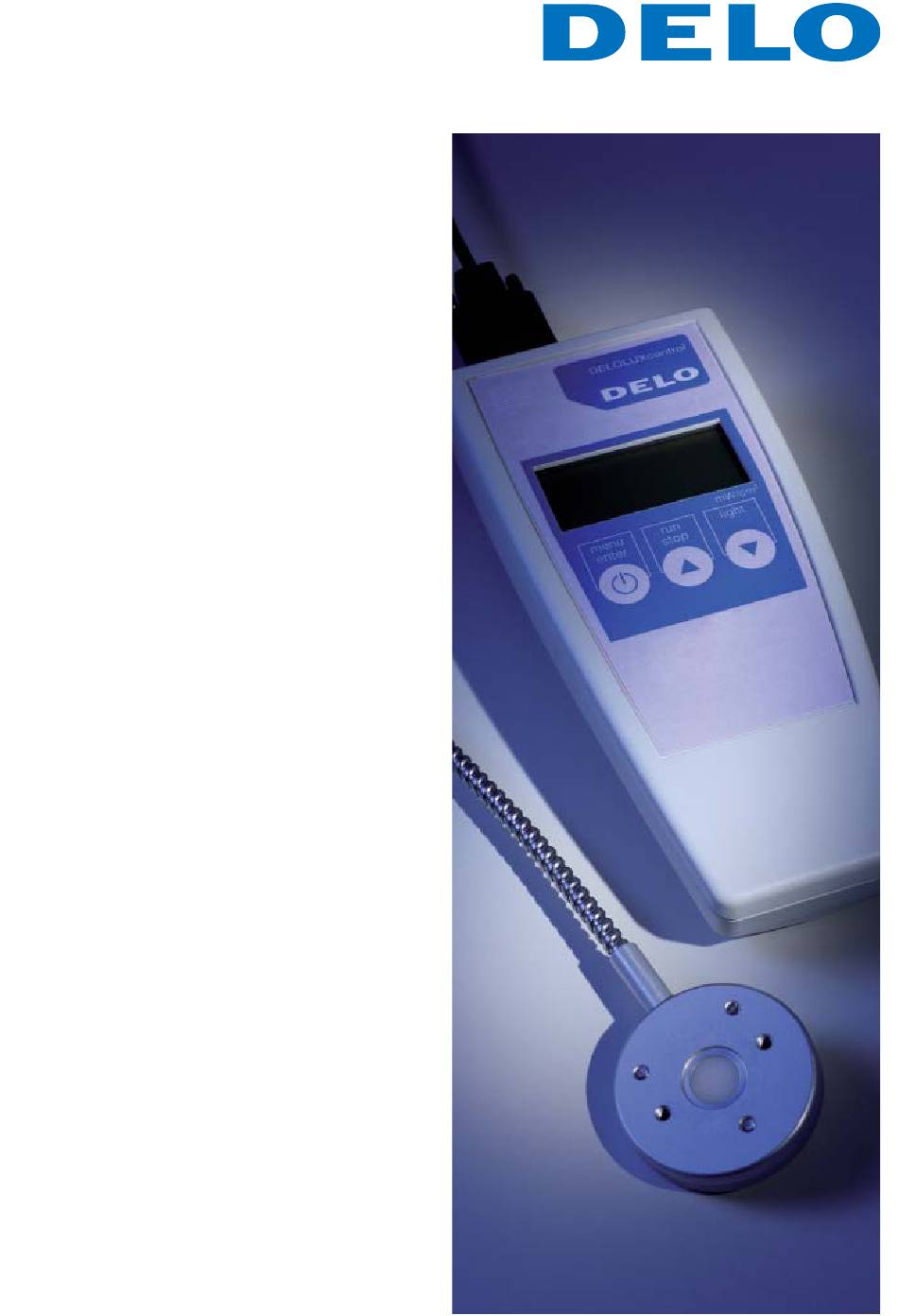

  • Page 1 User Manual DELOLUXcontrol...

  • Page 2: Table Of Contents

    Contents Contents General ......................6 Information regarding these instructions ............6 Company address and service ...............6 Explanation of symbols ..................7 Limitation of liability ..................8 Copyright ......................8 Spare parts .....................9 Disposal ......................9 Warranty terms and liability ................9 CE conformity ....................9 Safety ......................10 Intended use ....................10 Contents of the instructions .................10 Modifi...
  • Page 3 Handling of malfunctions ................29 Possible error causes ...................29 Spare parts and accessories ..............30 Appendix ....................31 11.1 CE conformity ....................31 11.2 Dimensions ....................32 11.2.1 Dimensions of DELOLUXcontrol display unit ........32 11.2.2 Dimensions of DELOLUXcontrol sensor ...........33 Index ......................34...

  • Page 4: General

    Should there be any queries or questions, do not hesitate to contact the manufacturer at any time. This document is a translation of the original operating instructions. Revision: R4.3 05/15 Company address and service DELO Industrial Adhesives DELO-Allee 1 86949 Windach Germany Phone +49 8193 9900-0 Fax +49 8193 9900-144 service@DELO.de...

  • Page 5: Explanation Of Symbols

    General Explanation of symbols Warnings Warnings in these operating instructions are identifi ed by symbols. These warnings are introduced by signal words, which express the severity of a danger. Comply with these warnings and act cautiously in order to avoid accidents, physical injury and damage to property.

  • Page 6: Limitation Of Liability

    General Limitation of liability All information and notes in these operating instructions were compiled under due consideration of valid standards and regulations, the present state of technology and our years of knowledge and experience. The manufacturer cannot be held liable for damage or injury resulting from: ...

  • Page 7: Spare Parts

    General Spare parts WARNING! Risk of injury from the use of incorrect spare parts! Incorrect or defective spare parts can cause damage, malfunctions or complete failure, and can impair safety. Therefore:  Use only original parts by the manufacturer. Order spare parts (see chapter 10 Spare parts and accessories, page 30) from authorized dealers or directly from the manufacturer.

  • Page 8: Safety

    The device is exclusively conceived and designed for the use described herein. NOTE! DELOLUXcontrol, in combination with the corresponding detector heads, serves to measure and control the intensity of the polymerization-effective radiation of a curing lamp. The detector heads are subject to calibration.

  • Page 9: Responsibility Of The Operator

    Safety Responsibility of the operator The device is used commercially. The installer/operator is responsible for the safety of the system in which the device is integrated. Therefore, the installer/operator of the device is subject to statutory requirements for occupational safety. Besides the instructions for occupational safety contained in these operating instructions, operators must also follow general safety regulations, accident prevention regulations and environmental protection regulations.

  • Page 10: Operating Personnel

    Safety Operating personnel WARNING! Risk of injury if personnel are not qualifi ed! Improper handling of the module can cause severe injuries and damage. Therefore:  Special tasks must be performed only by the personnel designated in the respective chapters of these instructions. The operating instructions specify the following qualifi...

  • Page 11: Specifi C Risks

    Safety Specifi c risks This chapter describes the residual risks resulting from the risk assessment. The safety instructions and warnings described here and in further chapters of these operating instructions must be followed to reduce health risks and prevent dangerous situations.

  • Page 12: Technical Data

    Technical data Technical data Note: Detailed dimensions are found in the dimension drawing in the appendix, chapter 11.2 Dimensions, page 32. Display unit Dimensions L x W x H approx. 145 x 63 x 31 mm Weight 161 g Display range 0.1 –...

  • Page 13: Design And Function

    Design and function Design and function DELOLUXcontrol, in combination with the corresponding detector heads, serves to measure and control the intensity of the polymerization-effective radiation of a curing lamp. The detector heads are subject to calibration. Comply with the manufacturer’s instructions and operating instructions of the lamps to be measured/controlled under any circumstances.

  • Page 14: Device Overview

    Design and function Device overview 4.1.1 Display unit Pos. Control element / Remark component LCD display The display indicates the currently measured value in mW/cm². (Exception: Display UL/ OL = measuring value to high resp. too low) In addition, the display shows the serial number of the selected detector head, the selected adapter ( aperture reduction of the measuring area) if applicable, or the specifi...

  • Page 15: Interfaces

    Design and function 4.1.2 Interfaces Pos. Control element / Remark component USB port Data exchange with a superior control unit (PLC or PC) Connector for detector Connection socket for a detector head assigned to head the light intensity meter...

  • Page 16: Detector Head

    Design and function 4.1.3 Detector head...
  • Page 17 Design and function Pos. Control element / Remark component Radiation sensor With the radiation sensor, the high-intensity radiation (UVA, BLUE or LED) is absorbed and carried to the actual detector (4). The measuring intervals must be kept short to prevent aging of the sensor. Adapter If it is not the intensity value at the actual irradiation area that is to be determined, but rather the curing...

  • Page 18: Shipping, Packaging And Storage

     Shocks should be prevented.  Never let the device fall down onto the fl oor or the work bench.  DELO cannot be held liable for damage resulting from defective packaging.  Do not bend the metal sheathing of the detector head line (minimum bending radius 100 mm).

  • Page 19: Installation And Connection

    Store the light intensity meter in the supplied hard top case for optimal protection. Only the detector heads assigned to DELOLUXcontrol can be used as the calibration data of the detector heads are saved in the calibration data memory of the light intensity meter.

  • Page 20: Operation

    Functions of DELOLUXcontrol 7.2.1 Overview of confi guration options The manufacturer programs DELOLUXcontrol in such a way that only the detector heads supplied can be selected. If another detector head is to be included, the display unit must be sent to the manufacturer so that the respective detector head can be activated and the calibration factor can be entered.
  • Page 21 Operation DELOLUXcontrol Initialization DELO Sample display 4230.5 Basic view LED 1 mm 365 mW/cm² SN: 16972 <escape> Emin Change data Emin 1000 <Yes/No> Detector BLUE SN: xxxxxxxx SN: xxxxxxxx Apt 3 mm Apt 3 mm Apt 5 mm Apt 5 mm...

  • Page 22: Menu Navigation

    Operation 7.2.2 Menu navigation After initialization of DELOLUXcontrol, the basic view/start screen is displayed. The sensor selection depends on the last selected detector head. The current measuring value, the detector head type incl. serial number as well as the selected adapter (in case of UVA or BLUE) resp.

  • Page 23: Measuring Without Adapter

    Operation Description Functions / modes light Mode 1 – Measuring view Starting point: Start screen The display background lighting can be switched on and off. Mode 2 – Confi guration view Starting point: Submenu (e. g., detector selection) The key arrow is activated in the submenu. That means that it is possible to navigate between the menu points.

  • Page 24: Measuring With Adapter

    1000 7.2.6 USB interface DELOLUXcontrol has a USB interface as standard. With it, the current measuring data can be transferred to another system (e. g., PLC or PC). The necessary DLL data are stored on the CD-ROM enclosed in the shipment. In addition, the CD-ROM includes an example...

  • Page 25: Maintenance

    Maintenance Maintenance Safety instructions CAUTION! Damage or faulty measuring results through improper maintenance! Therefore:  Ensure that the workplace is tidy and clean!  Always switch off the device before cleaning.  Use the batteries provided for operation.  Remove the batteries if the device is not used for a longer period of time.

  • Page 26: Maintenance Plan

    Store the light intensity meter in the supplied hard top case for optimal protection. Repair If the device is damaged or worn, or in case of complaints, please contact DELO Industrial Adhesives – Equipment Technology (service@delo.de). For contact details refer to chapter 1.2 Company address and service, page 6.

  • Page 27: Malfunctions

    Check the measuring line for damage. Check by means of another detector head if the display unit is functional. If none of the above causes apply, but the light intensity meter will still not work properly, send the device to DELO without delay.

  • Page 28: Spare Parts And Accessories

    Spare parts and accessories Spare parts and accessories Art. no. Designation/description Figure 95 201 08 DELOLUXcontrol Display unit 95 201 03 UVA detector head 95 201 02 BLUE detector head 95 201 04 9 mm LED detector head 95 201 06 1 mm LED detector head Length: 1.3 m each...

  • Page 29: Appendix

    Appendix Appendix 11.1 CE conformity...

  • Page 30: Dimensions

    Appendix 11.2 Dimensions 11.2.1 Dimensions of DELOLUXcontrol display unit...

  • Page 31: Dimensions Of Deloluxcontrol Sensor

    Appendix 11.2.2 Dimensions of DELOLUXcontrol sensor...

  • Page 32: Index

    Index Index Accessories Data exchange Handling of Adapter 15, 16, 19 Declaration of malfunctions Alterations conformity 9, 31 Hard top case Aperture 15, 16, 19 Design Hold function Application areas Detection area Detector Detector head 14, 18 Determine the intensity Identifi...
  • Page 33 Index Specifi c risks Start of operation Maintenance Packaging Startup Maintenance plan Parameter setting Stop Malfunctions Personal protective Storage Maximum equipment equipment Switched off Measuring value Personnel Switched on hold function Possible error causes Switching off 16, 24 Measuring Protective clothes Switch on with adapter Protective equipment...
  • Page 34  Taiwan / Taipei · Offi ce 824, 5F, Pacifi c Business Bldg · No. 285, Sec 4 Zhongxiao East Rd · 106 Taipei · Phone +886 2 6639 8248 · info@DELO.com.tw · www.DELO.com.tw  USA / Sudbury · 144 North Road Suite 2650 · Sudbury / Boston, MA 01776 · Phone +1 978 254 5275 · info@DELO.us · www.DELO.us Refer to the sales documents for the warranty terms.
