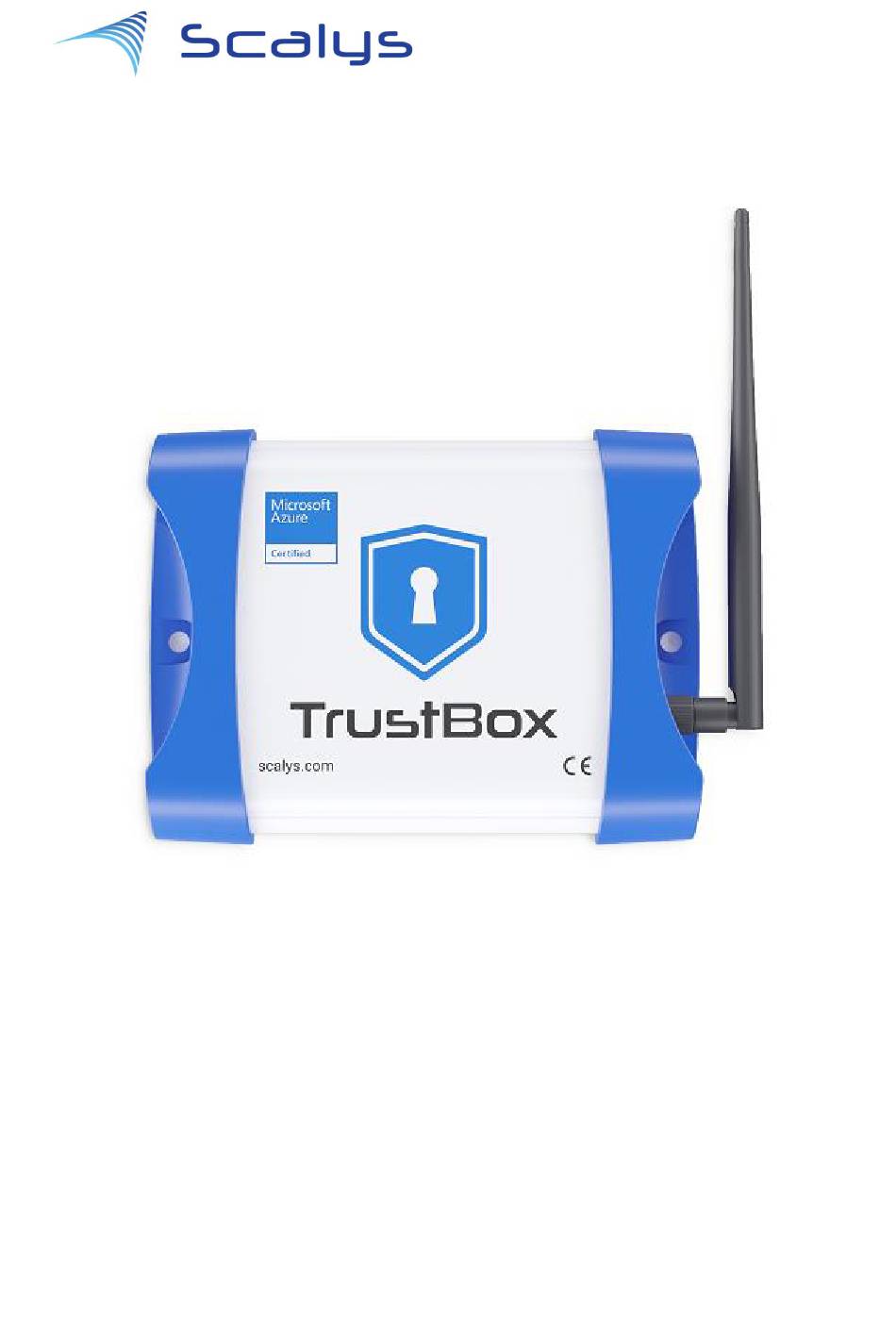

- Page 1 User Guide TrustBox_IND_S1 Doc.: User Guide, Rev. 0.4 Doc. ID: TBOXINDS1_UG_04...
- Page 2 User Guide TBOXINDS1 – User Guide, Rev. 0.4 P a g e...
- Page 3 Scalys assumes no responsibility or liability for the use of the described product(s) or solutions, conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified.
- Page 4 You understand and agree that your use of Scalys devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your Scalys product, you are requested to conform with the following guidelines.
- Page 6 All operations on this product must be carried out by good skilled personnel only. Electric Shock Before installing a Scalys product into a system always ensure that your main power is switched off. Serious electrical shock hazards can exist during all installation, repair, and maintenance operations on this product.
- Page 7 User Guide Instructions In order to maintain Scalys product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Scalys and described in this user guide or received from Scalys Support as a special handling instruction, will void your warranty.
-
Page 8: Table Of Contents
NTERFACES ONNECTIONS RUST ..........................15 RONT ........................... 15 IEWS ........................15 NTERFACES ......................... 16 IGHT IDE INTERFACES THERMAL BEHAVIOR OF TRUSTBOX ..................20 ...................... 20 ONVECTION OOLING ETHOD ..................... 20 AXIMUM PERATING EMPERATURE INSTALLATION INSTRUCTIONS ....................21 ........................22 YSTEM OUNTING OPERATING THE TRUSTBOX .................... -
Page 9: General Instructions
If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product; in cases of non-observance of the instructions Scalys is exempt from accident liability, this also applies during the warranty period. -
Page 10: Electrostatic Discharge (Esd)
User Guide 1.1. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro circuitry. Therefore, proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: 1. Transport boards in ESD-safe containers such as boxes or bags. 2. -
Page 11: Electromagnetic Compatibility (Emc)
User Guide Electromagnetic Compatibility (EMC) This product is intended for use in industrial areas. The most recent version of the EMC guidelines (EMC Directive 2014/30/EU). If the user modifies and/or adds to the equipment (e.g. installation of add-on cards) the prerequisites for the CE conformity declaration (safety requirements) may no longer apply. -
Page 12: Package
3.1 Package Figure 1. TrustBox cardboard box Proceed as follows to unpack the TrustBox: 1. Remove packaging. 2. Do not discard the original packaging. Keep it for future relocation. 3. Check the delivery for completeness by comparing it with your order. -
Page 13: Type Label And Product Identification
User Guide 3.3 Type Label and Product Identification The type label (product name, serial number) of your TBOXINDS1 system are located on the bottom side of the device. TBOXINDS1 – User Guide, Rev. 0.4 13 | P a g e... -
Page 14: System Overview
User Guide System Overview The TrustBox is a highly scalable and flexible industrial IoT Edge leaf node device. Based on the latest NXP LS1012A, a 64-bit ARM® v8 network processor series, the new maintenance- free, fanless, TrustBox was developed as an intelligent IoT leaf node for secure IoT edge applications. -
Page 15: Front View
Figure 4. Scalys TBOXINDS1 – left and right side views 4.4 Left Side Interfaces USB 3.0 The TrustBox has 2 USB 3.0 interfaces. Gigabit Ethernet The TrustBox has 2x 1 Gigabit Ethernet interfaces on board. TBOXINDS1 – User Guide, Rev. 0.4 15 | P a g e... -
Page 16: Right Side Interfaces
The TrustBox has serial (UART) interface available through micro USB port. Power Jack TrustBox includes a Power Supply (including EU/UK and US adaptors), which can be plugged into the power Jack. The Power Jack supports a 4.6 - 12V input with 1A current. See for details power adaptor below: Figure 6. - Page 17 User Guide We have 3 add-on adaptors available in the box for EU, US and UK power connections. EU input plug UK input plug US input plug Detailed Characteristics power supply: TBOXINDS1 – User Guide, Rev. 0.4 17 | P a g e...
- Page 18 User Guide TBOXINDS1 – User Guide, Rev. 0.4 18 | P a g e...
- Page 19 User Guide TBOXINDS1 – User Guide, Rev. 0.4 19 | P a g e...
-
Page 20: Thermal Behavior Of Trustbox
To provide sufficient heat dissipation for the cooling of TrustBox, never cover the chassis. Do not place any objects on the device. Do not place the device under any object blocking the top surface of TrustBox. Avoid using TrustBox laying upside down, i.e. with the logo looking downs. -
Page 21: Installation Instructions
Further do not insert any retrieval device into the device while it is connected to power. Scalys rejects all liability for any and all damages resulting from operation of the unit with foreign objects inside the chassis. -
Page 22: System Mounting
6.1 System Mounting For a sufficient air circulation around the device, we recommend not to mount or operate any other devices within the “Restricted Area” around the TrustBox-IND-S1; refer to the red marked area in the following Figures. Figure 7. Restricted area for mounting around TBOXINDS1 (front side view with antenna) Figure 8. - Page 23 User Guide Figure 9. Restricted area for mounting around TBOXINDS1 (side view and antenna restrictions) TBOXINDS1 – User Guide, Rev. 0.4 23 | P a g e...
-
Page 24: Operating The Trustbox
7. Operating the TrustBox 7.1 Connecting to DC Main Power Supply The DC input connector is located on the right side of the TrustBox. TrustBox should be connected to a DC main power supply via the supplied power plug adaptor, which is included in the package. -
Page 25: Network
To enable it allow the remote root login and restart ssh service: sed –i 's/PermitRootLogin/#PermitRootLogin/g' /etc/ssh/sshd_config systemctl restart sshd 7.5 Logging in To perform first log in into a clean TrustBox system use following credentials: : root User Password: root Note: do not forget to change default password as soon as possible. - Page 26 SD card, it requires for a stripped Linux build. For this purpose, Yocto- based BSP can be used. It is available at https://github.com/Scalys/bsp-yocto. Use of UBIFS to store system allows to have a persistent system state. This approach is also vulnerable to sudden power loss.
-
Page 27: Azure Iot Edge
Once connection is established TrustBox will pull all the registered Azure Edge modules and start running them. Note: at the time of TrustBox release Azure IoT Edge was not yet globally available for arm64 platform. Because of it the default iotedge configuration is set to use a specific version of iot edge modules. -
Page 28: Maintenance And Cleaning
User Guide 8. Maintenance and Cleaning Equipment from Scalys requires only minimum servicing and maintenance for proper operation. For light soiling, clean the TBOXINDS1 with a dry cloth. Carefully remove dust from the surface of the of the chassis using a clean, soft brush. -
Page 29: Specifications Tboxinds1
User Guide 9. Specifications TBOXINDS1 9.1 Technical Specifications NXP QorIQ LS1012A single core 64-bit ARM® Cortex®-A53 network processor @ 800 MHz Memory DDR Memory 1 GB DDR3L SDRAM NOR 64 MB NOR Flash MicroSD 8 GB Connectors Ethernet 2x 1 Gb Ethernet connectors Extension header I2C, UART, SPI SDHC on expansion header USB 2x USB 3.0 connectors UART On-board USB 2.0 UART converter... -
Page 30: Mechanical Specifications
User Guide 9.2 Mechanical Specifications Characteristic Value Height 30 mm Width 115 mm length 85 mm Weight 278 g (±10 g) Table 2. Mechanical specifications 9.3 Wall Mount Specifications Figure 10. Wall mount specifications TBOXINDS1 – User Guide, Rev. 0.4 30 | P a g e...
