Winters DPG Instructions

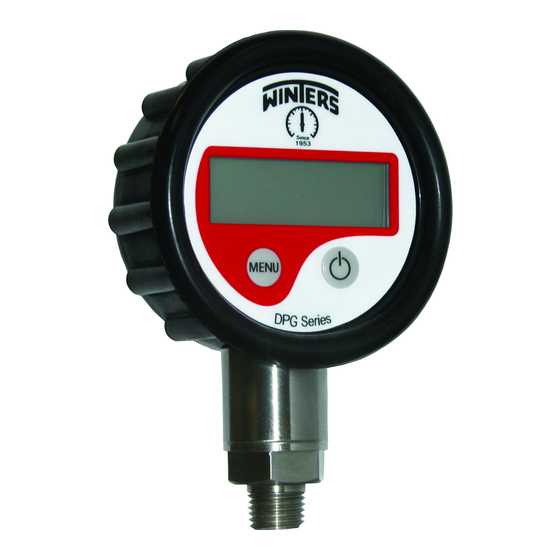

DPG
Digital Pressure Gauge Instructions
3.
Tel: 1-800-WINTERS / www.winters.com
1.
2.
4.
5.

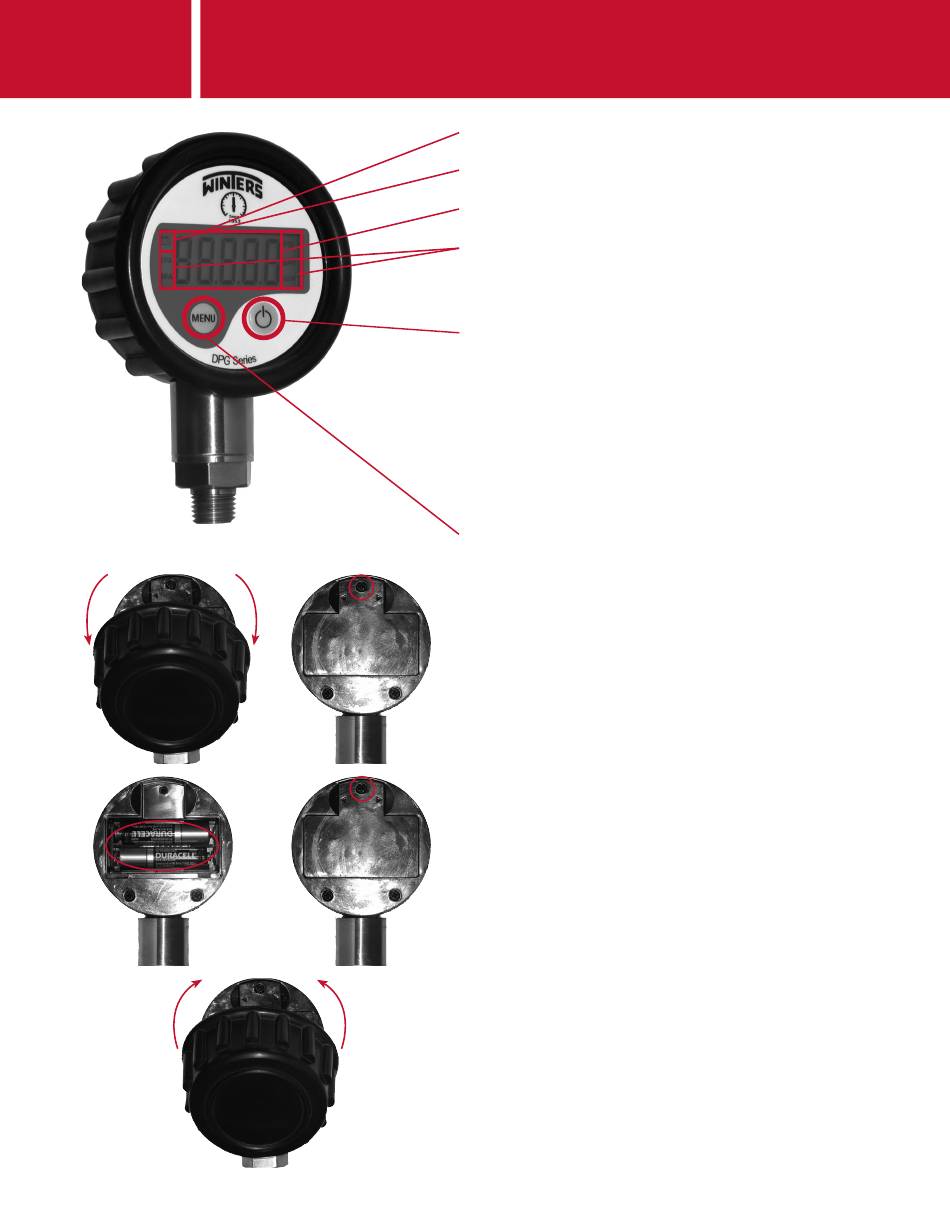

LCD Display

Battery Reading

Pressure Reading

Pressure Scale (units)

Power Button

• Press
- Turns gauge ON for about 1 minute and displays
battery reading. Backlight* will stay ON for about 10 seconds
- Turns gauge OFF (hold for 2 seconds)
• Press While ON
- Turns backlight* back ON for about 10 seconds
* backlight automatically comes ON when pressure
changes ±10% of scale (when gauge is ON)

Menu Button

• Press
- Changes pressure units
(psi, mH O, mmHg, mbar, kPa ranges ≤ 100 psi,
2
psi, bar, kgf/cm , MPa, atm ranges ≥ 160 psi)
2
• Hold for 4 - 5 Seconds and Release
- Reset to zero
(This process will take a few seconds)

To Change Batteries

1. Remove Rubber Boot
2. Remove Top Phillips Screw to Open Cover
3. Exchange Batteries (Two AAA Batteries)
4. Close Cover and Re-install Screw
5. Re-install Rubber Boot
