Effigy Labs Control Pedal Quick Start Manual And Limited Warranty

Hide thumbs

Advertisement

Quick Links

Download this manual

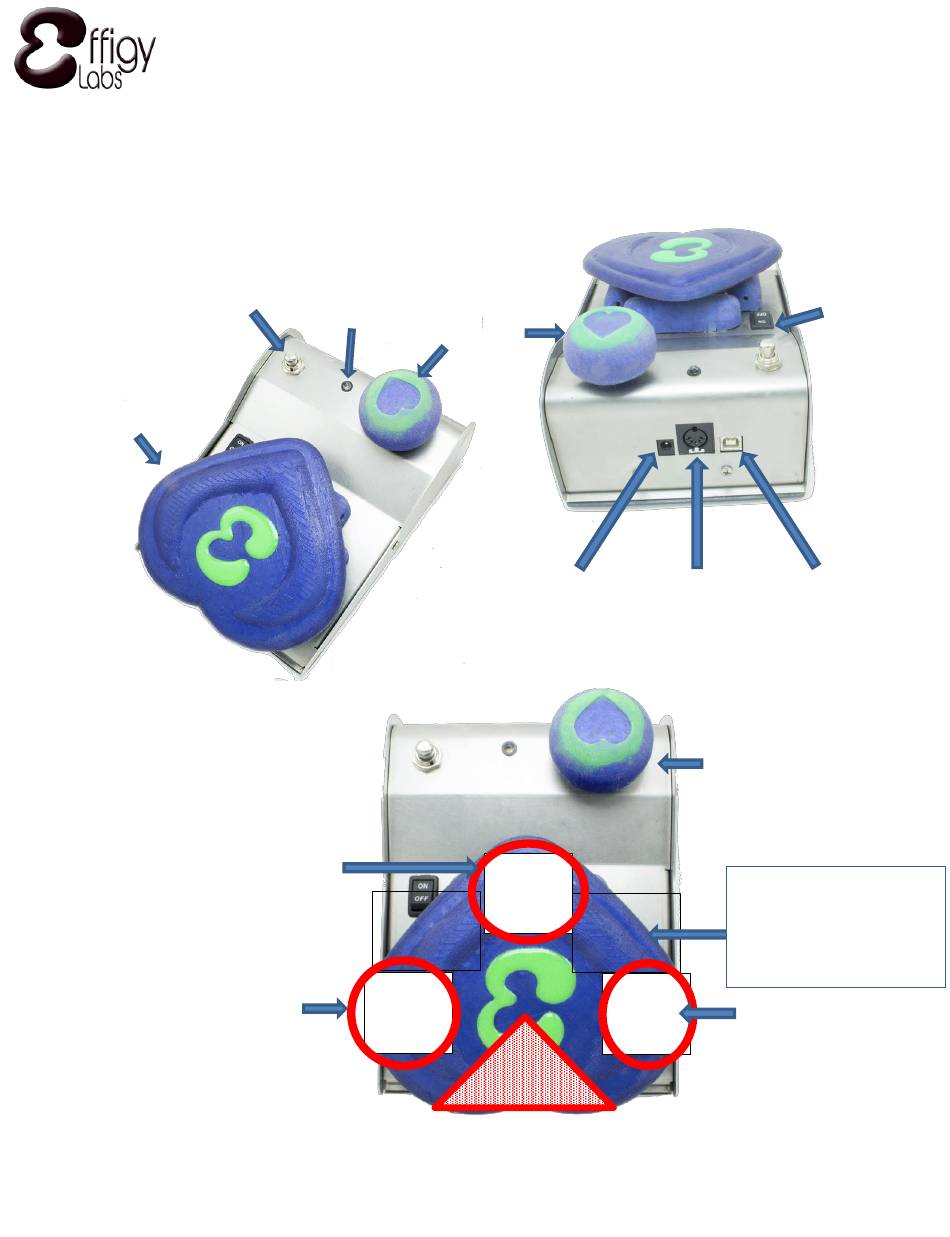

Mode
Switch
Top Plate
Press on the top
plate to select a
mode and play!
Position 3/Center
Position 1/Left
Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019
Effigy Control Pedal
Quick Start Guide and Limited Warranty
Comm
Light
Zone!
Press
Here
Knob
7-16v DC
Power In
2.1mm tip+
Press
Here
Mix
Mix
Zone!
Backstop
MIDI
USB-B
DIN-5 Out
Knob: either a
th
4
controller or
a sensitivity ctl
Mix zones: Sides
and center can
work together!
Press
Position 2/Rt
Here
Page 1 of 18
On-Off
Switch
In/Out

Advertisement

loading
Need help?

Need help?

Do you have a question about the Control Pedal and is the answer not in the manual?

Questions and answers

Summary of Contents for Effigy Labs Control Pedal

  • Page 1 Position 3/Center Press Mix zones: Sides Here and center can Zone! Zone! work together! Press Press Position 1/Left Position 2/Rt Here Here Backstop Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 1 of 18...
  • Page 2 Pos 2 Pos 3 Knob Pitch  Pitch  Sustain (CC64) Vol(CC11) Pitch  Pitch  MOD (CC1) Vol(CC11) CC 12 CC 13 CC 14 CC 15 Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 2 of 18...
  • Page 3 Knob Pitch  Pitch  MOD (CC1) CC 12 CC 12 CC 13 Note On #60 CC 15 CC 12 CC 13 Note On #61 CC 15 Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 3 of 18...
  • Page 4 GM control codes. Refer to your gear’s MIDI implementation chart for the final word on which MIDI CC# to use, and of course, test everything. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 4 of 18...
  • Page 5 Sensitivity Control for the other 3 positions. Light phases while in sensitivity mode, BLUE in controller mode Note: Sensitivity is saved as last position of sensitivity knob before switching to controller mode Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 5 of 18...

  • Page 6: Changing Presets

    • Mode is selected at startup. This can be auto- selected or customized in Control Panel. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 6 of 18...
  • Page 7 MIDI channel to the selected channel, but only in the current preset – it’s not remembered when you turn the pedal off and on again. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 7 of 18...
  • Page 8 It’s advised to use a cloth or other soft material to avoid marring the nut with the pliers. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 8 of 18...
  • Page 9 1. Re-tighten if nut loosens 2. Turn pedal off then on after adjusting tension 3. Don’t overtension, finger-tight only 4. Re-lock with jamb nut or thread locker (like Loc-Tite) if possible Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 9 of 18...

  • Page 10: Troubleshooting Guide

    “zero”, then every second. For example, the light will blink four times to count off three seconds. Think of it as “zero, one, two, three” if you like, or use the Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 10 of 18...
  • Page 11 • Light off, no output or activity: Determine if pedal has been subjected to prolonged liquids or heat, or a high fall. Battery connector wires may have been subjected to a strong pull. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 11 of 18...
  • Page 12 3x = preset data problem 6 x = overtensioning 12 x = emitter fail Red (phasing) – knob is in sensitivity adjustment mode. All other positions and modes still work. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 12 of 18...

  • Page 13: Additional Information

    Additional Information: External Power: 2.1mm, tip +, 7-16vDC Battery: 9v Customer Support, Web Site, Control Panel app, software and downloads, player communities, and more: EffigyLabs.com Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 13 of 18...
  • Page 14 Setups Simple Keyboard / Synth Setup - MIDI Connect to Instrument Directly ________________________________________________________________________________ DAW setup – Any audio source. USB connects to computer. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 14 of 18...
  • Page 15 Drum Kit / Trigger setup. The pedal’s Note On is sent at the attack peak, and note Off is sent when the position returns to the idle position. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 15 of 18...
  • Page 16 1 slot 1 to be CC 59, select CMD to be “0B Control Code” and the SUB to be 59. 3. Changes made will be updated in the pedal in real time of the “Auto” Red button is checked. Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 16 of 18...

  • Page 17: Limited Warranty

    Limited Warranty Effigy Labs LLC ("Effigy") warrants the Effigy Labs Control Pedal (“Product“) against defects in material or workmanship for the time periods and as set forth below. Pursuant to this Limited Warranty, Effigy will, at its option, (1) repair the product using new or refurbished parts or (2) replace the product with a new or refurbished product.
  • Page 18 This Limited Warranty gives you specific legal rights and you may have other rights which vary from state to state or jurisdiction to jurisdiction. © 2019, Effigy Labs LLC Effigy Labs Control Pedal Quick Start Guide v1.3 February-2019 Page 18 of 18...
