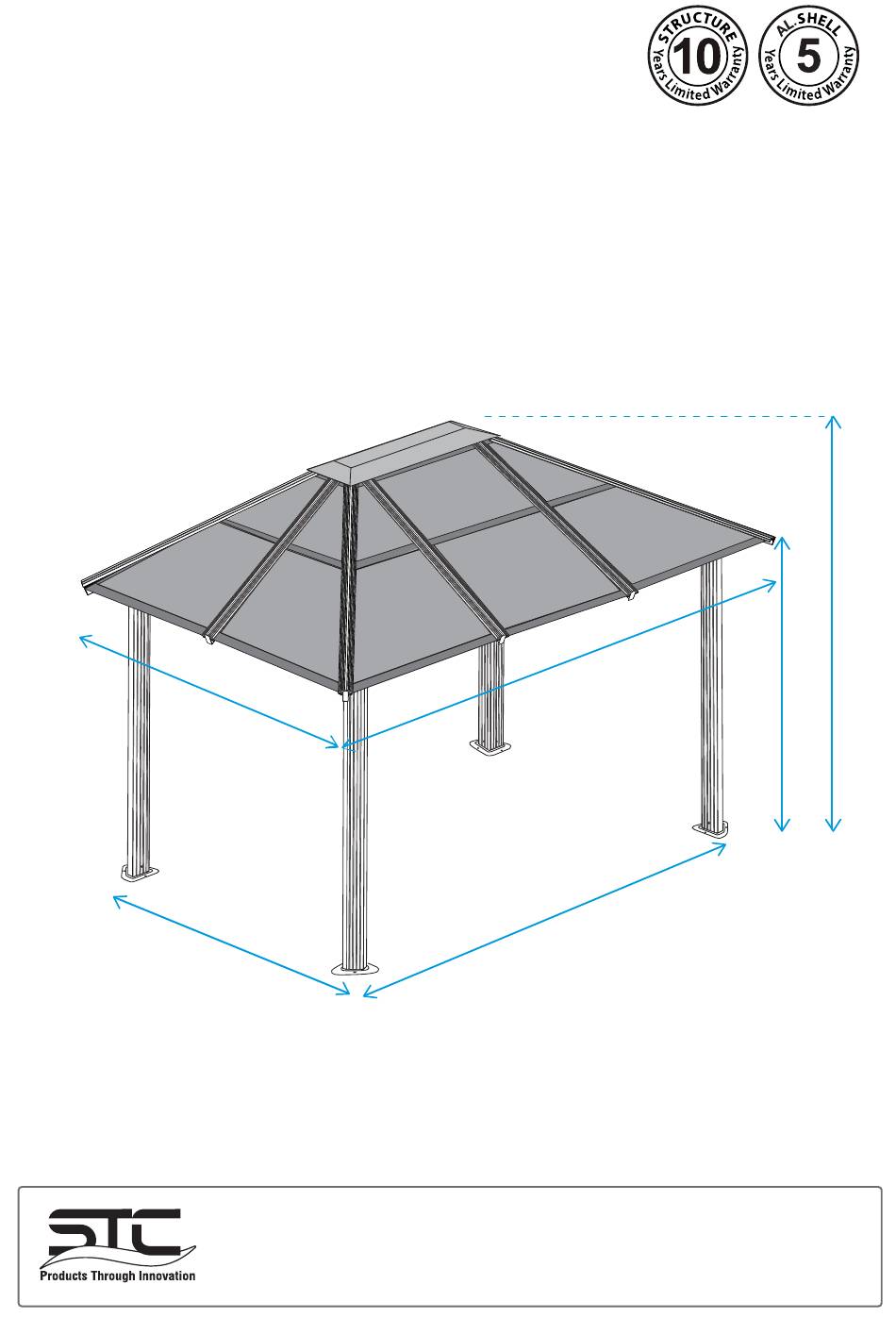

- Page 1 Gazebo GZ3584 Aluminum Composite Roof Panels Assembly Instructions 7’ 9’3” 13’2” 9’11” 12’2” 8’10” Systems Trading Corporation Customer service: (877)782 4482 Email: easygrow@stcaustin.com of 22 www.stcny.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gazebo GZ3584. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instructions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. -
Page 3: Table Of Contents
Table of Contents Safety Advice Introduction..........• The gazebo must be positioned and fixed on a flat level surface. Table of Contents........• Dispose of all plastic bags safely. Keep List of Parts..........them out of the reach of children. • Keep children and pets away from the 6 Step 1 Assembling the Corner Profiles..assembly area until the work is completed. -
Page 4: List Of Parts
Wear proper safety gear including work shoes, gloves and goggles. The parts are identified by removable stickers. Place all the parts for each step in staging areas, checking that you have all parts as you go. If any parts are missing or damaged, contact STC customer service before beginning assembly: Customer service: (877)782 4482 Part... - Page 5 Part Qty Step Part Qty Step Aluminum Composite Roof Panel black side Aluminum Composite Roof Panel black side Aluminum Composite Roof Panel black side Aluminum Composite Roof Panel black side Aluminum Composite Roof Panel black side We included some extra screws and bolts for your convenience. of 22 www.stcny.com...
-
Page 6: Step 1 Assembling The Corner Profiles
Assembling the Corner Profiles STEP 1 Place all the parts on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components Place corner profiles (1) parallel to each other on the ground. -
Page 7: Step 2 Assembling The Roof Profiles
Assembling the Roof Profiles STEP 2 Place all the parts on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components Insert end of long roof profile (3) into long roof profile (4) as shown. -
Page 8: Step 3 Attaching The Roof Profiles To Corner Profiles
STEP 3 Attaching Roof Profiles to Corner Profiles Attach long roof profile sets (3,4) to corner profiles (1) as shown. Fasten with screws (29). Repeat to make two sets. Components Screw (29) x 32 Attach short roof profile sets (5,6) to corner profiles (1) as shown. Fasten with screws (29). ILLUSTRATION www.stcny.com of 22... -
Page 9: Step 4 Attaching The Roof Connectors
Attaching the Roof Connectors STEP 4 to Roof and Corner Profiles Components Attach one roof connector (23) to each corner profile cover (31) and three roof connectors (22) to each roof profile set (3,4) and (5,6) as Roof connector Roof connector Roof connector Roof corner Screw shown. (22) (23) connector (36) (25) Fasten with screws (25). x 36 VIEW FROM INSIDE GAZEBO... - Page 10 Attach two roof connectors (7) to each each roof profile set (3,4) and (5,6) as shown (facing outwards). Fasten with two screws (25) each. Attach four roof corner connectors (36) to gazebo corners on top of profiles (3,4,5,6) as shown. Fasten with two screws (25) each. 4 / 6 3 / 5 IMPORTANT: After this step you should place the gazebo frame in its desired location. Make sure all corners are squared at 90 degrees. www.stcny.com of 22...
-
Page 11: Step 5 Securing The Gazebo To The Ground
Securing the Gazebo to the Ground STEP 5 Fasten the gazebo frame to the ground, using three spikes (32) for each support plate. Components Ground spike (32) x 12 Securing the Gazebo to a Concrete Floor or Wood Deck Optional Concrete Floor: Components 1. Using an electric concrete drill, drill holes into the concrete floor,... -
Page 12: Step 6 Installing The Roof Gables
Installing the Roof Gables STEP 6 Components Screw (25) Roof top (9) x 23 Roof top Roof top connector Roof support Roof gable (10) Roof gable (11) end (8) (12A) (12) 2170mm 1584mm Roof top cover (18) Washer (30) Hook (37) Screw (27) x 12 Insert roof top ends (8) into both sides of roof top (9) and fasten with screws (25) from underneath. - Page 13 Using at least three people, install the roof gables (10,11,12) in the following order: VIEW FROM TOP IMPORTANT: The roof gable profiles (10,11) have pre-drilled screw holes underneath on each end. The end with the shorter distance to the screw hole is connected to the roof top ends (8) and the end with the longer distance to the screw hole is connected to the roof connectors (22,23). Toward roof top ends (8,12A) Toward roof connectors (22,23) of 22...
- Page 14 Using screws (25), first connect four roof gable profiles (11) to roof top ends (8) Then use screws (27) to attach their other ends to roof connectors (22) as shown. ILLUSTRATION www.stcny.com of 22...
- Page 15 Using at least two people, slide roof gable profiles (10,11) into tunnels of roof top ends (8) and attach with screws (25) from underneath. Then use screws (27) to attach their other ends to roof connectors (22,23) as shown. ILLUSTRATION Use screws (25) to attach roof gable profiles (10) to roof connectors (36) from underneath as shown. of 22 www.stcny.com...
- Page 16 Attach roof support profiles (12) to roof connector (12A) on roof top (9) and fasten with screws (25) from underneath. Attach their other end to roof connectors (22) using screws (27). Attach roof top cover (18) to roof top ends (8) on roof top (9) and fasten with four screws (25) and washers (30) from the top as shown. www.stcny.com of 22...
-
Page 17: Step 7 Installing The Roof Panels
Installing the Roof Panels STEP 7 Remove protective plastic from both sides of roof panels. Place side to face toward the sun facing out when installing. Components black black black side side side Roof panel (17) Roof panel (16) Roof panel (15) Roof gable cover (13) Roof gable cover (14) black... - Page 18 Slide roof panel set (15,20) into position as shown. Fasten roof panels (15,20) to connectors (7) from below with screws (28). VIEW FROM THE TOP Place roof gable profile (14) on top of roof gable profile (11). Align both profiles. From below the gazebo roof, fix roof gable cover (14) to roof gable profile (11) using screws (26) through pre-drilled screw holes at mid point and end of profile. ILLUSTRATION www.stcny.com of 22...
- Page 19 Slide roof panel set (16,19) into position as shown. Fasten roof panels (16,19) to connectors (7) from below with screws (28). VIEW FROM THE TOP Place roof gable profile (13) on top of roof gable profile (10). Align both profiles. From below the gazebo roof, fix roof gable cover (13) to roof gable profile (10) using screws (26) through pre-drilled screw holes at mid point and end of profile. ILLUSTRATION Continue in a clock-wise direction all around the gazebo roof. of 22 www.stcny.com...
- Page 20 Slide upper end of last profile (14) under roof top plate (18) as shown and lower the profile to fit into roof gable profile (11). ILLUSTRATION From below the gazebo roof, fix roof gable cover (14) to roof gable profile (11) using screws (26) through pre-drilled screw holes at mid point and end of profile. Components Close each assembly with end covers (24). End Cover (24) x 10 www.stcny.com of 22...
- Page 21 Enjoy your completed Gazebo! of 22 www.stcny.com...
- Page 22 Gazebo GZ3584 Aluminum Composite Roof Panels Assembly Instructions WARRANTY: Warranty covers damage due to manufacturing defects only. Warranty does not cover weather inflicted damage (Force Majeure) and/or damages caused by not following assembly instructions and adhering to warnings in manual. ATTENTION: Roof profiles, roof panels and gables must be aligned properly during assembly to minimize any possibility of leaking.
