Mincey Marble Manufacturing Brunswick Bow Front Installation Instructions Manual

Shower enclosures
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Installation Instructions for Mincey Marble Manufacturing's
Brunswick Bow Front Shower Enclosures

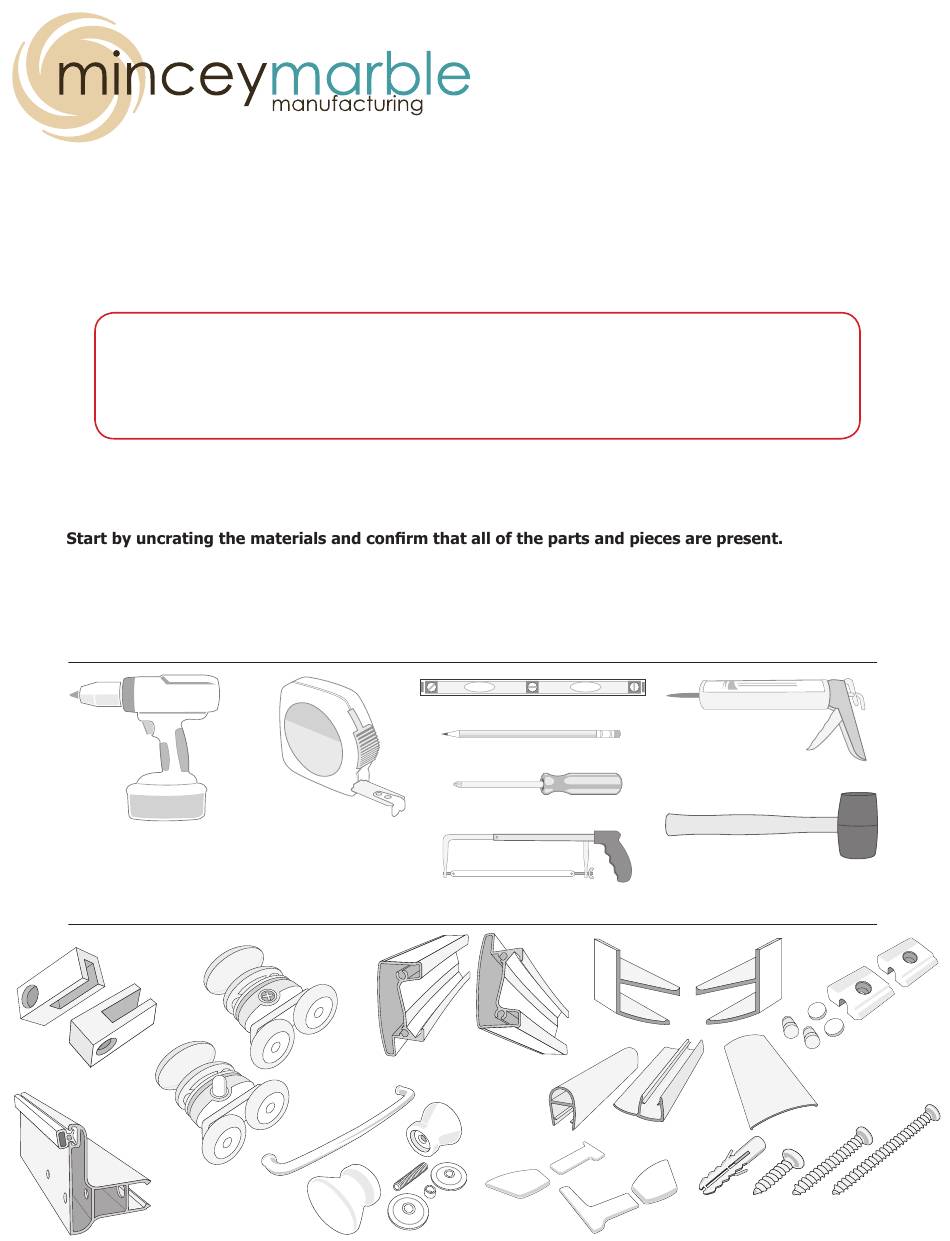

MATERIALS / TOOLS NEEDED CHECKLIST

PRE-INSTALLATION PIECES / PARTS LIST

ENCLOSURE SYSTEM INSTALLATION
ATTENTION: Prior to starting the installation, please read through these instructions. This
will help avoid any unneccesary breakage. Any breakage due to handling or installing this
enclosure system is the responsibility of the installer and is not covered under the Mincey
Warranty. Mincey recommends that two people are used to install this shower enclosure
system due to the weight and fragility of the glass panels. Mincey also recommends that
you protect the glass, especially the bottoms, and shower pan during installation.
These installation instructions apply to the Mincey Brunswick Bow Front Shower Enclosure System. In these
instructions we are going to use an example with a 60" wide shower with the door opening on the right.
All Drawings Are Not To Scale.
Required Tools are listed below. The contents of the Hardware Kit are listed below. The Parts Diagram is on the
following page. Before you begin the installation, make sure that all of the pertinent surfaces are clean and free
of dust, debris and any shavings. After you perform any drilling, you will want to make sure the surfaces are
clean again - this includes the Shower Pan and the Shower Panel Walls.
MATERIALS / TOOLS NEEDED
DRILL (CORDED OR CORDLESS),
5/16" MASONRY DRILL BIT,
1/8" METAL DRILL BIT
INCLUDED WITH THE ENCLOSURE
TOP & BOTTOM
FGP CLIPS
QTY: 2
BOTTOM
ROLLER
QTY: 2
DOOR STRIKE
WALL JAMB
QTY: 1
, inc.
TAPE MEASURE
TOP
ROLLER
QTY: 2
TOWEL BAR
QTY: 1
DOOR PULL
QTY: 1
LEVEL
PENCIL
PHILLIPS HEAD SCREWDRIVER
HACK SAW
HEADERS &
FOOTERS QTY: 2
FGP BUBBLE
SEAL QTY: 2
JAMBS TOP
COVERS QTY: 4
Mincey Marble Mfg., Inc.
1940 New Harvest Road
Gainesville, GA 30507
Ph: 800.533.1806
Fx: 770.531.0935
www.minceymarble.com
The
CAULK GUN,
100% SILICONE
RUBBER MALLET
SLIP-ON VERTICAL
WALL JAMBS QTY: 2
VERTICAL WALL
JAMB COVER TRIM
QTY: 2
F SEAL
QTY: 2
WALL
1/2"
1 1/4"
ANCHORS
SCREWS,
SCREWS,
QTY: 6
QTY: 8
QTY: 8
DOOR STOPS
QTY: 2
1 3/4"
SCREWS,
QTY: 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brunswick Bow Front and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mincey Marble Manufacturing Brunswick Bow Front

  • Page 1 These installation instructions apply to the Mincey Brunswick Bow Front Shower Enclosure System. In these instructions we are going to use an example with a 60” wide shower with the door opening on the right.
  • Page 2 PRE-INSTALLATION PIECES / PARTS LIST (cont.) (25) (23) (20) (18) (15) (12) (24) (13) (17) (14) (25) (22) (21) (13) (11) (12) (10) (14) (20) (15) (18) (16) SHOWER ENCLOSURE PARTS LIST ASSEMBLY CODE ASSEMBLY NAME GLASS DOOR FIXED GLASS PANEL AND JAMB DOOR PULL (19) TOWEL BAR...
  • Page 3 BRUNSWICK BOW FRONT ENCLOSURE SYSTEM INSTALLATION These instructions are to be followed assuming the Shower Pan is level and the Walls are plumb. The work area present, you are ready to begin by assembling the Frame structure of the enclosure. It is best to assemble the opens on the right.
  • Page 4 BRUNSWICK BOW FRONT ENCLOSURE SYSTEM INSTALLATION (cont.) You are now ready to install the Slip-on Vertical Wall Jambs and place the enclosure into the shower. First, Slide the Vertical Wall Jambs onto the Fixed Glass Panel U Channel and the Door Strike Wall Jamb.
  • Page 5 BRUNSWICK BOW FRONT ENCLOSURE SYSTEM INSTALLATION (cont.) Next, you are going to prepare to install the Glass Door. First, you will install the ROLLERS onto the Glass Door. The TOP ROLLERS have an Adjustment Screw that goes to the bottom, so that it can be adjusted from the bottom.
  • Page 6 BRUNSWICK BYPASS DOOR ENCLOSURE SYSTEM INSTALLATION (cont.) Next, install the LONG and SHORT F SEALS. The LONG F SEAL installs on the Back of the Glass Door with the FIN to the Outside of the shower. The SHORT F SEAL installs on the Fixed Glass Panel with the FIN to the Inside of the shower.
