Summary of Contents for Berran Industrial Group Eagle SP11
Page 1

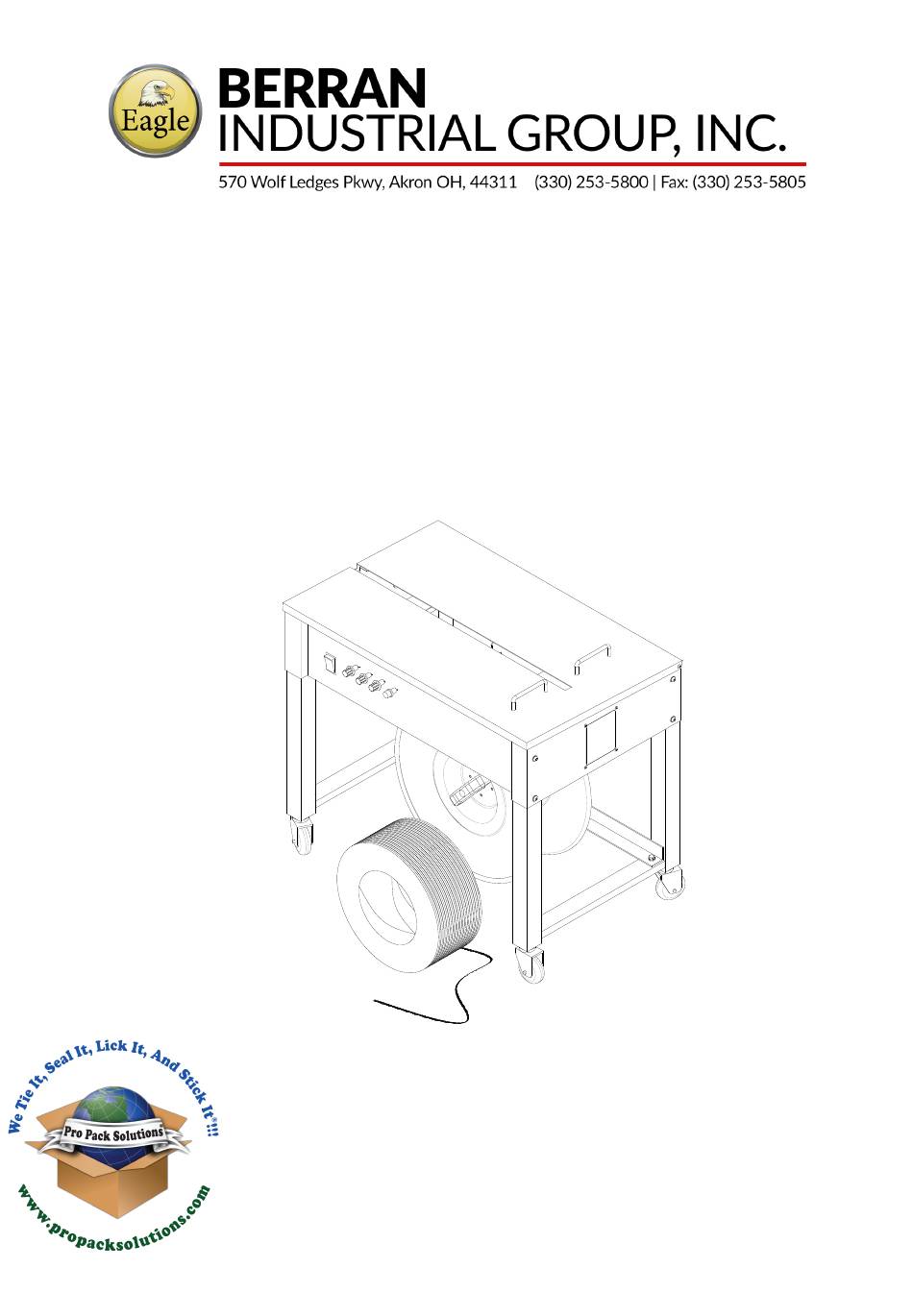

Eagle SP11 Semi Automatic Strapping Machine Use, Maintenance And Spare Parts Handbook Distributed by: Pro Pack Solutions, Inc. 2421B Lance Court Loganville, GA 30052 Phone: 770-554-1187...
Page 2
Machine can only be operated by qualified personnel. Daily safety guide Please refer to the following information if you need to operate or maintain this machine. Before use Read this manual carefully and prepare yourself well before using. ...
Page 3
Machine can only be operated by qualified personnel Service and safety regulations Please keep the service contents. Do not change the setting or add any lubricant whilst the machine is in operation. Please turn off the power supply before opening the cover board. ...
Page 4
Machine can only be operated by qualified personnel. Notice For the normal running of the machine, please keep both the machine and parts clean. Add lubricant to any of the parts that need lubricating. The machine can only be operated by relevant technical personnel.
PART 1: MACHINE PROPERTY AND SAFETY INFORMATION Berran Industrial Group, Inc. Company name: Manufacturer address: 570 Wolf Ledges Parkway Akron, Ohio 44311 Performance parameter Technical parameter Item Eagle SP11 AC110V,50/60Hz,0.25kW,DC motor Power supply 3 second/path Working speed 0~50kg Strapping force polypropylene Width (5mm~15mm)±1mm,thickness(0.5mm~0.8mm)±0.1mm...
Outline and application field This machine adopts a new model single chip circuit: The single chip module board controls the whole action of strapping, design of super undertone. The assembly of the whole machine is precise and sophisticated, low noise will reduce the working pressure. The design of this new model, with electric heating and steel sheet, helps to ensure that there will be no short-circuit.
Safety sign 1-7-1 Safety sign labeling locations On the device using a variety of warnings, instructions, and indication marks, these signs are to remind you to pay attention to the potential danger and provide instructions to avoid possible danger. (as shown in figure 1 and 2). Internal movement hot head Inner motor and other electric shock...
Page 9
1-7-2 Safety signs Description Safety signs Description table Symbol Logo graphic Remark (label location) meaning warning sign attention to Easy to cause injuries safety warning sign Possible shock hazard electrical equipment and Danger High wiring Voltage Machine parts and other warning sign heat-generating part or Beware of...
FIG 2-2 2-2-3 Operation environment conditions For long-distance transport or long-term storage of the machine, you must use wooden or hardboard box packing, fixed on the solid backing plate and put in a box with moisture absorption agent, antirust coating inside the machine. Do not stack any heavy objects on top of the box. Do not transport and store the machine upside down.
PART 3. MACHINE OPERATION Functions of control panel(refer to FIG 3-1) COOLTIMER POWER TIMER TENSION FEED/HOME FIG 3-1 ① Power switch (POWER) ② Length adjustment of outputting strap (TIMER) : Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.
Method of feeding strap (6mm) FIG 3-2 Pull straps out from the strap reel and check whether the strap head is down (if not, then you need to change the side of strap reel), thread straps out from the bottom of pulley A and from the top of pulley B.
Daily maintenance Frequent maintenance of the strapping machine not only prolongs the life of the machine but also helps to avoid trouble, thus enabling it to increase production efficiency. 3-4-1 Charging lubricating oil ① Slide plate (refer to FIG 3-3), left cutter, middle cutter and right cutter (refer to FIG 3-4) should be lubricated with oil monthly.
The position required to be adjusted ① Temperature adjustment: In the control cabinet of the machine and above the circuit board, open the cover plate of the control cabinet and you will see a potentiometer. Turn it in the clockwise direction and the temperature will increase. If the temperature is higher or lower than it should be, the adhesion level will not be as good as it should be.
Page 16
③ To tighten the adjustment there is a potentiometer button marked “TENSION”. Turn it in the clockwise direction to tighten. If the strap does not tighten you need to adjust the pendulum block and increase the power. Note: Do not adjust too much at once. ④...
PART4. MAINTENANCE AND TROUBLESHOOTING Safety warning on maintenance You must turn off the main power supply. The maintenance staff should wear suitable footwear whilst carrying out maintenance work. Regularly maintenance and cleaning Areas that require cleaning: sliding plate, left cutter, right cutter and middle cutter. ...
Frequent trouble and troubleshooting Cannot output straps automatically: in this situation, check whether the “adjustment of the length” of the strap is at “0” position first, and then check whether the strap threads correctly. For example, if the machine is at the zero position it will not release any straps. And if there is something that is large around the strap-feeding roller, this problem will happen too.
PART 5. MAIN PARTS AND COMPONENTS ILLUSTRATION AND PARTS LIST 5-1 Cassette mechanism unit...
Page 21
5-1-1 Main motor combination Detailed parts list Name Code Remark M1 motor Z5D60-24GN-13S Bearing 6900 Gear shaft YS-2A-27 Big gear YS-2A-28 Washer YS-2A-65 gear box cover YS-2A-36 Spacer bush YS-2A-84 φ28×φ22.8×11 YS-2A-35 YS-2A-33A YS-2A-31 Spacer bush YS-2A-84 φ28×φ22.8×5 YS-2A-32 YS-2A-34A Main shaft YS-2A-25B Flat key...
Page 23
Detailed parts list Name Code Remark spacer parallel YS-2A-51 Cassette mechanism frame YS-2A-01 Limited plate YS-2A-30 Bearing 6900 Bearing 6004 spacer bush YS-2A-84 φ28×φ22.8×5 Tied tight cam YS-2A-117 Situ cam YS-2A-115 Back with the cam YS-2A-116 Cushion block YS-2A-65 switch block YS-2A-121 Micro switch KW-7(with rollers)
Page 24
5-1-3 Top body combination Detailed parts list Name Code Remark Extension spring YS-2A-69 Pull rod YS-2A-43 Left cutter combination YS-2A-150 See diagram Middle cutter combination YS-2A-151 See diagram Right cutter combination YS-2A-152 See diagram...
Page 25
5-1-3-1 Left cutter combination Detailed parts list Name Code Remark Compression spring 01-104 Small shaft YS-2A-44 Left Cavity YS-2A-18 Small Bolt YS-2A-53 Left claw YS-2A-19 Pressing plate YS-2A-50 Bearing 635(thicken) Washer piece YS-2A-68 Inner hexagon screw bolt M4×12(12.9classs)...
Page 26
5-1-3-2 Middle cutter combination Detailed parts list Name Code Remark Bearing 635(thicken) Washer YS-2A-68 Pressure Plate YS-2A-50 Middle cutter YS-2A-17 Small Bolt YS-2A-53 Middle Cavity YS-2A-16 Small shaft YS-2A-44 Compression spring YS-2A-110 Inner hexagon screw bolt M4×12(12.9class)...
Page 27
5-1-3-3 Right cutter combination Detailed parts list Name Code Remark 635(thicken) Bearing Washer piece YS-2A-68 Pressure Plate YS-2A-50 Right claw YS-2A-15 Small bolt YS-2A-53 Right chamber YS-2A-14 Small shaft YS-2A-44 Pressure spring 01-104 Cup head inner hexagon M4×12(12.9 class ) screw bolt...
Page 28
5-1-4 Sliding board pendulum rod combination Detailed parts list Name Code Remark Pendulum rod YS-2A-08 Pendulum rod shaft YS-2A-21 Bead flange YS-2A-52 Extension spring YS-2A-69 Bearing 635(thicken) Elastic spring φ5×14 Micro switch RV-16-1C25(T) Special bolt YS-2A-66 Switch bump block YS-2A-29 Pendulum rod tongue YS-2A-20 Inner hexagon screw...
Page 29
5-1-5 Sliding board combination Detailed parts list Name Code Remark Sliding board YS-2A-09 Right guide rail YS-2A-11 Left guide rail YS-2A-12 Extension spring YS-2A-70 Sliding board bump block YS-2A-10 Damping washer YS-2A-12A Inner hexagon screw M3×10(12.9 class) 3 Spring washer 3 Flat spring Inner hexagon screw...
Page 30
5-1-6 Heating pendulum rod combination 53 3 Detailed parts list Name Code Remark Heating pendulum rod YS-2A-07 Bearing 635(thicken) Extension spring YS-2A-71 Heating slice bracket YS-2A-61A Heating head bottom board YS-2A-62A Insulation film YS-2A-108A Electric heating installation board J50-57 Electric hearting head J50-55 Elastic pin φ5×14...
Page 31
5-1-7 In-out motor combination 63 64 15 16...
Page 32
Detailed parts list Name Code Remark Insert strap groove limit board YS-2A-41 Insert strap groove bottom board YS-2A-40 Conveyor belt pressing plate YS-2A-23A Limit plate YS-2A-24A Conveyor belt base plate YS-2A-22A Guide strap board YS-2A-64 Guide strap board YS-2A-57 round pin φ5X10 bearing jump ring...
Page 33
Spring washer φ6 Inner hexagon screw M6×16 Cup head inner hexagon screw M5×12 Spring washer φ5 Flat washer φ5×12 cross big brazier head screw M4×8 Inner hexagon screw M5×16 Flat washer φ6 Spring washer φ6 hexagon nut Inner hexagon screw M6×20 Inner hexagon screw M6×16...
Page 35
Detailed parts list Name Code Remark pressure spring YS-04-161A rod end knuckle bearing φ6 Washer cover YS-2A-118 Bundle tight rod YS-2A-119 spring pin φ5×12 Bearing 635(thicken) Bundle tight rod bearing YS-2A-120 oscillating deck YS-2A-56B pressure spring YS-04-212 stop back nut Flat washer φ6 hexagon nut...
PART 6. ELECTRICAL WIRING DIAGRAM detection for sending strap by hand machine starting detection strap reverse pos.detection original pos.detection strap length of auto sending adjustment for the iron head temperature...
