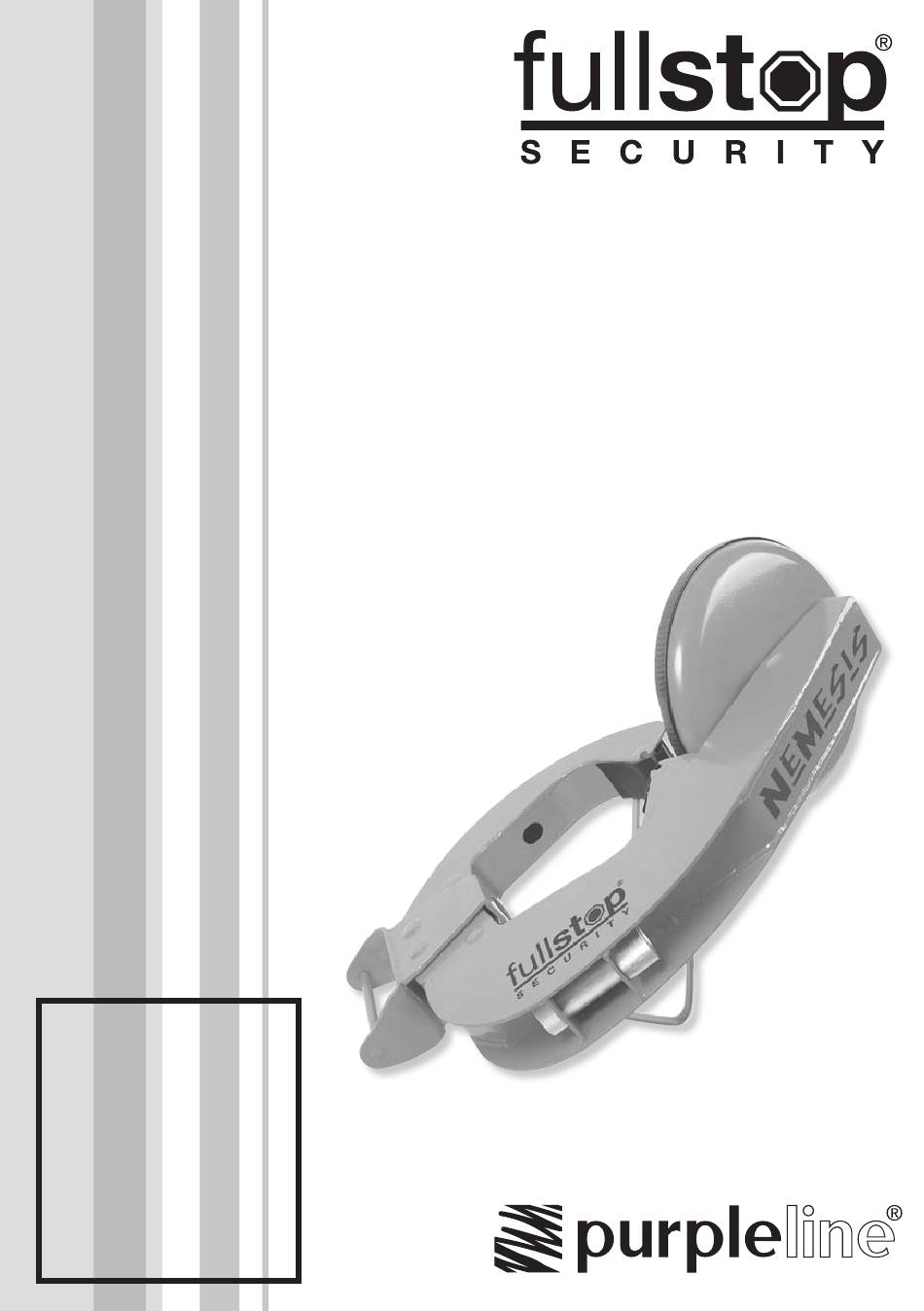

- Page 1 Nemesis Wheel Clamp Model. FPC100 User PLEASE READ THIS Manual MANUAL BEFORE FIRST USE. TIME INVESTED IN Rev.F 03-12 CORRECT FITMENT IS REPAID IN THE LEVEL OF SECURITY THAT IS ACHIEVED. design...innovate...improve...
- Page 2 Parts Identification ‘Jaws’ Section Wheel Hub Cover Arm Male Lock Portion Female Lock Portion Hex Tool Lock Cap Wheel Hub Arm Hex Bolt ‘Jaws’ Section Hex Bolt Key (x2) Always fit the supplied locking wheel nut & use in accordance to the supplied instructions.
- Page 3 E. The Wheel Hub Cover Arm (2) has a ‘key hole’ slot that fits over the hex bolt. D. If necessary, unscrew (by turning anti- clockwise) the Wheel Hub Arm Hex Bolt (7). G. Slide the arm into Do not fully remove. the slot.
- Page 4 © Copyright 2012. Purple Line Limited. Web: www.purpleline.co.uk E-mail: admin@purpleline.co.uk Tel: 01473 601200 Photographs for illustration purposes only. Actual product may differ slightly. Purple line Limited reserve the right to alter product specification without prior notice.
