Summary of Contents for MSC Technologies COM Express MSC C10-MB-EV

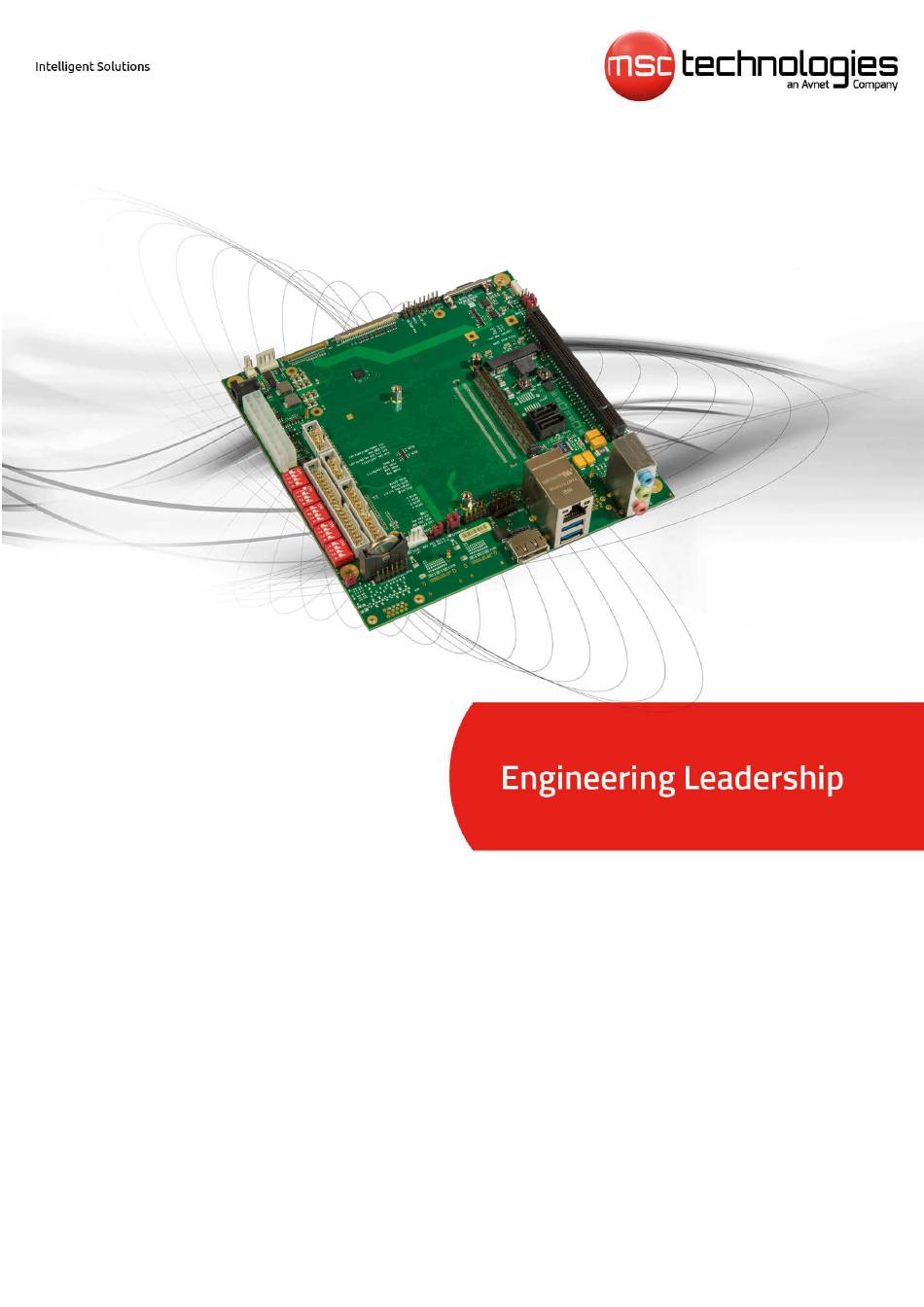

- Page 1 User Manual COM Express Mini-ITX Carrier MSC C10-MB-EV Type 10 Pin-out Rev. 1.0 2018-10-24...
- Page 2 All used product names, logos or trademarks are property of their respective owners. Certification MSC Technologies GmbH is certified according to DIN EN ISO 9001:2015 standards. Life-Cycle-Management MSC products are developed and manufactured according to high quality standards. Our life- cycle-management assures long term availability through permanent product maintenance.
-
Page 3: Table Of Contents
MSC C10-MB-EV User Manual Content General Information ......................... 5 Revision History ........................5 Reference Documents....................... 5 Introduction ..........................5 Technical Description ........................7 Key features..........................7 Block Diagram .......................... 8 Positioning of the Connectors and Jumper ................9 Mechanics ............................10 Dimensions ..........................10 Assembly notes........................10 Compact module ........................11... - Page 4 MSC C10-MB-EV User Manual 4.23 Reset Button.........................40 4.24 LEDs ............................40 4.25 WLAN LEDs .........................41 4.26 DIP Switches ........................41 4.27 Ground Pins .........................41 4.28 Layout Revision ........................42 4 / 42...
-
Page 5: General Information
MSC C10-MB-EV User Manual 1 General Information 1.1 Revision History Rev. Date Description 2018-10-24 Released version 1.2 Reference Documents COM Express Module Base Specification COM Express Revision 2.1 Last update: April 10 , 2012 PCI Local Bus Specification Rev. 2.1 PCI21.PDF Last update: June 1 , 1995... - Page 6 MSC C10-MB-EV User Manual A COM Express™ module is plugged onto an application-specific base board and offers a migration path to future CPU technologies as they become available. Utilizing different form factors, COM Express™ can be used for deeply embedded solutions all the way up to high performance platforms.
-
Page 7: Technical Description
MSC C10-MB-EV User Manual 2 Technical Description 2.1 Key features The MSC C10-MB-EV is designed as a type 10 carrier according to COM Express® Module Base Specification Revision 2.1. Key features include: Interface for COM Express module type 10 ... -
Page 8: Block Diagram
MSC C10-MB-EV User Manual 2.2 Block Diagram Figure 1 Block Diagram Carrier Board 8 / 42... -
Page 9: Positioning Of The Connectors And Jumper
MSC C10-MB-EV User Manual 2.3 Positioning of the Connectors and Jumper Illustration 1 Connectors overview Illustration 2 Picture 9 / 42... -
Page 10: Mechanics
MSC C10-MB-EV User Manual 3 Mechanics 3.1 Dimensions Dimension: 170 mm x 170 mm Width: 1.6 mm + /-10% Tolerances of the drill holes: +/- 0.1mm in X and Y Tolerances of the diameter: + 0.1 mm 3.2 Assembly notes Use these bolts for mounting different form factors: COM Express Mini: 4x M2.5 x 5mm bolt... -
Page 11: Compact Module
MSC C10-MB-EV User Manual 3.3 Compact module 4 Hardware 4.1 Plug-in Position of the COM Express module Socket for a COM Express type 10 module is available on the base board. Specification: Reference: X301 Connector: AMP / Tyco 3-1827233-6 0.5 mm pitch free height 220 pin 5H plug ... - Page 12 MSC C10-MB-EV User Manual Row A Row B GBE0_MDI3- GBE0_ACT# GBE0_MDI3+ LPC_FRAME# GBE0_LINK100# LPC_AD0 GBE0_LINK1000# LPC_AD1 GBE0_MDI2- LPC_AD2 GBE0_MDI2+ LPC_AD3 GBE0_LINK# LPC_DRQ0# GBE0_MDI1- LPC_DRQ1# GBE0_MDI1+ LPC_CLK GBE0_MDI0- PWRBTN# GBE0_MDI0+ SMB_CK GBE0_CTREF SMB_DAT SUS_S3# SMB_ALERT# SATA0_TX+ SATA1_TX+ SATA0_TX- SATA1_TX- SUS_S4# SUS_STAT# SATA0_RX+ SATA1_RX+ SATA0_RX-...
- Page 13 MSC C10-MB-EV User Manual GPO2 PCIE_TX3+ PCIE_RX3+ PCIE_TX3- PCIE_RX3- PCIE_TX2+ PCIE_RX2+ PCIE_TX2- PCIE_RX2- GPI1 GPO3 PCIE_TX1+ PCIE_RX1+ PCIE_TX1- PCIE_RX1- WAKE0# GPI2 WAKE1# PCIE_TX0+ PCIE_RX0+ PCIE_TX0- PCIE_RX0- LVDS_A0+ DDI0_PAIR0+ LVDS_A0- DDI0_PAIR0- LVDS_A1+ DDI0_PAIR1+ LVDS_A1- DDI0_PAIR1- LVDS_A2+ DDI0_PAIR2+ LVDS_A2- DDI0_PAIR2- LVDS_VDD_EN DDI0_PAIR4+ LVDS_A3+ DDI0_PAIR4- LVDS_A3-...
-
Page 14: Pci Express Lanes
MSC C10-MB-EV User Manual 4.2 PCI Express Lanes Four PCIe lanes are defined at the Type10 COM Express module. Three PCIe lanes are fixed routed to the PCIe x16 connector. The PCIe Lane 3 can be routed to the PCIe x16 connector or to the PCI Express Mini Card slot card slot. - Page 15 MSC C10-MB-EV User Manual Signal Signal PRSNT1# (GND) JTAG_TCK not connected SMB_CLK JTAG_TDI not connected SMB_DAT JTAG_TDO not connected JTAG_TMS not connected JTAG_RST# not connected 3V3_AUX PE_RST# WAKE# RSVD REFCLK+ REFCLK- PET_p0 PET_n0 PER_p0 PER_n0 PRSNT2# RSVD PET_p1 PET_n1 PER_p1 PER_n1 PET_p2 PET_n2...
- Page 16 MSC C10-MB-EV User Manual PET_n7 PER_p7 not connected PER_n7 not connected PRSNT2# RSVD PET_p8 not connected PET_n8 not connected PER_p8 not connected PER_n8 not connected PET_p9 not connected PET_n9 not connected PER_p9 not connected PER_n9 not connected PET_p10 not connected PET_n10 not connected PER_p10 not connected PER_n10 not connected...
-
Page 17: Pci Express Mini Card
MSC C10-MB-EV User Manual 4.4 PCI Express Mini Card PCIe Lane 3 and the signals from USB port 6 switch to this slot if J2001 is set. If the Mini Card slot is selected, PCIe Lane 3 at X2701 and USB port 6 at X1902 are no longer useable. -
Page 18: Display Port (Dp)
MSC C10-MB-EV User Manual Display Port (DP) Specification: References: X801 Connector: Molex 1050200001 Pin-out: Refer to Table 3 Signal name Function LANE 0 + LANE 0 positive data signal Ground LANE 0 - LANE 0 negative data signal LANE 1 + LANE 1 positive data signal Ground... -
Page 19: Embedded Display Port (Edp)
MSC C10-MB-EV User Manual LANE 3 - LANE 3 negative data signal CONFIG1 CA_DET (cable detect) CONFIG2 Ground AUX CH + Auxiliary Channel positive signal Ground AUX CH - Auxiliary Channel negative signal HPDET Hot Plug Detect Return Ground DP_PWR +3,3 VDC Table 3 Pin-out Display Port Embedded Display Port (eDP) - Page 20 MSC C10-MB-EV User Manual Signal name Function Reserved for LCD manufacturer’s use RSVD BL_PWR Backlight power BL_PWR Backlight power BL_PWR Backlight power BL_PWR Backlight power RSVD SMBDAT RSVD SMBCLK System PWM signal input for dimming BL_PWM_DIM or NC (Optional) BL_ENABLE or NC Backlight On/0ff (Optional) BL_GND Backlight ground...
-
Page 21: Lvds Interface
MSC C10-MB-EV User Manual LVDS Interface Any LVDS display can be connected via a JILI30 connector. One 24 bit LVDS channel is present on this 30-pin connector. The signals of the LVDS interface are shared with the eDP port. To use the signals for the LVDS S2802 #3 has to be set open. -
Page 22: Lvds Eeprom Socket
MSC C10-MB-EV User Manual Signal name Function LVDS_A0- LVDS Negative data signal (-) LVDS_A0+ LVDS Positive data signal (+) LVDS_A1- LVDS Negative data signal (-) LVDS_A1+ LVDS Positive data signal (+) LVDS_A2- LVDS Negative data signal (-) LVDS_A2+ LVDS Positive data signal (+) Ground LVDS_A_CK- LVDS Negative clock signal (-) -
Page 23: Backlight Inverter Interface
MSC C10-MB-EV User Manual Specification: References: U1601 Connector: DIP8 socket Pin-out: Refer to Table 6 Location: Refer to chapter 4.7 LVDS-Interface Signal name Function EEPROM Address 0 (PD 10k) EEPROM Address 1 (PD 10k) EEPROM Address 2 (PD 10k) Ground Serial data Serial clock... -
Page 24: Audio
MSC C10-MB-EV User Manual 4.8 Audio A Realtek ALC888 or ALC886 HD audio codec is connected to the AC link of the COM Express module. Following LF signals are provided by the HDA codec: Stereo LineIn Stereo LineOut ... -
Page 25: Spdif
MSC C10-MB-EV User Manual 4.8.2 SPDIF The ALC888 / ALC886 SPDIF signals are routed to a pin header. Specification: References: X1805 Connector: Pin header (5 pins) Pin-out: Refer to Table 9 Location: Refer to chapter 4.8 Audio Signal name Function +5V Power Supply... -
Page 26: Sata-Interface
MSC C10-MB-EV User Manual SATA-Interface Two SATA drives can be connected to the SATA interfaces. Note: Depending on the COM Express module used, not all SATA ports are available. SATA Channel References SATA 0 X2101 SATA 1 X2102 Table 10 Assignment SATA Channel to Connector Reference Specification: ... -
Page 27: Usb Topology
MSC C10-MB-EV User Manual 4.10 USB Topology Eight USB ports are provided by the C10-MB-EV carrier. The exact assignment of each port is defined in the following table: USB-Port References Function Location Power jumper Remarks USB0 X702 USB 3.0 I/O Shield J701 USB1 X702... -
Page 28: Usb Power Supply
MSC C10-MB-EV User Manual 4.10.1 USB Power Supply The power supplies are protected by USB power switches. With power jumper setting the USB power can be sourced from standard +5V (2-3) or from suspend +5V (1-2). The USB power switches have the following functions: ... -
Page 29: Usb Client Connector
MSC C10-MB-EV User Manual 4.10.3 USB Client Connector The USB Port 7 signals were switched to a 5 pin header, if a USB client is plugged at X1903. Specification: References: X1903 Connector: single row pin header Pin-out: Refer to Table 14 ... -
Page 30: Lpc Connector
MSC C10-MB-EV User Manual 4.12 LPC Connector The LPC signals are available on a pin header. Specification: References: X1403 Connector: 10 pin header, 2.54mm Pin-out: Refer to Table 16 Signal Signal LPC_CLK LPC_LAD0 LPC_FRAME# LPC_LAD1 LPC_RST# LPC_LAD2 LPC_LAD3 VCC3V3 Table 16 Pin-out LPC Connector... -
Page 31: Gpio
MSC C10-MB-EV User Manual 4.13 GPIO The COM Express module provides four general purpose outputs and four general purpose inputs. They are shared with the SD Memory Card signals. The GPIs have pull-up resistors and are routed to a DIP switch (S2805). With the DIP switch the GPIs can be connected to ground. -
Page 32: Sd Memory Card Connector
MSC C10-MB-EV User Manual Signal Signal VCC3V3 GPO0 GPI0 GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 Table 17 Pin-out GPIO connector 4.13.2 SD Memory Card Connector An SD memory card connector is available on the bottom side. Set J3001 to enable the SD memory card slot. (Top side) A SDIO overcurrent LED is placed on top side. -
Page 33: Super Io
MSC C10-MB-EV User Manual 4.14 Super IO The Winbond Super IO W83627HG is integrated on the base board. Interfaces used by the Super IO: 2 RS232 interface (function of COM port shared with IrDA interface) 1 LPT interface ... -
Page 34: Parallel Port
MSC C10-MB-EV User Manual 4.14.2 Parallel Port Specification: References: X2304 Connector: 26 pin IDC-M Pin-out: Refer to Table 19 Signal name Signal name STB# AFD# ERR# INIT# SLIN# ACK# BUSY SLCT VCC n.c. Table 19 Pin-out LPT Port 4.14.3 COM Ports COM1 COM2 Characteristics of the COM ports:... -
Page 35: Ps/2 Connector
MSC C10-MB-EV User Manual 4.14.4 PS/2 Connector The PS/2 signals are routed to a 7pin single row header to connect PS/2 keyboards and PS/2 mice. Specification: References: X2305 Connector: 7 pin single row header 2.54mm Pin-out: Refer to Table 21 Signal name Function KBDAT... -
Page 36: Serial I2C-Bus Eeprom
MSC C10-MB-EV User Manual 5) Note: The power at 12V PCIe, VCC_LCD (X1601), VCC_BL_EDP (X1602), VCC_BL (X1101) and 12V fan power are switched off, when the power input is not in the range of 11V to 13V. In that case, you can feed 12V from an external power source at X1603 pin 4 to supply these connectors with power. -
Page 37: Feature Connector
MSC C10-MB-EV User Manual 4.18 Feature Connector Many COMExpress signals are not used on this carrier. These signals and some other signals and power planes are available at the Feature connector. Specification Feature connector: References: X1401 Connector: 40 pin IDC-M ... - Page 38 MSC C10-MB-EV User Manual Signal name Function VCC (inner pin 2.5mm diameter) 3.5 A +5-20 V (Note: Rev.1 supports only 7.5V – 20V (LY10100102) Ground (shell 6.3mm diameter) Table 25 Pin-out Power IN Connector Warning: The input power pins are connect to the power pins at the COM Express connector.
-
Page 39: Auxiliary Power Connector
MSC C10-MB-EV User Manual 4.20 Auxiliary Power Connector An auxiliary power connector is available to power some interfaces when the input power is not in the 11V to 13V range and the power at 12V PCIe, VCC_LCD (X1601), VCC_BL_EDP (X1602), VCC_BL (X1101) and 12V fan power are switched-off. In that case, you can feed 12V from an external power source at X1603 pin 4 to supply these connectors with power. -
Page 40: Power Button
MSC C10-MB-EV User Manual 4.22 Power Button For switching the system on a power push button has been implemented. The PWR_BTN# signal is low-active and is connected directly to the corresponding pin of the COM Express module. References: SW2901 ... -
Page 41: Wlan Leds
MSC C10-MB-EV User Manual 4.25 WLAN LEDs There are three yellow LEDs placed near PCIe Mini Card slot. They indicate the card type. Wireless Wide Area Network (WWAN). Wireless Local Area Network (WLAN). Wireless Personal Area Network (WPAN). 4.26 DIP Switches There is an array of DIP switches at the card edge to configure various functions. -
Page 42: Layout Revision
MSC C10-MB-EV User Manual 4.28 Layout Revision The layout revision can be found here. 42 / 42...
