Pro Control Pro.ircb.4 Quick Reference Manual

®

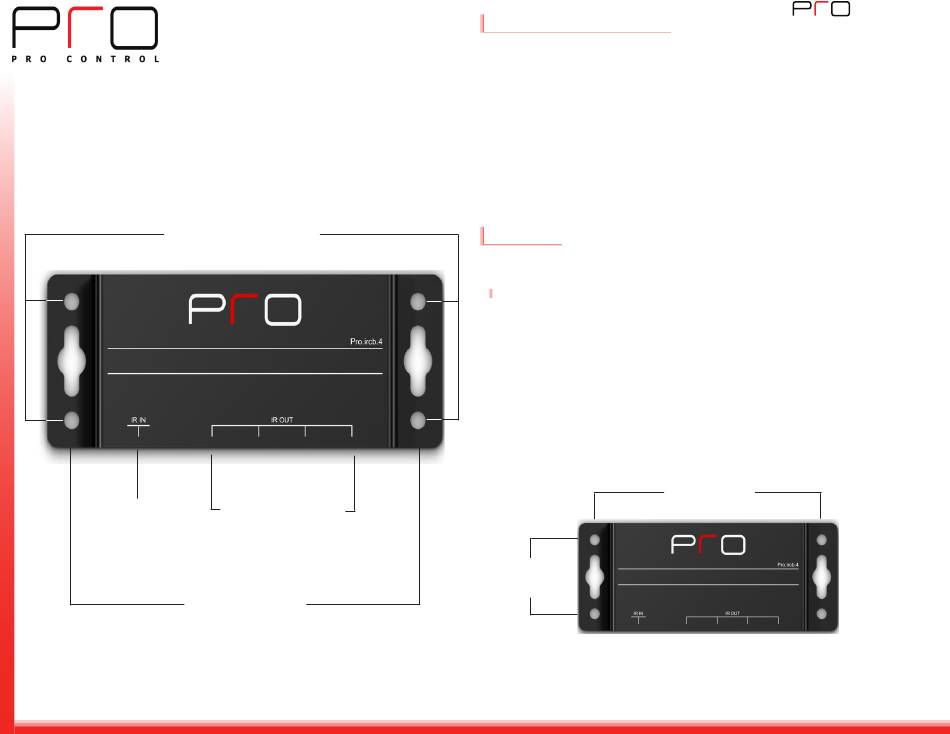

Mounting Holes (4)
IR In Port IR Out Ports (4)
Mounting Ears
Pro.ircb.4
Quick Reference Guide
71-500009-22 V1.0
Installation & Operation
The Pro.ircb.4 IR port expander, when used with Pro Control processors,
provides reliable and convenient infrared expansion. With sturdy steel construction, the
Pro.ircb.4 is compatible with most industry-standard IR emitters, and is designed to
function without a power supply. A three foot (1 m) cable (with 3.5 mm plugs) for
connection to the ProLink processors is included.
NOTE:
• All four (4) IR output ports may not be usable if dual or flashing emitters are
used.
• The IR output level on the ProLink processor IR port should be set to
maximum.
• Simultaneously connecting different types or brands of IR emitters to the
Pro.ircb.4 output ports is not recommended.
Mounting
The Pro.ircb.4 can be wall mounted (details below) or free standing.
Mounting Instructions
1 Level and anchor the Pro.ircb.4 to desired wall, shelf, or
cabinet by aligning the four (4) #10-32 3/4" flathead screws
(included) with the screw holes located on the front of the
Pro.ircb.4 mounting ears and securely fastening each screw.
2 When mounting the Pro.ircb.4, be certain to choose a safe
location (e.g. away from electrical junction boxes, circuit
breakers, wet locations, etc.).
1.4 Inches
(35.56 mm)
®
4.5 Inches
(114.3 mm)
Get more control
®
