Summary of Contents for EXTREME SWITCHING 1101GT

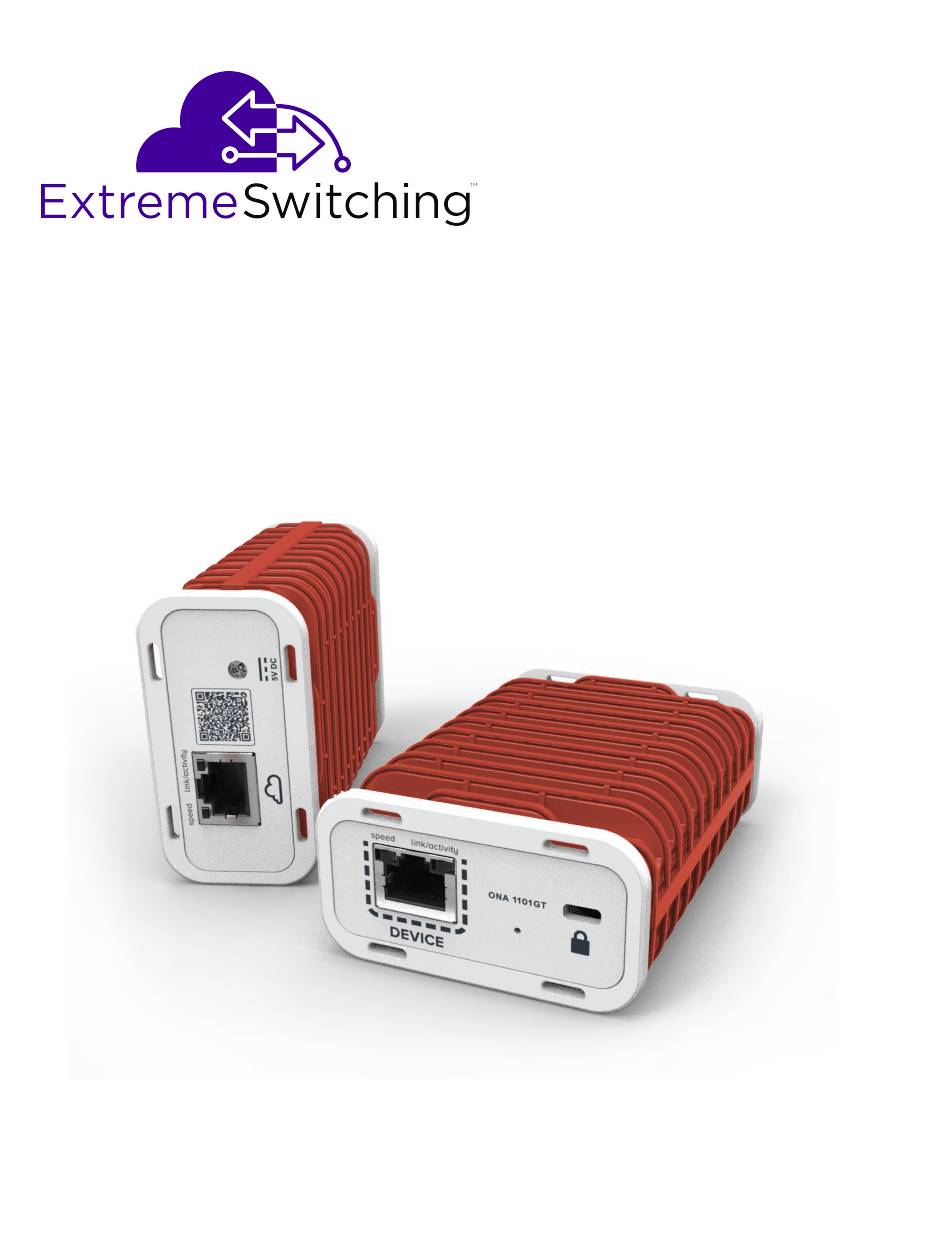

- Page 1 Open Networking Adapter 1101GT Installation Job Aid Release 3.0 December 2017 This Installation Job Aid provides an overview of your Open Networking Adapter (ONA). © 2017, Extreme Networks, Inc. All Rights Reserved.
-
Page 2: Getting Help
• Network load at the time of trouble (if known) • The device history (for example, if you have returned the device before, or if this is a recurring problem) December 2017 Open Networking Adapter 1101GT Installation Job Aid... -
Page 3: Extreme Networks Documentation
6. Select the industry in which your company operates. 7. Confirm your geographic information is correct. 8. Select the products for which you would like to receive notifications. 9. Click Submit. © 2017 Extreme Networks All Rights Reserved. December 2017 Open Networking Adapter 1101GT Installation Job Aid... - Page 4 • Reorient or relocate the receiving antenna. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 5 This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view. Note: The device has no essential performance per IEC 60601-1-2. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 6 Declarations and Specifications Guidance and manufacturer’s declaration – electromagnetic immunity The ONA 1101GT is intended for use in the electromagnetic environment specified below. The customer or the user of the ONA 1101GT should assure that it is used in such an environment.
- Page 7 NOTE Ut is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration – electromagnetic immunity The ONA 1101GT is intended for use in the electromagnetic environment specified below. The customer or the user of the ONA 1101GT should assure that it is used in such an environment.
- Page 8 If the measured field strength in the location in which the ONA 1101GT is used exceeds the applicable RF compliance level above, the ONA 1101GT should be observed to verify normal operation. If abnormal performance is observed, additional measures maybe necessary, such as re-orienting or relocating the ONA 1101GT.
- Page 9 NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection for structures, objects and people. Compliant Accessories This table lists the manufacturer compliant accessories for the ONA 1101GT. Accessory Description Part Number AC/DC Adapter ASIAN POWER DEVICES INC;...
- Page 10 • Use the optional external power adapter. This adapter can supply power to the ONA if there is no PoE port available or, as a backup, if the PoE port fails. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 11 2. Use the 10/100/1000 BASE-T RJ-45 port with the cloud symbol to connect the ONA to the network. If the upstream switch port is POE, POE+, or uPOE capable, it will also power on the ONA. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 12 1 second but less than 5 seconds. Setting the ONA to factory defaults The following parameters are the ONA factory defaults: • Management IP Address : December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 13 After you modify the parameters and save the configuration, the ONA stores your changes in persistent memory and reboots. Note: Manual Configuration menu changes for default parameters are not required for SDN Controller Mode 0 operation. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 14 4. Continue pressing and holding the reset button until the Status LED cycles through a red/ green/blue pattern. Then release the reset button. The Status LED will flash a steady amber, which indicates that the Manual Configuration menu is running. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
-
Page 15: System Status Led
Green (slow blinking) Application starting (both modes) Green (fast blinking) IP address is acquired by DHCP (both modes) Green (steady) Application initialization completed. Connectivity is established and operating (both modes) Table continues… December 2017 Open Networking Adapter 1101GT Installation Job Aid... -
Page 16: Power Led
Diagnostics Ethernet loopback test succeeded after a previous failure condition Power LED The Power LED is visible from either side of the unit. Table 2: Power LEDs Label Color and Status Description Power Blue (steady) Operating normally Table continues… December 2017 Open Networking Adapter 1101GT Installation Job Aid... - Page 17 • If the ONA is connected to an external power adapter, disconnect it for at least 45 seconds and then reconnect it. Running diagnostics on the ONA Use the diagnostics to verify that the ONA is operating properly. To enter Diagnostics, use following procedure: December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 18 1. From the PC that you are going to use for this upgrade procedure, go to the Extreme Networks support website, https://extremeportal.force.com/, and download the ONA software image that you want to use. 2. Connect a PC to the RJ-45 port on the Device side of the ONA. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
- Page 19 11. Click Reboot into Operational Mode. 12. Disconnect the PC. Upgrading a deployed ONA See the Open Networking Adapter 1101GT Release Notes for the latest information on upgrading ONA software on a deployed service. December 2017 Open Networking Adapter 1101GT Installation Job Aid...
