Interlogix Advisor Series Installation Sheet

Advisor microSD™ card Installation Sheet
EN CNF ES PR
1. microSD card
English: Installation Sheet
Description
The Advisor™ family of life-safety protection and comfort management systems detects situations, and provides control and
information for homes and businesses.
This document provides installation instructions on installing the Advisor microSD card (P/N AV-SD4 and AV-SD8) for use with the
Advisor TouchScreen and the AdvisorOne panel.

Installation

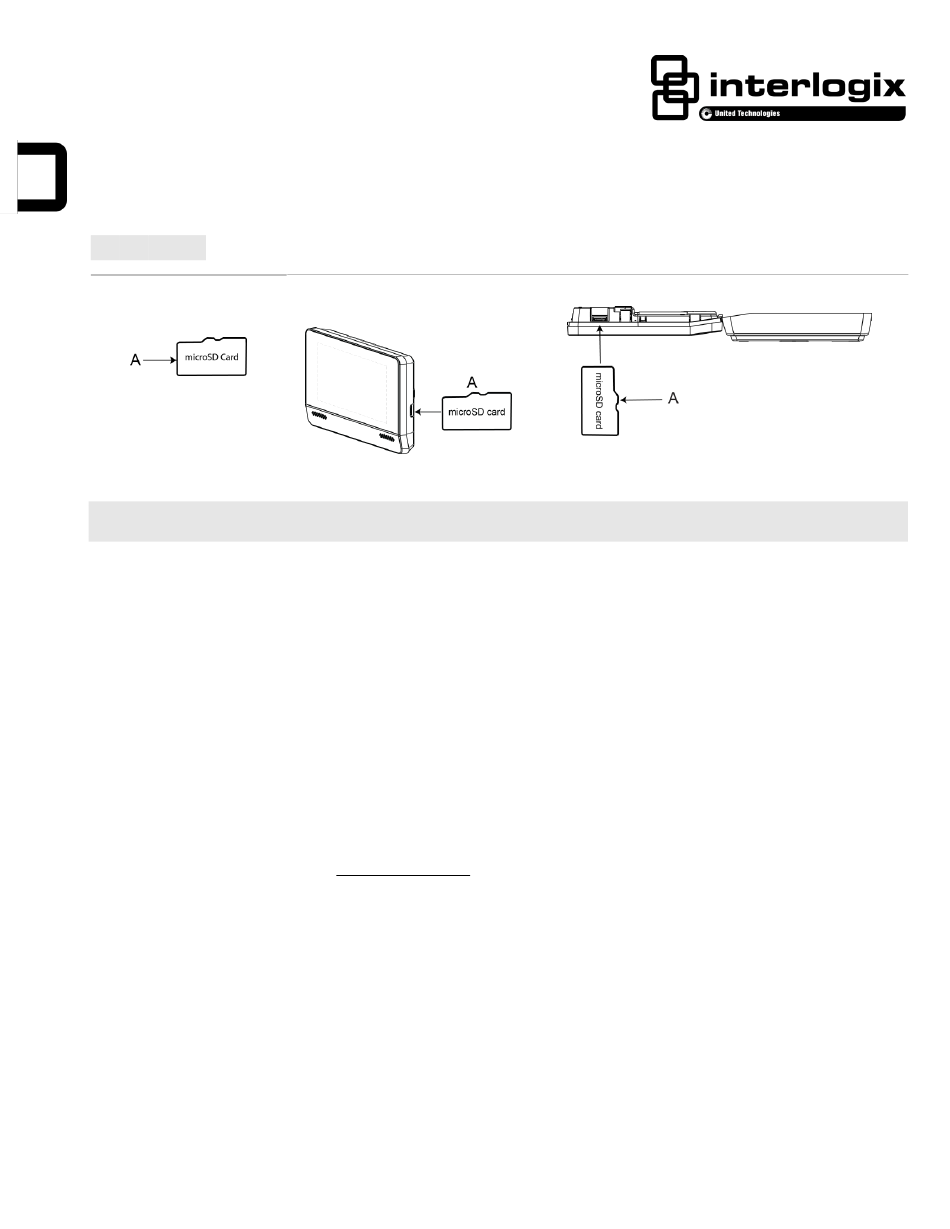

The microSD card can be installed in an Advisor TouchScreen (Figure 2) and/or AdvisorOne panel (Figure 3).
Note: If the microSD card is to be used for multimedia storage, copy the multimedia content to the microSD card before beginning
installation. Depending on the make and model of the image source (for example, camera or computer), the microSD card may
require a microSD card adapter (not supplied).

Advisor TouchScreen

1. To install the microSD card into an Advisor TouchScreen, locate the microSD slot and position the mircoSD card so that the
orientation is with the notch facing as shown in Figure 2.
2. Insert the microSD card into the Advisor TouchScreen's microSD slot. Pay close attention to ensure the microSD card is
inserted into the actual slot before pushing it all the way in. This is important because It may be possible that the microSD
card is positioned above or below the physical slot, and If this happens the card may fall inside the TouchScreen housing.
3. After verifying that the card is in the actual slot, push the card to engage it into the slot; a clicking sound should be heard or felt.
4. Proceed to Module Configuration & Programming.
P/N 466-4413 • REV A • 17JUN14
2. Advisor TouchScreen 3. AdvisorOne Panel
1 / 3
