AIRSTREAM WIFI PACK™
user guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRSTREAM WIFI PACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADJ AIRSTREAM WIFI PACK

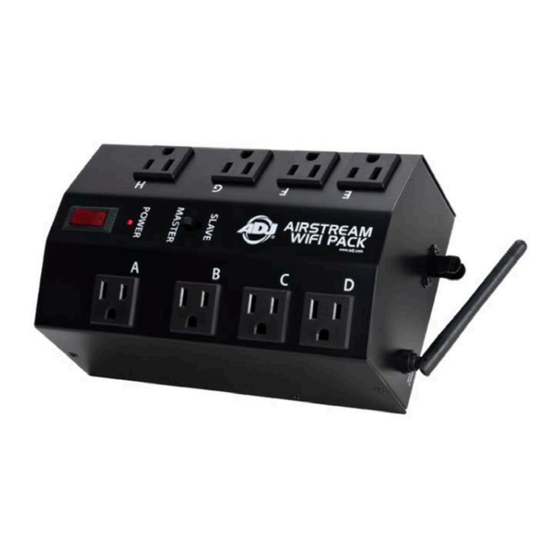

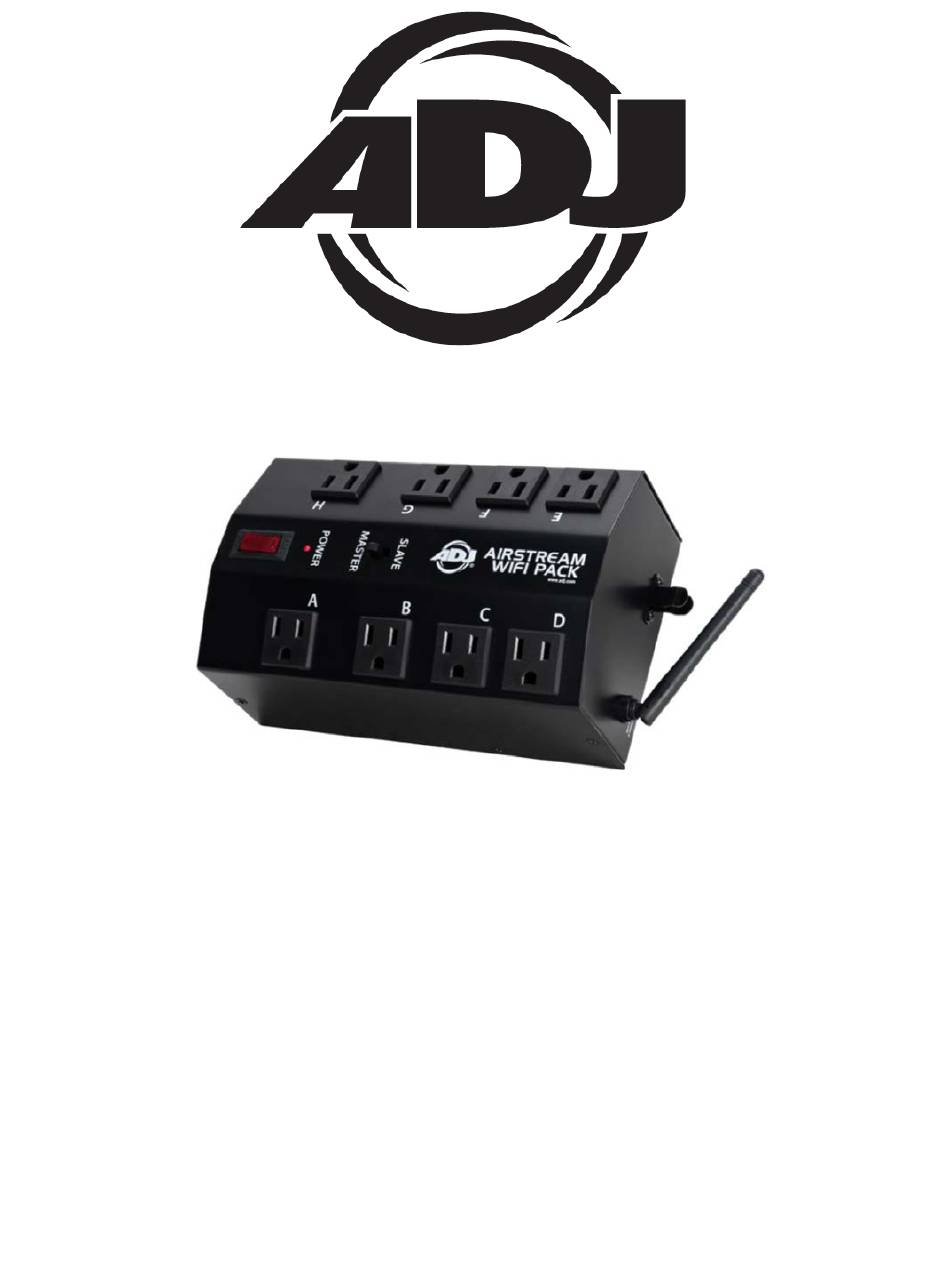

  • Page 1 AIRSTREAM WIFI PACK™ user guide...
  • Page 2 ©2017 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    General Information Limited Warranty Safety Instructions and Guidelines Device Set Up & Overview Device Installation Wireless Operation Guidelines App Set Up & Overview App Operation Trouble Shooting Tips Frequently Asked Questions Pack Color ID and Outlet List Technical Specifications www.adj.com...

  • Page 4: General Information

    Touch mobile digital devices. The AIRSTREAM WIFI PACK network operates on a 2.4 GHz wireless frequency. The AIRSTREAM WIFI PACK is an ideal indoor solution for mobile entertainers, mobile DJs, bands, nightclubs, bars, production events, where data or power cables need to be hidden from sight.
  • Page 5 You may also visit us on the web at www.adj.com for any comments or suggestions. For service related issue please contact ADJ. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST...

  • Page 6: Limited Warranty

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 7: Safety Instructions And Guidelines

    Reorient or relocate the device and/or antenna. Increase the separation between the device and the receiver. Connect the device into an electrical outlet on a circuit different from that which the radio receiver is connected. Consult the dealer or an experienced radio/TV technician for help. www.adj.com...
  • Page 8 A. The power cord or plug has become damaged. B. Objects have fallen on and/or liquid has spilled into the device. C. The device has been exposed to rain and/or moisture. D. The device does not operate normally or exhibits a marked change in performance. www.adj.com...

  • Page 9: Device Set Up & Overview

    WIFI PACK as a MASTER or SLAVE, toggle the MASTER/SLAVE Mode switch located on top of the WIFI PACK above the power switch. (See image above) NOTE: ANY WIFI PACK CAN BE A MASTER OR SLAVE, BUT THERE CAN ONLY BE ONE MASTER UNIT. www.adj.com...

  • Page 10: Device Installation

    D E V I C E I N S T A L L A T I O N CLAMP / TRUSS MOUNTING The device can be mounted to truss or a lighting stand using an ADJ clamp (not included). 1. Attach clamp securely to the mounting hole on the bottom of the device using an M10-1.5 screw.
  • Page 11 US letter size 8.5 x 11 inch paper. 1. Download the wall-mounting template from www.adj.com 2. Place the paper on the wall and use the outline to position device where you want to mount it. MAKE SURE MOUNTING LOCATION DOES NOT RESTRICT MOVEMENT OF ANTENNA! 3.

  • Page 12: Wireless Operation Guidelines

    The maximum distance between the controlling mobile digital device and MASTER WIFI PACK, and 150 feet (45m). between the MASTER WIFI PACK and each additional SLAVE WIFI PACKS (3 Max) is NOTE: UP TO 3 SLAVE WIFI PACKS CAN BE ADDED TO THE AIRSTREAM WIFI NETWORK. www.adj.com...

  • Page 13: App Set Up & Overview

    2. Download the AirstreamWiFi app from the App Store and install on an iPhone, iPad, or iPod Touch. 3. Enable Wi-Fi on your mobile digital device and select the Airstream WiFi Pack wireless network, a i r s t r e a m w i f i entering the default password to join.
  • Page 14 A P P S E T U P & O V E R V I E W [ c o n t i n u e d ] 4. After successfully connecting to the Airstream WiFi Pack wireless network, set the mode switch on the first WIFI PACK to Master and set the mode switch on additional packs to Slave.
  • Page 15 TIME/PROGRAM - Press to setup custom TIME and PROGRAM control settings. SCHEDULE - Press to setup custom SCHEDULE control settings. SETTINGS - Press to access and modify multiple app settings. ACTIVE WIFI PACKS - Press desired icon to switch between connected WIFI PACKS. www.adj.com...

  • Page 16: App Operation

    HOLD button, which will illuminate in blue indicating the HOLD feature is active. Now you can toggle any power outlet button between ON and OFF. To remove this function, press the HOLD button again, which will no longer illuminate in blue. www.adj.com...
  • Page 17 WIFI PACK. Please the SETTINGS - PHOTO section in this manual for more details. NOTE: MANUAL SETTINGS ARE NOT SAVED TO THE WIFI PACK AND THEREFORE WILL BE LOST WHEN POWER IS LOST TO THE WIFI PACK! MANUAL HOLD CONTROL www.adj.com...
  • Page 18 In the example (image above right), buttons A-D are illuminated blue meaning the timers for those outlets are active. To deactivate an outlet timer, press the outlet letter button again and the letter will no longer be illuminated blue indicating it is now deactivated. www.adj.com...
  • Page 19 C ON per its timer settings. This cycle will repeat indefinitely until you toggle off the PROGRAM ON/OFF switch (see step 7 on the next page), or per the WIFI PACK SCHEDULE. (See SCHEDULE ICON section for more details) www.adj.com...
  • Page 20 (See images below) CONNECTED TIME / PROGRAM PROGRAM WIFI PACKS DELETE PROGRAM SETTINGS WHEEL (-) MINUS NOTE: PROGRAMS WILL RUN INDEFINITELY UNTIL THEY ARE SWITCHED OFF, OR PER THE WIFI PACK SCHEDULE. (See SCHEDULE ICON section for more details) www.adj.com...
  • Page 21 Pressing this icon displays the SCHEDULE page where you can create a custom ON/OFF Schedule for specific Times and Days of the week for each connected WIFI PACK. NOTE: THERE MUST BE SAVED WIFI PACK PROGRAMS IN ORDER TO CREATE A SCHEDULE. (See TIME / PROGRAM ICON sections) SCHEDULE WIFI PACKS www.adj.com...
  • Page 22 Schedule Window, which will display the time in 12-HOUR (AM/PM) or 24-HOUR format. NOTE: HOUR FORMAT CAN BE TOGGLED ON THE SETTINGS PAGE (See SETTINGS section) 5. Select the Time and Days of the week for the OFF SCHEDULE and push SAVE. www.adj.com...
  • Page 23 Then press the minus icon and then press the red button. (See below) SCHEDULE MASTER WIFI PACK POWER TOGGLE SLIDE ICONS POWER SWITCH DEFAULT ICONS TO ACTIVATE TO ON TO OFF SCHEDULES DELETE SETTINGS SCHEDULE WHEEL (-) MINUS www.adj.com...
  • Page 24 4. To lock the app press the Confirm button. (See image above left) NOTE: DEVICE AND APP WILL LOCK ONLY AFTER THE PASSWORD IS CONFIRMED. WRITE AND SAVE PASSWORD IN A SAFE PLACE FOR FUTURE REFERENCE. NOTE: PASSWORD MUST BE 1-6 CHARACTERS. www.adj.com...
  • Page 25 1. To unlock the app, press the LOCK icon and the screen image below right is displayed. 1 - 6 character 2. Enter your password and the app will unlock. 3. If you enter an incorrect password, an error will display. (See image below) www.adj.com...
  • Page 26 ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST Voice: 800-322-6337 Fax: 323-532-2941 E-mail: support@americandj.com ADJ GROUP SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 30 Fax: +31 45 546 85 96 E-mail: support@adjgroup.eu 1.
  • Page 27 Photos can be new from the camera or existing photos from the library of the controlling mobile device. NOTE: WIFI PACK(s) MUST BE CONNECTED TO MOBILE DIGITAL DEVICE TO ADD TEXT AND PHOTOS. TEXT AND PHOTOS CANNOT BE ADDED WITHOUT WIFI PACKS CONNECTED. SETTINGS PHOTO TEXT EDIT PHOTO EDIT www.adj.com...
  • Page 28 2. Select Take Photo to use mobile digital device camera or select Choose Existing to select photo from mobile digital device library. (See below Center) Example of TEXT labels and PHOTOS for each power outlet button (A-H). (See below Right) ADD TEXT ADD PHOTO EXAMPLES www.adj.com...
  • Page 29 TEXT labels will now illuminate blue for each power outlet button in the momentary or HOLD mode. PHOTOS will now display for each power outlet button in the momentary or HOLD mode. (See images below) OFF MODE ON MODE ON MODE TEXT/PHOTOS TEXT PHOTOS www.adj.com...
  • Page 30 NAME 1. Press the bar next to the text “SSID”. 2. Use the pop up keyboard to rename the default WiFi network name Airstream Wifi Pack. NOTE: THE WIFI NETWORK NAME MUST BE BETWEEN 8 - 32 CHARACTERS. 3. Press DONE and the new name will appear.
  • Page 31 5. Power the Master WIFI PACK OFF / ON for the new WiFi network password to take effect. NOTE: TO PREVENT OTHERS FROM ACCESSING YOUR WIFI NETWORK, AND TO PREVENT WIRELESS CONNECTIVITY AND/OR INTERFERENCE ISSUES, IT IS HIGHLY RECOMMENDED TO CHANGE THE WIFI NETWORK NAME AND PASSWORD. www.adj.com...
  • Page 32 You can select 12-Hour (AM/PM) or 24-Hour (Military) format. SETTINGS SETTINGS SLIDE SWITCH SLIDE SWITCH LEFT TO TOGGLE RIGHT TO TOGGLE TO 12 HOUR TO 24 HOUR TIME FORMAT TIME FORMAT 12 HOUR 24 HOUR TIME FORMAT TIME FORMAT www.adj.com...
  • Page 33 BEING THE MASTER PACK, PACKS 2, 3, and 4 MAY NOT ALWAYS CONNECT TO THE APP IN THE EXACT SAME ORDER. (See example below) THEREFORE IT IS STRONGLY SUGGESTED TO ASSIGN A COLOR TO EACH CONNECTED WIFI PACK, AND USE THE PACK COLOR ID AD OUTLET LIST IN THE BACK OF THIS MANUAL. www.adj.com...

  • Page 34: Trouble Shooting Tips

    4. If not, close the Airstream WIFI app and restart and wait to see if the WIFI connection is restored. 5. If not, power the Master Airstream WIFI Pack OFF / ON then power ON remaining Slave WIFI Packs. 6. If none of these solutions work, please contact ADJ Customer Service.
  • Page 35 Forgot “LOCK” Password For the App 1. Contact ADJ Customer Service for a Master Code. 2. Enter Master Code as instructed by ADJ Customer Service to unlock the app. 3. Update the LOCK password and save password in a safe place.

  • Page 36: Frequently Asked Questions

    9. How many lighting effect devices can you connect to the WIFI PACK? You can connect a total of (8) lighting effect devices to the WIFI PACK, as long as the combined total power draw of all (8) devices does not exceed the maximum power draw for a WIFI PACK. www.adj.com...

  • Page 37: Pack Color Id And Outlet List

    A: ______________________________________________________________ B: ______________________________________________________________ C: ______________________________________________________________ D: ______________________________________________________________ E: ______________________________________________________________ F: ______________________________________________________________ G: ______________________________________________________________ H: ______________________________________________________________ SLAVE PACK ______________________________________ (device name | location) A: ______________________________________________________________ B: ______________________________________________________________ C: ______________________________________________________________ D: ______________________________________________________________ E: ______________________________________________________________ F: ______________________________________________________________ G: ______________________________________________________________ H: ______________________________________________________________ www.adj.com...
  • Page 38 A: ______________________________________________________________ B: ______________________________________________________________ C: ______________________________________________________________ D: ______________________________________________________________ E: ______________________________________________________________ F: ______________________________________________________________ G: ______________________________________________________________ H: ______________________________________________________________ SLAVE PACK ______________________________________ (device name | location) A: ______________________________________________________________ B: ______________________________________________________________ C: ______________________________________________________________ D: ______________________________________________________________ E: ______________________________________________________________ F: ______________________________________________________________ G: ______________________________________________________________ H: ______________________________________________________________ www.adj.com...

  • Page 39: Technical Specifications

    ELECTRICAL / THERMAL AC 125 VAC 60Hz Single Channel Max Loading: 8A / 960W Total Max Loading: 15A / 1800W No Load Max Power Consumption: 7.7W Working Humidity: <85%RH Working Temperature: 32°F to 131°F (0°C to 55°C) APPROVALS / RATINGS www.adj.com...
  • Page 40 DIMENSIONAL DRAWINGS Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. www.adj.com...
  • Page 41 N O T E S www.adj.com...
