- Page 1 Fingerkey & Finger Reader registering master fingerprint deregister master fingerprint...
-
Page 2: Table Of Contents
CONTENTS Introduction…………………………………………………………………………………3 Specifications………………………………………………………………………………..3 Intramural Interface Circuit………………………………………………………………….3 Mounting…………………………………………………………………………………….4 PCB Diagram………………………………………………………………………………...5 Wiring………………………………………………………………………………………..4 Engineer Programming Mode……………………………………………………………….6 To enter programming mode…………………………………………………………7 Changing Supervisor Codes…..……………………………………..………………7 Adding Supervisor fingerprints & Adding User ……………………………..……..7 Delete User …………………………………………………………….…………8 Setting Output Data ……….…………………………………………….…………9 Setting Door Relay Strike Time ……………………………………….…………..9 Setting Alarm Signal Output Time …………………………………….…………..9 Setting Door Open Detection ………………………………………….…………..9 Setting Alarm Code ……………………..…………………………….……………9... -
Page 3: Introduction

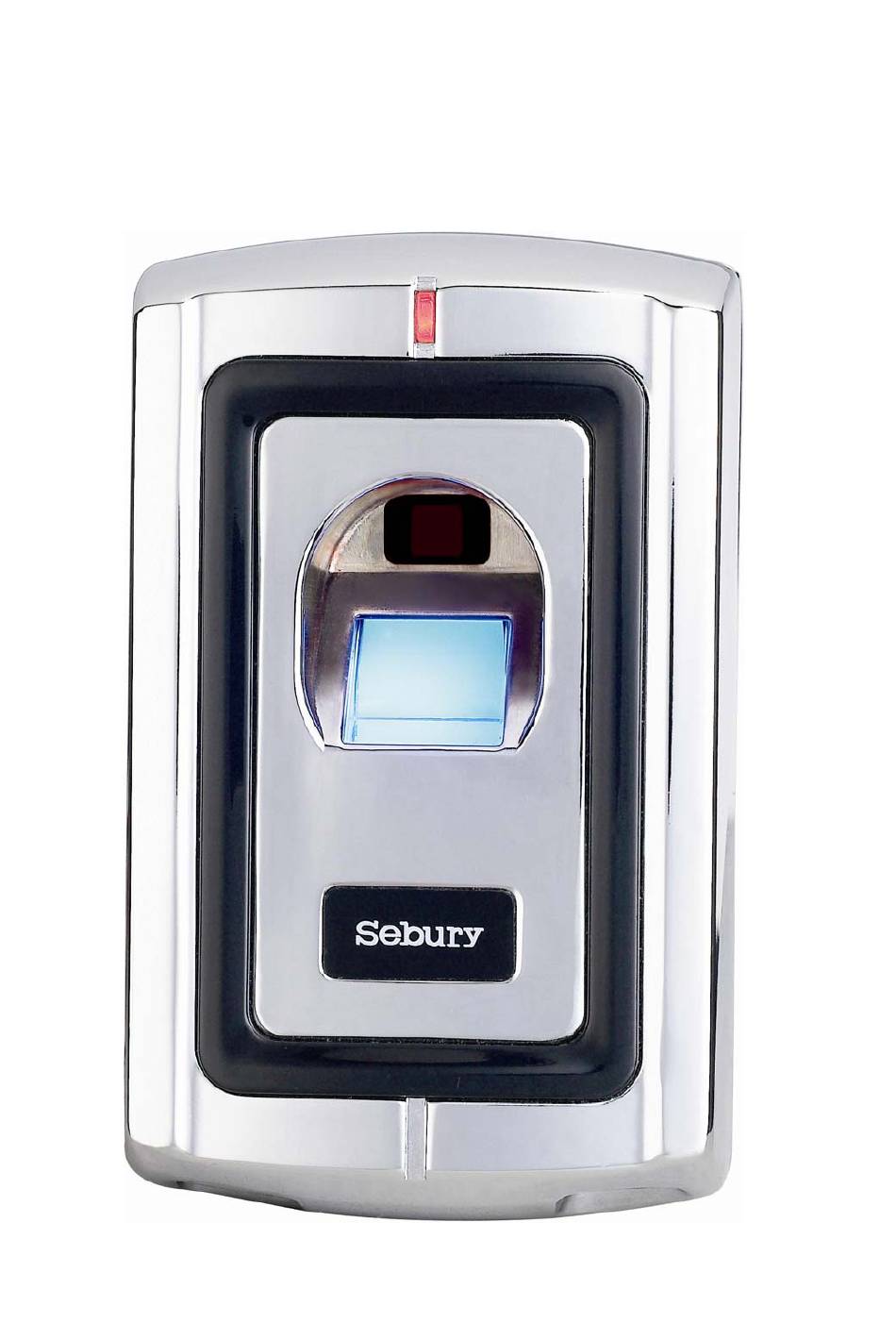

Introduction The F1 uses the latest 32 bit ARM7TDMI-S microprocessor and DSP technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through a infrared remote control keypad, codes and operating parameters are stored within the flash memory and can not be lost due to power failure. -
Page 4: Intramural Interface Circuit
2. Intramural Interface Circuit 2.1 Wiegand output interface (See Figure 1) 2.2 Alarm output interface (See Figure 2) 2.3 Electric lock interface (See Figure 3) Figure 1 Figure 2 Figure 3 3. Mounting 1. Drill 4 holes on the wall. 2. -
Page 5: Pcb Diagram
Unplug the cable harness and connect the necessary cables, there are two mode of the application wiring, using general adaptor mode (See Figure 6) and using Sebury special adaptor(See Figure 7), recommended using Sebury special adaptor, it will make system work more stable. -
Page 6: Engineer Programming Mode
Figure 6 Note: Recommended using Sebury special adaptor, it will make system work more stable. The diode of 1N4007 is absolutely necessarily, or else the system will unstable. Figure 7 5. Power Up After all wiring is complete and the unit face plate is attached to the back plate, apply 12Vdc power to the unit. -
Page 7: Changing Supervisor Codes
Note The supervisor code is 9999 at factory default setting. 5.2 Changing Supervisor Codes In engineer programming mode: To change Supervisor code Press: 0 new supervisor code # re-enter new supervisor code # Note The supervisor code must be 4-digit number. 5.3 Adding Supervisor fingerprints &... -
Page 8: Delete User
Note Each user must be stored 2 fingerprints when adding more-than-one users by the supervisor fingerprints. 5.4 Delete User 5.4.1 Delete user by the Infrared remote control keypad a.) Press: 2 0 0 0 0 # to delete all user. b.) Press: 2 user ID # to delete used this ID code of the user. -
Page 9: Setting Alarm Code
Reset flash memory by key (see figure 5). Turn off the power, press the K6 on the PCB, and re- power the device, the F1 will give a beep and is now reset to factory default values. 7. How to release the door 7.1 Using fingerprints to release the door... -
Page 10: Technical Specification
