Summary of Contents for Rivins RV-7
- Page 1 RV-7 Walkie-talkie User Manual -V1.0...

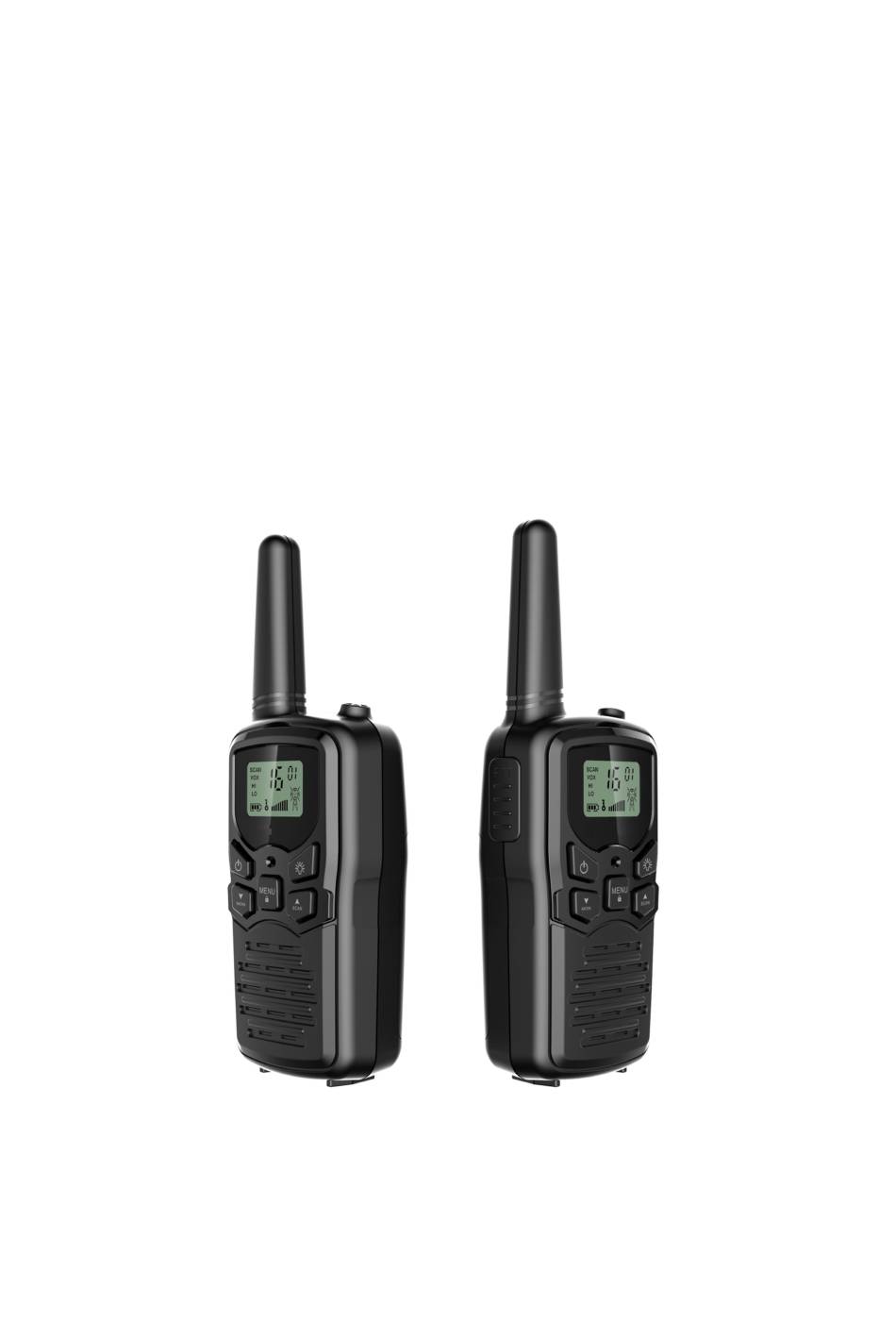

- Page 2 Package includes 2 walkie-talkie units: these are communication devices that operate on mobile radio frequencies. They have 8(Europe)/ 22(US) channels as well as a back-lit LCD screen, enabling you to communicate over several kilometers free-of-charge (up to 5KM in open areas). Note: Please read the instructions carefully before using the equipment and retain for future reference.
- Page 3 Functions at Glance ...
-
Page 4: Before Use
Before Use Before insert batteries into the device, pull the belt clip latch upwards to remove, open the battery cover, and place the batteries in the right direction. -
Page 5: Installing The Batteries
Installing the Batteries FOR USE OF NON-RECHARGEABLE BATTERIES: 1. Slid down the battery compartment cover. 2. Insert 4 AAA Alkaline (Not included). 3. Insert the batteries according to the polarity marking on the battery compartment. 4. After placing batteries into correct positions, put the battery cover back on. - Page 6 Battery Level/Low Battery Indication The battery charge level is indicated by the number of squares present on the battery icon on the LCD Screen. Battery Full Battery 2/3 charged Battery 1/3 charged Battery empty When the battery charge level is too low, the battery icon will flash and a beep will be heard to indicate that the batteries need to be replaced or recharged.
- Page 7 Changing Channels Press the MENU button one time, the channel number will flash on the display. Press the up▲/down▼ button to change the channel. Press the PTT button to confirm and return to standby mode. Note: if no button is pressed within 15 seconds during setting, the device will return to standby mode.
- Page 8 VOX Operation is not recommended if you plan to use your device in a noisy or windy environment. Note: VOX mode will be over-ridden when you press the PTT button. Scanning for an active radio channel Press and hold the UP▲ button for 2 seconds: The “SCAN” function indicator will appear on the display and the channel will scan continuously from 1 to 8 /I to 22.
- Page 9 Key-Tone On/Off When a button is pressed, the device will beep briefly. To set the key-tone. Press the MENU button five times until you see“ ” ● Press ▲ to enable (ON) or ▼ disable the Key Tones (OFF) ●...
- Page 10 Battery saving function When the device has not been used for 6 seconds, the economy mode is automatically activated. This does not affect the reception of transmission and the standby mode is automatically re-activated as soon as a signal is detected. ...
- Page 11 Channel and Frequency (MHz) Europe (8-CH) Frequency Frequency Frequency 446.00625 446.04375 446.08125 446.01875 446.05625 446.09375 446.03125 446.06875 USA (22-CH) Frequency Ch. Frequency Frequency Ch. Frequency 462.5625 462.7125 467.6875 462.6500 462.5875 467.5625 467.7125 462.6750 462.6125 467.5875 462.5500 462.7000 462.6375 467.6125 462.5750 462.7250 462.6625...
