Verification Of Card Installation - Bose ControlSpace ESP-88 Installation Instructions

7. Use the ControlSpace™ designer software to verify the card was inserted
correctly:
a) Press scan and confirm that the software detects the card.
b) If the card was installed correctly, right-clicking the ESP-88 and displaying
its properties will show 4Ch EDR Input in the correct slot in the ESP-88.
See Figure 3.
8. If an error message appears, or the software does not properly detect the
EDR Input card, repeat the installation instructions. Be sure that the card is
completely pushed into the connector, and that the card is properly aligned in
the chassis.
For installation instructions in other languages, please visit pro.bose.com.

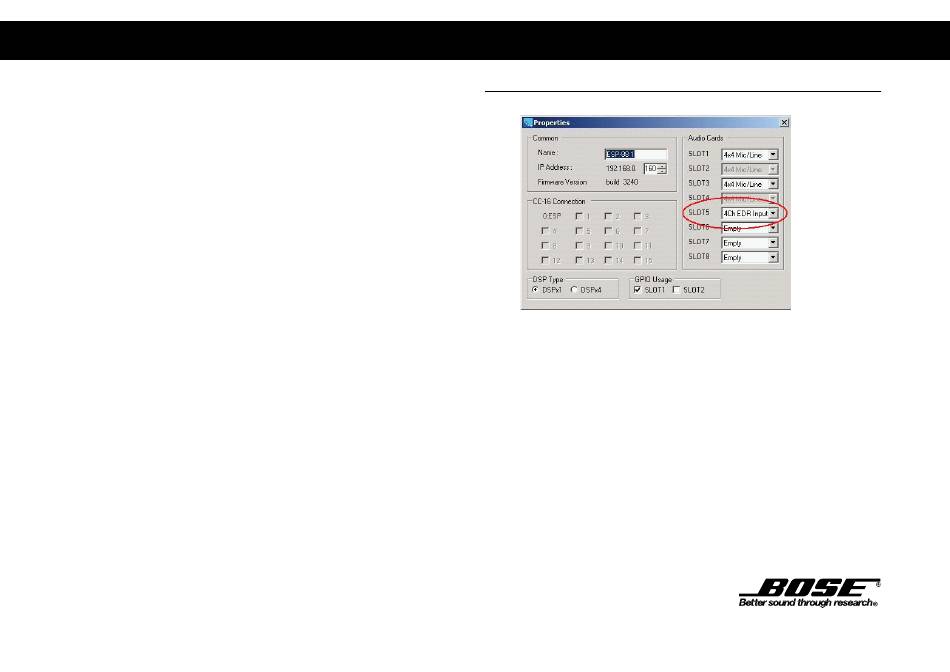

Figure 3
