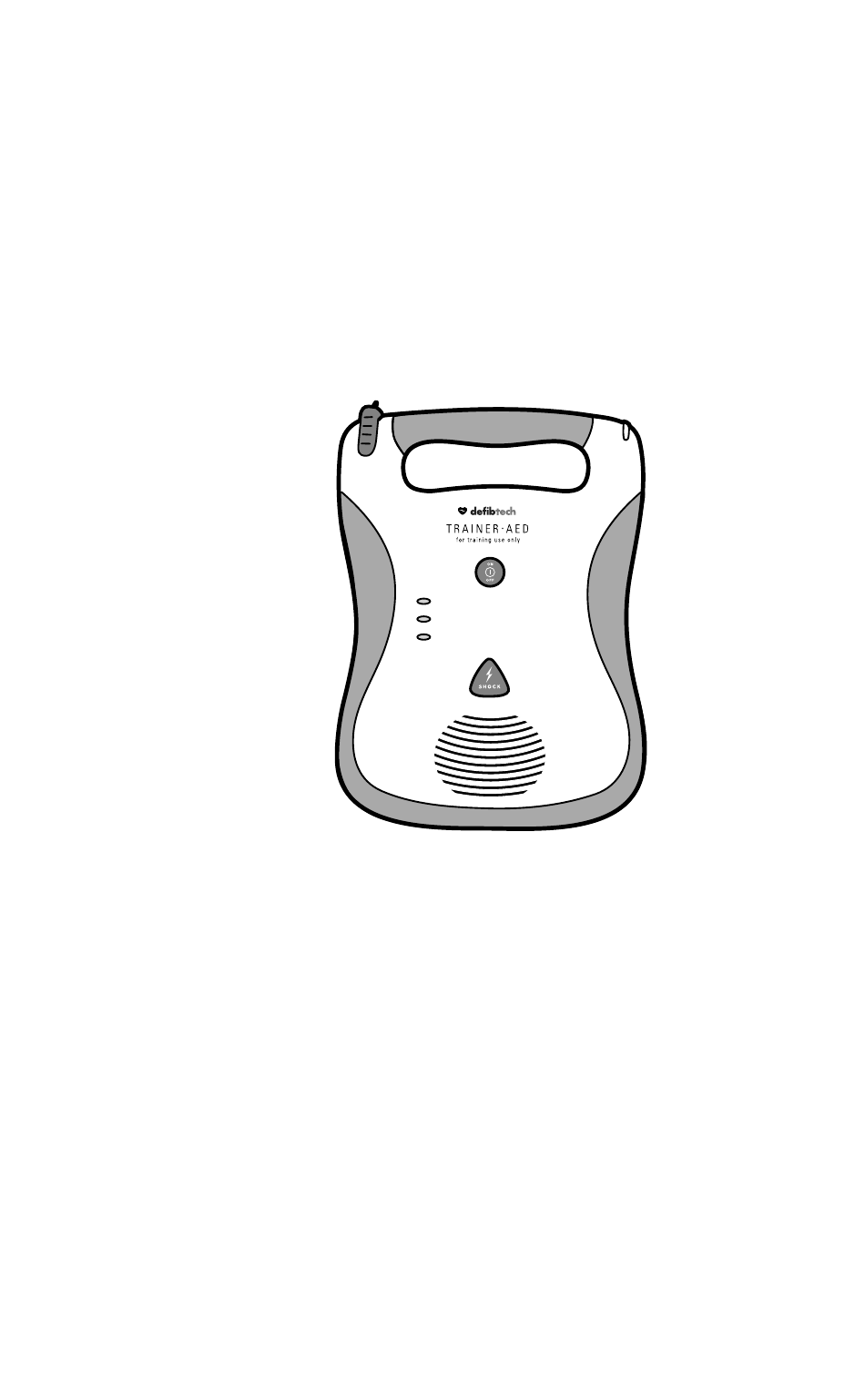

- Page 1 Defi btech DDU-100 Series Trainer AED check pads do not touch patient analyzing User Manual DAC-515E-EN-BF...
- Page 2 Notices Defibtech shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is subject to change without notice. Names and data used in the examples are fictitious unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 Introduction to the Defibtech DDU-100 Series Trainer AED ..5 2 Safety Information ...............5 2.1 Warnings .................6 2.2 Cautions ..................7 3 Training Components ............8 3.1 Trainer AED Unit ..............8 3.2 DBP-RCx Series Training Battery Pack ........8 3.3 DTR-4xx Series Remote Control ..........9 3.4 Training Pads................9... - Page 4 11 Glossary of Symbols ............24 12 Contacts ................26 This User Manual provides information and operational instructions specific to DDU-100 Series Trainer AEDs. For comprehensive information about DDU-100 Series rescue AEDs, please refer to the DDU-100 Series AED User Manual at www.defibtech.com. DAC-515E-EN-BF...
-
Page 5: Introduction To The Defibtech Ddu-100 Series Trainer Aed
1 Introduction to the Defibtech DDU-100 Series Trainer AED The DDU-100 Series “Trainer AED” is a dedicated training AED that is externally similar to a fully-functional Defibtech DDU-100 Series AED.* The main unit has bright red overmolding to clearly distinguish it as a training device. -
Page 6: Warnings
100 series AED, the AED cannot be used to perform a rescue. Replacing the Training Battery Pack with a rescue battery pack will immediately allow the DDU-100 Series WA RN ING AED to be used to perform a rescue. -
Page 7: Cautions
WA RN ING Training Pads cannot be used to rescue a patient. If Training Pads are connected to a DDU-100 Series AED, the AED will say “Check Pads, ” and the AED will report an error during WA RN ING the next automatic self-test. -
Page 8: Training Components
100 series AED, the AED cannot be used to perform a rescue. Replacing the Training Battery Pack with a rescue battery pack will immediately allow the DDU-100 Series AED WA RN ING to be used to perform a rescue. -
Page 9: Dtr-4Xx Series Remote Control
Do not apply the Training Pads to human skin. Use only with a manikin or similar materials. WA RN ING 4 Accessories This chapter lists the accessories that can be used with the DDU-100 Series Trainer AED. To obtain replacement component parts and accessories, contact your authorized distributor or Defibtech. DDP-101TR:... -
Page 10: Training Scenarios
5 Training Scenarios 5.1 Trainer AED Modes (Semi-Automatic and Fully Automatic) New Trainer AEDs are factory programmed to function in Semi-Automatic mode, but can be configured to operate in either Semi-Automatic or Fully Automatic mode. All of the training scenarios noted in Section 5.3 can be used in either mode. -
Page 11: Available Scenarios
5.3 Available Scenarios Six training scenarios (described below) are available for training exercises and can be changed during training as desired. The following scenarios are available: VF (Ventricular Fibrillation) that converts to a non-shockable rhythm (normal sinus rhythm) after the 1st shock. This scenario is based on the American Heart Association AED training scenario and allows for a quick overview and demonstration of AED operation. -
Page 12: Programming The Default Scenario
Default Scenario is reprogrammed. 5.5.2 Programming the Default Scenario with the Remote Control Note: When performing training using the Remote Control, Defibtech recommends programming training scenario #6 (pads not applied) as the Default Training Scenario. This will allow the instructor to manually select rhythm simulations or other training scenarios as desired using the Remote Control. -
Page 13: Remote Control Commands
The Remote Control can be used to change the behavior of the Trainer AED at any time while the unit is powered on. The remote will have no effect on a Defibtech DDU-100 Series AED. The following functions can be performed using the Remote Control keys: OFF - turns the Trainer AED off. -
Page 14: Using The Remote Control With Multiple Trainer Aeds
7 Using the Remote Control with Multiple Trainer AEDs The Remote Control can be used to individually control up to four Trainer AEDs at a time in a classroom setting. To control each of the four Trainer AEDs individually, each Trainer AED must be assigned a unique letter “name.”... -
Page 15: Maintenance And Troubleshooting
8 Maintenance and Troubleshooting 8.1 Routine Maintenance Although the Trainer AED is designed to be very low maintenance, simple maintenance tasks must be performed by the owner/operator on a regular basis to ensure the Trainer’s dependability. • Check the Trainer AED and accessories for damage, dirt, and contamination. -
Page 16: Storage
AC Adapter malfunction Defibtech representative Note: Unlike a DDU-100 Series rescue AED, the DDU-100 Series Trainer AED does not perform automatic self-tests to help ensure readiness. The Active Status Indicator (ASI) on the Trainer AED has limited functionality: it lights green... -
Page 17: Repair
8.5 Repair The Trainer AED contains no user serviceable parts. If the Trainer AED needs servicing, call your authorized distributor or Defibtech (refer to the “Contacts” chapter of this manual for contact information). 8.6 Recycling Information At the end of useful life, recycle the Trainer AED and its accessories. -
Page 18: Technical Specifications
9 Technical Specifications 9.1 General Category Specification Size 8.5 x 11.8 x 2.7 inches (22 x 30 x 7 cm) Approximately 3 lbs (1.4 kg) with DBP-RCx rechargeable training Weight battery pack Training Battery Pack (rechargeable) Power Meets applicable requirements of •... -
Page 19: Training Battery Pack
9.3 Training Battery Pack Use only Defibtech Training Battery Packs in the DDU-100 Series Trainer AED. Category Specification Model Number DBP-RCx Main Battery Type 9.6V, 1500mAh, NiMH rechargeable battery Battery Designation 8HR 15/51 Capacity At least 5 hours of continuous operation*... -
Page 20: Electromagnetic Conformity
10.1 Guidance and Manufacturer’s Declaration DDU-100 Series Trainer AEDs are intended for use within the electromagnetic environment specified below. The customer or the user of the DDU-100 Series Trainer AED should assure that it is used within the stated environmental specifications. - Page 21 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the DDU-100 Series Trainer AED is used exceeds the applicable RF compliance level above, the DDU-100 Series Trainer AED should be observed to verify normal operation.
-
Page 22: Regulatory Compliance
10.4 Regulatory Compliance Changes or modifications of this product, not expressly approved by Defibtech, may void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules and Industry Canada Radio Standard RSS-210. Operation is subject to the following two conditions:... - Page 23 This page intentionally left blank. DAC-515E-EN-BF...
-
Page 24: Glossary Of Symbols
11 Glossary of Symbols Symbol Meaning SHOCK Button – Delivers defibrillation shock to the patient when the device is ready to shock. NOTE: The Trainer AED and training accessories cannot be used to defibrillate patients. ON/OFF Button • Turns the device ON when it is OFF . •... - Page 25 Glossary Of Symbols (continued) Symbol Meaning Meets the requirements of the European Directives. X X X X Catalogue number. Serial number. Lot number. Use by yyyy-mm-dd. Keep dry. Handle with care. Transportation and storage requirements. See environmental requirements on packaging. Does not contain latex.
-
Page 26: Contacts
12 Contacts Manufacturer Defibtech, L.L.C. 741 Boston Post Road – Suite 201 Guilford, CT 06437 USA Y Y Y Y Y Y Y Y Tel.: 1-(866) 333-4241 (Toll-free within North America) 1-(203) 453-4507 Fax: 1-(203) 453-6657 Email: sales@defibtech.com (Sales) reporting@defibtech.com (Medical Device Reporting) service@defibtech.com...
