Summary of Contents for PowerCache 39602

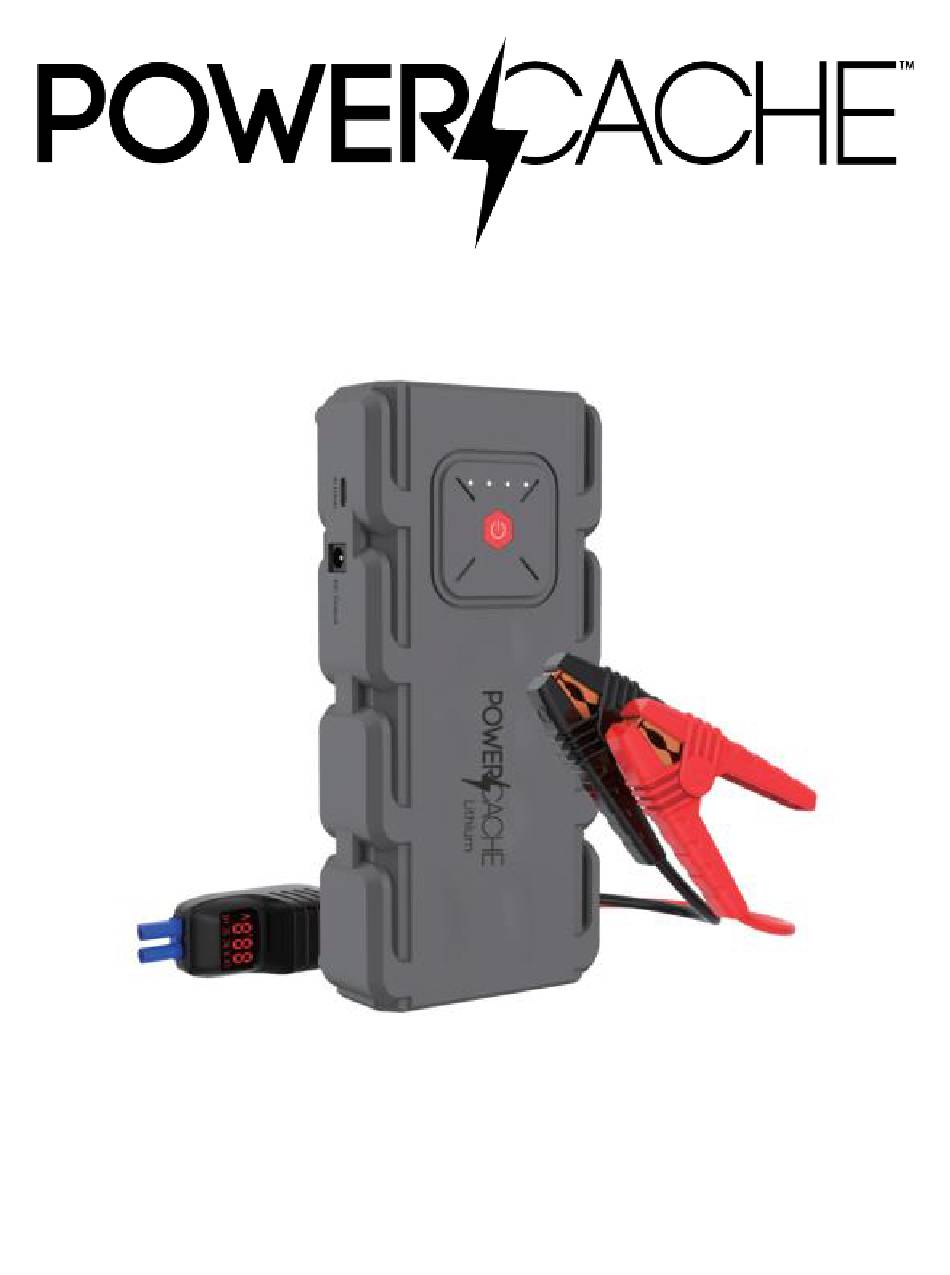

- Page 1 HD Lithium Jump Starter Power Bank P/N 39602 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. Do not leave the power bank unattended while charging. •... - Page 3 USB Type-C™ input/output and is charged using a USB-C™ wall charger or other power source. It includes a set of PowerCache Smart Battery Clamps with built-in safety features, which are used to jump start a vehicle with a dead battery.
-
Page 4: Customer Service
Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x PowerCache™ HD Lithium Jump Starter Power Bank 1x PowerCache Smart Battery Clamp Cable 1x USB Type-C™ Charging Cable... -
Page 5: Product Overview
PRODUCT OVERVIEW Power Button Power/Battery Level Indicators Battery Clamp Cable Connector USB Type-A Output 2 Port USB Type-A Output 1 Port LED Lamp USB Type-C™ Input/Output Port DC Output... - Page 6 CHARGING Perform the following steps to charge the power bank. It should be charged for at least 3 hours before first use and at least once every 3 months to ensure the battery is fresh and capable of holding a full charge. Plug one end of the included USB Type-C™...
-
Page 7: Operation
OPERATION Jump Starting This jump starter is only compatible with 12V engines up to 7.0L Gas/6.7L Diesel in displacement. Using this product with larger displacement engines or voltages other than 12V can cause serious personal injury, as well as damage the device. Ensure the power bank has at least 25% charge remaining. - Page 8 Plug the other end of the Battery Clamp Cable into the Battery Clamp Cable Connector on the power bank. The LED on the cable shows circling clockwise. Use your vehicle's starter to start the engine. The LED on the cable should show the power bank's current voltage.
- Page 9 Unplug the Battery Clamp Cable from the power bank within 30 seconds. Remove the red clamp from the battery's positive lead, then remove the black clamp from the battery's negative lead. Notes: Never allow the red and black clamps to come into contact with •...
- Page 10 After successfully starting your vehicle, the power bank will • automatically reset. Do not crank the engine more than 3 times in succession. • If your vehicle fails to start, unplug the Battery Clamp Cable from • the power bank, wait for 15 minutes, then reconnect the cable and try again to start the engine again.
- Page 11 FAULT PROTECTION INDICATIONS Protection Function LED Indication Warning Sound Reverse Polarity One ring per second Short Circuit One ring per second Reverse Charging One ring per second Low Voltage 14.0 ±0.3V One ring per second Over Voltage 17.5 ±0.3V Long buzz Overheat One ring per second...
-
Page 12: Specifications
SPECIFICATIONS Part Number 39602 Model Battery Capacity 16,000mAh/59.2Wh Jump Start Voltage Jump Start Current 600A Jump Peak Current 1200A USB Type-C™ Input/Output 5 VDC, 3A 5 VDC, 3A or 9 VDC, 2A or USB Type-A Output 1 Power 12 VDC, 1.5A USB Type-A Output 2 Power 5 VDC, 2.1A... -
Page 13: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 14 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 15 PowerCache™ is a trademark of Monoprice Inc. UL® and the UL logo are registered trademarks of UL LLC. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum, Inc.
