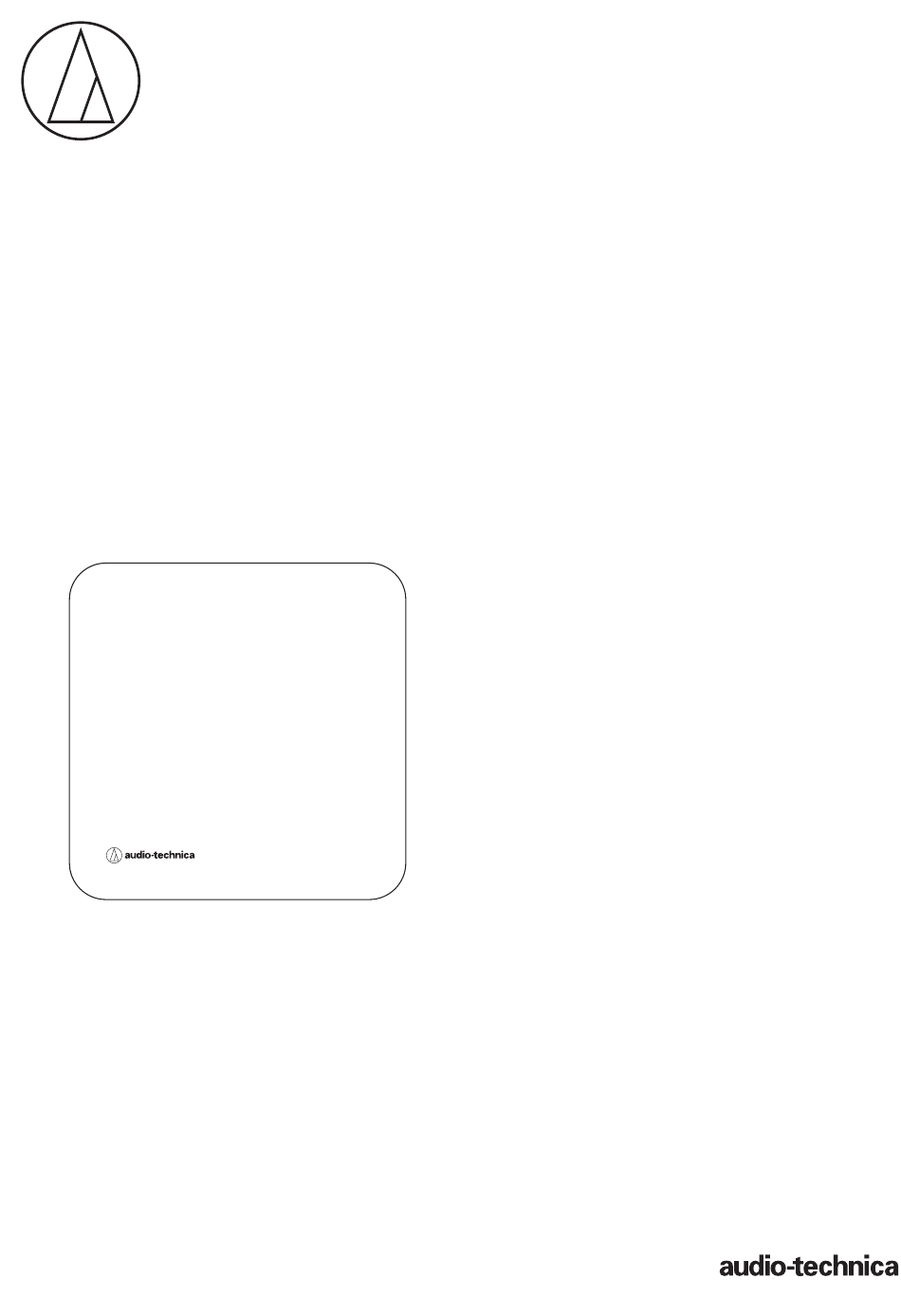

- Page 1 ATW-A410P User Manual UHF Powered Wideband Antenna...
-
Page 2: Safety Precautions
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide, as well as this user manual when necessary, to ensure that you use the product correctly. Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. -
Page 3: Notes On Use
Do not install the product behind interior decoration 1 m (3.3') apart elements. • Audio-Technica accepts no responsibility for accidents such as Keep the product away from Install the product where falling that come as a result of improper installation. -
Page 4: Part Names And Functions
Part names and functions -10 0 ❶ ❷ ❸ ❹ ❶ ❺ ❻ ❶ Mounting bracket removal button ❷ Gain indicator ❸ Gain selector switch ❹ BNC output terminal ❺ Cable tie mounting hole You can secure the main unit and bracket with a cable tie (sold separately). ❻... -
Page 5: Installation
Installation Positioning Antennas for Diversity Reception (when mounting to the wall) In order to optimize diversity reception for different types of transmitters, it is necessary to position the product with appropriate orientation. Refer to the information below when positioning the product. When mounting the product to the ceiling, refer to "Polar pattern"... - Page 6 Installation BNC cable wiring pattern There are 3 patterns of BNC cable wiring. Wire according to the installation environment. • Use “HEX14” for BNC nut size. • Tighten the BNC nut until it is snug. Failure to do so may damage the main unit. Wiring from the side Wiring from the top Wiring from the back...
- Page 7 Installation Mounting/removing the product Mounting • When using an electric screwdriver, make sure to use one with a clutch. • Set the torque to the minimum setting and tighten the screws carefully to avoid deformation. If you tighten the screws too much, the mounting bracket may be damaged.
- Page 8 Installation Removing Push the mounting bracket removal button on each side of the bracket. Mounting bracket removal buttons Remove the main unit from the bracket.
- Page 9 Gain switch settings Consider environmental factors such as cable loss and the receiver’s reception level when selecting the gain settings. -10 dB When the reception level is sufficiently high, it is possible to reduce potential interference and noise from adjacent channels.
- Page 10 Dimensions Main unit -10 0 (Unit: mm) Mounting bracket 152.4 45.8 φ4.4 44.5 φ4.4 φ9.6 φ4.4 φ9.6 (Unit: mm)
-
Page 11: Polar Pattern
Polar pattern Side view Top view 90° 0° -5dB -10dB -15dB -20dB -20dB -15dB -10dB -5dB -10 0 Rear view 90° -6dB -6dB -6dB -6dB... -
Page 12: Specifications
390 g (13.8 oz) (without mounting bracket) Accessories Bracket, Wood screw×4 For product improvement, the product is subject to modification without notice. Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2019 Audio-Technica Corporation ver.1 2019.05.01 Global Support Contact: www.at-globalsupport.com 232417140-02-02 ver.2 2019.08.15...
