FMS RTM MP Plus EMGZ482T.PLUS.MP.W.24VDC Operation Manual

Multi-purpose radio transmission tension monitoring system with encoder signal evaluation

Advertisement

Quick Links

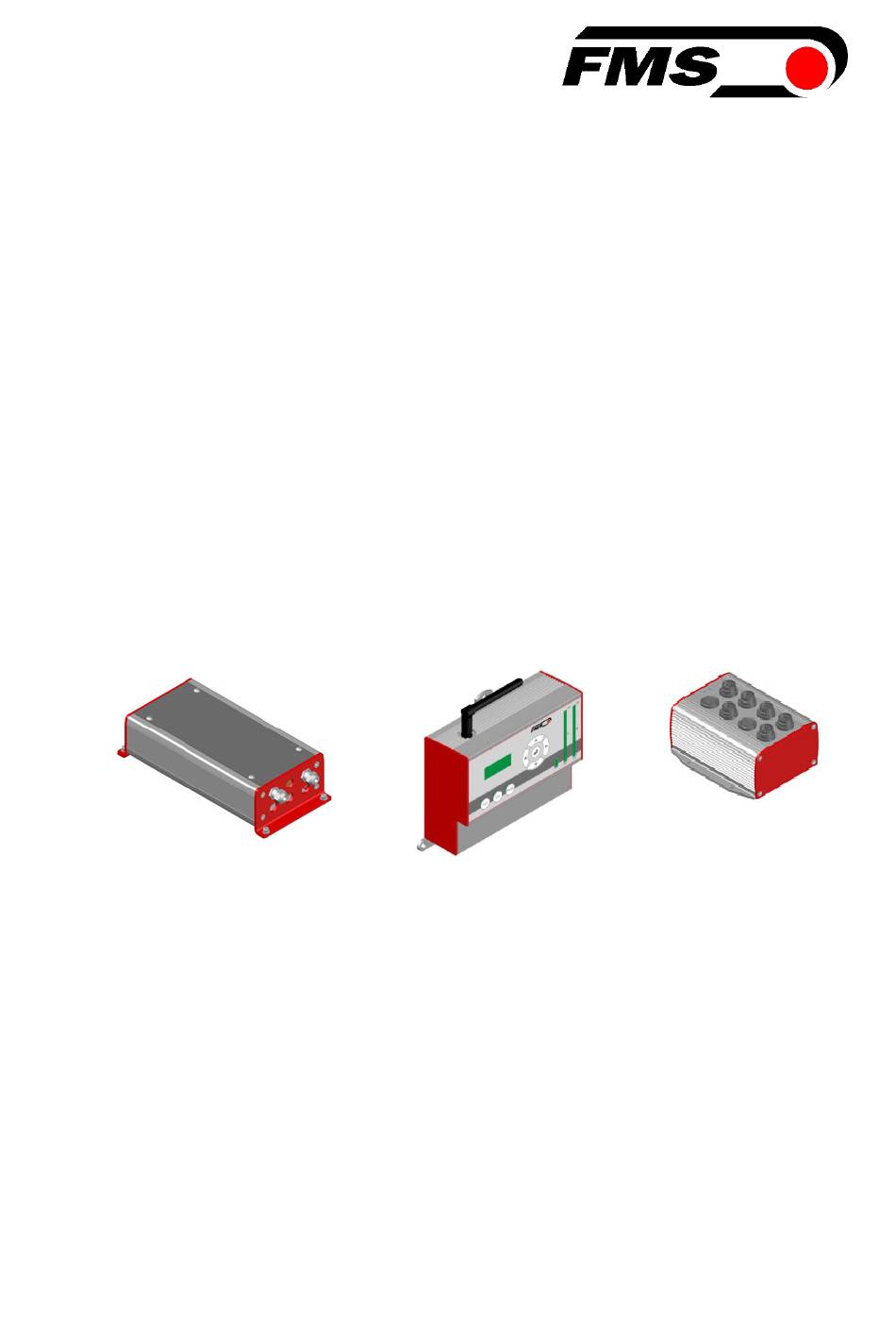

Operation Manual RTM MP Plus
EMGZ482T.PLUS.MP.W.24VDC
EMGZ482R.MP and EMGZ443MP.R
Multi-Purpose Radio Transmission Tension Monitoring System
with Encoder Signal Evaluation
Document Version
1.4 01/2019 NS
Firmware Version
V 3.03
Diese Bedienungsanleitung ist auch in Deutsch erhältlich.
Bitte kontaktieren Sie Ihren nächstgelegenen FMS Vertreter.
© by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTM MP Plus EMGZ482T.PLUS.MP.W.24VDC and is the answer not in the manual?

Questions and answers

Summary of Contents for FMS RTM MP Plus EMGZ482T.PLUS.MP.W.24VDC

  • Page 1 Encoder Signal Evaluation Document Version 1.4 01/2019 NS Firmware Version V 3.03 Diese Bedienungsanleitung ist auch in Deutsch erhältlich. Bitte kontaktieren Sie Ihren nächstgelegenen FMS Vertreter. © by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.
  • Page 2: Table Of Contents

    Operation Manual RTM MP Plus Table of Contents Safety Instructions ..................3 1.1 Description conditions 1.2 List of Safety Instructions System Description ..................4 2.1 Functional Description RTM MP System 2.2 Main System Components Certifications and Compliancy ..............7 Installation and Wiring ................9 4.1 Area of Machine Rotation 4.2 Static installation of force sensor 4.3 Installation of Force Sensors on a Rotating Machine Part...
  • Page 3: Safety Instructions

    Operation Manual RTM MP Plus 1 Safety Instructions All safety related regulations, local codes and instructions that appear in the manual or on equipment must be observed to ensure personal safety and to prevent damage to the equipment connected to it. If equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
  • Page 4: List Of Safety Instructions

    The measuring results will be wrong, if this rule is broken. Proper function of the FMS RTM MP System can only be guaranteed with the recommended application of the components. Other arrangements can cause malfunctions.
  • Page 5 Operation Manual RTM MP Plus values are captured, conditioned and sent over a 2.4 GHz wireless link to the receiver unit EMGZ 48R.MP. Further processing of the encoder signals takes place in the decoding module EMGZ443R.MP Here all relevant data for the actuator drivers or the machine control is available.
  • Page 6: Main System Components

    Operation Manual RTM MP Plus 2.2 Main System Components RMGZ Force Measuring Rollers ● Measures the wire tension ● Converts the tension values in an electrical signal EMGZ482T.PLUS.MP.W.24VDC ● Amplification and conditioning of the electrical signals ● Wireless transmission (antenna is integrated on front plate ●...
  • Page 7: Certifications And Compliancy

    Operation Manual RTM MP Plus 3 Certifications and Compliancy This equipment has been tested and found to comply with following rules: ETSI Radio Certification Magnitude of Test (Coverage) Article 3.2 of Directive 1999/5/EC (R&TTE Directive) Certification ETSI EN 300 440-2 V1.5.1 (2009-03) ETSI EN 300 440-1 V1.3.1 (2009-03) ETSI EMC Certification Magnitude of Test (Coverage)
  • Page 8 Operation Manual RTM MP Plus Caution Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment. Caution This devise complies with Part 15 of the FCC Rules and with Industry Canada licence- exempt RSS standard(s).
  • Page 9: Installation And Wiring

    In rotating applications the force measuring sensors are mounted such that centrifugal forces are compensated. If using FMS RMGZ sensors, this can be achieved by turning the Red Point parallel to the rotation axis and in direction of the positive force component (refer to Fig.
  • Page 10: Mounting And Wiring The Electronic Components

    The cables are prepared with connectors on both sides for easy assembly Caution Proper function of the FMS RTM MP system can only be guaranteed with the recommended application of the components. Other arrangements can cause malfunctions. Therefore, the installation instructions on the following pages must be followed.
  • Page 11: Mounting And Wiring The Emgz482T.plus.mp.w.24Vdc

    Operation Manual RTM MP Plus 4.5 Mounting and Wiring the EMGZ482T.PLUS.MP.W.24VDC Fig. 4: Signal assignment EMGZ482T.PLUS.MP.W.24VDC RTM_MP_BA_Manual.ai Press & Connect Terminals on Electronics Board 06.03.2019...
  • Page 12: Components On The Static Part Of The Machine

    EMGZ482T.PLUS.MP.W.24VDC transmitter close to the RMGZ load cells to keep the signal cables short. If no standard FMS cables are used, the connection between force sensors and transmitter must be wired with 2x2x0.25mm [AWG 23] shielded twisted-pair cable.
  • Page 13: In- And Output Schematics Rtm Mp

    Operation Manual RTM MP Plus 4.8 In- and Output Schematics RTM MP Fig. 5a: In / Output configuration EMGZ482.T .PLUS.MP.W.24VDC RTM_MP_BA_Manual.ai 06.03.2019...
  • Page 14 Operation Manual RTM MP Plus Fig. 5b: In / Output configuration EMGZ482.R.MP RTM_MP_BA_Manual.ai 06.03.2019...
  • Page 15: Wiring The Receiver Emgz482R.mp

    Operation Manual RTM MP Plus 4.9 Wiring the Receiver EMGZ482R.MP EMGZ482R.MP receives the data captured by the RTM-transmitter and acts as an interface to a PLC or to a close-loop tension controller. Fig. 6 shows the pin assignment on the electronic board. Fig.
  • Page 16: Connectors Emgz443Mp.r (Static Machine Part)

    Operation Manual RTM MP Plus 4.10 Connectors EMGZ443MP.R (static machine part) The wiring diagrams below shows how the signals are wired to the connectors. Fig. 9: Signal assignment EMGZ443MP.R (1 part)) RTM_MP_BA_Manual.ai Connectors are shown form the mating side. 06.03.2019...
  • Page 17 Operation Manual RTM MP Plus Fig. 10: Signal assignment EMGZ443MP.R (2 part)) RTM_MP_BA_Manual.ai Connectors are shown form the mating side. 06.03.2019...
  • Page 18: Configuration Of The Rtm Mp System

    Operation Manual RTM MP Plus 5 Configuration of the RTM MP System FMS delivers the RTM MP System with preset hardware components, installed software, a configured 2.4 GHz radio-link. 5.1 RTM MP Quick Start 1. After having mounted and wired the RTM MP system components on your machine power up the transmitter EMGZ482T.MP and receiver EMGZ482R.MP...
  • Page 19: Offset Compensation Procedure

    Operation Manual RTM MP Plus The keys on the operating panel of the EMGZ482R.MP version are all deactivated and have not their normal function as in the standard version. Key function during operation Key deactivated Key deactivated Key deactivated Key deactivated Keys deactivated Key deactivated Key deactivated...
  • Page 20: Calibration Methods

    FMS Calculator. This Calculator can be down loaded from the FMS web page. FMS recommends using the method with the weight (see Fig. 12) since it delivers the most accurate results.
  • Page 21: Mechanical Dimensions

    Operation Manual RTM MP Plus 6 Mechanical Dimensions Fig. 13: Dimensions EMGZ482T.PLUS.MP.W.24VDC RTM_MP_BA_Manual.ai Fig. 14: Dimensions EMGZ482MP.R RTM_MP_BA_Manual.ai Fig. 15: Outline Drawing EMGZ443MP.R RTM_MP_BA_Manual.ai 06.03.2019...
  • Page 22: Trouble Shooting

    Operation Manual RTM MP Plus 7 Trouble Shooting Error Cause Corrective action Relay output “Radio Radio link to Check power supply to lost” EMGZ482R.MP is EMGZ482T.PLUS.MP.24VDC and interrupted. EMGZ443MP.T Metallic objects Remove metallic objects from between the radio path. transmitter and receiver cause radio interferences Feedback value doesn’t...
  • Page 23: Technical Data

    Operation Manual RTM MP Plus 8 Technical Data EMGZ482T.PLUS.MP.W.24VDC Propagation delay 5.5 ms Analogue output 0…10 VDC or 4...20mA Analogue input 0…10 VDC or 4...20mA Encoder inputs 1-2 2 channels max. 100kHz Digital outputs 1-8 8 outputs; max. 100 mA / output (source) Digital inputs 1-8 8 inputs 5…36 VDC Force Measuring...
  • Page 24 Power consumption max. 15W Temperature range 0...+50°C [32...122°F] Protection class IP52 Weight 0.6 kg [1.32 lbs] FMS Force Measuring Systems AG FMS USA, Inc. FMS (UK) FMS (Italy) Aspstrasse 6 2155 Stonington Avenue Suite 119 Aspstrasse 6 Aspstrasse 6 8154 Oberglatt (Switzerland)

This manual is also suitable for:

Rtm mp plus emgz482r.mpRtm mp plus emgz443mp.r
