Summary of Contents for NURSAL HET-R161

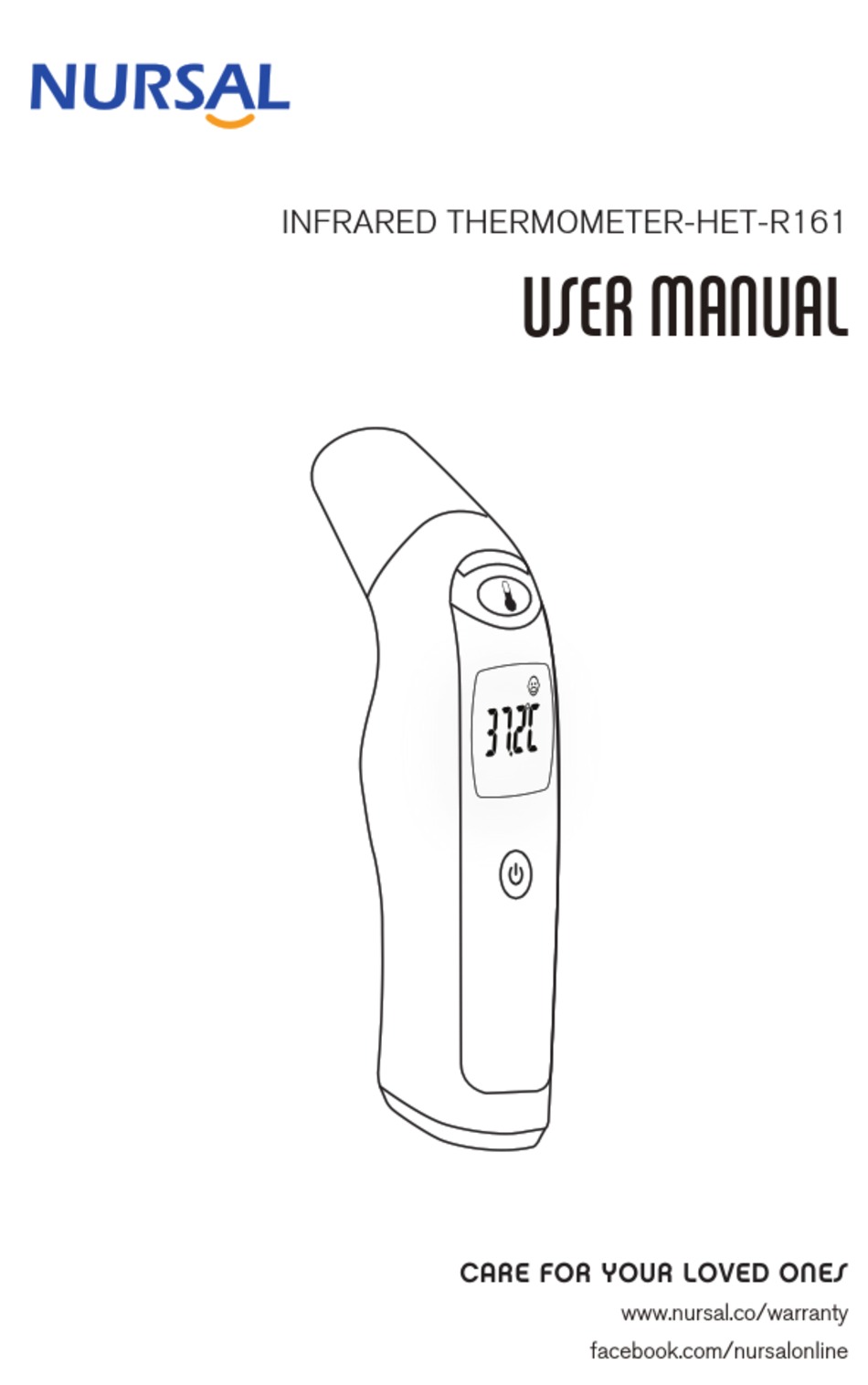

- Page 1 INFRARED THERMOMETER-HET-R161 USER MANUAL CARE FOR YOUR LOVED ONES www.nursal.co/warranty facebook.com/nursalonline...
- Page 2 ACTIVATE YOUR 12 MONTH WARRANTY & EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.nursal.co/warranty CUSTOMER SERVICE support@nursal.co @nursalonline 1. The temperature measurement is accurate to within +/-0.3°C. 2. There is a temperature difference between the ear and the forehead.
- Page 3 A Big Thank You We’re thrilled that you have chosen to purchase the Infrared Thermometer. At NURSAL, we’re committed to providing you with products that enhance your daily life. We also aim to give our customers excellent support. Should you have any questions or...
-
Page 5: Table Of Contents
CONTENTS Parts of the unit Specifications Precautions Intended use What is body temperature? Operation of the thermometer Temperature measurement - Ear Temperature measurement -Forehead Three-color backlight indication Memory Changing the thmperature scale Measuring surface temperature Replacing the battery Troubleshooting Cleaning and disinfection Disposal Specifications EMC declaration... -
Page 7: Parts Of The Unit

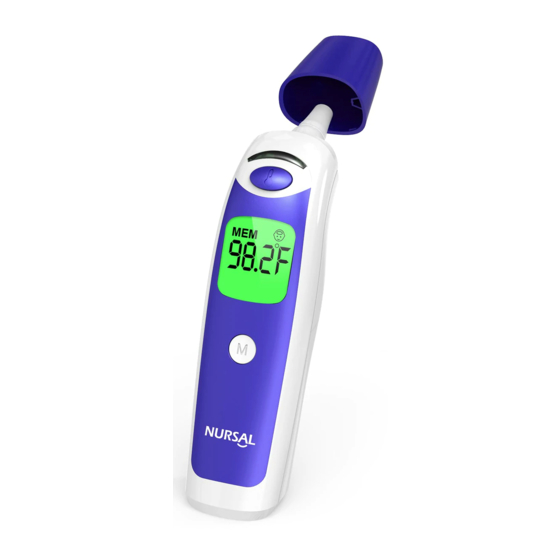

@nursalonline support@nursal.co PARTS OF THE UNIT Temp indicator light Probe Scan button Forehead cap Display Battery Cover Power button - 01 -... -
Page 8: Specifications
@nursalonline support@nursal.co SPECIFICATIONS Mode HET-R161 Infrared measurement at the eardrum or forehead Point of measurement Measuring range for 34.0-42.9°C (93.2°F~109.2°F) Ear mode: Forehead mode Measuring range for 0-100°C (32°F~212°F) surface of object Operating conditions 10-40°C, Relative humidity≤Rh95%, 70 -106KPa Storage conditions -25-55°C, Relative humidity≤Rh95%, 70 -106KPa... -
Page 9: Precautions
@nursalonline support@nursal.co PRECAUTIONS Warning Use of this thermometer is not intended as a substitute for consultation ● with your physician. It is dangerous for a user to perform a self-evaluation and self-treatment based on the measurement result. Be sure to follow your doctor’s advice at all times. - Page 10 @nursalonline support@nursal.co When the ambient temperature of a location has changed, the ● thermometer should not be used for 30 minutes to ensure accurate measurement. Multiple measurements should be taken over several minutes and the ● average temperature of all readings noted.
- Page 11 @nursalonline support@nursal.co The patent is an intended operator. The patient can measure, read data ● and replace battery under normal circumstances and maintain the device and its accessories according to the user manual. The device is not intended for PATIENT transport outside a healthcare ●...
-
Page 12: Intended Use
@nursalonline support@nursal.co INTENDED USE This thermometer is intended to measure ear canal and forehead temperature at home or hospital, including anyone, such as infants, children and adults. For safety, children's and baby's temperature must be measured by adults. - 06 -... -
Page 13: What Is Body Temperature
@nursalonline support@nursal.co WHAT IS BODY TEMPERATURE? Body temperature refers to the internal temperature of the body (core temperature). 'Normal' body temperature fluctuates over the course of 24 hours. It tends to be lowest in the early morning and highest in the late afternoon. -
Page 14: Operation Of The Thermometer
@nursalonline support@nursal.co OPERATION OF THE THERMOMETER 1. Unpack 2. Remove protective foil from the display 3. In order to ensure accurate measurement, the patient should first rest for 30 minutes in the same room as the infrared thermometer. Do not use immediately after exercise or bathing. -
Page 15: Temperature Measurement - Ear
@nursalonline support@nursal.co TEMPERATURE MEASUREMENT - EAR Press the button to turn on the unit and a beep is heard, remove the probe cover of the thermometer. It will switch from forehead mode to ear mode. Insert the probe into the ear canal. - Page 16 @nursalonline support@nursal.co Press the Measurement button and wait until you hear a short beep and a long beep, measuring indicator light will flash. If no beep is heard, press and release the Measurement button button again. As soon as you hear the long beep, remove the probe from the auditory canal.
-
Page 17: Temperature Measurement -Forehead
@nursalonline support@nursal.co TEMPERATURE MEASUREMENT -FOREHEAD Always check that the probe cover is fixed onto the infrared thermometer. Prior to measurement, the forehead should be free of perspiration and make-up, etc. Press the ON button It will automatically switch to Forehead Mode. - Page 18 @nursalonline support@nursal.co Read the temperature value displayed on the LCD panel. Temperatures measured in forehead mode are displayed as comparable rectal temperatures NOTE: • The precise sensing system records the heat emitted naturally through the skin. If the infrared thermometer is not moved over the temple, the temperature recorded may be lower.
-
Page 19: Three-Color Backlight Indication
@nursalonline support@nursal.co THREE-COLOR BACKLIGHT INDICATION A three-color backlight function indicates the temperature range. When a result is measured, the LCD will change color to indicate the temperature ranges shown below: Temperature Temperature Indicator Indicator Way of Range °C Range °F... -
Page 20: Memory
@nursalonline support@nursal.co MEMORY Recalling the Memory Be sure the infrared thermometer is OFF before recalling this memory. Press and release the Button to enter the memory mode. The signal "MEM" will be shown on the LED. Each time when pressing the Memory... - Page 21 @nursalonline support@nursal.co To exit the Memory Mode, press the button or keep the thermometer in idle for 10 seconds to switch off automatically. - 15 -...
-
Page 22: Changing The Thmperature Scale
@nursalonline support@nursal.co CHANGING THE THMPERATURE SCALE The device can measure in both Fahrenheit (°F) or Celsius (°C). To switch between the two units, follow the below steps. When LCD is off, press and hold the button for 3 seconds. The LCD will display the current temperature scale. -
Page 23: Measuring Surface Temperature
@nursalonline support@nursal.co MEASURING SURFACE TEMPERATURE When the LCD is off, press and hold the button for 3 seconds. The LCD will display the current temperature unit. Continuously press the button and you will hear a short beep and the device has entered surface measurement mode as shown below. -
Page 24: Replacing The Battery
@nursalonline support@nursal.co REPLACING THE BATTERY When symbol appears on the LCD panel, the battery needs to be replaced Press down and push the cover in the direction of the arrow shown in the illustration to remove the battery Insert two new AAA Alkaline batteries and match the polarities(+) as indicated. -
Page 25: Troubleshooting
@nursalonline support@nursal.co TROUBLESHOOTING FAULT OR FAULT CORRECTIVE FAULT DESCRIPTION SYMBOL MEASURE Replace the battery The battery has run No display On the Please note: The(+) out. Incorrect battery LCD panel side of the battery polarity must face upwards Measurement not... - Page 26 @nursalonline support@nursal.co This warns you the Replace the batteries battery is low, soon. although the device can still be used. Keep the The ambient thermometer in a temperature range is room where beyond the temperature is measurement range (10°C-40°C/50°F of (10°C-40°C/50°F -104.0°F) for 30...
-
Page 27: Cleaning And Disinfection
@nursalonline support@nursal.co CLEANING AND DISINFECTION • The probe tip should be cleaned before each use • It can be cleaned by wiping it with a cloth or cotton-wool ball soaked in rubbing alcohol • Do not reuse the thermometer until it is completely dry •... -
Page 28: Disposal
@nursalonline support@nursal.co DISPOSAL Observe the applicable regulations when disposing of the thermometer and batteries. This thermometer must not be disposed of together with domestic waste All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. -
Page 29: Specifications
@nursalonline support@nursal.co SPECIFICATIONS EN 980 Symbols for use in the labeling of medical devices. Information supplied by the manufacturer with EN 1041 medical devices. Medical electrical equipment Part 1: General EN 60601-1 requirements for basic safety and essential performance. Medical electrical equipment -- Part 1-2: General... - Page 30 @nursalonline support@nursal.co Medical device software - Software life-cycle EN 62304 processes. Medical devices – Application of usability EN 62366 engineering to medical devices. Biological evaluation of medical devices - Part 1: Evaluation and testing within a risk management EN ISO 10993-1 process.
-
Page 31: Emc Declaration
@nursalonline support@nursal.co EMC DECLARATION (1) The digital thermometer needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS. (2) Wireless communications equipment such as wireless home network... -
Page 32: Limited Warranty
@nursalonline support@nursal.co LIMITED WATTANTY We grant you a guarantee after the date of purchase for one year. Any damage caused by improper handling shall not be covered by the guarantee. Packaging are also excluded from the guarantee. All other damage claims excluded. A guarantee claim must be submitted with the purchase receipt. -
Page 33: Symbol Index
@nursalonline support@nursal.co SYMBOL INDEX Follow operating instructions BF type applied part Disposal in accordance with Directive 2002/96/EC (WEEE) Complies with the European Medical Device Directive 93/42/EEC and amended Directive 2007/47/EC. 1370 Notified Body is BUREAU VERITAS ITALIA S.P.A. Manufacturer information: The manufacturer is Dongguan HCS Electronics Co. - Page 34 @nursalonline support@nursal.co Dongguan HCS Electronics Co., Ltd. Add：Floor 4, Building 1, No.1 Longtan Road, Tangxia Town, Dongguan, Guangdong, China Distrbuted by: OMGD INC ADD: 245 East Main Street, Suite 115, Alhambra, CA 91801 support@nursal.co - 28 -...
- Page 35 ACTIVATE YOUR 12 MONTH WARRANTY & EXCLUSIVE GIFT Register within 2 weeks after receiving your new product. PLEASE VISIT NOW www.nursal.co/warranty CUSTOMER SERVICE support@nursal.co @nursalonline 1. The temperature measurement is accurate to within +/-0.3°C. 2. There is a temperature difference between the ear and the forehead.
- Page 36 1-855-556-6888 (Mon - Fri 9:00 AM - 5:00 PM EST) 1370 Made in China...
