Agilent 5100/5110 and 5800/5900 ICP-OES
Easy-fit Fully Demountable Torch User Guide
Introduction
The ICP-OES torch is a crucial component of the sample introduction system for the ICP-OES
spectrometers. It plays an important role in determining the sensitivity, precision and stability achieved
during analyses.

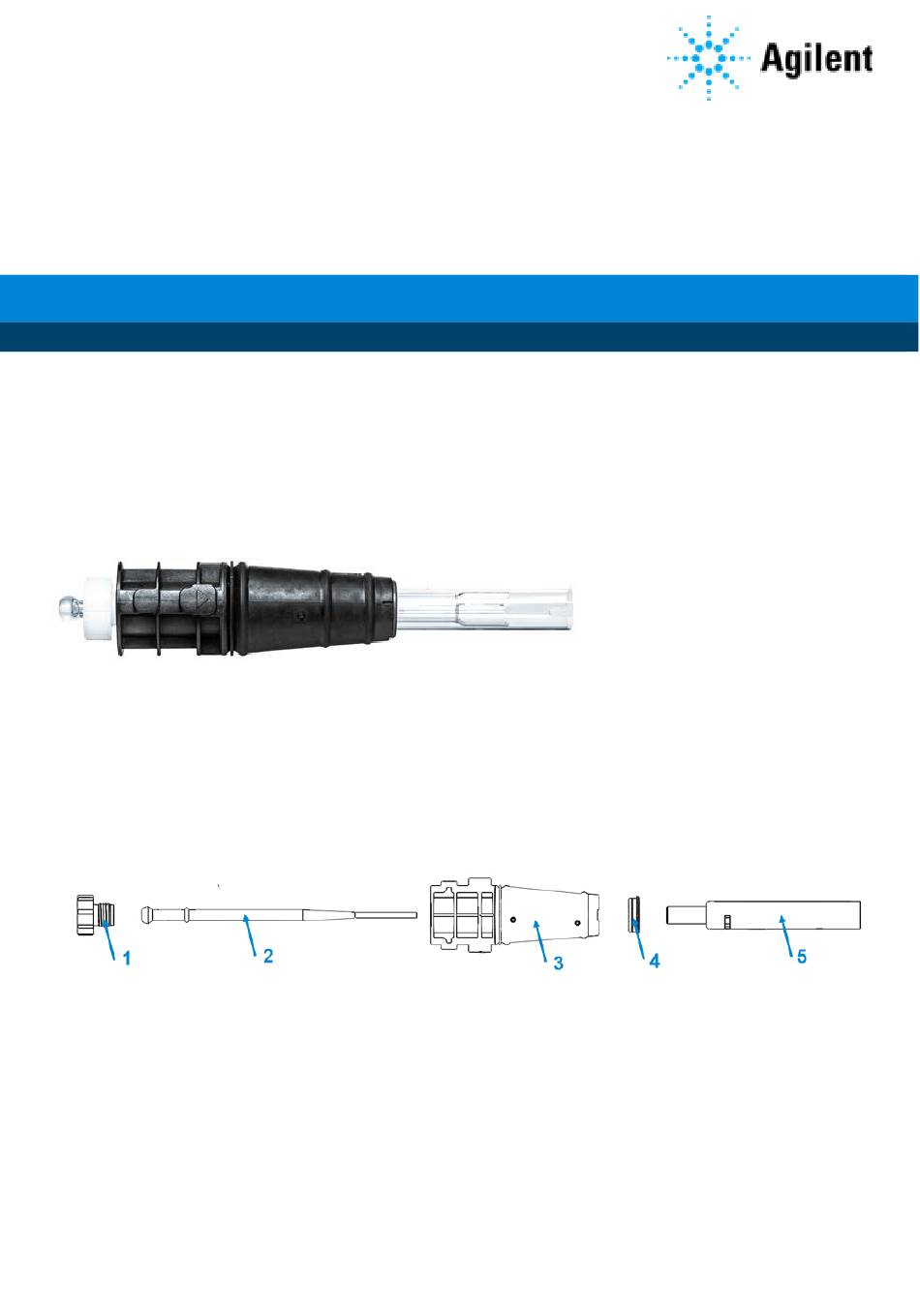

Figure 1: Fully demountable torch assembly
This document outlines the recommended procedures for assembly and disassembly, installation, cleaning
and maintenance of the fully demountable torch.
The fully demountable torch is composed of five main parts:
Figure 2 Exploded view
1. Locking nut
2. Injector
The fully demountable torch kit is supplied with all the components required for torch assembly. Some kits
include a spare quartz outer tube-set. The torch can be used in either RV or DV mode, when fitted with the
appropriate quartz outer tube-set.
The torch design allows either the injector and/or the quartz outer tube-set to be removed from the torch
base for easy cleaning or replacement.
(quartz or inert alumina)
3. Torch base
4. Top seal
5. Quartz outer
tube-set
Advertisement
Related Manuals for Agilent Technologies 5100 ICP-OES
Summary of Contents for Agilent Technologies 5100 ICP-OES
- Page 1 Agilent 5100/5110 and 5800/5900 ICP-OES Easy-fit Fully Demountable Torch User Guide Introduction The ICP-OES torch is a crucial component of the sample introduction system for the ICP-OES spectrometers. It plays an important role in determining the sensitivity, precision and stability achieved during analyses.
-
Page 2: Before First Use
Agilent 5100/5110 and 5800/5900 ICP-OES Easy-fit Fully Demountable Torch User Guide A range of injector types with different internal diameters are available, including an inert alumina injector recommended for use with hydrofluoric (HF) acid digests. This enables the torch to be configured for different applications. - Page 3 Agilent 5100/5110 and 5800/5900 ICP-OES Easy-fit Fully Demountable Torch User Guide Disassembly of the fully demountable torch WARNING Hot Surfaces The torch and torch compartment become extremely hot during instrument operation and remain hot for some time after the plasma has been switched off. Allow the torch and torch compartment to cool for at least five minutes before attempting to remove the torch.
- Page 4 Agilent 5100/5110 and 5800/5900 ICP-OES Easy-fit Fully Demountable Torch User Guide Reassembly of the fully demountable torch Place the top seal back on the top of the torch base and ensure this is properly seated by pressing firmly on the top edges. Insert the quartz outer tube-set into the torch body and position it so that the groove on the torch body aligns with the “T”...
-
Page 5: Parts List
5100/5110 and 5800/5900 ICP-OES Easy-fit Torch Maintenance and Cleaning guide (Agilent publication # G8010-90015). Parts list For spare parts and consumables ordering information, refer to the Agilent Technologies website: www.agilent.com The items listed below can be ordered online from the Agilent website or through your local sales... - Page 6 This page is intentionally left blank. *G8014-90009* Part Number: G8014-90009 © Agilent Technologies, Inc. 2019 *G8014-90009* Agilent Technologies Australia (M) Pty G8014-90009 Edition 10/19 Issue 1 679 Springvale Road Printed in Australia Mulgrave, VIC 3170, Australia...
