VIZU
VI014(S)HHC
Thermostatically controlled internal environment with digital display
Fan assisted air convection to improve consistency
Removable internal parts for easy cleaning
Two sizes available in 6 or 8 pan configurations
Mounted on non-marking heavy duty castors
Sealed door to improve internal humidity
Humidity control via water pan venting system
Holder
®
Page 1 of 20
Advertisement
Table of Contents
Summary of Contents for FFS VIZU VI014HHC
-

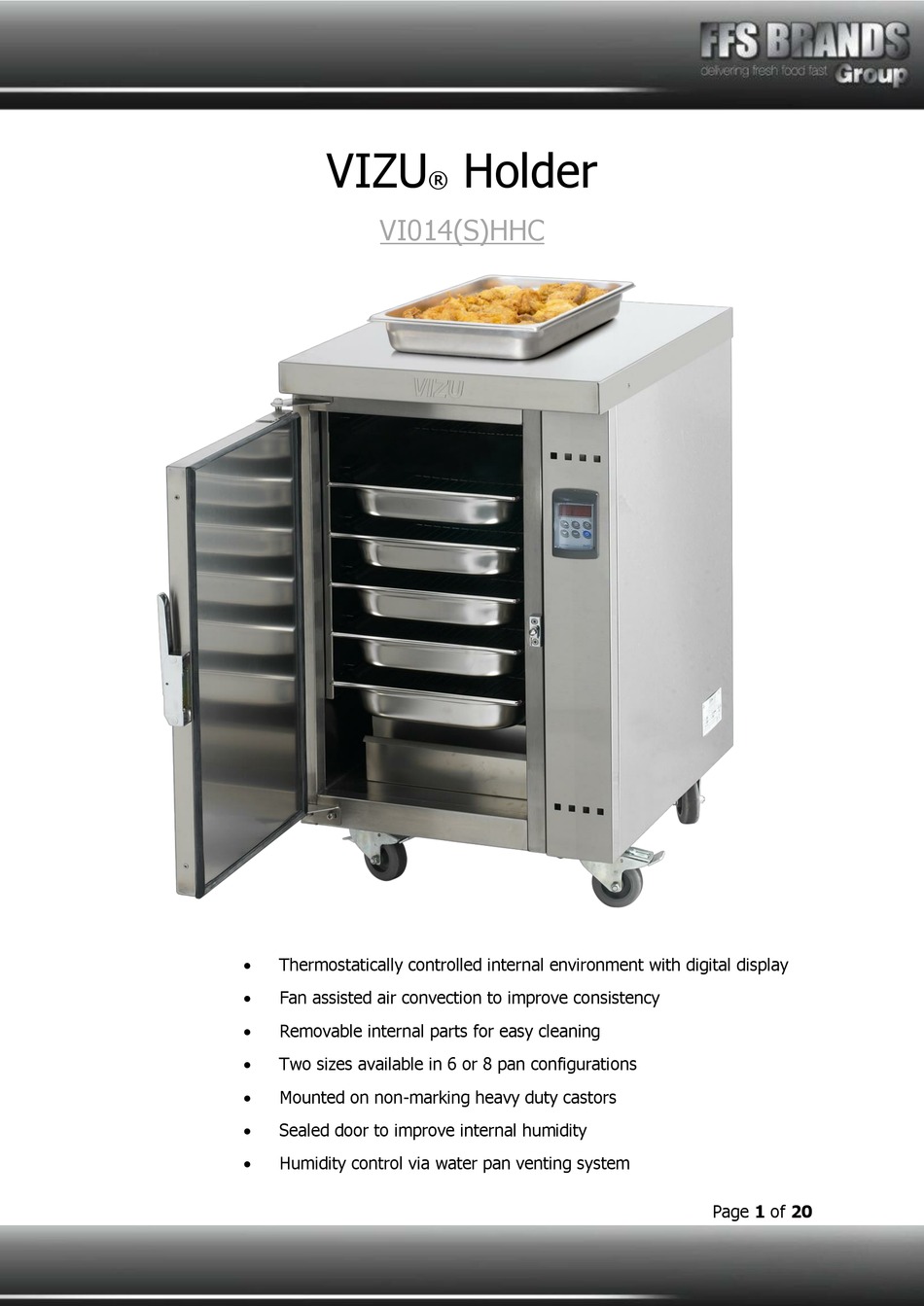

Page 1: Vizu® Holder
VIZU Holder ® VI014(S)HHC Thermostatically controlled internal environment with digital display Fan assisted air convection to improve consistency Removable internal parts for easy cleaning Two sizes available in 6 or 8 pan configurations Mounted on non-marking heavy duty castors ... -
Page 2: Table Of Contents
Contents VIZU® Holder ......................1 VI014HHC SPECIFICATION PAGE ................3 Model VI014HHC .......................3 VI014SHHC SPECIFICATION PAGE ................4 Model VI014SHHC .....................4 General Description ....................5 Assembly and Installation Instructions .................5 Switch Controls ......................5 Instructions for use ....................6 Description of Vizu Humidified Holding Cabinets ............6 Cleaning instructions - Daily ..................7 Cleaning of Auto Fill Pass-Thru machines ..............8 Exploded View - VI014HHC .................. -
Page 3: Vi014Hhc Specification Page
VI014HHC SPECIFICATION PAGE Model VI014HHC Dimensions Machine Height 1020mm Width 540mm Depth 650mm 66kg Weight 1 phase, 50HZ AC, 2030v, 0.9Kw Electrical 3.9 Amps Running Amps BSCHUKO 2/3 PIN PLUG Connection Type MFEUROCONVERT Plug adapter International Option Page 3 of 20... -
Page 4: Vi014Shhc Specification Page
VI014SHHC SPECIFICATION PAGE Model VI014SHHC Dimensions Machine Height 870mm Width 540mm Depth 650mm 59kg Weight 1 phase, 50HZ AC, 2030v, 0.9Kw Electrical 3.9 Amps Running Amps BSCHUKO 2/3 PIN PLUG Connection Type MFEUROCONVERT Plug adapter International Option Page 4 of 20... -
Page 5: General Description
Vizu Humidified Holding Cabinets have been tested and checked for proper operation before leaving the factory. Upon delivery please check the unit for damage. If the unit is damaged, contact the carrier, or Fast Food Systems, immediately and file a damage claim (found in the back of the manual) Please retain all packing materials. -
Page 6: Instructions For Use
Instructions for use 1. Ensure Mains power is on – The LED Indicator ‘LED LIGHT’ light should be lit 2. Ensure the water tray has water in it (or empty if you want to hold in dry heat) 3. Turn red ‘ON/OFF’ switch to ‘ON’ 4. -
Page 7: Cleaning Instructions - Daily
Cleaning instructions - Daily 1. Disconnect the machine from the power supply before cleaning and allow to cool. 2. Remove food gastronorme pans, wire insets, water tray assembly, lower tray and pan side racks wash thoroughly in warm soapy water, rinse and dry. 3. -
Page 8: Cleaning Of Auto Fill Pass-Thru Machines
Cleaning of Auto Fill Pass-Thru machines Keep the unit clean by simply wiping the interior and exterior as necessary with a damp cloth or sponge and a mild soapy solution. NEVER use abrasives, acids or strong cleaners. DO NOT flood or allow electrical parts to become wet. The interior racks, water tray and element cover are removable for ease of cleaning. - Page 9 The runner assembly can now be lifted away from the inner side of the machine, Fig 3. Fig.4 shows the inside of the machine with the runner assembly removed. The water tray used in the humidified holding cabinets consists of a tray with a cover plate. Fig.
-
Page 10: Exploded View - Vi014Hhc
Exploded View - VI014HHC Page 10 of 20... -
Page 11: Exploded View - Vi014Shhc
Exploded View - VI014SHHC Page 11 of 20... -
Page 12: Air Flow Reference
Air Flow Reference Internal Air flow is controlled by a centrifugal fan mounted at the bottom of the machine. Diagram shows correct air flow for MF2701060286A Fan. Page 12 of 20... -
Page 13: Wiring Diagram
Wiring Diagram Page 13 of 20... -
Page 14: Spare Parts List
Spare Parts List PART NO. DESCRIPTION QTY. IMAGE MF2701060286A Electric Motor And Scroll Fan MFDP2074-13 Latch And Strike Complete Set MF08-10-11 Nylon Pivot Bushes 1092540000Vr MF817-8877 Black Nylon 66, strain relief cable bush MFCOMMON1 Label 5 140mm x 53mm BESCHUKO H05Rr-F 2Mtr. - Page 15 PART NO. DESCRIPTION QTY. IMAGE MF354Z 2 Pole 5amp term block TB06 MFOHSL01 High temperature sleeving MF376-925 Relay 65-31 Holda / HD4 691-2124 Zsp-No MFVC-14 Socket drive Sh/MSM4GY1011SS0100 VI06-378 Door Seal Vizu Holda MFMKLJS75PTEK80 Swivel Castor With Break 75mm MFMKLS75PTEK80 Swivel Castor No Break 75mm MF374-1029 10mm low profile lens indicator 230VAC...
-
Page 16: Fault Finding
Fault Finding Any servicing must only be carried out by qualified personnel. Unit must be removed from electrical supply before servicing. Problem Probable Cause Solution 1. Indicated No power to machine. Check machine is plugged in and switched on. ON/OFF switch Check fuse in 13a plug. -
Page 17: Terms And Conditions
Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch. -
Page 18: Damage Claim Form
Damage Claim Form Machine: MINI/STANDARD HUMIDIFIED HOLDING CABINETS Product code: VI014SHHC & VI014HHC Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………… Please indicate on the picture where the unit is damaged Courier name………………………………………………………………… Please cut this page out and post to Fast Food Systems (The address is on the back of this manual) Page 18 of 20... -
Page 19: Warranty
Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Excepting where otherwise specified all products are subject to 12 months parts and labour warranty Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period. - Page 20 Model Number……………………………… Order ID/Job No…………………………… Machine serial number…………………… Date of Manufacture ……/………/……… Date of delivery……/………/…… Date of Commissioning……/………/…… Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com...
