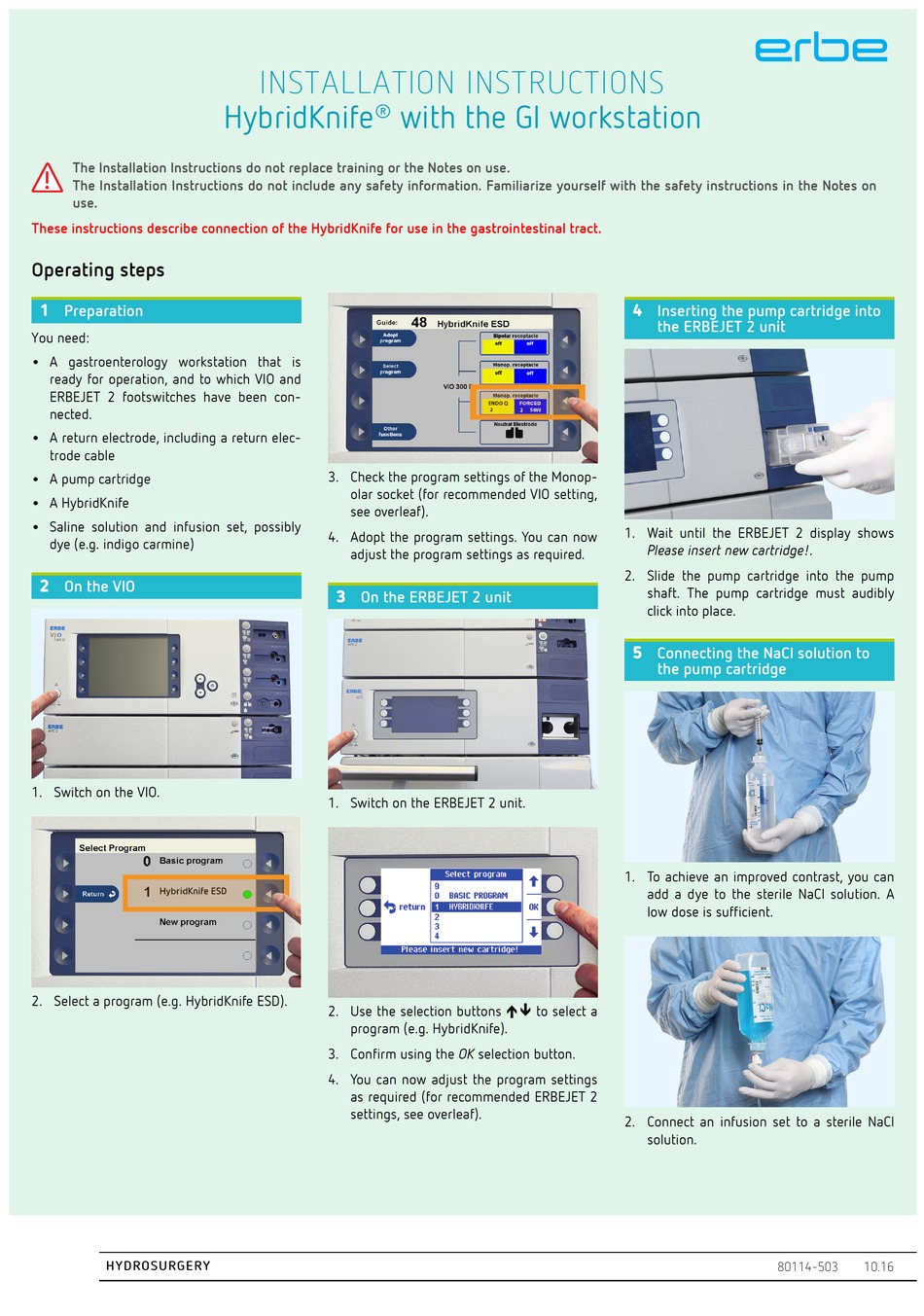

Erbe HybridKnife GI Installation Instructions

The Installation Instructions do not replace training or the Notes on use.
!
The Installation Instructions do not include any safety information. Familiarize yourself with the safety instructions in the Notes on
use.
These instructions describe connection of the HybridKnife for use in the gastrointestinal tract.
Operating steps
1
Preparation
You need:
• A gastroenterology workstation that is
ready for operation, and to which VIO and
ERBEJET 2 footswitches have been con-
nected.
• A return electrode, including a return elec-
trode cable
• A pump cartridge
• A HybridKnife
• Saline solution and infusion set, possibly
dye (e.g. indigo carmine)
2
On the VIO
1. Switch on the VIO.
2. Select a program (e.g. HybridKnife ESD).
HYDROSURGERY
INSTALLATION INSTRUCTIONS
HybridKnife
®
3. Check the program settings of the Monop-
olar socket (for recommended VIO setting,
see overleaf).
4. Adopt the program settings. You can now
adjust the program settings as required.
3
On the ERBEJET 2 unit
1. Switch on the ERBEJET 2 unit.
2. Use the selection buttons  to select a
program (e.g. HybridKnife).
3. Confirm using the OK selection button.
4. You can now adjust the program settings
as required (for recommended ERBEJET 2
settings, see overleaf).
with the GI workstation
4
Inserting the pump cartridge into
the ERBEJET 2 unit
1. Wait until the ERBEJET 2 display shows
Please insert new cartridge!.
2. Slide the pump cartridge into the pump
shaft. The pump cartridge must audibly
click into place.
5
Connecting the NaCl solution to
the pump cartridge
1. To achieve an improved contrast, you can
add a dye to the sterile NaCl solution. A
low dose is sufficient.
2. Connect an infusion set to a sterile NaCl
solution.
80114-503 10.16
