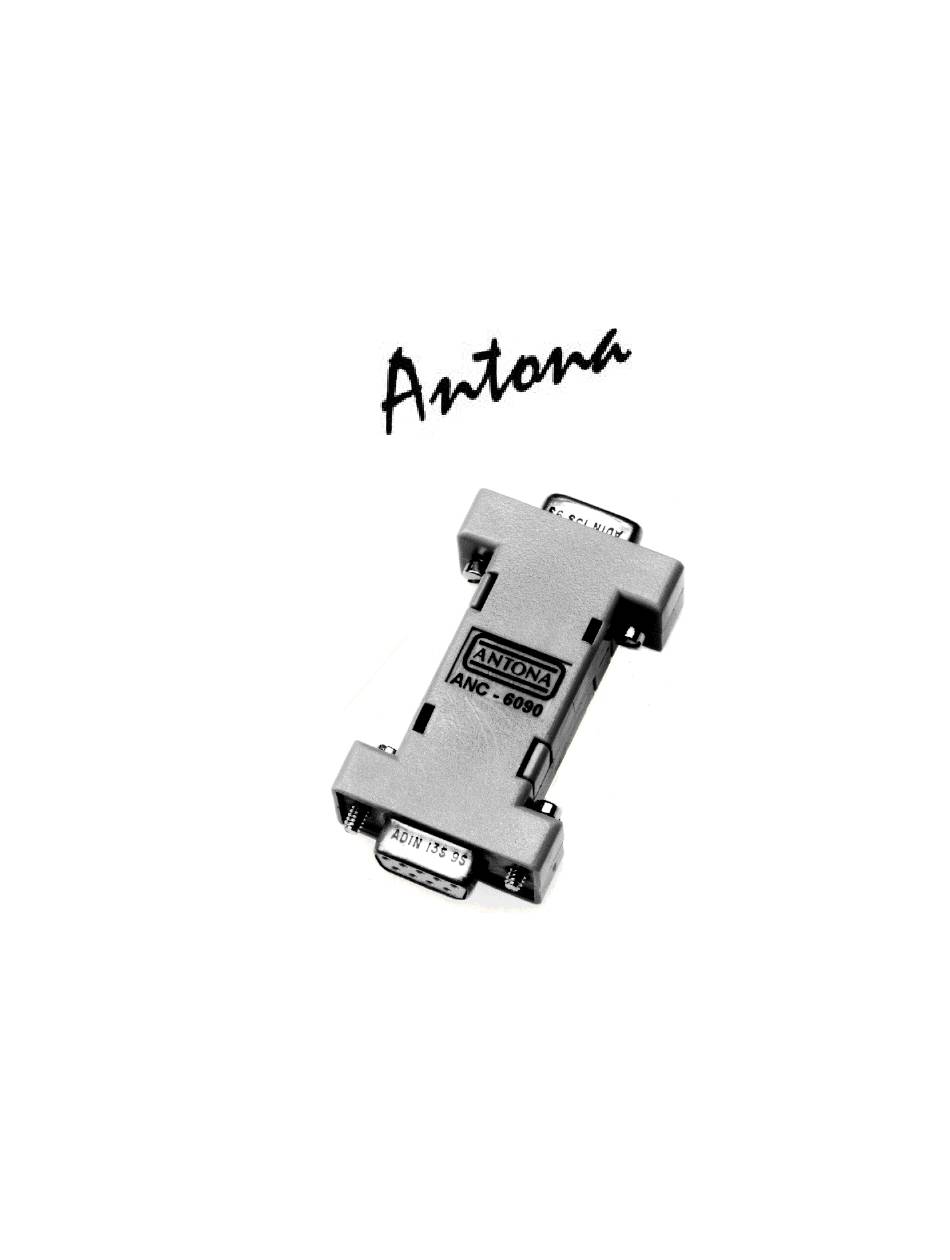

- Page 1 Rev. B $ 5.00 ANC - 6090 RS-422/485 Serial Communications Adapter Antona Corporation, Los Angeles, CA Antona Corporation, Los Angeles, CA Antona Corporation (818)783-4299...
- Page 2 (except card options), accident, or failure due to the effects of static electricity discharge. In no event shall Antona Corporation be liable to the purchaser for loss of use, profit, or consequential damages, or damages of any kind, including, but not limited to, accidental loss or damage to other equipment, arising out of use of Antona Corporation equipment, whether or not said equipment was used properly.
-
Page 3: Table Of Contents
ANC-6090 External connections _____________________________________________________ 8 DB9 to DB25 pin to pin chart - for use of adapter on a DB25 type com port_______________________ 8 RS-422/485 connections to the ANC-6090 _____________________________________________ 8 DB9 RS-422/485 Signals for Master (Multimedia Controller)___________________________________ 9 DB9 RS-422/485 Signals for Server (Receive from Master) ____________________________________ 9... -
Page 4: Features
Features Overview The ANC-6090 adapter converts the serial port RS-232C level transmit and receive signals on an IBM compatible personal computer (Pc), or any device with an RS-232C type interface, into bipolar-current RS-422 or RS-485 compatible signals. The adapter interface voltage levels produced meet the EIA-232, TIA-232, RS-422 and RS-485 signals. -
Page 5: Adapter Installation
Pc. Be sure to look at the label on the adapter to identify and insure that the proper DB9 is plugged into the Pc’s serial jack. The ANC-6090 has female DB9s at both ends. The user should screw the 2 mounting screws into the serial port’s hex nuts for permanent installations to assure good long-term connection. -
Page 6: Adapter Jumper Options
DB-9 connector. Transmit Control Enable - JP1 For single adapter 4-wire setups where the ANC-6090 is controlling one piece of equipment, JP1 can be set in the horizontal position, as shipped, so that the transmit data RS-422/485 driver lines are always asserted. For battery powered applications, it may be desirable to turn off the transmit drivers to save current when there is no data being transmitted using the RTS control line. -
Page 7: Auto Transmit Source - Jp2
For installation cable lengths greater than 150 feet, resister termination across the remote receive pair end of the cable may be necessary. The ANC-6090 has a ½W 120 ohm termination resister built in that can be placed across the receive wire pair by setting jumper 4 (JP4) located over the transmit/receive setting jumpers. -
Page 8: Transmit/Receive Pin Reverse Jumpers - Jp5/Jp6
RS-422/485 side of the adapter. The configuration as shipped from Antona is set for ‘master’. This configuration is for the adapter acting as a controller to multimedia type equipment with an RS-422 SMPTE interface. -
Page 9: Anc-6090 External Connections
For other interfaces, the user hand-wires a 9-pin cable assembly from the RS-422/485 piece of equipment to the Antona adapter with the appropriate pin to signal interface. The only difference between the ‘master’ and ‘server’ (slave) version is the jumper positions of JP5 and JP6 within the adapter. -
Page 10: Db9 Rs-422/485 Signals For Master (Multimedia Controller)
Generally, this requires externally powering the Antona adapter, but for short cable runs to non-terminated equipment operating at medium baud rates (like 9600 or less) an external power supply may not be needed. The designer should use twisted pair wire with a impedance of 100 to 120 ohms. -
Page 11: Photo 2 - 2-Wire Interface Example
3 – typical 2-wire RS-485 interface The photo below (photo 2) shows a typical transmission and reception over an RS-485 2-wire interface. The top trace shows the data transmitted from the ANC-6090 with a scope probe on the TX+/RC+ combined line. The 2 group of noisy looking characters is the response received from a remote device about 4 ms after the last character is sent through the ANC-6090. -
Page 12: Appendix A - Troubleshooting Guide
Loopback Test You can verify that the Antona adapter is working by doing a simple loopback test using a male DB9 connector with a wire connection from pin 3 to 7 and pin 8 to 2. You can also add external power by soldering a 9v battery clip between pin 1 (ground) and pin9 (+V). -
Page 13: Data Direction Jumpers
(under 150 feet) in an electrically ‘clean’ environment (like an office) then you probably do not need the cable to be terminated. If on the other hand you are using the ANC-6090 to interface with 2 or more RS-485 devices in an industrial environment with hundreds of feet of cable runs –... -
Page 14: Program Operation
Of the hundreds we have shipped, there have been maybe 10 or so that arrived non- operational. Damaged in shipping or infant component burnout. We do warranty our adapters, so if it still does not work, call Antona and we will work out an adapter exchange. Antona Corporation... -
Page 15: Appendix B -Circuit Board Schematic
The following page contains the schematic for the 6090 adapter. The schematic and card artwork are copyright protected by Antona Corporation and are included only to aid the end user to configure the adapter or for competent technical service personnel to use in maintenance or repair.
