Installation Instructions
MCM
-Series TV Mount
DISCLAIMER
This document is intended to be made accurate and complete. However, there is no
guarantee the information contained herein covers every aspect. The manufacturer
and the distributor make no representation of any warranty regarding the information
contained, and assume no corresponding responsibility.
WARNING:
•
Prior to installation, please read and understand this instruction manual. If you have
any questions or uncertainties, please consult your seller or local professionals.
•
If the ceiling structure could not support the weight of mount and the TV, please
reinforce the ceiling prior to the installation. Installation on drywall may be
dangerous.
•
To avoid damage, a plasma TV should never be laid flat. It must remain in an
upright position.
•
Tighten the screws firmly, but never overtighten.
Features:
Designed for 30" to 60" flat screen TVs
•
TV is 26" ~ 32.5" from the ceiling.
We offer a variety of extension pipes to extend the length from the ceiling.
•
Up to 50º Tilt side to side, tilt -5º ~ 15º up and down, roll -6º~ +6º to adjust
horizontal level
•
Maximum TV Weight: 175 lb / 79.38 kg
Required tools:
Stud finder; Screwdriver; Level; Drill
Parts list:
www.RiteMounts.com
Page 1 of 4
A1
A2
A3-A5

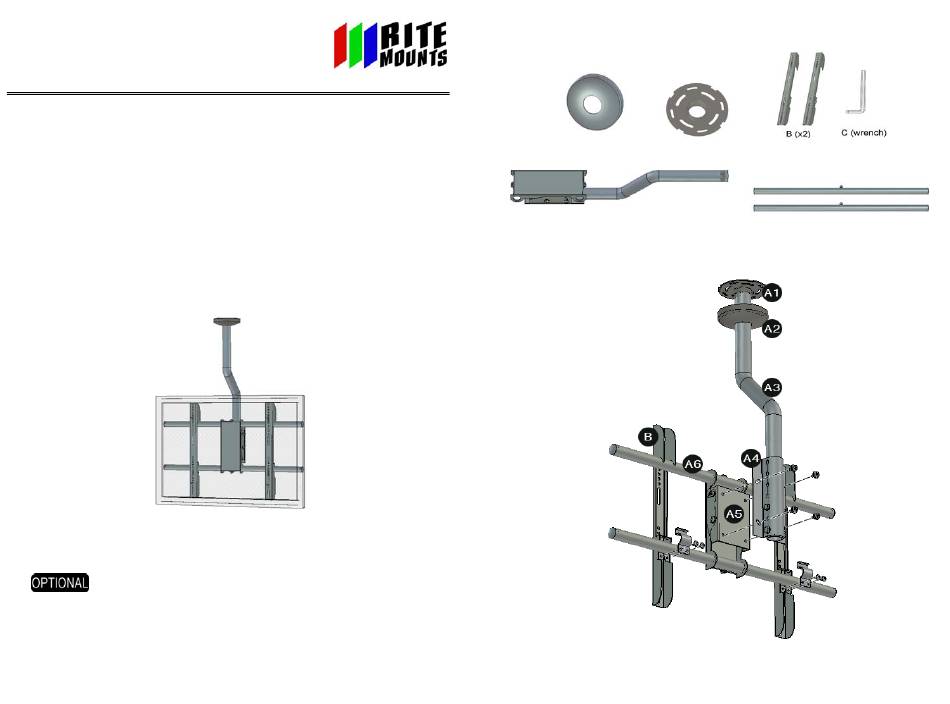

Figure 1: Part list
Figure 2: Every PARTS and it's position (Part A3~ A5 come assembled)
A6
Advertisement
Summary of Contents for Rite Mounts MCM Series
- Page 1 Parts list: Installation Instructions -Series TV Mount www.RiteMounts.com DISCLAIMER This document is intended to be made accurate and complete. However, there is no guarantee the information contained herein covers every aspect. The manufacturer and the distributor make no representation of any warranty regarding the information contained, and assume no corresponding responsibility.
-
Page 2: Screw List
Screw list: Description Wood Screw M8 x 40 Screw M8 x 16 Screw M6 x 35 Screw M6 x 12 Screw M5 x 30 Screw M5 x 12 Screw M4 x 30 Screw Figure 3: install Part-B1 to the TV M4 x 12 Screw b) if your TV has an uneven or curved back surface, use the supplied spacers [11]... - Page 3 Warning: The supplied wood screws (Part-[01]) may be used with a drill, but it must be hand tightened using wrench to avoid damaged on the threads. Concrete ceiling: Drill holes for the concrete anchor*, insert the anchors, then have the wood screws screwed into the anchors.
-
Page 4: Tilt Adjustments
it will be locked on the ceiling. Note A set screw Part-[10] is used lock Part-A1 and Part-A3, however, do NOT tighten it until YAW adjustment is completed. b)Attach Part-A6 Figure 8 c)Adjust the high from the ceiling. Figure 9: Hook on TV with Part-B1 6.5"... - Page 5 It can be easily installed to MCM. Remove MCM pipe arms beacause you don't need them.Install the SLF wall-plate to Part-A5 of MCM with 4 SLF screws,and Install LCD to SLF LCD-plate with another 4 [02]-[13] screws.Put the LCD up,slide down the LCD-plate into the wall plate of SLF. Figure 11: Tilt adjustments Roll adjustments Figure 12: Install SLF to MCM...
-
Page 6: Troubleshooting
Troubleshooting: Some TVs might have cable access in the middle, which might be blocked by Part-A5. If this is the case, please use Spacers [14] or [15], to increase the distance between the mount and the TV. If the articulating arms are too tight, some lubricating oil like WD-40 could be safely applied.
Need help?
Do you have a question about the MCM Series and is the answer not in the manual?
Questions and answers
