Summary of Contents for FERREX FPB 1500

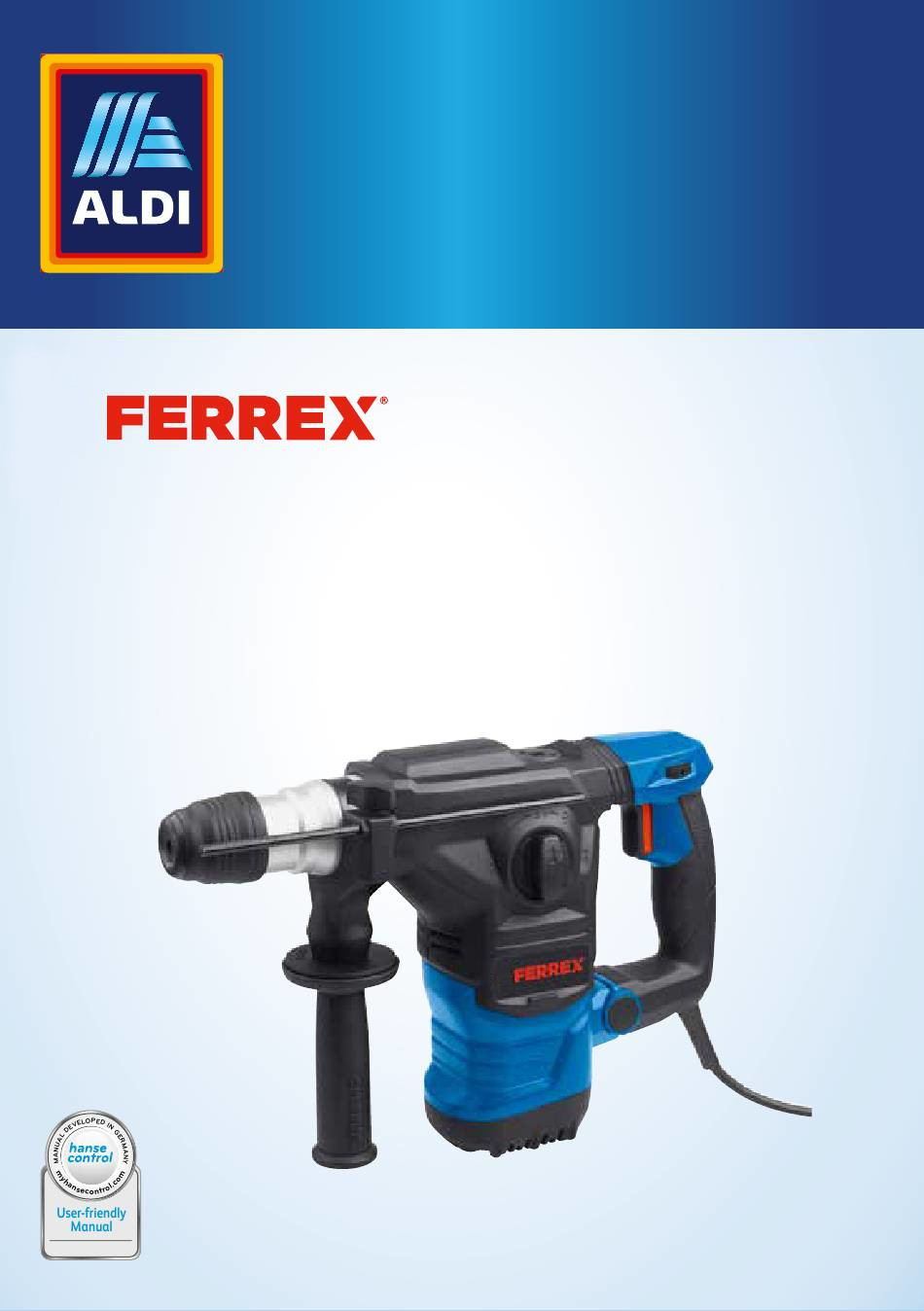

- Page 1 User Manual ROTARY HAMMER FPB 1500 Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Package contents ..............3 Components ................6 General information ............7 Reading and storing the user manual ........7 Explanation of symbols ............7 Safety ...................9 Explanation of notes ............... 9 Proper use ................. 9 Improper use ................9 Residual risks ................10 General power tool safety warnings ........11 Special safety instructions for rotary hammer drills .. -
Page 3: Package Contents
Package contents Package contents... - Page 4 Package contents...
- Page 5 Package contents Spiral and wood drill bits are not included in the package contents. NOTICE: The keyed chuck may only be used without the hammer function!
-
Page 6: Components
Package contents Components Selector switch “Drilling/Hammer drilling/Set chisel working angle/Chiselling” On/Off switch Speed control Mains cord Extra handle (front handle) Retaining bush Tool holder (SDS plus system chuck) Gear grease filler hole Wing screw for depth stop Depth stop SDS chisel, 2× (1× flat chisel, 1× pointed chisel) SDS drill bit, 3×... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this rotary hammer FPB 1500 (hereinafter referred to only as the “rotary hammer drill”). It contains important information about safety, usage and care. Read this user manual carefully before using the rotary hammer drill. Pay particular attention to the safety instructions and warnings. - Page 8 General information Wear suitable secure footwear. Wear suitable protective gloves. Protection class II Drilling in wood and metal without the hammer function Hammer drilling in concrete and masonry Setting the working angle ben auf ne über- Chiselling in tiles and masonry...
-
Page 9: Safety
Safety Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. WARNING! Designates a dangerous situation that may result in minor or moderate injury if not avoided. -
Page 10: Residual Risks
Safety • changes to the rotary hammer drill; • commercial or industrial use of the rotary hammer drill as well as in connection with the trades; • use of the rotary hammer drill by persons under the age of 16; •... -
Page 11: General Power Tool Safety Warnings
Safety General power tool safety warnings WARNING Read all the safety notes, instructions, illustrations and technical details supplied with this power tool. Failure to follow the safety notices and instructions may result in an electric shock, fire and/or severe injury. Save all warnings and instructions for future reference. - Page 12 Safety f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 13 Safety Power tool use and care a) Do not overload the power tool. Use the correct power tool for your application. The correct power tool will do the job better and more safely at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 14: Special Safety Instructions For Rotary Hammer Drills
Safety Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Special safety instructions for rotary hammer drills a) Wear ear protection. Noise may cause hearing loss. b) Use the extra handles shipped with the device. - Page 15 Safety − Immediately switch the rotary hammer drill off if the fitted tool jams. A tool that jams can trigger kickback. − Never use the rotary hammer drill as a screwdriver when hammer drilling. It is prohibited to tighten and loosen screws, nuts and the like when hammer drilling.
- Page 16 Safety NOTICE! Risk of damage! Improper handling of the rotary hammer drill may result in damage to the rotary hammer drill or the fitted tools. − Only place the rotary hammer drill on an easily accessible, flat, dry, heat- resistant and sufficiently stable work surface. −...
-
Page 17: First Use
First use First use Checking the rotary hammer drill and package contents NOTICE! Risk of damage! If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may quickly damage the rotary hammer drill. −... -
Page 18: Removing A Tool
Operation of the rotary hammer drill Removing a tool 1. Tool without keyed chuck Push the retaining bush back to remove the tool. 2. Tool with keyed chuck: Use the chuck key to open the keyed chuck and remove the tool. Push the retaining bush back to remove the keyed chuck. -
Page 19: Switching The Rotary Hammer Drill On And Off And Adjusting The Speed
Operation of the rotary hammer drill NOTICE! Risk of damage! When performing overhead work, dust and other contaminants may penetrate the chuck and damage it. − Before inserting the tool, push the dust cover over the tool shaft so that it collects the drill dust. -
Page 20: Switching Between The Functions
Operation of the rotary hammer drill Switching between the functions CAUTION! Risk of injury! When hammer drilling, chiselling and drilling, rock splinters, airborne dust, borings and sparks may be produced. − Wear protective goggles and ear protection when hammer drilling, chiselling or drilling. - Page 21 Operation of the rotary hammer drill This function is suitable for drilling in wood and metal (wood and metal drill bits are not included in the package contents). 1. Insert the keyed chuck with adapter into the tool holder 2. Insert a suitable drill bit in the keyed chuck and use the chuck key to secure it (see chapter “Inserting a tool”).
-
Page 22: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance WARNING! Risk of injury! Accidentally starting the rotary hammer drill may result in severe injury. − Always remove the mains plug from the socket before performing maintenance and cleaning. WARNING! Risk of electric shock! Improperly handling the rotary hammer drill may result in severe injury. -
Page 23: Cleaning
Storage Cleaning NOTICE! Risk of damage! Improper handling of the rotary hammer drill may result in damage to the rotary hammer drill. − Do not use any aggressive cleaners, brushes with metal or nylon bristles or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. -
Page 24: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Solution The rotary ham- It is not connected to the Connect it to the mains. Insert mer drill cannot mains. The mains plug is not the mains plug into the socket. be started. inserted in the socket. Have the defective mains plug/ defective mains cord replaced The mains plug or mains... -
Page 25: Technical Data
Technical data Technical data Model: FPB 1500 Model number: WU5904343/WU5904344 Article number: 98995 Supply voltage: 230–240 V~/50 Hz Nominal output: 1 500 W Protection class: Idle speed: 0-850 min Number of strokes (without load): 0–3 900 min Impact energy: Max. drill diameter:... -
Page 26: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! Health hazard! Working without ear protection and suitable protective clothing poses a health hazard. − Wear ear protection and suitable protective clothing when working with the device. Measured in accordance with EN 62841-1:2015, EN 62841-2-1:2018, EN 60745-2-6:2010. The noise at your workplace may exceed 85 dB(A);... - Page 27 Noise/vibration information ATTENTION! The specified total vibration value and noise emission values have been measured according to a standardised test method (EN 62841-1/EN 62841-2-1/EN 60745-2-6) and can be used to compare power tools with one another. They can also be used for a preliminary estimation of noise and vibration exposures.
-
Page 28: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with waste paper and plastics with recyclable waste. Widely Recycled Disposing of the rotary hammer drill − Dispose of the rotary hammer drill in accordance with the regulations in your country. -
Page 29: Declaration Of Conformity
Conmetall Meister GmbH Oberkamper Straße 37-39 42349 Wuppertal Germany EC Declaration of Conformity We declare with sole responsibility, ROTARY HAMMER FPB 1500 that the product listed below … FERREX® WU5904343/WU5904344• 98995• 11/2019 · BJ. 2019 2011/65/EU (RoHS) … meets all of the requirements... - Page 30 Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first 3 years after date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
