Summary of Contents for VIZU Mega Fries Topper

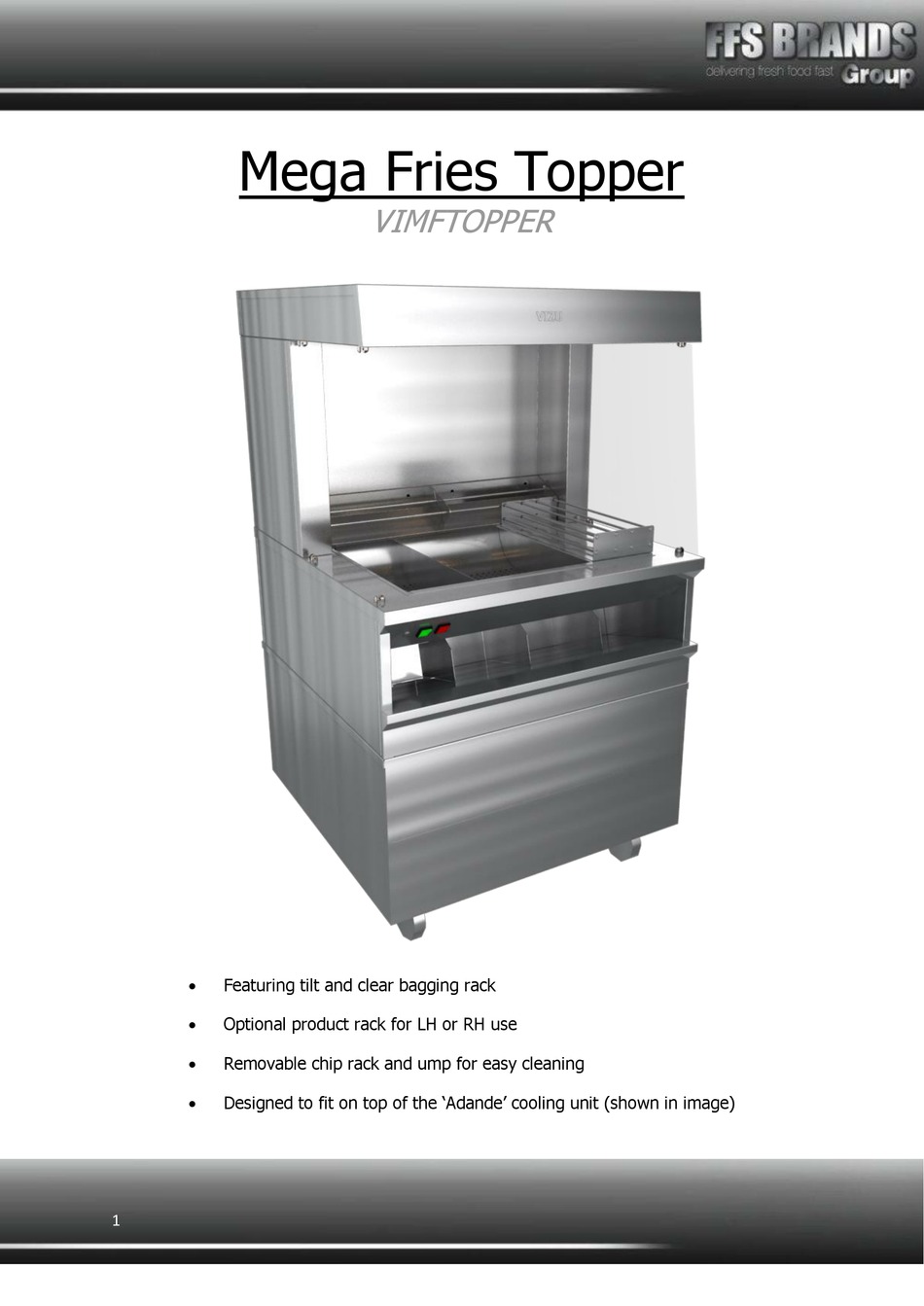

- Page 1 Mega Fries Topper VIMFTOPPER Featuring tilt and clear bagging rack Optional product rack for LH or RH use Removable chip rack and ump for easy cleaning Designed to fit on top of the ‘Adande’ cooling unit (shown in image)
- Page 2 MEGA FRIES TOPPER SPECIFICATION PAGE MODEL VIMFTOPPER Dimensions Machine Height 1015mm Width 885mm Depth 915mm Weight 68kg Electrical 1 phase, 50Hz AC, 230v, 2.6Kw Running Amps 13 Amps Connection Type BSCHUKO 2/3 PIN PLUG International Option...
-
Page 3: Installation
Connect this to the power supply. 3. In order to be able to load the Mega Fries Topper unit with fries the side glass needs to be on the opposite side of the machine to the fryer(s). If the glass needs to be moved this is possible by unscrewing the grub screws and sliding the glass out, to re-fit simply slide back in and tighten screws. - Page 4 Additional equipment, to suit Mega Fries Topper As well as the equipment supplied the Mega Fries Topper is fitted with two handles inside the chip draining plate that can double up as a chip scoop holder. 1. Chip Bagging Scoop holder & handle Cleaning: Every Day 1.
- Page 5 PROTOTYPE NAME 48 MEGA FRIES DRAWN DESIGNED DATE PROTOTYPE CODE BUILD NO. 11/09/2014 EQVIMF Property of Fast Food Systems Ltd. May not be reproduced or used for purposes other than those for which it is supplied, without written permission. Unit 1, Headley Park 9, Headley Road East, Woodley, Reading, Berkshire. RG5 4SQ.
-
Page 6: Spare Parts Listing
50.57071.010 regulator + 524.010 knob BESCHUKO H05Rr-F 2Mtr. Rubber C032 MF88161720 Single Pole Ceramic Blocks 88161720 VISW15 Green neon rocker Vizu Burger/Passthru VILE14 Switch cover / bezel HD2/HD4 MFF1025 / MF1026 VISW17 Rocker switch HD2 Revolva HD4 MFC1553ALR MF374-1029 100mm low profile lens indicator 230VAC... - Page 7 PART NO. DESCRIPTION QTY. IMAGE MFCOB-CR Cob-Cr shelf support MF500PLUGIN IRL500PJ 500W JKT Lamp Plug In MFEUROCONVERT Euro to UK converterplug In black 19-1032 MF354Z 2 Pole 5amp term block TB06 MFOHSL01 High temperature sleeving MFMEGAGLASS2 New Mega Fry Side Glass MFCOMMON1 Label 5 140mm x 53mm LPMEGACARTON...
-
Page 8: Fault Finding
Fault Finding Any servicing must only be carried out by qualified personnel. Machine must be removed from electrical supply before any servicing. Probable Cause Solution Problem 1. Indicated No power to machine. Check machine is plugged in and switched on. ON/OFF switch ... -
Page 9: Terms And Conditions
Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch. - Page 10 Damage claim form Machine: MEGA FRIES TOPPER Product code: VIMFTOPPER Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… Please indicate on the picture where the unit is damaged. Courier name………………………………………………………………… Fast Food Systems Please cut this page out and post to...
-
Page 11: Warranty
Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Excepting where otherwise specified all products are subject to 12 months parts and labour warranty. Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period. - Page 12 MODEL NUMBER……………………………… ORDER ID/JOB NO…………………………… MACHINE SERIAL NUMBER…………………… DATE OF MANUFACTURE ……/………/……… DATE OF DELIVERY……/………/…… DATE OF COMMISSIONING……/………/…… Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com...
