ADF NMV Series Owner's Manual

Inbuilt appliances
Hide thumbs
Table of Contents

Advertisement

Quick Links

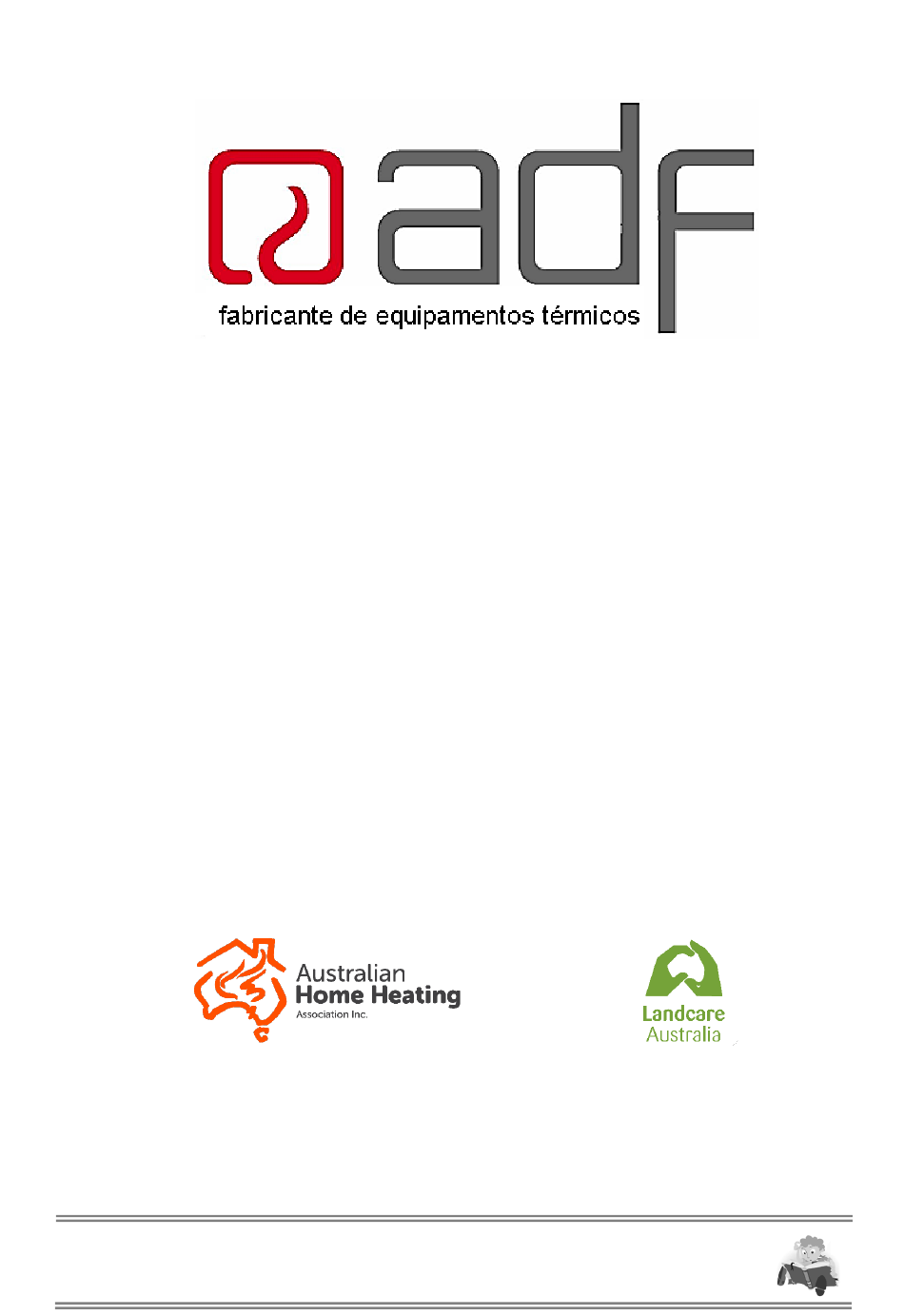

Owner's Manual
NMV / NMR
Inbuilt Appliances
Supplied by:
Castworks Pty Ltd
57 Industrial Drive
Braeside VIC 3195
TESTED IN ACCORDANCE WITH AS/NZS 4013:2014 and AS/NZS 2918.
Please read this manual thoroughly before installing and starting your free-standing appliance.
Keep these instructions for future reference
V12072018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADF NMV Series

Summary of Contents for ADF NMV Series

  • Page 1 Owner’s Manual NMV / NMR Inbuilt Appliances Supplied by: Castworks Pty Ltd 57 Industrial Drive Braeside VIC 3195 TESTED IN ACCORDANCE WITH AS/NZS 4013:2014 and AS/NZS 2918. Please read this manual thoroughly before installing and starting your free-standing appliance. Keep these instructions for future reference V12072018...
  • Page 2 Index 1. Introduction 2. Appliance Layout 3. Technical Specifications 4. Installation Instructions Chimney build out Version Cabinetry / Full Wall Build Install / Zero Clearance Ducting Flue Outlet 5. Fan 6. Instructions for use 7. Cleaning and Maintenance 8. Troubleshooting 9.
  • Page 3 Introduction Congratulations on your purchase of your new ADF woodfire appliance! Years of extensive research and dedication to innovation and quality, since 1976, has resulted in these beautifully designed European appliances, constructed to strict Portuguese and European legislation, and tested and Certified to the Australian Emissions, Efficiency and Safety standard requirements guaranteeing excellent performance.
  • Page 4 Do not use drift wood or coastal wood with high salt content, it will quickly damage the heater. All ADF appliances are designed to burn firewood and firewood only, with less than 20% moisture contect. The use of unseasoned firewood or firewood with moisture or other types of fuel not recommended will void the warranty.

  • Page 5: Appliance Layout

    2-Appliance Layout Pos. Designation Door lever, Tool supplied for Door and Air Control Combustion Air control (Use tool): Open (+) slide to the right Close (-) slide to the left Vermiculite brick lining Primary convection outlet Secondary convection outlet (hot air distribution for ducting) Inbuilt only Smoke Outlet –...

  • Page 6: Technical Specification

    3- Technical Specification Specifications TESTED IN ACCORDANCE WITH Unit 1000 AS/NZS 4012:2014 & AS/NZS 4013:2014 Burning Harwood Maximum Avearge Heat Output 12.5 Overall Average Efficiency Particulate Emission Factor g/kg Maximum firewood load 13.7 See page See Page Minimum clearance distances from combustible materials 10/15.
  • Page 7 WARNINGS: A wood burning heater is, by its nature, an appliance that operates at high temperatures, so it is necessary to take into account potential risk factors that should be avoided at all costs. Children must be kept away from any combustion appliance and supervised in the room at all times. Installation must be carried out by a licenced and certified installer.
  • Page 8 WARNINGS: CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENETS MAY RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE. CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES, MAY RENDER THE INSTALLATION UNSAFE.

  • Page 9: Installation Instructions

    4-Installation Instructions The floor must be structurally sound. The Hearth must have a heat resistant surface to 600°C, with an insulating thickness of non-combustible material equivalent to 24mm of cement sheet with thermal conductivity of 0.1m2.K/W per 9mm. eg 24mm Bellis Board or equivalent. Dimensions required in front of the heater are shown in the Elevation drawings below.
  • Page 10 1.Chimney Build Out Install: The build out is constructed with Skamotec 225 40mm sheets to Skamotec specifications, the Installation and Clearance specifications are included in the Elevation drawings shown below:...
  • Page 11 The parts list required for the build out is shown...
  • Page 12 The construction of the base includes 5 pillars and a base to support the heater, leaving cut out for the fan to drop into. The bench cut out is 560mm x 230mm from the rear of the base. The assembly includes a 30mm air gap behind the rear sheet to combustible material. Use Skamotec off cuts to space out from the wall.
  • Page 13 STEP 3. STEP 4.
  • Page 14 STEP 5. STEP 6.
  • Page 15 Cabinetry / Full Wall Build Install: Allows combustible materials to be built up to the side of the enclosure. The build out is constructed with Skamotec 225 40mm sheets to Skamotec specifications, the Installation and Clearance specifications are included in the Elevation drawings shown below:...
  • Page 16 The parts required for the build out is shown below:...
  • Page 17 The construction of the base includes 5 pillars and a base to support the heater, leaving cut out for the heater fan to drop into. The bench cut out is 560mm x 230mm from the rear of the base. The assembly includes a 30mm air gap behind the rear sheet to combustible material. Use Skamotec off cuts to space out from the wall.
  • Page 18 The minimum Ventilation area must be included below the base of the heater and below the cap ( 9 and 10). The ventilation is shown in the front as the dimensions at L. If an alternative ventilation position is required, ample free air flow must have access to the ventilation from outside the cavity. The total vent area must be included below the base of the firebox, and at the top below the ceiling cap height of the chimney chase.
  • Page 19 STEP 5. STEP 6.
  • Page 20 Ducting – Convection Air Transfer Ducting For the inbuilt models, Ducting can be added to the top of the firebox and transferred to vents either on side of the Chimney breast via natural convection, or via an air transfer kit with fan to other rooms (From other supplier).
  • Page 21 4º Fit a Ducting collar to the top of the fire box and fit ducting as required (From other supplier).
  • Page 22 Framing Beading in metal or plastic cannot be used around the firebox opening due to heat. Metal expansion could crack the Skamotec. Ensure there is an expansion gap between the heater box and the Skamotec, of 3 or 4mm. A Frame can be fitted as follows to cover the gap between the heater and the appliance:...
  • Page 23 Skamotec 225 can be finished with: EasyMix render (Wet boards thoroughly before applying mix) then painted. Smooth wall plaster (Prime the board first to increase working time, with suitable priming compound, check with your board supplier), then skim coated and painted. Tiling (Prime the board first before tiling adhesive, with suitable priming compound, check with your board supplier).

  • Page 24: Flue Installation

    Flue Installation Flue type: Triple skin flue, 200mm/250mm/300mm or 8”/10”/12”. The Active 200mm flue must be a tight fit into the heater collar. Double casing outer skins 250mm and 300mm begin 25mm above heater to allow air flow into these outer casings. The cavity must be ventilated to allow this air flow. The heater must have its own dedicated flue.
  • Page 25 External Requirements Refer to AS/NZS 2918:2018 Note: All external air vents & ceiling penetrations must be bird & rodent proofed with permanently fixed screens...
  • Page 26 5- Fan (for fan models only). • Must be installed in accordance with AS/NZS 3000. • Must be installed to the manufacturers specifications. • Power supply must be installed by a licensed electrician. • If the power cable is damaged, for any reason, do not use. Have the cord replaced immediately. The cable for the electrical supply with Plug is 1.5m.

  • Page 27: Important Recommendations

    Important Recommendations The heater must be installed by a qualified and accredited professional. Caution: the outside surfaces of the equipment are hot; wear suitable protective gloves whenever you need to touch hot parts of the appliance and when loading firewood into the heater. Do not use the appliance as your incinerator.
  • Page 28 6- Instructions for Use Combustion Control: Open (+), slide to the right Close (-), slide to the left Ignition 1. It is extremely important, when first using or lighting for the first time for the season, to thoroughly examine the chimney and to make sure it is clean and unobstructed. Ensure the Chimney is swept regularly;...
  • Page 29 After Firing 1. Slowly open the door, spread the embers evenly across the furnace base. 2. Place the wood logs (approximately 1 - 2kg each) horizontally left to right, keeping the log away from the door glass. Do not overload the appliance – check your model in the specifications table for the maximum permissible load.

  • Page 30: Cleaning And Maintenance

    Clean the chimney and the flame baffle at least once a year using a qualified technician if necessary. Periodically check and replace the door seal. Use only ADF recommended replacement parts.
  • Page 31 Fire Hazard Your ADF equipment has been designed in accordance with existing legislation and in order to minimize any risk of fire in the chimney, however in such cases: 1. Keep calm and make sure the area is safe. 2. Close the stove door completely.

  • Page 32: Troubleshooting

    8-Troubleshooting If you comply with the instructions given in this manual, you should not have any major problem in enjoying your appliance. However, before requesting service, please check the following: 1. All the instructions given in this manual are complied with. 2.

  • Page 33: Warranty Conditions

    4. The Warranty is limited to the replacement / repair by the ADF or its agent of the components known to be damaged and excludes any other type of cover or damages.
  • Page 34 _______________________ Client Signature Note: The Warranty is limited to the replacement / repair by ADF or its agent of the components known to be defective and excludes any other type of coverage or compensation such as the costs of transportation, removal or reinstallation of the equipment.
  • Page 35 Data Labels Found on Appliance: TESTED BY: TEST REPORT NO: AUSTRALIAN SOLID FUEL TESTING Unit ASFT17109 3 GARDEN ST, MORWELL, DATED: 11/2017 VIC 3840 AUSTRALIA WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014 Burning Hardwood Maximum Avearge Heat Output Overall Average Efficiency Particulate Emission Factor g/kg...

This manual is also suitable for:

Nmr series820nm-rs820nmv-b1000nmv-b1000nmv-p
