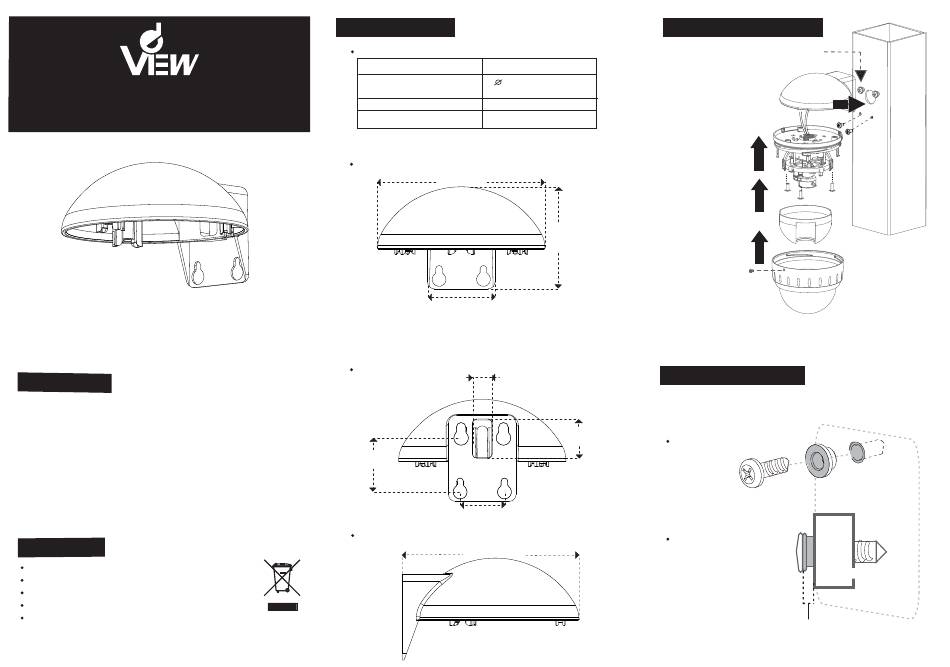

DeView MD4-PWM Installation Sheet

MD4-PWM Pendant Wall Mount Cap
Installation Sheet
Precautions
To prevent damage to your dome camera or injury to
yourself or to others, please read and comply with the safety
precautions in the enclosure installation and
camera sheet before installation and use.
Please visit our website for more information
www.deview.com
Product specifications subject to change without notice.
Certain product names mentioned herein may by trade names
and/or registered trademarks of other companies.
Package Kit
Wall Mount x 1
Copper Sleeves x 2
Self-tapping Screws x 3
Wall Plugs x 4
Screws x 4
Product Overview
Dimensions
Material
Size
Unit Weight
Shipping Weight (per piece)
Front View
Rear View
40.7mm/
1.60 imch
Side View
V531-JWA00-200
Ver.: 03/2010
Polycarbonate
: 4.96 inch (126.00mm)
H : 3.02inch (76.70mm)
0.147 lbs (66.7g)
0.278 lbs (126g)
126.0mm/ 4.96 inch
76.7mm/
3.02 imch
50.8mm/
2.00 inch
14.4mm/
0.57 inch
29.5mm/
1.16 imch
33.4mm/
1.31 inch
133mm/ 5.24 inch
Installation Quick Overview
Step 1
Prepare 4 holes for anchor location.
Step 2
Install the wall mount
Step 3
Install the dome
About Copper sleeves
The following illustrates how to install copper sleeves. For more information,
please see "2. Installing Wall Mount" overleaf.
Mounting Surface
Explosion View
Copper Sleeves
Screw
Sectional View
Screw
Mounting Surface
The cooper sleeves create the required space which allows the
mount to be installed using the four mounting holes
Mounting Surface
Wall Plug
Hole
