Summary of Contents for A&D RA2000 Series

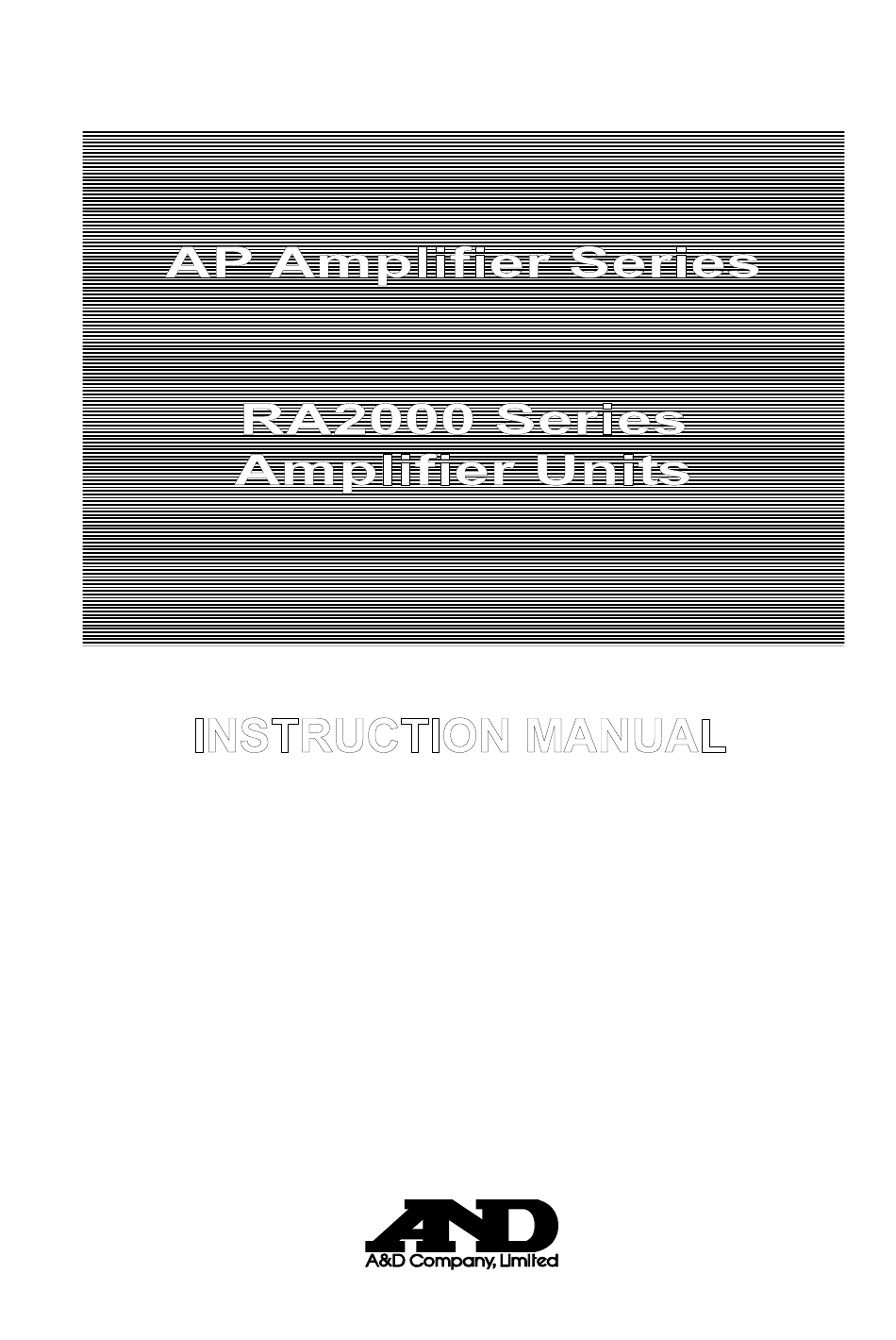

  • Page 1 AP Amplifier Series RA2000 Series Amplifier Units 1WMPD4003505...
  • Page 3 AP Amplifier Series RA2000 Series Amplifier Units Instruction Manual...
  • Page 5: Introduction

    This instruction manual involves operating instruction information, advice and suggestions on the use of the amplifier units, Omniace RA2000 Series, as well as their basic functions. For operating instruction information other than that described herein, please refer to the other instruction manuals attached hereto.
  • Page 6: Safety Considerations And Precautions - Warning And Caution

    ● If anything unusual happens during the use of the equipment, immediately switch off the mainframe of the Omniace RA2000 Series and disconnect it from the power source. ● If you cannot find the cause of the problem, contact our sales representative.
  • Page 7 ● Input signal connection and permissible common mode input voltages First, confirm that the recorder unit of the Omniace RA2000 Series is correctly and securely grounded through the protective grounding terminal, before connecting the equipment with a device to be measured.
  • Page 8 W ARNING ● Warning against electric shock and permissible input voltage Do not touch, by any means, metal portions of the input section, when a high voltage input signal is being applied, to avoid a risk of electric shock. Also, it is very dangerous to apply an input voltage exceeding the range of permissible input voltages for individual amplifier units, since application of such high voltages would cause equipment failures.
  • Page 9: Warranty Provisions

    5) Use the original packing box and crating materials, or the equivalent at the minimum, when you transport amplifier units. In addition, when transporting units or parts after removing them that are incorporated with the recorder unit, cover them with antistatic bag or shock-absorbing sheets to protect them from damage due to drop or chock.
  • Page 10: Designations Used In This Instruction Manual

    The words indicate the recorder unit, Omniace RA2000 Series (RA2300MK Ⅱ or this product RA2800A) This indicates the internal memory of the Omniace RA2000 Series. Measured data is the memory stored in “the memory” in the Multi-Recorder mode. k (small...
  • Page 11: Table Of Contents

    INTRODUCTION ....................... 1  Before Using Amplifier Units: ....................1  Safety Considerations and Precautions - Warning and Caution........2  Warranty Application ......................5  Warranty Provisions........................ 5  Designations used in this instruction manual ..............6 1. How to Use Amp Unit ...................1-1 1.1.
  • Page 12 1.7.5. External drawings of TC ・ DC Amp Unit (TDC, Model AP11-107) .........1-49 1.8. F/V Converter Unit (FV, Model AP11-108) ..............1-50 1.8.1. Connection with input signals ....................1-50 1.8.2. How to set F/V Converter Unit (FV, Model AP11-108) ............1-51 1.8.3. Ripple ratio and response time ....................1-53 1.8.4.
  • Page 13: How To Use Amp Unit

    1. How to Use Amp Unit...
  • Page 14: 2Ch High-Resolution Dc Amp Unit (Hrdc, Model Ap11-101)

    # Use shielded cables for input connection to avoid electrostatic noise Please keep the signal source impedance as low as possible, i.e., less than 100 Ω. The lower the signal source impedance is, the higher the quality of measurement record is. AMP for RA2000 Series (1WMPD4003505)
  • Page 15 DC component, when the sensitivity range is 0.1 - 5 V-FS in the AC coupling mode. Note that correct measurement cannot be expected when the input voltage exceeds the voltage range mentioned above. AMP for RA2000 Series (1WMPD4003505)
  • Page 16: How To Set 2Ch High-Resolution Dc Amp Unit (Hrdc, Model Ap11-101)

    Basics - Information This portion indicates settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Details screen. Fc: Filter setting Couple: Input coupling setting AMP for RA2000 Series (1WMPD4003505)
  • Page 17 When using the high-sensitivity range, check the check box. When the high-sensitivity range is not used, prohibition of the high-sensitivity range without checking the box is recommended for safety. Details - Filter This button is used to set the low-pass filter. AMP for RA2000 Series (1WMPD4003505)
  • Page 18: Specifications Of 2Ch High-Resolution Dc Amp Unit (Hrdc, Model Ap11-101)

    Input connector Insulated BNC type 1.5 kV AC for one minute between input terminal and ground, and between Withstand voltage channels. S/N ratio -52 dB or greater (when set at Wide Range) Mass About 230 g AMP for RA2000 Series (1WMPD4003505)
  • Page 19: External Drawings Of 2Ch High-Resolution Dc Amp Unit (Hrdc, Model Ap11-101)

    1. How to Use Amp Unit (2ch High-Resolution DC Amp Unit) 1.1.4. External drawings of 2ch High-Resolution DC Amp Unit (HRDC, Model AP11-101) AMP for RA2000 Series (1WMPD4003505)
  • Page 20: 2Ch Fft Amp Unit (Fft, Model Ap11-102)

    # Use shielded cables for input connection to avoid electrostatic noise Please keep the signal source impedance as low as possible, i.e., less than 100 Ω. NOTE The lower the signal source impedance, the higher the quality of measurement records. AMP for RA2000 Series (1WMPD4003505)
  • Page 21 DC component, when the sensitivity range is 0.1 - 5 V-FS in the AC coupling mode. Note that correct measurement cannot be expected when the input voltage exceeds the voltage range mentioned above. AMP for RA2000 Series (1WMPD4003505)
  • Page 22: How To Set Voltage Measurement Mode Of 2Ch Fft Amp Unit(Fft, Model Ap11-102)

    Basics - Information indication This portion indicates settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Details screen. Fc: Filter setting Measurement mode setting (Voltage/Vibration) AMP for RA2000 Series (1WMPD4003505) 1-10...
  • Page 23 Details -Filter This button is used to set the low-pass filter. In addition, pressing the [Anti-aliasing] button allows filtering corresponding to the acquisition speed and eliminating aliasing. AMP for RA2000 Series (1WMPD4003505) 1-11...
  • Page 24: How To Set Input Mode (Voltage Measurement, Vibration Sensor)

    NOTE any units other than the vibration sensor are connected to the amp, the signal source may be damaged. Confirm the connection at the amp input port before switching to the vibration sensor mode. AMP for RA2000 Series (1WMPD4003505) 1-12...
  • Page 25: How To Set Vibration Sensor Mode Of 2Ch Fft Amp Unit (Fft, Model Ap11-102)

    The unit of the vibration system can be selected between units, m/s and G. The result from the changed unit is reflected to the range, sensor sensitivity and TIPS converter sensitivity. Before starting measurement, confirm the reflected parts. AMP for RA2000 Series (1WMPD4003505) 1-13...
  • Page 26: How To Set Vibration Sensor

    Vibration range (m/s2) = Voltage range (V)/ (Sensor sensitivity (pC/m/s2) × Converter sensitivity (V/pC)) ● Unit of vibration range The unit of vibration range is switched between [m/s ] and [G] depending on the unit of vibration settings. AMP for RA2000 Series (1WMPD4003505) 1-14...
  • Page 27: Specifications Of 2Ch Fft Amp Unit (Fft, Model Ap11-102)

    2 mA, 18 V or more Withstand voltage 1.5 kV AC for one minute between input terminal and ground, and between channels. S/N ratio -46 dB or greater (when set at Wide Range) Mass About 240 g AMP for RA2000 Series (1WMPD4003505) 1-15...
  • Page 28: External Drawings Of 2Ch Fft Amp Unit (Fft, Model Ap11-102)

    1. How to Use Amp Unit (2ch FFT Amp Unit) 1.2.7.External drawings of 2ch FFT Amp Unit (FFT, Model AP11-102) AMP for RA2000 Series (1WMPD4003505) 1-16...
  • Page 29: 2Ch High-Speed Dc Amp Unit(Hsdc, Model Ap11-103)

    # Use shielded cables for input connection to avoid electrostatic noise Please keep the signal source impedance as low as possible, i.e., less than 100 Ω. NOTE The lower the signal source impedance, the higher the quality of measurement records. AMP for RA2000 Series (1WMPD4003505) 1-17...
  • Page 30 DC component, when the sensitivity range is 0.1 - 5 V-FS in the AC coupling mode. Note that correct measurement cannot be expected when the input voltage exceeds the voltage range mentioned above. AMP for RA2000 Series (1WMPD4003505) 1-18...
  • Page 31: How To Set 2Ch High-Speed Dc Amp Unit (Hsdc, Model Ap11-103)

    Basics - Information indication This portion indicates settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Details screen. Fc: Filter setting Couple: Input coupling setting AMP for RA2000 Series (1WMPD4003505) 1-19...
  • Page 32 When using the high-sensitivity range, check the check box. When the high-sensitivity range is not used, prohibition of the high-sensitivity range without checking the box is recommended for safety. Details - Filter This button is used to set the low-pass filter. AMP for RA2000 Series (1WMPD4003505) 1-20...
  • Page 33: Specifications Of 2Ch High-Speed Dc Amp Unit (Hsdc, Model Ap11-103)

    Insulated BNC type 1.5 kV AC for one minute between input terminal and ground, and between Withstand voltage channels. S/N ratio -46 dB or greater (when set at Wide Range) Mass About 240 g AMP for RA2000 Series (1WMPD4003505) 1-21...
  • Page 34: External Drawings Of 2Ch High-Speed Dc Amp Unit (Hsdc, Model Ap11-103)

    1. How to Use Amp Unit (2ch High-Speed DC Amp Unit) 1.3.4. External drawings of 2ch High-Speed DC Amp Unit (HSDC, Model AP11-103) AMP for RA2000 Series (1WMPD4003505) 1-22...
  • Page 35: 2Ch Ac Strain Amp Unit (Acst, Model Ap11-104A)

    To use transducers that do not have connections between the ground (shield) terminal NOTE and any of the other terminals (A, B, C and D) of this product. Not to place transducers and connecting cables in the environment with high electric or NOTE magnetic field. AMP for RA2000 Series (1WMPD4003505) 1-23...
  • Page 36: How To Set 2Ch Ac Strain Amp Unit (Acst, Model Ap11-104/104A)

    Input mode can be selected. Pressing this button permits switching among ON, GND and OFF. Basics - Position This button is used to set the zero position. Pressing this button changes the button appearance. The setup can be made with the job dial. AMP for RA2000 Series (1WMPD4003505) 1-24...
  • Page 37 Pressing the Auto Balance button automatically performs C and R balances, thereby canceling the initial imbalance (offset). If the adjustment cannot be made correctly, the R-Balance can be adjusted by turning the jog dial after pressing the R-Balance button. AMP for RA2000 Series (1WMPD4003505) 1-25...
  • Page 38: Gauge Factor Setup

    Expansion tab in the Amp Details screen to set the gauge factor with the jog dial. Alternatively, press the Window button to set the gauge factor through the value entry window. Setup range 1.50 to 2.50 Resolution 0.01 Default 2.00 Gauge Factor AMP for RA2000 Series (1WMPD4003505) 1-26...
  • Page 39: How To Read Measured Value

    Rated capacity Rated output value (m/m strain) The physical amount can be calculated as follows: Calibration value of physical amount: 2.5kN (500 m/m) Deflection of CAL waveform: 10 mm Deflection at point B: 22 mm AMP for RA2000 Series (1WMPD4003505) 1-27...
  • Page 40 - 0.3 - 0.7 - 1.5 - 2.9 1000 - 0.1 - 0.4 - 0.7 - 1.5 Bridge Voltage Drop Rate (approximate in ) Voltmeter AC Voltage Measurement Bridge box Voltage measurement on bridge box AMP for RA2000 Series (1WMPD4003505) 1-28...
  • Page 41: Synchronization Between Ac Bridge Power Supply Units (Ra23-143)

    BNC adapters (0243-2118) will be needed when you synchronize three or more power supply units. Slave Master Slave EXT(external) EXT(external) INT(internal) (LED light-off) (LED light-off) (LED ight-on) AC bridge power distribution cable BNC-BNC cable(47226) BNC adapter 0243-2118 AMP for RA2000 Series (1WMPD4003505) 1-29...
  • Page 42 BNC adapters (0243-2118) will be needed when you synchronize three or more power supply units BNC adapter BNC adapter 0243-2118 0243-2118 Output cable(47226) Output cable(47226) Master Slave Slave INT(internal) INT(internal) INT(internal) (LED light-on) (LED light-on) (LED light-on) AMP for RA2000 Series (1WMPD4003505) 1-30...
  • Page 43: Specifications Of 2Ch Ac Strain Amp Unit (Acst, Model Ap11-104/104A)

    1 kV AC for one minute between input terminal and ground, and between channels. S/N ratio -46 dB or greater (when set at Wide Range) Mass About 285 g m/m of strain”. Note: “με”and ”x 10 of strain” means “ AMP for RA2000 Series (1WMPD4003505) 1-31...
  • Page 44: External Drawings Of 2Ch Ac Strain Amp Unit (Acst, Model Ap11-104/104A)

    1. How to Use Amp Unit (2ch AC Strain Amp Unit) 1.4.7. External drawings of 2ch AC Strain Amp Unit (ACST, Model AP11-104/104A) AMP for RA2000 Series (1WMPD4003505) 1-32...
  • Page 45: Event Amp Unit (Ev, Model Ap11-105)

    IC cord should be made so that both connecting and connected lines have the same color. brown black umber yellow Brown, black IC clip cord (0311-5008) Red, black brown black umber, black yellow, black black umber logic IC cord (0311-5007) black yellow black test clip cord (0311-5009) AMP for RA2000 Series (1WMPD4003505) 1-33...
  • Page 46: How To Set Event Amp Unit (Ev, Model Ap11-105)

    Contact in order. Details - Event waveform printing This is used to switch the event waveform printing to ON/OFF by each signal for eight signals. Touching this portion switches the signals to ON and OFF. AMP for RA2000 Series (1WMPD4003505) 1-34...
  • Page 47: Adjustment Of Event Waveform

    The event waveform printing point is automatically adjusted so as to be exactly positioned on the grid. Extremely high setting values for Printing Portion and Pitch between Signals exceed the NOTE effective printing width, which will disable event waveform printing. AMP for RA2000 Series (1WMPD4003505) 1-35...
  • Page 48: Specifications Of Event Amp Unit (Ev, Model Ap11-105)

    4 input ch 8 input 3 ground ground +15 V output +15 V output (As seen from the inserting not connected not connected side of the plug) not connected not connected EV AMP AMP for RA2000 Series (1WMPD4003505) 1-36...
  • Page 49: External Drawings Of Event Amp Unit (Ev, Model Ap11-105)

    Four (4)/sack, 15 cm long The above comprises one (1) set of probe; two (2) are provided with each unit. 1.5.5. External drawings of Event Amp Unit (EV, Model AP11-105) 179.8±0.5 28.8±0.3 AP11-105 INPUT EV AMP AMP for RA2000 Series (1WMPD4003505) 1-37...
  • Page 50: 2Ch Tc・Dc Amp Unit (Tcdc, Model Ap11-106A)

    # When a temperature compensation with a reference contact is set externally, you will also need an external temperature compensation for the reference contact such as a zero-control scheme. AMP for RA2000 Series (1WMPD4003505) 1-38...
  • Page 51: Kinds Of Thermocouple And The Characteristics

    Weak for reducing atmosphere. Good chemical resistance and oxidation Impossible to measure lower temperature resistance. than 0 C. Useable as standard. Suitable to inert gas and hydrogen-gas. Not specified in JIS. Good characteristics in high temperature. AMP for RA2000 Series (1WMPD4003505) 1-39...
  • Page 52: How To Set 2Ch Tc・Dc Amp Unit (Tcdc, Model Ap11-106/106A)

    Basic – Information indication This portion indicates the settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Detailed screen. Filter setting RJC: Reference Junction select setting AMP for RA2000 Series (1WMPD4003505) 1-40...
  • Page 53 The reference contact temperature compensation is made internally or externally. When the thermocouple is directly connected, tick this box (default). If using a zero-temperature compensating device, do not tick this box. This setting is only valid when the input mode is in temperature measurement. AMP for RA2000 Series (1WMPD4003505) 1-41...
  • Page 54: Specifications Of 2Ch Tc・Dc Amp Unit (Tcdc,Model Ap11-106/106A)

    For use of units as DC amplifiers: -52 dB or greater (at Wide Range) S/N ratio For use of units as thermocouple amplifiers: -60 dB or greater (at Wide Range, with 5kHz filter) Mass About 240 g AMP for RA2000 Series (1WMPD4003505) 1-42...
  • Page 55: External Drawings Of 2Ch Tc・Dc Amp Unit (Tcdc,Model Ap11-106/106A)

    1. How to Use Amp Unit (2ch TC-DC Amp Unit) 1.6.5. External drawings of 2ch TC・DC Amp Unit (TCDC,Model AP11-106/106A) AMP for RA2000 Series (1WMPD4003505) 1-43...
  • Page 56: Tc・Dc Amp Unit (Tdc, Model Ap11-107)

    # Start your measurement at least 30 minutes after switching the power on, providing sufficient time period of equipment warm-up, so that stable measurement can be made. # Make temperature measurement at least about 10 minutes after thermocouples have been connected. AMP for RA2000 Series (1WMPD4003505) 1-44...
  • Page 57: Kinds Of Thermocouple And The Characteristics

    High accuracy. No good linearity of electromotive force. Unevenness and deterioration are little. Weak for reducing atmosphere. Good chemical resistance and oxidation Impossible to measure lower temperature resistance. than 0 C. Useable as standard. AMP for RA2000 Series (1WMPD4003505) 1-45...
  • Page 58: How To Set Tc・Dc Amp Unit (Tdc, Model Ap11-107)

    Basic – Information indication This portion indicates the settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Detailed screen. Filter setting RJC: Reference Junction select setting AMP for RA2000 Series (1WMPD4003505) 1-46...
  • Page 59 The reference contact temperature compensation is made internally or externally. When the thermocouple is directly connected, tick this box (default). If using a zero-temperature compensating device, do not tick this box. This setting is only valid when the input mode is in temperature measurement. AMP for RA2000 Series (1WMPD4003505) 1-47...
  • Page 60: Specifications Of Tc・Dc Amp Unit (Tdc, Model Ap11-107)

    For use of units as DC amplifiers: -46 dB or greater (at Wide Range) S/N ratio For use of units as thermocouple amplifiers: -60 dB or greater (at Wide Range, with 5kHz filter) Mass About 200 g AMP for RA2000 Series (1WMPD4003505) 1-48...
  • Page 61: External Drawings Of Tc・Dc Amp Unit (Tdc, Model Ap11-107)

    1. How to Use Amp Unit (TC・DC Amp Unit) 1.7.5. External drawings of TC・DC Amp Unit (TDC, Model AP11-107) 179.8±0.5 (20) 28.8±0.3 14.4 AP11-107 300V TC・DC AMP AMP for RA2000 Series (1WMPD4003505) 1-49...
  • Page 62: F/V Converter Unit (Fv, Model Ap11-108)

    (in DC or in AC peak value) through carrying out appropriate examination of the signal source. Also, some metal type BNC cables may cause mating problems. Insulation BNC sockets may crack if they are forcibly connected, so please do not use what cannot be mated smoothly. AMP for RA2000 Series (1WMPD4003505) 1-50...
  • Page 63 The input impedance is always 100 k approximately. # Maintain the input voltages within the range of -12V - +12V when using the equipment. # Normal and correct measurement cannot be expected if the input voltage exceeds the range above. AMP for RA2000 Series (1WMPD4003505) 1-51...
  • Page 64: How To Set F/V Converter Unit (Fv, Model Ap11-108)

    And the position change is available through the setup of Physical Unit Conversion or Printing/Display Range. For more information, see Chapter 4. Physical Unit Conversion - Changing Printing/Display Range. AMP for RA2000 Series (1WMPD4003505) 1-52...
  • Page 65: Ripple Ratio And Response Time

    (e.g., time period that the output signal reaches 9 kHz from 1 kHz for the range of 10 kHz-FS (full scale)). 90 % F S ripples 1 0 % F S output signal Response time input signal AMP for RA2000 Series (1WMPD4003505) 1-53...
  • Page 66: Specifications Of F/V Converter Unit (Fv, Model Ap11-108)

    10 µs max characteristics Conversion method Serial comparison method Input connector Insulated connector of the BNC type Withstand voltage 1.5 kV AC for one minute between input terminal and ground. Mass About 125 g AMP for RA2000 Series (1WMPD4003505) 1-54...
  • Page 67: External Drawings Of F/V Converter Unit (Fv, Model Ap11-108)

    1. How to Use Amp Unit (F/V Converter Unit) 1.8.5. External drawings of F/V Converter Unit (FV, Model AP11-108) AMP for RA2000 Series (1WMPD4003505) 1-55...
  • Page 68: 2Ch Vibration & Rms Amp Unit (Rms, Model Ap11-109)

    # Use shielded cables for input connection to avoid electrostatic noise Please keep the signal source impedance as low as possible, i.e., less than 100 Ω. The lower the signal source impedance is, the higher the quality of measurement record is. AMP for RA2000 Series (1WMPD4003505) 1-56...
  • Page 69 Note that correct measurement cannot be expected when the input voltage exceeds the voltage range mentioned above. The sampling speed must be set at 10μs steps, otherwise the signal waveform cannot be NOTE obtained correctly. Example: 5 μs or 11 μs, etc. makes the waveform distort. AMP for RA2000 Series (1WMPD4003505) 1-57...
  • Page 70: (Rms, Model Ap11-109)

    The displayed contents are the same as those in the voltage measurement mode. That is, the contents are different from those for the vibration measurement mode. Basics – Lo V The LED lights if the high sensitivity range can be permitted. AMP for RA2000 Series (1WMPD4003505) 1-58...
  • Page 71 When the high-sensitivity range is not used, prohibition of the high-sensitivity range without checking the box is recommended for safety. Details - Low-pass filter This button is used to set the low-pass filter. Details - High-pass filter This button is used to set the high-pass filter. AMP for RA2000 Series (1WMPD4003505) 1-59...
  • Page 72: How To Set Input Mode (Voltage Measurement/Rms Converter/Vibration Sensor /Vibration,Rms Output)

    Therefore, if any units other than the vibration sensor are connected to the amp, a signal source may be damaged. Confirm the connection at the amp input port before switching to the vibration sensor mode. AMP for RA2000 Series (1WMPD4003505) 1-60...
  • Page 73: How To Set Vibration Sensor Mode Of 2Ch Vibration & Rms Amp Unit (Rms, Model Ap11-109)

    The unit of the vibration system can be selected between units, m/s and G. The result from the changed unit is reflected to the Range, Sensor sensitivity and TIPS Converter sensitivity. Before starting measurement, confirm the reflected parts. AMP for RA2000 Series (1WMPD4003505) 1-61...
  • Page 74: How To Set Vibration Sensor

    Vibration range (m/s2) = Voltage range (V) / (Sensor sensitivity (pC/m/s2) × Converter sensitivity (V/pC) ) ● Unit of vibration range The unit of vibration range is switched between [m/s ] and [G] depending on the unit of vibration. AMP for RA2000 Series (1WMPD4003505) 1-62...
  • Page 75: Specifications Of 2Ch Vibration & Rms Amp Unit (Rms, Model Ap11-109)

    Insulation type BNC connector Input connector 1.5 kV AC for one minute between input connector and ground, and between Withstand voltage channels -46 dB or greater (at the wide range setting) S/N ratio About 270 g Mass AMP for RA2000 Series (1WMPD4003505) 1-63...
  • Page 76: External Drawings Of 2Ch Vibration & Rms Amp Unit (Rms, Model Ap11-109)

    1. How to Use Amp Unit (2ch Vibration & RMS Amp Unit) 1.9.7. External drawings of 2ch Vibration & RMS Amp Unit (RMS, Model AP11-109) AMP for RA2000 Series (1WMPD4003505) 1-64...
  • Page 77: 2Ch Dc Strain Amp Unit (Dcst, Model Ap11-110)

    - 1.2 - 3.0 - 5.8 - 11.0  - 0.4 - 1.1 - 2.1 - 4.1  - 0.3 - 0.7 - 1.5 - 2.9  - 0.1 - 0.4 - 0.7 - 1.5 AMP for RA2000 Series (1WMPD4003505) 1-65...
  • Page 78: How To Set 2Ch Dc Strain Amp Unit (Dcst, Model Ap11-110)

    This portion indicates settings that are unable to be set on this screen. When changing the settings, make the settings in the Amp Detailed screen. Fc: Filter setting BV: Bridge Voltage setting Gauge: Gauge factor setting AMP for RA2000 Series (1WMPD4003505) 1-66...
  • Page 79 Pressing the Auto Balance button automatically performs R balances, thereby canceling the initial imbalance (offset). If the adjustment cannot be made correctly, the R-balance can be adjusted by turning the jog dial after pressing the R-Balance button. AMP for RA2000 Series (1WMPD4003505) 1-67...
  • Page 80: Gauge Factor Setup

    Expansion tab in the Amp Details screen to set the gauge factor with the jog dial. Alternatively, press the Window button to set the gauge factor through the value entry window. Setup range 1.50 to 2.50 Resolution 0.01 Default 2.00 Gauge factor AMP for RA2000 Series (1WMPD4003505) 1-68...
  • Page 81: Specifications Of 2Ch Dc Strain Amp Unit (Dcst, Model Ap11-110)

    NDIS strain input connector 1 kV AC for one minute between input terminal and ground, and between Withstand voltage channels. S/N ratio -42 dB or greater (when set at Wide Range) Mass About 240 g AMP for RA2000 Series (1WMPD4003505) 1-69...
  • Page 82: External Drawings Of 2Ch Dc Strain Amp Unit (Dcst, Model Ap11-110)

    1. How to Use Amp Unit (2ch DC Strain Amp Unit) 1.10.5. External drawings of 2ch DC Strain Amp Unit (DCST, Model AP11-110) AMP for RA2000 Series (1WMPD4003505) 1-70...
  • Page 83: 2Ch Zero Suppression Amp Unit (Hrzs, Model Ap11-111)

    Permissible common mode input voltages (CMV) CAUTION Use an optional isolated BNC cable. In this case, use this cable under the condition of which common mode voltage is not exceeding ±300 VDC or AC peak values. AMP for RA2000 Series (1WMPD4003505) 1-71...
  • Page 84: How To Set 2Ch Zero Suppression Amp Unit (Hrzs, Model Ap11-111)

    Input mode can be selected. Pressing this button permits switching among ON, GND, and OFF. Basics - Position This button is used to set the zero position. Pressing this button changes the button appearance. The setup can be made with the jog dial. AMP for RA2000 Series (1WMPD4003505) 1-72...
  • Page 85 When using the high-sensitivity range, check the check box. When the high-sensitivity range is not used, prohibition of the high-sensitivity range without checking the box is recommended for safety. Details - Filter This button is used to set the low-pass filter. AMP for RA2000 Series (1WMPD4003505) 1-73...
  • Page 86 ±110V. If the zero suppression voltage exceeds the specification limits by changing the range, TIPS OVER is displayed. c) Auto zero suppression The zero suppression voltage can be automatically adjusted. AMP for RA2000 Series (1WMPD4003505) 1-74...
  • Page 87: Specifications Of 2Ch Zero Suppression Amp Unit (Hrzs, Model Ap11-111)

    Insulation type BNC connector 1.5 kV AC for one minute between input connector and ground, and between Withstand voltage channels S/N ratio -46 dB or higher (at the wide range setting) Mass About 250g AMP for RA2000 Series (1WMPD4003505) 1-75...
  • Page 88: External Drawings Of 2Ch Zero Suppression Amp Unit

    1 7 9 . 8 ± 0 . 5 ( 7 . 5 ) 2 8 . 8 ± 0 . 3 1 4 . 4 ! AP11-111 INPUT 100V(0.1-2V) 500V(5-500V) PK MAX Zero Suppression MAX DC AMP AMP for RA2000 Series (1WMPD4003505) 1-76...
  • Page 89: Common Settings For Amp Details Screen

    2. Common Settings for Amp Details Screen...
  • Page 90: On/Off/Gnd, Batch, And Initialization

    Simply pressing this button does not set anything. Details - List The setup status for each channel can be observed by tab, namely Standard, Expansion, and Physical Unit Conversion. AMP for RA2000 Series (1WMPD4003505)
  • Page 91 2. Common Settings in Amp Details Screen  Standard display screen when the List button is pressed. Standard List Expansion Physical Unit Conversion List AMP for RA2000 Series (1WMPD4003505)
  • Page 92: Initialization Of Amp

    2. Common Settings in Amp Details Screen 2.2. Initialization of Amp 2.2.1. Initialization in Standard Screen 2ch High-Resolution DC Amp Unit (AP11-101) HRDC 2ch FFT Amp Unit (AP11-102):FFT 2ch AC Strain Amp Unit (AP11-104/104A):ACST 2ch High-Speed DC Amp Unit (AP11-103):HSDC AMP for RA2000 Series (1WMPD4003505)
  • Page 93 2. Common Settings in Amp Details Screen Event Amp Unit (AP11-105): EV 2ch TC・DC Amp Unit (AP11-106/106A): TCDC F/V Converter Unit (AP11-108): FV TC・DC Amp Unit (AP11-107): TDC AMP for RA2000 Series (1WMPD4003505)
  • Page 94 2. Common Settings in Amp Details Screen 2ch Vibration RMS Amp Unit (AP11-109): RMS 2ch DC Strain Amp Unit (AP11-110): DCST 2ch Zero Suppression Amp Unit (AP11-111): HRZS AMP for RA2000 Series (1WMPD4003505)
  • Page 95: Amp Details - Initialization In Physical Unit Conversion Screen

    2.2.2. Amp Details – Initialization in Physical Unit Conversion Screen Example: 2ch High-Resolution DC Amp Unit (AP11-101): HRDC 2.2.3. Amp Details – Initialization in Expansion Screen (Example) 2ch High-Resolution DC Amp Unit (AP11-101): Event Amp Unit (AP11-105): EV AMP for RA2000 Series (1WMPD4003505)
  • Page 97: Expansion Settings

    3. Expansion Settings...
  • Page 98: Change Of Base Line Width Of Printing Waveform

    The following settings are available in the Amp Details screen. (1) Base Line Width of Printing Waveform (1) Details – Base Line Width of Printing Waveform The line width for printing waveform can be set for each channel. AMP for RA2000 Series (1WMPD4003505)
  • Page 99: Physical Unit Conversion - Changing Printing/Display Range

    4. Physical Unit - Conversion Changing Printing / Display Range...
  • Page 100: Overview Of Physical Unit Conversion

    To examine this portion carefully Expanding waveform amplitude The following screen appears when the User Conversion tab in the Amp Details screen is pressed. Executing physical unit conversion Changing printing and display range in waveform representation AMP for RA2000 Series (1WMPD4003505)
  • Page 101: How To Convert Physical Units

    # If the maximum value and minimum value are equivalent. (Division by 0 in the internal calculation will occur.) # If the range of input maximum and minimum values does not include the effective measurement range (the measurement values exceeds the set range.). AMP for RA2000 Series (1WMPD4003505)
  • Page 102: Printing/Display Range

    By setting the minimum value to 0 and setting the maximum value by the jog dial, it is possible to continuously enlarge / reduce the waveform. Please change the center position by Position after setting the enlargement ratio. AMP for RA2000 Series (1WMPD4003505)
  • Page 103: Procedure For Changing Amplifier Units

    5. Procedure for Changing Amplifier Units...
  • Page 104: Example Of Replacement

    Operations of mounting amplifier units should also be done after switching off the mainframe power supply. Always keep blank panels mounted at individual vacant slots for input amplifier units to WARNING prevent electric shock and potential damages of the mainframe due to foreign matter penetration. AMP for RA2000 Series (1WMPD4003505)
  • Page 105 To be used for a long time A&D Company,Limited. Thank you for purchasing our products. In order to use the purchased product for a long time, we offer the following maintenance service system. 1. Warranty period One year is warranted from the date of purchase and will be repaired free of charge in the event of failure.
  • Page 106 (1) This manual may not be reproduced to any form in whole or in part. (2) Then contents in this manual may be updated without prior notice. The AP Amplifier series units for RA2000 Series Instruction Manual (1WMPD4003505) 1st Edition :...
  • Page 108 4.34.25 ARPK[QR.BTOL]T]ZX- GX[QRVK.T]- GXTaX 281.1124- C<F<E GOUOYQXWO; I92J +4, 64:2.7243 @K`; I92J +4, 64:2.7259 Q\\Y;00___/KKWNN/MX/SY0 =KMT>X^OZ 2HDF?5111171<...

This manual is also suitable for:

Ra2800aRa2300mkii

Table of Contents
