Summary of Contents for Superchips Flashcal
-
Page 2: Table Of Contents
TABLE OF CONTENTS STORAGE AND MAINTENANCE ....................3 BEFORE YOU BEGIN ......................... 4 LIST OF COMPONENTS ........................4 BUTTON FUNCTIONALITY ........................ 4 BASIC MENU LAYOUT ....................... 5 DOWNLOAD IGNITION UPDATER TOOL .................. 6 PRODUCT UPDATES USING IGNITION ..................8 OPTIONS ........................... 10 OPTIONS EXPLAINED ...................... -
Page 3: Storage And Maintenance
STORAGE AND MAINTENANCE NOTICE It is NOT recommended to store your programmer in your vehicle in extreme heat, direct sunlight or extreme cold (temperatures near or below freezing). These conditions can cause malfunction or damage to the programmer. TIP: When you are not using your device, place it in its protective bag. -
Page 4: Before You Begin

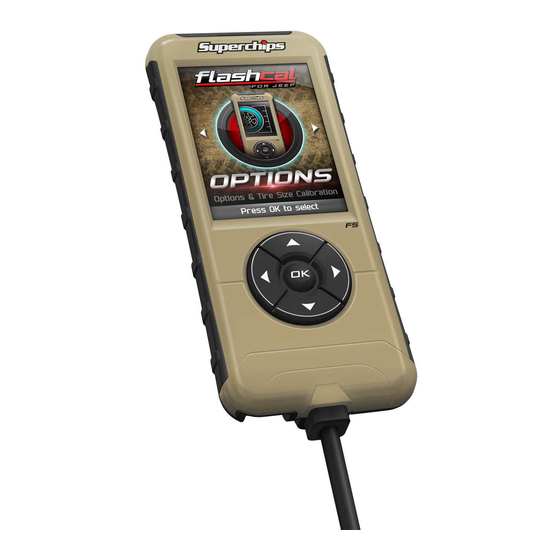

BEFORE YOU BEGIN LIST OF COMPONENTS BUTTON FUNCTIONALITY DISPLAY DEVICE Up_Increase Left Right Back Next Exit Forward Down_Decrease NAVIGATING TIPS: • To move back to the previous menu, PROTECTIVE USB CABLE press the button. • To move forward to the next menu, you can press either OK or button to enter the highlighted option. -
Page 5: Basic Menu Layout
BASIC MENU LAYOUT Some of the menu options or features displayed in this manual are vehicle specific, and may not be available for your make and model. Adjustable Options WARNING Misapplication or misuse of this product could lead to a serious or fatal accident. -
Page 6: Download Ignition Updater Tool
DOWNLOAD IGNITION UPDATER TOOL 1 Go to: www.superchips.com 2 Click the UPDATES tab located at the top of the page. 3 Click the Download button to download Ignition. 4 Click the Run button on the pop-up menu. 5 Read and click the box to accept the license agreement terms. - Page 7 Ignition...
-
Page 8: Product Updates Using Ignition
PRODUCT UPDATES USING IGNITION 1 Double-click the Ignition Icon located on your computer’s desktop. 2 Connect your device to the computer using the supplied USB cable. (Ignition will automatically search for updates related to your device.) 3 Click the Update button. (The update process will start and finish automatically. - Page 9 Ignition NOTICE Do not unplug the USB while the device is being updated. Once the update is complete, you will be informed that it is safe to disconnect.
-
Page 10: Options
OPTIONS These options allow to you quickly adjust the settings for the available features. NOTE: Not all features are available on every make, model, and engine. CAUTION Do not remove or bump the OBD-II connector while changing Quick option settings. If you do, the vehicle may not start. WARNING Do not make adjustments to your vehicle while parked in unsafe locations including heavy traffic or places without cell phone service. -
Page 11: Options Explained
OPTIONS EXPLAINED Tire Size: This feature allows you modify the programmed Tire Height. Axle Ratio: This feature allows you to adjust the calculated output shaft speed. Engine Idle: This feature allows the user to increase the engine Idle RPM momentarily. Run Lights: This feature allows you to change the Daytime Running lights configuration. -
Page 12: Read Dtc
READ DTC This feature allows you to troubleshoot issues that your vehicle may be experiencing. Most vehicles will illuminate the in-dash check engine light. A Diagnostic Trouble Code (DTC) arises when a vehicle’s computer detects a sensor failure or a parameter outside of specific range. STEP 1 - Enter the STEP 2 - Select STEP 3 - Select... -
Page 13: Clear Dtc
CLEAR DTC This feature allows you to clear the DTC and turns off the check engine light. NOTE: If a DTC persists, this could indicate a vehicle malfunction. We recommend seeking a qualified professional in resolving the issue. Program the vehicle back to stock prior to service. STEP 1 - Enter the STEP 2 - Select STEP 3 - Select... -
Page 14: Viewing Gauges
VIEWING GAUGES If you would like to view Parameter IDs (PIDs) specific to your vehicle, following these instructions to learn how to view them using your Flashcal device. WARNING Do not exceed legal speed limits on public roadways. STEP 1 - Enter the... -
Page 15: Data Logging
DATA LOGGING Data logging allows you to record specific vehicle information while driving. Follow these instructions to find out how to datalog, and how it may be helpful to your particular needs. WARNING Do not exceed legal speed limits on public roadways. STEP 1 - Refer to STEP 2 - Press the OK button to begin STEP 3 - Press the... -
Page 16: Data Logging Retrieval
DATA LOGGING RETRIEVAL To learn more about how Data Logging results can be extracted from the device, please follow these instructions: STEP 1 - Remove the device from the vehicle OBDII port. STEP 2 - Using the USB cable provided, connect the device to your computer. -
Page 17: Battery Voltage
BATTERY VOLTAGE STEP 1 - Plug the device into the OBDII port. STEP 2 - Enter STEP 3 - Select STEP 4 - Press the Scan Menu. the Battery OK to return Voltage option. to the previous screen. 13.21... -
Page 18: Vehicle Info
VEHICLE INFO STEP 1 - Plug the device into the OBDII port. STEP 2 - Enter STEP 3 - Select STEP 4 - Press the Info Menu. the ID Vehicle OK to return option. to the previous screen. TUNING LEVEL Stock ################# Vehicle Files... -
Page 19: Device Info
DEVICE INFO STEP 1 - Plug the device into the OBDII port. STEP 2 - Enter STEP 3 - Select STEP 4 - Press the Info Menu. the Device Info OK to return option. to the previous screen. SKU:######### APP: XX_XX_XX APP Ver: 2 IAP Ver: 1 VID Ver: 1... -
Page 20: Safety Warning & Caution
A NOTICE indicates a condition that could cause damage to the product or your vehicle. The Superchips product you have purchased is a high-performance product. As such, it does present some risks of which you should be fully aware. Do not use this product until you have carefully read the following safety information and the Owner Agreement. -
Page 21: Safety Guidelines
• Do not stack products. “Stacking” performance-enhancing devices or other improper installation can cause power train failure on the road. Other products may have features incompatible with your Superchips device. Follow all installation and operating instructions. • Some modifications may affect other parts of your vehicle. For example, if you remove/ adjust the speed limiter in your vehicle, be sure your tires and other components are rated for the increased speeds they will have to withstand. -
Page 22: Limited 1 Year Warranty
LIMITED 1 YEAR WARRANTY Powerteq, LLC, (hereafter “SELLER”), subject to the conditions and limitations set forth herein, warrants to the original consumer purchaser only that each Flashcal product sold by SELLER (the “Product”) through an authorized dealer will be free from defects in material and workmanship under normal operating conditions for one (1) year after the date of purchase. - Page 23 Limitation of Liability The terms of this Limited Warranty constitute the entire agreement between the parties with respect to the Product. The original consumer purchaser’s exclusive remedy shall be limited to the repair or replacement of the defective product. EXCLUDING THE LIMITED WARRANTY PROVIDED ABOVE, SELLER, TO THE MAXIMUM EXTENT PERMITTED BY LAW, MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, AND DISCLAIMS ALL WARRANTIES, DUEITES AND CONDITIONS, WHETHER EXPRESS, IMPLIED, OR STATUTORY, WITH RESPECT...
- Page 24 WWW. .COM 1790 East Airport Blvd. | Sanford, FL 32773 | Ph: 407.585.7000...
