- Page 1 Planetary Mixer Instruction Manual SHLM-10A,SHLM-20B,SHLM-30B...
-
Page 2: Table Of Contents
Index Index Pack Contents …………………………………………….……..………3 General Description …………………………………………….……..….…...3 Technical Parameters …………………………………………….………..……3 External Parts of Mixer ……………………………………………….….….……4 Operating Instructions …………………………………………………..….……5 Accessories and Functions………………………………………………..…….…...5 Operating Instructions ………………………………………………….………..6 Maintenance ……………………………………………….…………..6 Troubleshooting ………………………………………………….………..7 Warning! ………………………………………………….………..8 Parts List ………………………………………………………..9-14 Grinder Attachment ………………………………...………………….…15-16 Certifications …………………………………………………….……17 Warranty …………………………………………………….……17... -
Page 3: Pack Contents

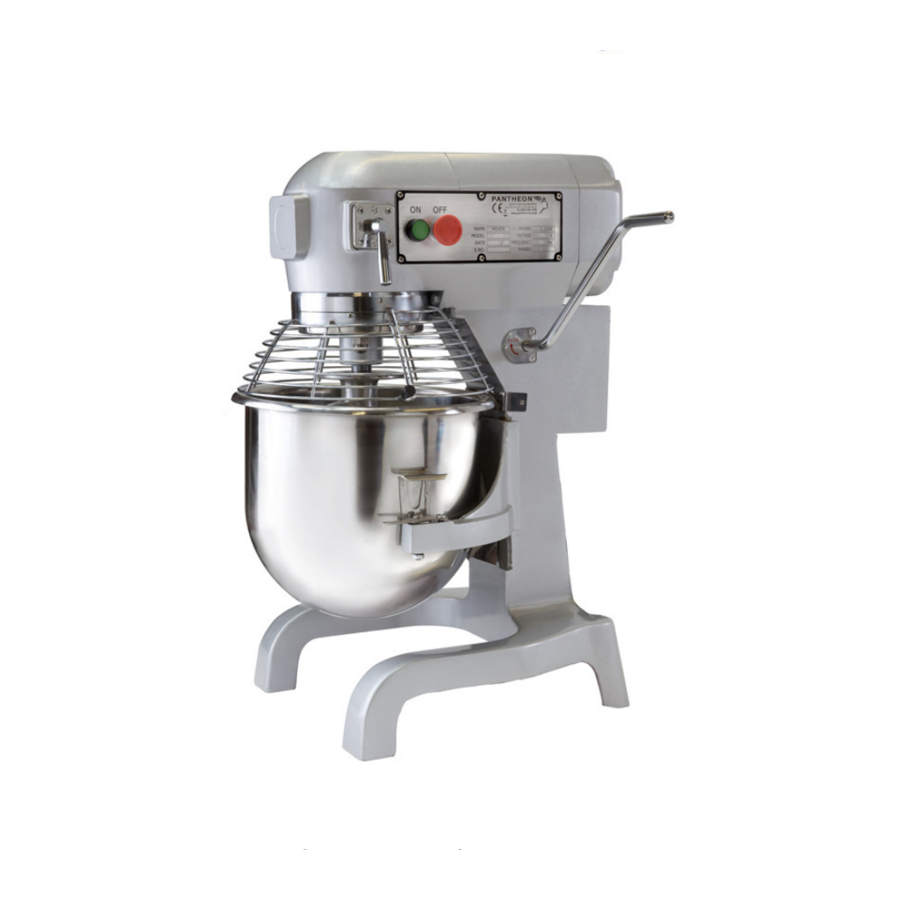

•Beater • Instruction Manual General Description Your new SHLM-10A, SHLM-20B, SHLM-30B Planetary Mixer is a changing speed gear mixer with a three speed motor and a non-rotation bowl. Planetary mixers are an excellent choice for general purpose kitchens, bakeries and pizzerias. -
Page 4: External Parts Of Mixer
Main External Parts of Mixer Gear change hand lever ① Stirring shaft ② Mixer ③ Stainless bowl ④ Power switch ⑤ Bowl Lift Handle ⑥ Safety guard ⑦ Support ⑧... -
Page 5: Operating Instructions
Operating Instructions ① Standard power supply - 110 v/ 60 HzAc. (Please use a plug with 3 wide contacts and good grounding.) ② Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. ③... -
Page 6: Operating Instructions
Operating Instructions ① The outlet must be provided with a ground wire to guarantee the mixer’s grounding through it. Electric shock could occur if the ground wire is improperly mounted. ② Never put your hands or fingers into the bowl during operation, serious injury could occur. -
Page 7: Troubleshooting
Troubleshooting Troubleshooting Problems Causes Solutions Tool shaft does not Check electric wiring, plug rotate after starting Loose electric wiring and cord the machine Oil leakage The seal rings are worn out Replace seal rings Too low voltage Check the power supply Motor temperature raised while reduced Overloaded... -
Page 8: Warning
Warning! • If the equipment is not functioning properly, it should be serviced by an authorized service agent only. • Persons under 18 years of age are not permitted to operate • Read all instructions and safety warnings prior to operating •... -
Page 9: Parts List
Parts List for SHLM-10A SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME Flat Beater Inner gear 10-1 10-70 Hook hexagon socket cap screws 10-2 10-71 10-3 Wire whip 10-72 Circlips for shaft Gear box Planet gear 10-4 10-73 10-5 Circlips for shaft... - Page 10 Parts List for SHLM-10A...
- Page 11 Parts List for SHLM-20B SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 20-1 Wire whip 20-47 Oil seal 20-2 Spiral dough hook 20-48 Fore lump 20-3 Flat Beater 20-49 Support 20-4 Safety guard 20-50 Case 20-5 Bowl assembly 20-51 30-7 Plunger-shifter yoke 20-52 Bearing...
- Page 12 Parts List for SHLM-20B...
- Page 13 Parts List for SHLM-30B SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 30-1 Hook 30-52 Base 30-2 Beater 30-53 Bearing 30-3 Wire Whip 30-54 Transmission shaft support 30-4 Safety guard 30-55 30-5 Bowl 30-56 Circlips for shaft 30-6 Top cover 30-57 Gear 30-7...
-
Page 14: Grinder Attachment
Parts List for SHLM-30B Grinder Attachment... - Page 15 Grinder Attachment Ⅰ. Operations 1. Unplug the mixer and turn the unit off. 2. Detach and clean the meat-grinding components with clear water, then assemble them sequentially. Lock the handle. 3. Take off the cover and locking bolt, and then fit on the meat grinder (attachment hub) to the mixer.
- Page 16 1 .The locking of the front nut is not tight enough, resulting in poor contact between the grinding blade and the discharge plate. Readjust the nut. 2 .The grinding plate may be blocked. Clean it. 3 .The grinding blade may be blunt. Sharpen or replace it. Ⅱ.
-
Page 17: Certifications
Warranty work must be performed by an authorized agent under normal business hours. Sentinel is not responsible nor will they cover overtime charges. The warranty is not transferrable. Damages from transit/installation error, alternation or misuse are not covered.
