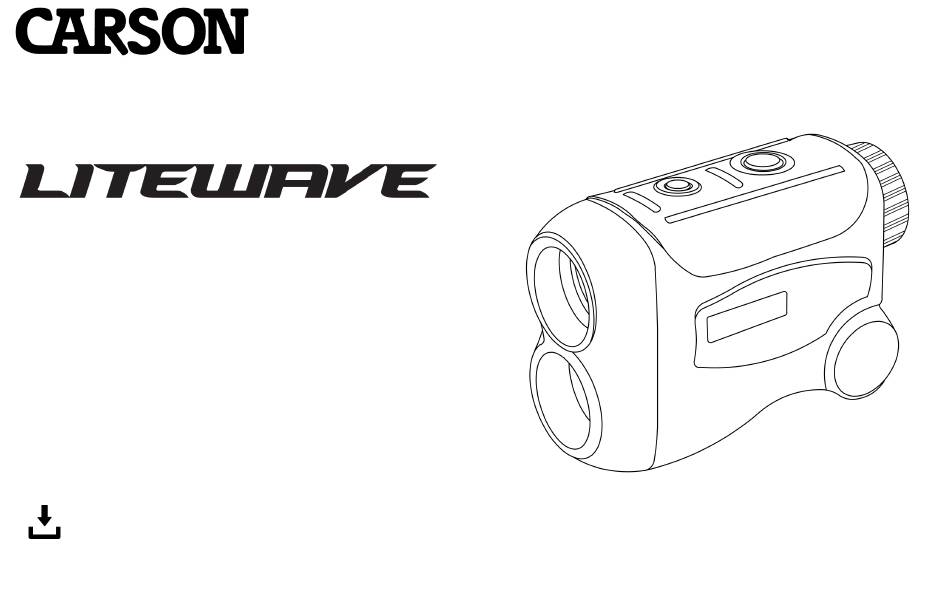

- Page 1 ® RF-650 650 Yard Rangefinder INSTRUCTIONS FOR USE PDF : www.carson.com/RF650 English / Français / Español / Deutsche / 日本語...
-
Page 2: Specifications
Congratulations on selecting your new Carson® RF-650 LightWave™ rangefinder! With reasonable care, your rangefinder will provide you with years of enjoyment. In order to achieve optimum performance, please read the instructions carefully on the proper use and care of your rangefinder. - Page 3 INTRODUCTION The Carson® RF-650 LiteWave™ rangefinder emits a laser beam that is invisible and safe to the eyes. The LiteWave™ then calculates distances by measuring the time it takes for the laser to travel from the rangefinder to the target and then back again.
-
Page 4: Inserting The Battery
INSERTING THE BATTERY Flip tab on battery door up and twist counter clockwise to remove. Insert included CR2 3-Volt Lithium battery into the compartment negative side first and replace battery door. A low battery icon will appear at the top of the viewing screen when it is time to replace the battery. - Page 5 USING YOUR RANGEFINDER FOCUSING While looking through the eyepiece, turn the eyepiece clockwise or counter-clockwise until the viewing subject is in focus.
-
Page 6: Units Of Measure
UNITS OF MEASURE The LiteWave™ can be used to measure distances in either Yards or Meters. To change the unit of measure, first power on the unit and then press and hold both the MODE and POWER buttons simultaneously for three seconds. You will see the reticle display toggle between “Y”... - Page 7 MODE 1: MEASURING ACTUAL DISTANCE AND DEGREE OF ELEVATION While looking through the eyepiece, press the POWER button to activate the LCD reticle display. Focus on your viewing subject. Place the crosshairs in the center of the reticle on your target object and press the POWER button again. The LCD will display both the degree of elevation from +90°...
- Page 8 MODE 2: MEASURING ACTUAL DISTANCE, DEGREE OF ELEVATION, HORIZONTAL DISTANCE AND VERTICAL HEIGHT After powering on the unit, press the MODE button once to access Mode 2. This mode displays the same information as Mode 1 but also displays the horizontal distance and vertical height.
- Page 9 When viewing at steep inclines or declines, the actual distance to your subject is always longer than the horizontal distance. The horizontal distance takes into account the fact that your target might be at a different elevation than you are. Mode 2 displays both the actual and horizontal distances.
- Page 10 The LiteWave™ can also measure the height of the object you are viewing. This can be accomplished several different ways depending on your elevation relative to the object you are viewing. If you are standing level to the base of the object you are viewing, simply point the rangefinder to the top of the object and press the POWER button to obtain a measurement.
- Page 11 If you are standing level with the top of the object you are viewing, point the rangefinder to the base of the object and obtain a measurement. The Height will appear next to the word “High” in the LCD display.
- Page 12 If you are standing at an elevation that is in between the top and bottom of the viewing subject first point the rangefinder to the top of the object and obtain a measurement (Height A). Then point the rangefinder to the base of the object and obtain a measurement (Height B).
- Page 13 If you are standing at a level that is below the base of the object you are viewing, first point the rangefinder to the top of the object and obtain a measurement (Height A). Then point the rangefinder to the base of the object and obtain a measurement (Height B).
- Page 14 If you are standing at a level that is above the top of the object you are viewing, first point the rangefinder to the base of the object and obtain a measurement (Height A). Then point the rangefinder to the top of the object and obtain a measurement (Height B).
-
Page 15: Tripod Mount
MODE 3: CONTINUOUS MEASURING OF ACTUAL DISTANCE, DEGREE OF ELEVATION, HORIZONTAL DISTANCE AND VERTICAL HEIGHT After powering on the unit, press the MODE button twice to access Mode 3. This mode displays all the same information as shown in Mode 2, however, the measurements will continuously update as you move the reticle around and target different objects. - Page 16 3. For a more thorough cleaning, photographic type lens cleaning fluid may be used. Always apply the fluid to the cleaning cloth, never directly on the lens. 4. IMPORTANT: Never attempt to clean your rangefinder internally or try to take them apart.
-
Page 17: Warranty
This Carson product is warranted to be free from defects in material and workmanship for a period of two years from date of purchase. During this period Carson will, at its option and without charge, either repair any part or assembly of parts found to be... -
Page 18: Warranty Procedure
RA, and failure to obtain an RA will prevent or delay processing of the warranty claim. To obtain an RA call 631-963-5000, or write to Carson Warranty Service, 2070 Fifth Ave, Ronkonkoma NY 11779 with a description of the problem. -
Page 19: Fcc Note
FCC NOTE This device has been tested and complies with the limits for a Class B digital device, Part 15 of the FCC Rules and to EU EMC directive. Two conditions must be met for operation to take place: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 Notice No. 50, dated June 24, 2007. Caution: There are no user controls, adjustments or procedures. Performance of procedures other than those specified herein may result in access to invisible laser light. Carson Optical 2070 5th Avenue Ronkonkoma, NY 11779 www.carson.com info@carson.com...
